Aerogel Blankets Outperform Polyurethane in Cryogenic Piping Through High Emissivity

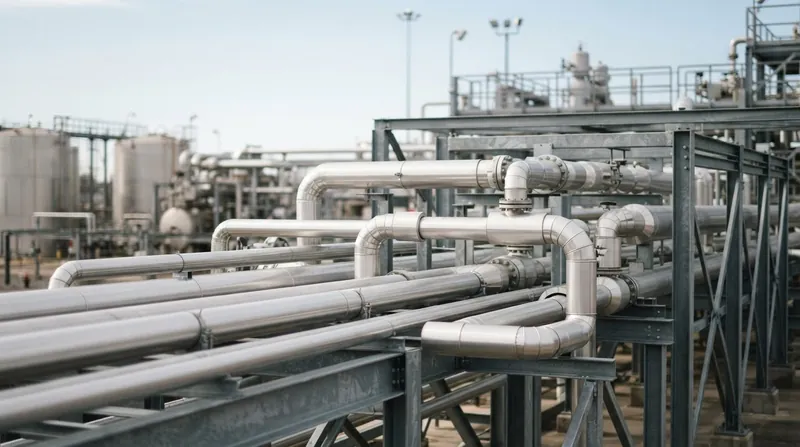

Inside a liquefied natural gas facility, a stainless steel pipeline carrying fluid at -161°C fights a continuous thermodynamic battle against the surrounding atmosphere. The primary engineering challenge is not merely preventing the cryogenic liquid from boiling off into gas. It is preventing the ambient air from destroying the pipe's exterior.

When atmospheric moisture contacts a surface chilled below the local dew point, it condenses into liquid water. On a cryogenic line, that condensation rapidly freezes into heavy, destructive ice. To stop this, engineers must wrap the pipe in insulation thick enough to keep the outermost surface warmer than the dew point.

For decades, the standard defense has been rigid polyurethane foam. Polyurethane offers a respectable thermal conductivity of roughly 0.025 W/m-K. However, because it is a rigid, closed-cell plastic, it requires a protective outer jacket to shield it from weather, ultraviolet light, and mechanical damage.

That protective layer is almost always a smooth aluminum or stainless steel jacket. While metal provides excellent physical armor, it introduces a severe thermodynamic handicap at the surface. The flaw lies in a property called emissivity, which dictates how effectively a material exchanges thermal radiation with its environment.

A polished aluminum jacket has an emissivity rating of approximately 0.05, meaning it reflects 95% of the infrared radiation striking it. In a high-temperature application, this low emissivity is highly desirable because it traps heat inside the pipe. In a cryogenic application, it creates a compounding liability.[1]

The Emissivity Trap

To keep an insulation jacket above the dew point, the surface must absorb heat from the ambient room to offset the cold conducting outward from the pipe. Heat arrives at the jacket through two mechanisms: convective warming from the surrounding air, and radiative warming from the environment.

Because the aluminum jacket reflects nearly all ambient infrared radiation, it starves the surface of radiative warming. Deprived of that incoming heat energy, the metal jacket's temperature drops sharply toward the temperature of the cryogenic fluid inside.

To compensate for this cold, reflective surface, engineers must drastically increase the thickness of the underlying polyurethane foam. The foam must provide enough thermal resistance to force the jacket temperature back above the dew point using convective warming alone. This results in massive, space-consuming pipe profiles.

The alternative is silica aerogel, a synthetic, highly porous ultralight material derived from a gel in which the liquid component has been replaced with gas. First synthesized in 1931 by Samuel Kistler, aerogel was largely a laboratory curiosity until manufacturers successfully embedded the fragile gel into flexible fiber blankets.

Commercially packaged as flexible blankets, aerogel systems fundamentally rewrite the thermodynamic math of cryogenic piping. The first advantage is conductive. Aerogels achieve a thermal conductivity as low as 0.013 W/m-K, roughly half that of rigid polyurethane.

Suppressing Nanoscale Conduction

This exceptional resistance stems from the material's nanoscale architecture, which exploits a phenomenon known as the Knudsen effect. In standard insulation, heat travels through the air trapped inside the material's pores as gas molecules collide with one another.

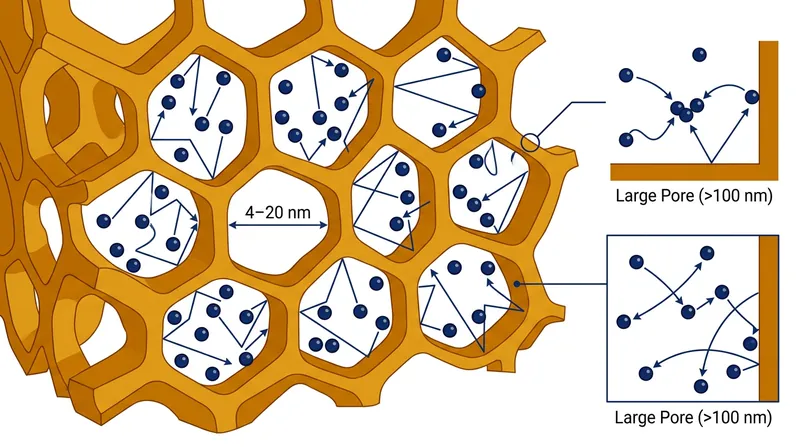

In an aerogel, the pores are between 4 and 20 nanometers wide. This diameter is smaller than the mean free path of the gas molecules themselves. Because the pores are so restricted, the air molecules collide with the solid silica lattice more often than they collide with each other.

This physical constraint effectively eliminates gaseous thermal conduction, leaving only the tortuous, highly fragile silica skeleton to transfer heat. By halving the thermal conductivity, an aerogel blanket immediately cuts the required insulation thickness by 50% compared to polyurethane.

But the true space-saving power of the aerogel system emerges at its outer boundary, where it actively leverages thermal radiation rather than fighting it. Cryogenic aerogel blankets, such as Aspen Aerogels' industry-standard Cryogel Z, are manufactured with a factory-applied, integral vapor retarder.[2]

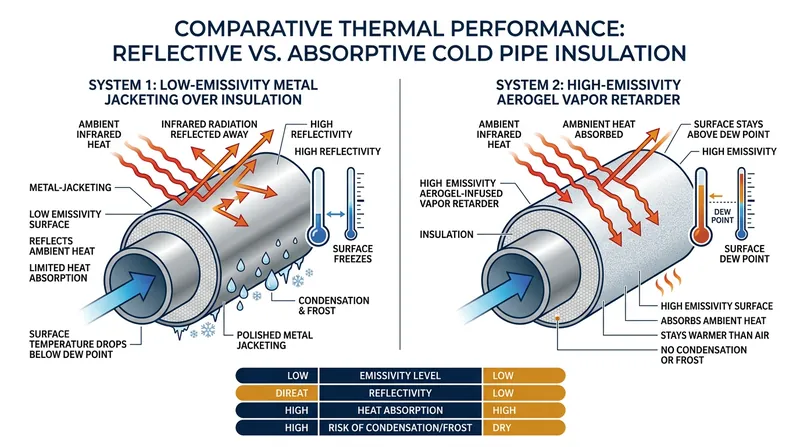

Unlike shiny metal jacketing, this protective outer layer is engineered with a dull, high-emissivity finish. Its surface emissivity rating is typically 0.90, meaning it absorbs 90% of ambient infrared radiation. This high emissivity transforms the outer surface into an active thermal absorber.[2]

The Compounding Thickness Advantage

By drinking in the ambient radiant heat from the surrounding facility, the vapor retarder warms itself. This continuous influx of radiant energy easily holds the surface temperature above the dew point. When high emissivity is paired with ultra-low thermal conductance, the results are exponential.

Because the surface is actively warmed by the room, the underlying insulation does not need to work as hard to maintain the required temperature differential. Consequently, an aerogel blanket can prevent condensation at a fraction of the thickness required by a metal-clad polyurethane system.

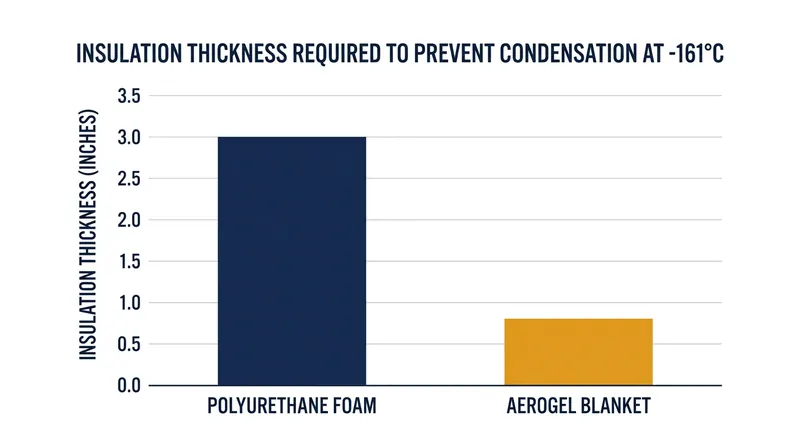

In a standard 26.7°C environment with 70% relative humidity, a cryogenic line might require 3 inches of polyurethane to stay dry. An aerogel blanket can achieve the exact same thermodynamic result at just 0.8 inches.[2]

This dramatic reduction in profile translates directly into facility-wide savings. Thinner pipes mean tighter pipe racks, smaller footprints, and significantly lower structural steel requirements. In crowded petrochemical plants and offshore platforms, this spatial efficiency is often the difference between a feasible layout and an impossible one.

Beyond the thermodynamic math, aerogel blankets solve the mechanical failures that plague rigid foams. When a steel pipe is cooled to -161°C, the metal physically contracts. Rigid polyurethane foam cannot absorb this shrinkage, forcing engineers to install complex, labor-intensive contraction joints.

Flexibility Under Extreme Cold

If these joints fail, the rigid foam cracks, creating fissures where ambient moisture can penetrate. Once water breaches the system, it freezes against the cryogenic pipe, destroying the insulation from the inside out and triggering severe corrosion under the insulation.

Aerogel blankets eliminate this mechanical vulnerability entirely. The fiber-reinforced silica matrix remains completely flexible even at deep cryogenic temperatures. As the underlying steel pipe contracts and expands, the aerogel blanket simply moves with it, requiring no specialized joints or stress-relief gaps.

Furthermore, the aerogel matrix is inherently hydrophobic. Even if the outer vapor retarder is punctured by mechanical damage, the insulation itself repels liquid water. This drastically reduces the risk of ice formation and protects the underlying steel from catastrophic corrosion.

"It addresses the biggest industry pain points — thermal loss, install safety and CUI [corrosion under insulation] — without trade-offs," says Chad Cannan, chief technology officer at Alkegen, a manufacturer of fiber-enhanced aerogel insulation.

The installation process also heavily favors the flexible blanket. Rigid polyurethane must be pre-fabricated into precise half-shells or injected into molds, requiring extensive custom engineering for every valve, elbow, and flange. A mismatch in the field leads to gaps and thermal leaks.

The Economic Calculation

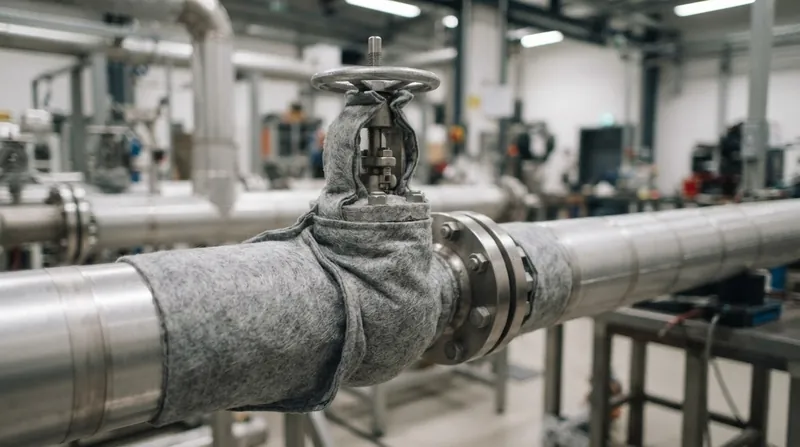

Aerogel blankets arrive on site in standard rolls. Technicians simply cut the material to size and wrap it directly around the complex geometries of the piping system. This streamlined logistics chain accelerates construction schedules and significantly reduces labor costs.

Despite these overwhelming advantages, aerogel insulation is not universally adopted. The primary barrier is the initial material cost. On a strict per-square-foot basis, silica aerogel blankets are substantially more expensive to manufacture and purchase than commodity polyurethane foam.

For short-term installations or low-stakes chilled water lines where space is abundant, the premium price of aerogel is difficult to justify. In these highly commoditized applications, polyurethane foam remains the dominant economic choice, provided the facility accepts the thicker profile.

However, in true cryogenic applications, the lifecycle economics heavily favor the aerogel system. The upfront material premium is rapidly offset by the reduction in structural steel, the elimination of contraction joints, and the accelerated installation timeline.

In the unforgiving environment of cryogenic transport, insulation is not merely a passive barrier. By combining the nanoscale suppression of gas conduction with the macroscopic advantage of a high-emissivity surface, aerogel blankets actively manage the thermodynamic environment, rendering rigid foams obsolete.
