Why Switching Transformers at Voltage Zero Doubles Magnetic Flux and Triggers Extreme Inrush

The fate of a power transformer is sealed in the exact millisecond its circuit breaker closes. If the contacts snap shut at the precise moment the alternating voltage crosses zero, the magnetic core is instantly condemned to saturation.[1][4]

This outcome defies standard electrical intuition. In most household and industrial circuits, switching a device on at zero volts minimizes mechanical stress, prevents arcing across the breaker contacts, and avoids sudden power spikes.[2]

But a high-voltage transformer is not a standard resistive load; it is a magnetic machine governed strictly by Faraday’s Law of Induction. The magnetic flux inside the iron core does not mirror the voltage directly.[4]

Instead, the magnetic flux is the mathematical integral of the voltage over time. Because the incoming voltage is a sine wave, its integral is a cosine wave, meaning the two forces are permanently locked 90 degrees out of phase.[1][4]

When a transformer operates normally, the magnetic flux swings symmetrically back and forth, reaching its maximum positive value exactly when the voltage crosses zero. The core is physically sized to handle this specific, steady-state peak flux without saturating.[2][4]

The crisis begins when the breaker closes on an unenergized, resting core at that same zero-voltage mark. The core starts with zero magnetic flux, but the incoming voltage wave demands a full half-cycle of continuous positive area.[1][2]

The Mathematics of Flux Doubling

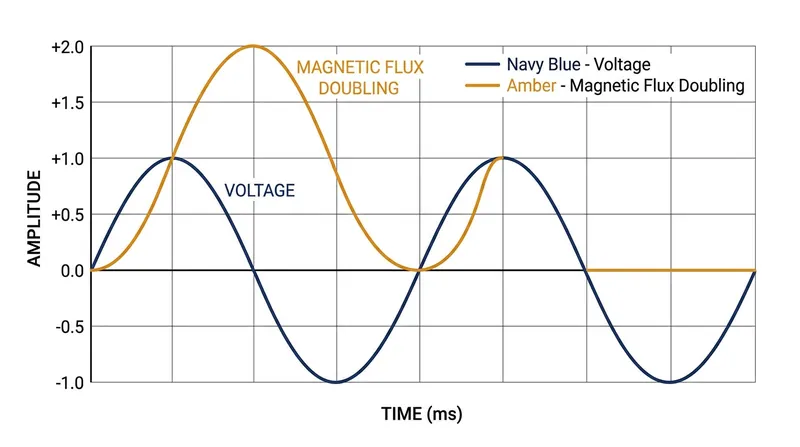

Because the flux must start at zero and accumulate the entire positive half-wave of the voltage, it cannot swing symmetrically. It is forced to climb entirely in one direction, shifting the entire flux wave above the horizontal axis.[1][4]

By the time the voltage finally reverses direction to pull the flux back down, the core has accumulated twice the normal magnetic area. The flux reaches exactly 200 percent of its designed steady-state peak.[2][3]

"The integration of a sine wave starting at zero mathematically guarantees a unipolar flux wave that peaks at twice the normal amplitude," explains the Factlen Editorial Team. "There is no physical escape from this transient offset."[3]

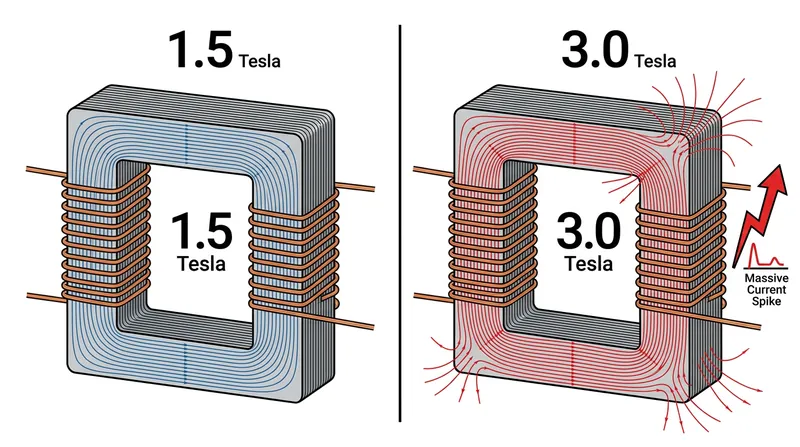

Electrical steel, the highly engineered material inside the transformer, cannot contain this doubled magnetic field. Transformers are built economically, with cores designed to operate at roughly 1.5 to 1.7 Tesla, just below the steel's absolute saturation limit of 2.0 Tesla.[1][2]

When the transient flux demands 3.0 to 3.4 Tesla, the steel simply runs out of magnetic domains to align. The core saturates completely, losing its ability to guide the magnetic field and effectively vanishing from the circuit.[2]

The Inrush Current Spike

Once the iron core saturates, the transformer's primary winding behaves as if it were wrapped around empty space. Its relative permeability plummets from several thousand down to exactly one, identical to the surrounding air.[1][4]

Without the iron core to provide inductive reactance, the only thing holding back the electrical grid is the meager copper resistance of the primary coil. The grid pours massive amounts of current into the effectively empty coil.[2]

This resulting surge is known as the inrush current. It can easily reach 10 to 50 times the transformer's normal full-load operating current, transforming a quiet substation device into a violent, vibrating electromagnet.[1][2]

"During deep saturation, the inrush current is limited almost entirely by the air-core reactance of the winding," notes the Electrical Engineering Portal. "This creates severe mechanical forces that attempt to tear the coils apart."[2]

The physical consequences of this surge are immediate and violent. The massive current generates extreme electrodynamic forces, causing the copper windings to physically vibrate against their bracing and emit a loud, aggressive buzzing sound.

If the protective relays are not properly configured to recognize this specific harmonic signature, they will interpret the inrush as a catastrophic short circuit. The relays will trip the breakers, instantly shutting the system down again.[5]

The Role of Residual Magnetism

The 200 percent flux doubling assumes the core was perfectly demagnetized before the breaker closed. In reality, transformers almost always retain a magnetic memory of their previous operating cycle.[1][2]

When a transformer is turned off, the alternating current does not cleanly erase the magnetic field. A remanent flux is left behind, permanently frozen into the crystalline structure of the electrical steel.[2][4]

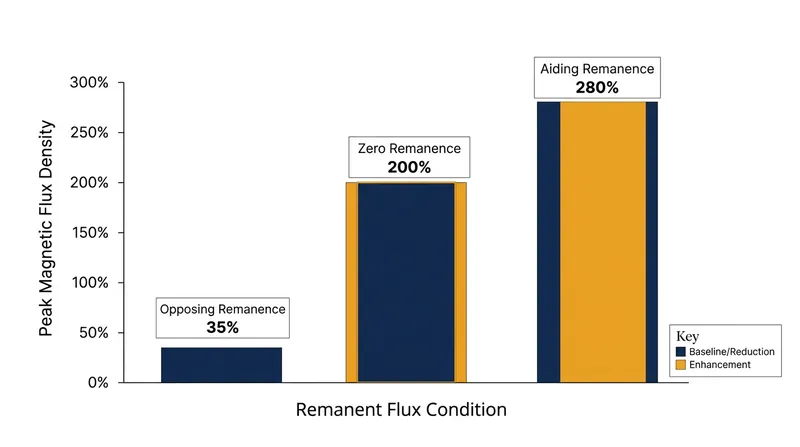

If the new voltage wave happens to push the flux in the same direction as this leftover remanence, the two values add together. The transient peak can reach 250 to 280 percent of the normal maximum.[1][2]

This worst-case scenario drives the core so deeply into saturation that the inrush current approaches the magnitude of a dead short circuit. The mechanical stress on the paper insulation and wooden bracing becomes severe.

Conversely, if the voltage wave pushes against the remanent flux, the initial surge is heavily dampened. The core absorbs the incoming energy simply by erasing its previous magnetic memory, keeping the current low.[1][2]

The Point-on-Wave Solution

The engineering solution to this physics trap requires abandoning the instinct to switch at zero volts. To prevent the flux from doubling, the breaker must close at the exact peak of the voltage wave.

When the circuit is energized at maximum voltage, the voltage immediately begins to decrease, providing only a quarter-cycle of positive area before reversing. The resulting flux integral perfectly matches the steady-state requirement.[1]

"Controlled switching systems actively monitor the grid voltage and delay the breaker closure until the precise millisecond of the voltage peak," details a 2022 Hitachi Energy application guideline. "This effectively eliminates the transient flux offset."

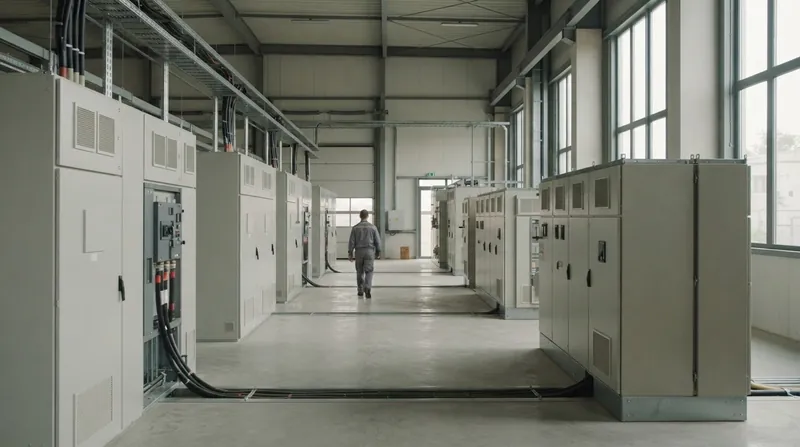

Implementing this timing requires highly specialized, independent-pole circuit breakers. Standard three-phase breakers mechanically link all three contacts, making it impossible to hit the optimal voltage peak for all three alternating phases simultaneously.[1]

Because the three phases of an alternating current grid are offset by 120 degrees, a single mechanical switch will always catch at least one phase near a zero-crossing. One of the three transformer legs will inevitably saturate.[1][2]

Managing the Unavoidable

Since perfect point-on-wave switching is expensive and mechanically complex, most power grids simply accept the inrush current as an unavoidable physical reality. Engineers design the system to survive the surge rather than prevent it.[5]

Protective relays are programmed with harmonic restraint algorithms. Because the saturated inrush current is heavily distorted and rich in second-harmonic frequencies, the relays can distinguish it from a genuine electrical fault.[5]

"Modern digital relays measure the ratio of the second harmonic to the fundamental frequency," explains a 2020 technical paper by Schweitzer Engineering Laboratories. "If the ratio exceeds 15 percent, the relay blocks the trip signal."[5]

The transformer itself is heavily braced with steel clamps and epoxy-impregnated paper to withstand the violent magnetic forces. The copper coils are physically locked in place to prevent the insulation from rubbing away during the surge.[2]

The decay of this transient offset depends entirely on the circuit's resistance, meaning highly efficient grids actually sustain the violent inrush longer. The core only pulls out of saturation when the flux wave finally bleeds off its excess area and centers itself back on the axis.[1][3]
