Insulating Cylinders Below the k/h Threshold Accelerates Heat Loss by Expanding Surface Area

The counterintuitive physics of thermal insulation relies on a strict geometric constraint: the object must be curved, and its starting radius must sit below a specific mathematical threshold. For a flat wall, adding insulation always traps heat because the exposed surface area remains perfectly constant. But for a cylinder or a sphere, wrapping it in material expands its outer footprint.

When that initial radius is small enough, the expanding surface area sheds heat into the air faster than the added thickness can block it. This threshold is known as the critical radius of insulation. Below this exact point, adding a thermal blanket to a hot object actually accelerates its cooling process.

"The critical radius of insulation is the point where overall resistance is lowest and heat loss is highest on a curved surface," notes a 2024 technical review by Chemical Engineering Experts. This phenomenon routinely traps students and novice engineers who assume that insulation universally acts as a barrier. In reality, it acts as a radiator until the geometry dictates otherwise.[1]

The mechanism is a battle between two competing forces: conduction and convection. Conduction is the transfer of heat through the solid insulation material, which resists the flow. Convection is the transfer of heat from the outer surface into the surrounding fluid, which in most cases is ambient air.

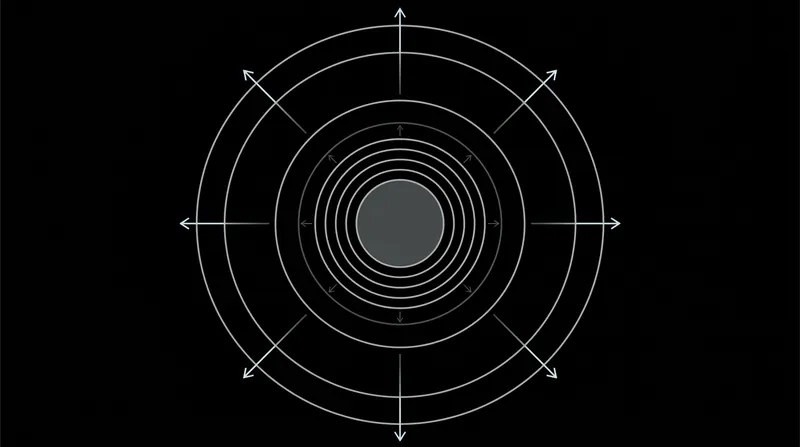

As a manufacturer wraps a bare copper pipe in fiberglass, the conductive resistance increases logarithmically with every millimeter of thickness. Simultaneously, the outer circumference of the pipe grows, dropping the convective resistance linearly. Because the surface area expands faster than the thermal barrier thickens, the total resistance plummets.

Why Surface Area Defeats Thickness

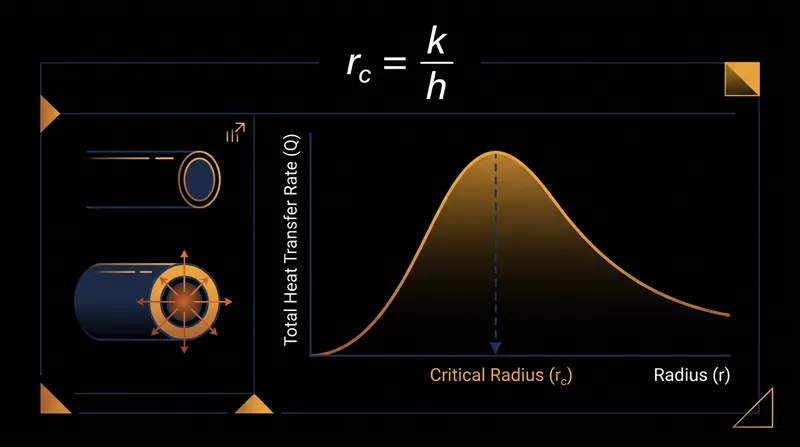

The exact crossover point is governed by a simple ratio: the thermal conductivity of the insulation divided by the convective heat transfer coefficient of the environment. For any cylindrical object, the critical radius is defined strictly as the conductivity over the coefficient. Once the outer radius surpasses this value, the math flips and the insulation finally begins to insulate.

Dr. M. Subramanian, a chemical engineering professor who published a comprehensive 2019 analysis on the topic, quantified the standard limits. "Noting that the lowest value of the coefficient encountered in practice is about 5 watts per square meter-kelvin for the case of natural convection of gases, and that the thermal conductivity of common insulating materials is 0.05 watts per meter-kelvin," he wrote, the largest critical radius is typically 10 millimeters.

This means that any bare cylinder thinner than 20 millimeters in diameter is highly vulnerable to this paradox. If an engineer attempts to insulate a 5-millimeter tube with standard foam in still air, the heat loss will climb steadily. It will only peak when the total radius hits exactly 10 millimeters.[2]

Only after crossing that 10-millimeter threshold does the conductive resistance finally overpower the expanding surface area. Any additional material beyond that point will behave as expected, trapping the heat inside the core. This is why industrial designers must calculate the crossover before wrapping small-diameter components.

The phenomenon is not merely a theoretical curiosity; it dictates the physical design of modern infrastructure. Electrical engineers actively exploit the critical radius to keep power cables from melting under heavy loads. The plastic sheath around a standard copper wire is not just there to prevent shocks.

Cooling Wires and Choking Pipes

By thickening the wire to approach the 10-millimeter critical radius, the plastic insulation maximizes the surface area exposed to the air. This allows the electrical line to dissipate the resistive heat generated by the current much faster than a bare wire ever could. The insulation effectively acts as a cylindrical cooling fin.

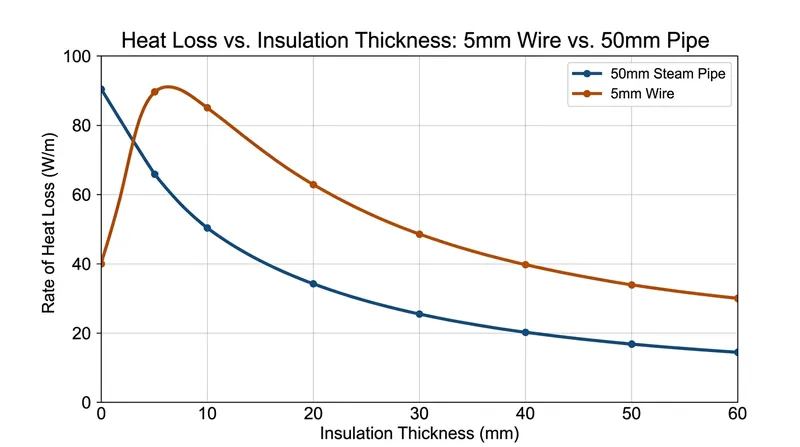

Conversely, mechanical engineers working with industrial steam pipes face the opposite side of the equation. A standard steam pipe in a power plant usually starts with a bare radius of 50 millimeters or more. Because the starting geometry is already five times larger than the critical threshold, the paradox never triggers.

For these massive conduits, the very first millimeter of fiberglass immediately reduces heat loss. The surface area still expands, but the starting circumference is already so large that the fractional gain in convection is negligible. The conductive resistance dominates from the outset, saving massive amounts of energy.

Subramanian's 2019 calculations demonstrated that insulating a standard steam pipe operating for 200 hours a year slashes heat loss from 4,043 watts down to 919 watts. Because the pipe's radius sits far to the right of the critical peak, the thermal barrier behaves exactly as intuition suggests.

However, the 10-millimeter rule is not a universal constant; it is highly sensitive to the surrounding environment. The denominator in the equation, the convective heat transfer coefficient, shifts dramatically when the air stops being still. Wind and forced ventilation rewrite the math entirely.

How Wind Shifts the Threshold

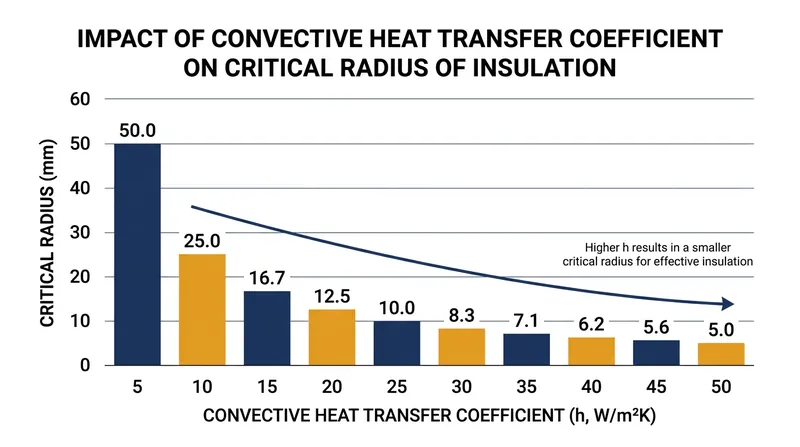

On a calm day inside a quiet facility, natural convection barely pulls heat away, keeping the coefficient low and the critical radius relatively large. But if that same pipe is placed outdoors in a strong breeze, forced convection takes over. The heat transfer coefficient can easily spike from 5 to 50 watts per square meter-kelvin.

When the denominator increases tenfold, the critical radius shrinks proportionally, dropping from 10 millimeters to just 1 millimeter. Under forced convection, almost every physical object in an industrial setting is larger than the critical threshold. The paradox vanishes, and insulation returns to its traditional role of trapping heat.[2]

This environmental sensitivity forces aerospace and automotive engineers to constantly adjust their thermal models. A wire that safely dissipates heat while a vehicle is moving might suddenly overheat when the vehicle stops and the forced airflow disappears. The shifting critical radius dictates exactly how thick the wire's jacket must be.

The geometry of the object also alters the fundamental equation. While pipes and wires are cylindrical, chemical reactors and storage tanks are often spherical. For a sphere, the surface area expands with the square of the radius, making the convective cooling effect even more aggressive.[1]

To account for this squared expansion, the critical radius formula for a sphere doubles to twice the conductivity over the coefficient. If a cylindrical pipe peaks at a 10-millimeter radius, a spherical node made of the same material will not peak until it reaches 20 millimeters. This makes small spherical components notoriously difficult to insulate.

Spherical Dynamics and Edge Cases

This doubled threshold is particularly relevant in cryogenic storage and pharmaceutical manufacturing, where small spherical droplets or valves must be kept at precise temperatures. Wrapping a small spherical valve in standard foam will almost certainly accelerate its heat loss. Engineers must either leave it bare or bury it in massive amounts of material to cross the 20-millimeter peak.

Researchers at California Polytechnic State University attempted to build a portable classroom apparatus in 2018 to demonstrate this exact phenomenon. They initially used thick power resistors as the heated core, but the base diameters were too large to clearly show the heat loss accelerating. The experiment only succeeded when they switched to ultra-thin heating elements.[3]

The Cal Poly team eventually used 3D-printed polylactic acid as the insulation layer over a narrow heating rod. By carefully controlling the thickness, they successfully proved that the insulated setup shed significantly more heat than the bare metal. The physical demonstration confirmed what the mathematics had long predicted.[3]

The University of Waterloo's 2014 engineering curriculum emphasizes that this crossover is a foundational lesson in thermal resistance networks. Students are taught to map the competing resistances in series, proving that the total thermal resistance dips into a valley before climbing again. It forces a departure from linear thinking.

Ultimately, the critical radius of insulation proves that material properties cannot be divorced from their physical shape. A substance that blocks heat in a flat sheet can easily become a thermal radiator when wrapped around a narrow curve. The geometry dictates the function just as much as the chemistry does.

The Limits of Intuition

Materials scientists are currently working to shrink the critical radius by developing advanced aerogels with ultra-low thermal conductivities. By driving the numerator of the equation down, they can push the critical threshold below one millimeter even in still air. This would allow microscopic components to be insulated without accidentally cooling them.[2]

Until those next-generation materials become standard, thermal management will remain a delicate balancing act. Engineers cannot simply add material and assume the system will retain more heat. They must plot the curve, find the peak, and ensure their design lands safely on the correct side of the slope.

The mathematics of the critical radius serve as a permanent reminder that human intuition is built for a flat world. When dealing with the expanding geometry of cylinders and spheres, the obvious solution is often the exact mechanism that causes the system to fail.
