Intel Claims 1.4nm Process Will Achieve Performance Parity With TSMC's A14 Node, Signaling Foundry Race Turning Point
Intel expects its upcoming 14A manufacturing process to perform within 5% of TSMC's A14 node, setting up a tight race for the 1.4nm-class generation. Both semiconductor giants are targeting high-volume production in 2028.
By Sergei Orlov
Share this story
On September 25, 2026, Intel Foundry's chief technology and operations officer, Naga Chandrasekaran, told investment bank KeyBanc that Intel's upcoming 14A manufacturing process is expected to deliver performance "within 5%" of Taiwan Semiconductor Manufacturing Company's (TSMC) A14 node. The statement places the two semiconductor giants in a dead heat for the 1.4nm-class generation of chipmaking, with both technologies slated for high-volume production in 2028. For an industry accustomed to TSMC holding a comfortable lead in advanced node manufacturing, Intel's assertion signals a potential turning point in the foundry race.[1][2]
The "within 5%" metric is an intentionally broad piece of corporate messaging. Chandrasekaran did not define the specific workloads, power envelopes, or testing conditions used to model the comparison. As Tom's Hardware noted in its analysis, "Delivering 'within 5%' performance is an ambiguous statement that may mean that 14A will be 5% faster than A14, or that 14A will be 5% slower than A14."
In semiconductor manufacturing, performance is a fluid term that balances transistor switching speed, power consumption, and physical density. Historically, Intel has optimized its nodes for raw processor frequency, while TSMC has prioritized packing more transistors into a smaller area.[1][2]
When evaluating the actual specifications published by both companies, Intel's parity claim appears unusually conservative. Intel's current-generation 18A process already achieves maximum clock speeds that are highly competitive with TSMC's N2 node, with Intel's Core Ultra X9 388H processors hitting 5.10 GHz. According to Intel's own projections, the jump from 18A to 14A will yield a 15% to 20% performance improvement at the same power level. Meanwhile, TSMC projects its A14 node will deliver a 10% to 15% speed increase over its N2 process.[1][2]
By applying these official generational improvement claims to the clock speeds of currently shipping silicon, independent analyses suggest Intel's 14A could actually outperform TSMC's A14. Even in a worst-case scenario for Intel—where its 14A node only achieves the minimum 15% gain and TSMC's A14 hits its maximum 15% target—Intel's process would still maintain an approximate 2% theoretical advantage. This discrepancy between the mathematical projections and Chandrasekaran's modest forecast suggests Intel is adopting a deliberate strategy to under-promise and over-deliver, aiming to rebuild trust with external foundry customers.[1]
TSMC is not standing still while Intel attempts to close the gap. The Taiwanese foundry has reportedly accelerated its own development timeline, initiating pilot production runs for the A14 node at its Baoshan Fab 20 and Taichung Fab 25 facilities. This early testing phase allows TSMC to calibrate its machinery and evaluate the viability of the node before committing to full-scale manufacturing. If the pilot phase proceeds without significant yield defects, TSMC plans to begin risk production in 2027, keeping it firmly on track for its 2028 volume targets.[3]
The competition between 14A and A14 will also test different approaches to lithography and power delivery. Intel's 14A node is designed to utilize advanced backside power delivery systems to enable more direct contact-based power routing. This architectural shift removes power interconnects from the front of the silicon wafer, theoretically reducing resistance and freeing up routing space for logic signals.[1]
TSMC's A14 will rely on its own gate-all-around nanosheet transistors, but the foundry is reportedly taking a more iterative approach to its power delivery architecture. Both companies are racing to finalize these complex physical implementations, knowing that a single misstep in defect density or wafer yield could easily erase a 5% performance advantage.[1][2]

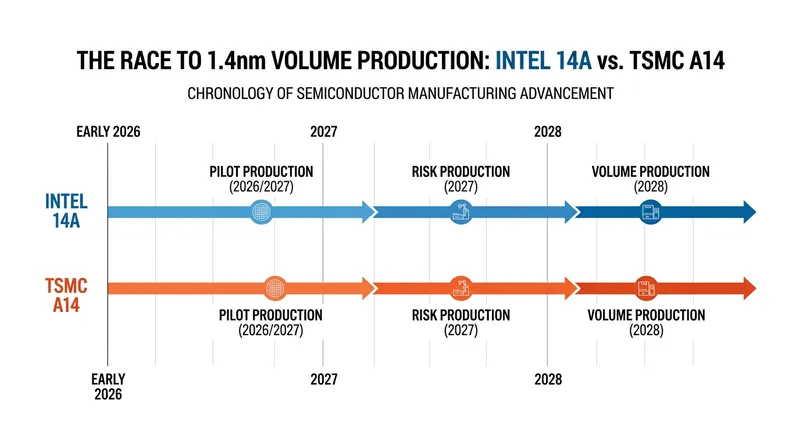

The true measure of these 1.4nm-class nodes will not be internal projections, but the silicon they eventually produce for outside clients. Intel plans to begin risk production for 14A in the second half of 2027, roughly aligning with TSMC's accelerated timeline. Until commercial chips from Apple, AMD, or Qualcomm roll off these respective assembly lines and undergo independent benchmarking, the parity between Intel and TSMC remains a theoretical model rather than a physical reality.[1][2][3]
Key points
- Intel Foundry executive Naga Chandrasekaran stated the company's upcoming 14A process will perform "within 5%" of TSMC's A14 node.
- Both 1.4nm-class manufacturing processes are currently targeting high-volume production in 2028.
- TSMC has reportedly accelerated its timeline, beginning pilot production of its A14 node ahead of schedule.
- Analysts suggest Intel's parity claim may be intentionally conservative, as published specifications indicate Intel's 14A could potentially outperform TSMC's equivalent.
Timeline
2026
Intel and TSMC ramp up production of their respective 18A and N2 nodes.
Sep 2026
TSMC reportedly begins pilot production of its 1.4nm A14 node in Taiwan.
Sep 25, 2026
Intel Foundry executive Naga Chandrasekaran states Intel 14A will perform within 5% of TSMC A14.
H2 2027
Intel plans to begin risk production for its 14A process.
2028
Both Intel 14A and TSMC A14 are targeted to enter high-volume manufacturing.
- Independent Hardware Analysts
- Evaluates the mathematical realities of published specifications, noting that Intel's claims may undersell its actual capabilities.
- Intel Foundry Management
- Focuses on rebuilding trust through conservative performance estimates and reliable execution.
- TSMC Operations
- Prioritizes early pilot production and steady yield improvements to maintain its market dominance.
