Delayed Acknowledgments Collide With Nagle’s Buffering to Trap Interactive Microservices in 200-Millisecond Latency Deadlocks

In 1984, John Nagle sat at Ford Aerospace and watched the network collapse. The early internet was choking on its own overhead, paralyzed by a phenomenon he identified as the "small-packet problem." Engineers were building applications that transmitted data one keystroke at a time, unaware of the mathematical disaster they were creating.[1]

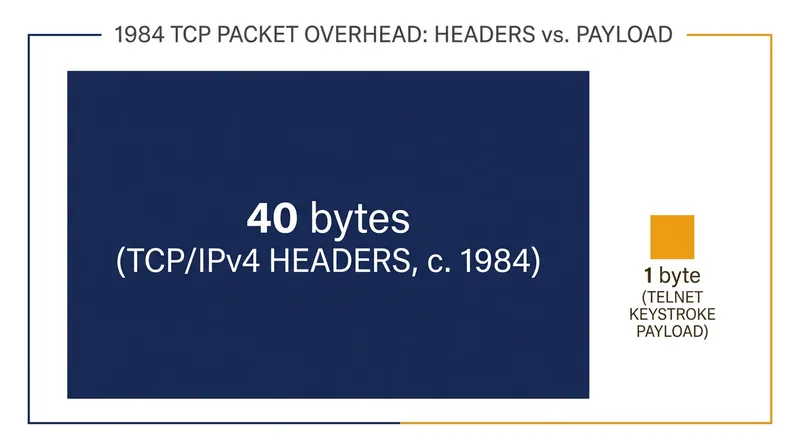

The math was brutally simple. Every piece of data sent over a Transmission Control Protocol (TCP) connection requires a 40-byte header to route it to its destination. When a user typed a single character in a Telnet session, the network transmitted a 41-byte packet to deliver one byte of actual payload.[1]

Over slow, early-generation links, these tiny packets piled up. The network became saturated not with data, but with the envelopes carrying it. Nagle realized that if the network stack did not intervene, applications would continue to flood the wires with microscopic payloads until the infrastructure failed entirely.[1]

His solution, published as Request for Comments (RFC) 896, was an elegant piece of buffering logic that became known as Nagle's algorithm. The rule was straightforward: if a sender has unacknowledged data in flight, it must buffer any new, small outgoing messages. It cannot send them until either an acknowledgment returns or a full packet's worth of data accumulates.[1]

The Second Half of the Trap

Nagle's algorithm successfully saved the early internet from congestion collapse, but it was only the first half of the mechanism that haunts modern developers. Five years later, in 1989, the Internet Engineering Task Force published RFC 1122, introducing a complementary optimization designed to reduce network chatter.[2]

This second optimization was the Delayed Acknowledgment. The authors observed that sending a dedicated acknowledgment packet for every single piece of received data was inefficient. The standard dictated that "a TCP SHOULD implement a delayed ACK, but an ACK should not be excessively delayed," capping the wait at 0.5 seconds.[2]

In practice, most operating systems implemented this delay as a 200-millisecond timer. The receiver would hold the acknowledgment, betting that the application would generate a response before the timer expired. If a response materialized, the acknowledgment could hitch a ride on the outgoing data, saving an entire packet.[2][4]

In isolation, both algorithms are brilliant optimizations. Nagle's algorithm prevents the sender from flooding the network with tiny packets, while Delayed ACK prevents the receiver from flooding the network with empty acknowledgments. But when they operate simultaneously on the same connection, they create a catastrophic feedback loop.[3][6]

The 200-Millisecond Deadlock

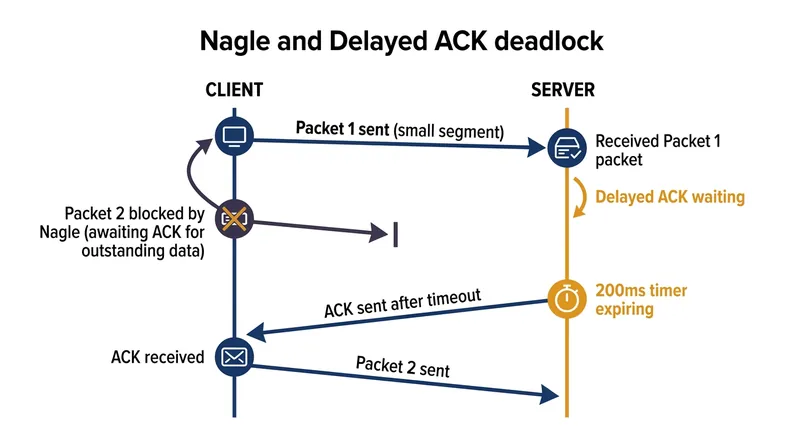

The collision occurs when an application attempts a "write-write-read" pattern, a common sequence where a client sends a header, then sends a small body, and then waits for a response. This sequence perfectly triggers the blind spots in both algorithms, trapping the data in a mathematical deadlock.[3][4]

The sequence begins when the client transmits the first small packet. Because there is no unacknowledged data in flight, Nagle's algorithm allows this first packet to traverse the network immediately. The server receives the packet, but the application does not immediately generate a response.[3]

At the server, the Delayed ACK mechanism engages. The server's TCP stack holds the acknowledgment, waiting up to 200 milliseconds for the application to provide response data to piggyback on. Meanwhile, back at the client, the application attempts to send the second small packet.[3][4]

This is where the trap snaps shut. The client's TCP stack sees that the first packet has not yet been acknowledged. Following Nagle's rule, it refuses to send the second small packet, buffering it instead. The client is waiting for an acknowledgment, and the server is waiting for more data.[1][3]

Neither side will yield. The network falls entirely silent. The deadlock persists until the server's 200-millisecond Delayed ACK timer finally expires. Only then does the server concede, transmitting the empty acknowledgment back to the client.[3][4]

Diagnosing the Invisible Bottleneck

The mechanics of this failure were famously documented in 2005 by Apple engineer Stuart Cheshire, who authored a definitive paper on the TCP performance problems caused by the interaction. Cheshire demonstrated that the deadlock was not a bug in either implementation, but a fundamental incompatibility between two perfectly functioning optimizations.[3]

Cheshire pointed out that the application layer is entirely blind to this transport-layer negotiation. A developer writing high-level code simply sees a network request that takes 200 milliseconds longer than it should, often leading to frantic debugging of application logic that is actually performing flawlessly.[3]

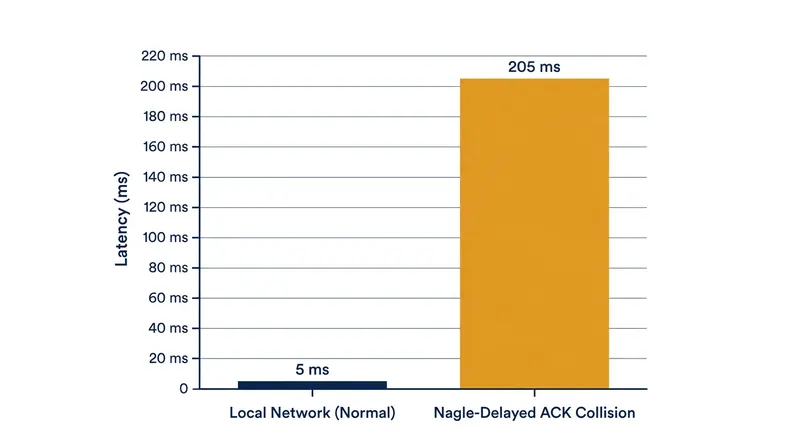

Once the client receives the delayed acknowledgment, Nagle's algorithm releases the second packet, and the transaction completes. But the damage is already done. A mandatory 200-millisecond penalty has been injected into the round trip, a delay that has absolutely nothing to do with physical network distance or bandwidth.[3][6]

The Cost in the Modern Data Center

In 1984, a 200-millisecond delay was a perfectly acceptable trade-off for preventing network collapse. Today, in modern data centers connected by fiber-optic links capable of transmitting gigabits per second, that same delay is an eternity. It is the difference between a fluid user experience and a sluggish, unresponsive application.[6]

The architecture of modern software has inadvertently amplified this vulnerability. The shift toward microservices means that a single user action might trigger dozens of internal network requests. These services frequently communicate using REST APIs or Remote Procedure Calls, exchanging small JSON payloads that perfectly fit the profile of a Nagle-Delayed ACK collision.[6]

If a user request requires five sequential microservice calls, and each call falls into the write-write-read trap, the application incurs a full second of artificial latency. Engineers often spend weeks profiling database queries and optimizing application code, completely unaware that the transport layer is intentionally stalling their traffic.[6]

The problem is particularly acute in non-pipelined, request-response protocols like HTTP/1.1 over persistent connections. When a client sends an HTTP header in one write operation and the POST body in a second write operation, it practically guarantees a collision. The transport layer cannot know that the two writes belong to the same logical request.[4][6]

To mitigate this, some engineers advocate for buffering data in user space. If the application concatenates the header and the body into a single buffer before handing it to the operating system, the TCP stack receives one large write. This satisfies Nagle's algorithm and bypasses the deadlock entirely, though it requires meticulous memory management.[4]

Bypassing the Transport Layer

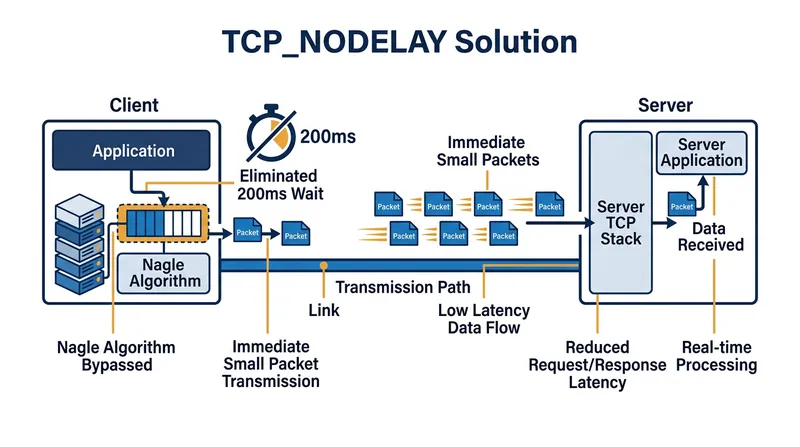

The universally accepted solution to this deadlock is to explicitly disable Nagle's algorithm. Operating systems provide a socket option named TCP_NODELAY, which instructs the TCP stack to transmit data immediately, regardless of packet size or unacknowledged data.[4][5]

For interactive applications, the bandwidth saved by Nagle's algorithm is negligible compared to the performance lost to the deadlock. Recognizing this, many modern programming environments have inverted the historical default. As one engineer noted during a 2022 architectural review, Go made the "right trade-off, albeit with a slight hint of 'we know better than you,'" by explicitly setting TCP_NODELAY to true on all network connections.[5]

Disabling Delayed ACK is also technically possible on some systems. Linux provides the TCP_QUICKACK flag, which forces the receiver to acknowledge packets immediately. However, because developers rarely control the server-side operating system configuration of third-party APIs, disabling Nagle's algorithm on the client side remains the most reliable defense.[4]

The persistence of the 200-millisecond deadlock is a testament to the durability of early internet architecture. Algorithms designed to protect a fragile, low-bandwidth network are still running silently beneath the surface of the modern web, enforcing the rules of 1984 on the microservices of today.[6]
