Why Two-Stroke Marine Diesels Use Crosshead Bearings to Isolate Crankcases From Combustion Soot

Inside the engine room of the container ship Emma Mærsk, roughly 30,000 liters of pristine lubricating oil circulate through the crankcase of a massive low-speed diesel engine. This vital fluid bathes the main bearings and crankshaft, ensuring the 14-cylinder behemoth spins smoothly at 100 revolutions per minute.

Just meters above this pristine oil bath, a violent and highly toxic chemical reaction takes place continuously. The engine burns heavy fuel oil, a dense refinery residual that contains up to 0.50 percent sulfur even under strict modern maritime regulations.[1]

The combustion of this fuel produces sulfur oxides, which combine with water vapor to form highly corrosive sulfuric acid. Alongside this acid, the burning process generates hard, abrasive soot particles that act like liquid sandpaper against metal surfaces.

If these acidic byproducts were allowed to mix with the crankcase oil, the results would be catastrophic. The acid would rapidly eat away the babbit metal of the main bearings, while the abrasive soot would score the crankshaft journals beyond repair.

The engineering challenge is absolute: the combustion chamber must be entirely isolated from the crankcase to prevent rapid mechanical failure. The solution that makes these massive engines possible is a specialized mechanical joint known as the crosshead bearing.[1]

The Trunk Piston Vulnerability

To understand why the crosshead is necessary, one must look at how conventional engines fail at this scale. In a standard automobile or truck engine, the piston connects directly to the connecting rod via a wrist pin.[2]

This conventional design is called a trunk piston. As the crankshaft turns, the connecting rod swings side to side, forcing the piston to tilt slightly and scrape laterally against the cylinder wall during each stroke.

More importantly, the bottom of a trunk piston is completely open to the crankcase environment. The same oil that lubricates the crankshaft is splashed upward onto the cylinder walls to lubricate the sliding piston rings.[2]

"In a trunk piston engine, blow-by gases inevitably slip past the piston rings and enter the crankcase directly," notes a 2023 analysis in the Journal of Marine Engineering & Technology. "For engines burning refined diesel, this is manageable through regular oil changes."

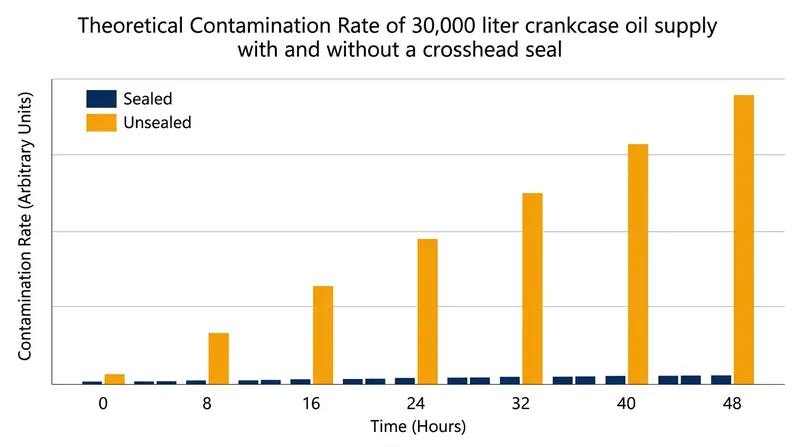

But for a marine engine with a 960-millimeter bore burning heavy fuel oil, this design is fatal. The sheer volume of acidic blow-by gas would neutralize the massive 30,000-liter oil supply's alkaline reserve within a matter of days.[2]

The Crosshead Solution

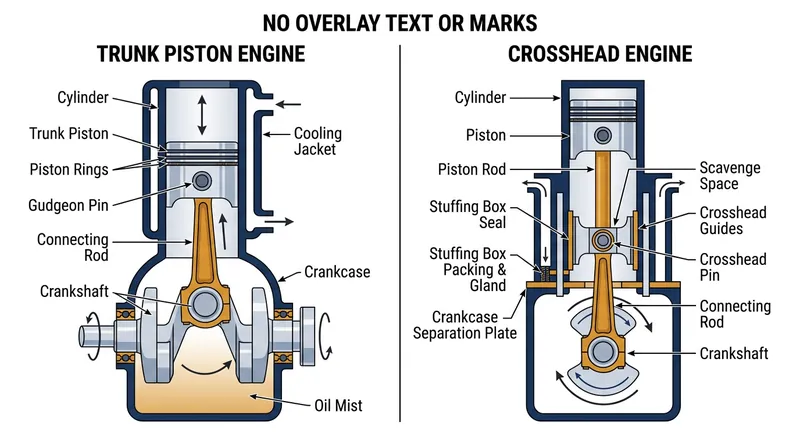

The crosshead engine abandons the direct connection entirely. Instead of attaching the connecting rod to the piston, engineers attach a perfectly straight, rigid steel column called a piston rod to the underside of the piston.[1]

This piston rod travels straight up and down, passing through a heavy metal plate that acts as the floor of the cylinder and the ceiling of the crankcase. At the center of this plate sits the stuffing box.

The stuffing box is a tightly engineered series of brass and cast-iron scraper rings that hug the sliding piston rod. It acts as an impenetrable barrier, scraping dirty oil off the rod as it moves down, and wiping clean oil off as it moves up.[1]

Below the stuffing box, the bottom of the piston rod finally meets the connecting rod. The mechanical joint that links them together is the crosshead bearing, a massive steel pin that rides in a dedicated guide shoe.

Because the crosshead bearing sits entirely below the stuffing box seal, it operates in the pristine environment of the crankcase. The connecting rod can swing wildly side to side, but the piston rod above it only ever moves in a perfectly straight line.[2]

The Dual Lubrication Mandate

By physically walling off the cylinder from the crankcase, the crosshead design allows engineers to solve the chemical problem of heavy fuel oil. The engine can now utilize two entirely different, specialized lubrication systems simultaneously.

Inside the crankcase, the system oil is optimized purely for hydrodynamic lubrication and cooling. Because it is never exposed to combustion soot or sulfuric acid, this massive volume of oil rarely needs to be changed, often lasting the lifetime of the ship.[1]

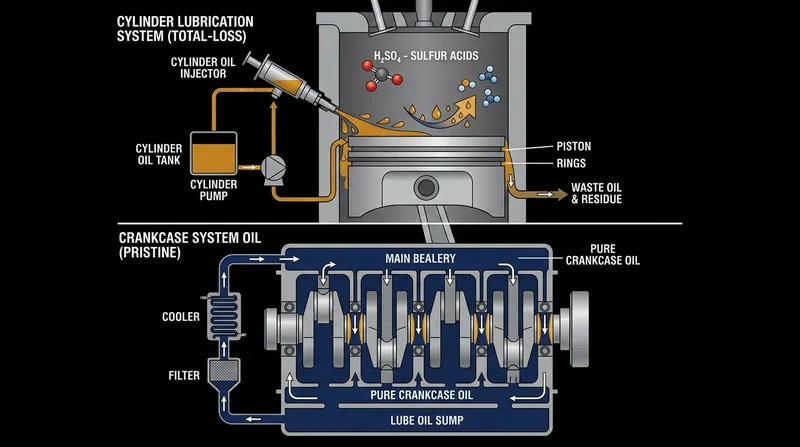

Above the stuffing box, the cylinder requires a radically different chemical approach. Engineers use a total-loss lubrication system, injecting small amounts of highly specialized cylinder oil directly onto the cylinder liner walls during each stroke.

"Cylinder oils are formulated with extreme base numbers, often exceeding 100 BN, to chemically neutralize sulfuric acid on contact," the tribology researchers explain. "This oil is designed to be consumed in the combustion process, not recirculated."

If a ship operator switches to a lower-sulfur fuel, they must simultaneously switch to a lower-BN cylinder oil. Without the acid to neutralize, excess alkalinity builds up as hard ash deposits, which can score the cylinder liner just as badly as soot.[2]

Absorbing Lateral Thrust

Beyond chemical isolation, the crosshead bearing solves a fundamental mechanical problem of extreme scale. When a cylinder with a bore of nearly one meter fires, it generates thousands of tons of downward explosive force.[1]

As the connecting rod swings outward to turn the crankshaft, a massive percentage of that downward force is converted into lateral thrust. In a trunk piston engine, this side-loading pushes the piston itself violently against the cylinder wall.

At marine scales, this lateral thrust would tear the piston rings apart and ovalize the cast-iron cylinder liner within hours. The crosshead bearing prevents this destruction by absorbing 100 percent of the side-loading forces.[2]

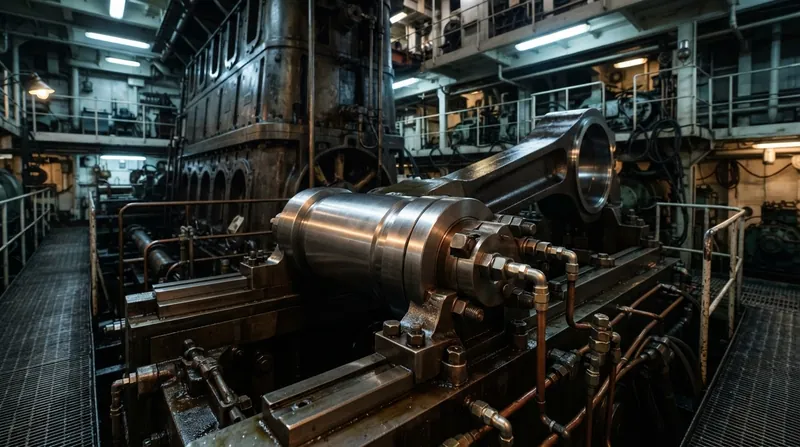

The crosshead pin is mounted to guide shoes that slide up and down along heavy cast-iron rails bolted to the engine frame. When the connecting rod pushes sideways, the guide shoes transfer that force directly into the engine block.[1]

Consequently, the piston itself experiences zero lateral thrust. It simply floats up and down within the cylinder, perfectly centered by the rigid piston rod, allowing the piston rings to maintain an even, delicate seal against the liner.

The Economic Imperative

The addition of a crosshead assembly makes two-stroke marine diesels exceptionally tall and heavy. A modern 14-cylinder engine can stand 13.5 meters high and weigh over 2,300 tons, requiring a cathedral-like engine room to house it.[1]

Yet shipbuilders willingly accept this massive size penalty because the economic math is undeniable. The crosshead design allows the engine to burn the cheapest, most energy-dense residual fuels on the planet without destroying its own internals.[2]

Furthermore, the complete separation of the crankcase ensures that the engine's most expensive moving parts operate in a perpetually clean environment. The main bearings and the massive steel crankshaft are shielded entirely from the chemical violence above.

Operating a global supply chain requires engines that can run continuously for weeks at a time across oceans without failing. The crosshead bearing is the mechanical firewall that makes this extreme endurance possible.[2]

By isolating the violence of combustion from the precision of the crankcase, engineers transformed the two-stroke diesel. What could have been a dirty, short-lived mechanism became the most thermally efficient internal combustion engine ever built.[1]
