Buoyancy-Driven Convection Reverses Glazing Gains Once Double-Pane Gaps Exceed 16 Millimeters

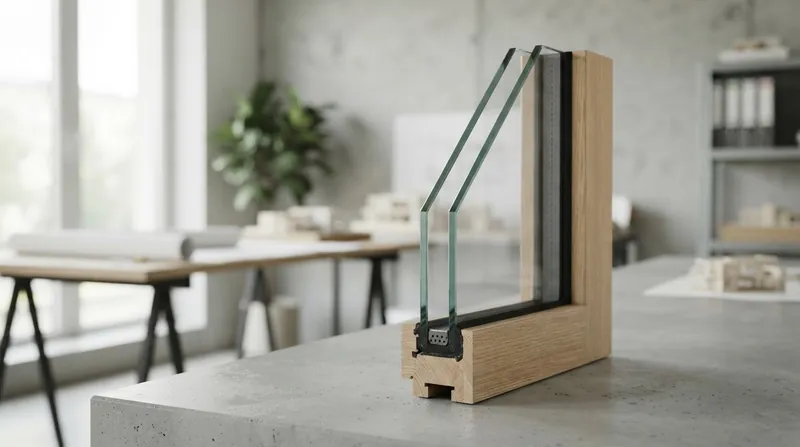

Architects, builders, and window manufacturers face a strict physical boundary when specifying the cavity width for new insulating glass units. They dictate the exact millimeter distance between panes during the design phase, aiming to maximize thermal resistance. However, their ability to simply widen the gap for better insulation hits a hard thermodynamic wall.

The assumption that a thicker window inherently insulates better is a common misconception in building design. While a wider gap does increase the physical distance heat must travel, it also changes the behavior of the gas trapped inside. The physics of heat transfer dictate that more space eventually becomes a liability.

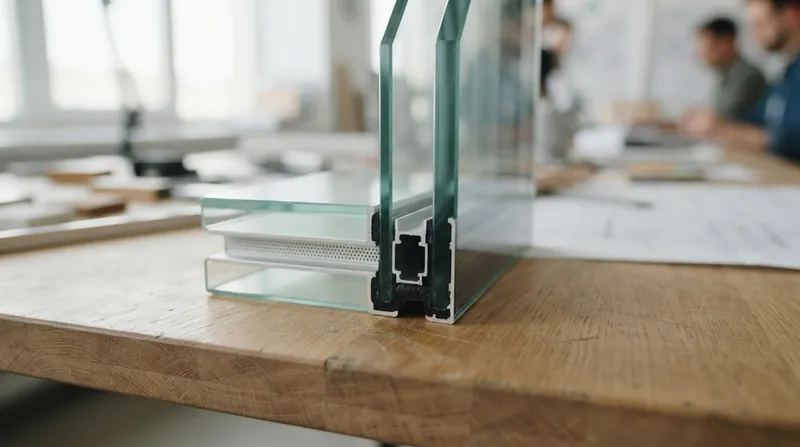

In a standard double-pane window, the sealed cavity is filled with a gas like argon or dehydrated air. This gas acts as a static barrier, resisting the direct conduction of thermal energy from the warm interior pane to the cold exterior pane. As long as the gas remains perfectly still, a wider gap reduces conduction.

The Convection Threshold

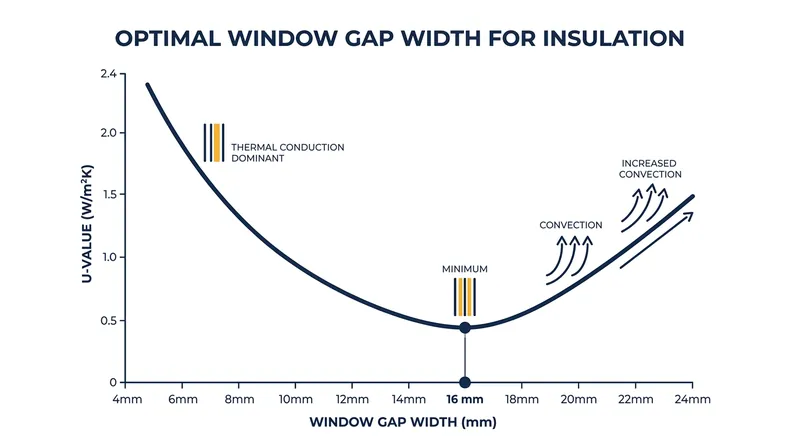

The insulation gains continue linearly as the gap widens, but only up to a precise mathematical limit. For argon-filled units, this threshold sits near 16 millimeters, or roughly five-eighths of an inch. Beyond this specific width, the thermal transmittance of the window stops improving and actually begins to worsen.[1][3]

This reversal occurs because of a fundamental shift in the dominant heat transfer mechanism. When the gap exceeds 16 millimeters, the gas inside has enough physical room to begin circulating. The static barrier breaks down, and buoyancy-driven convection takes over the cavity.

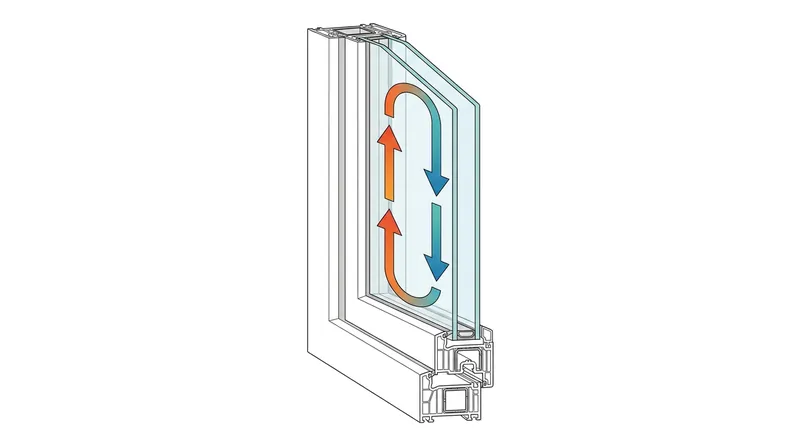

The mechanics of this internal weather system are driven entirely by temperature differentials. The gas immediately adjacent to the warm interior pane heats up, expands, and becomes less dense. This buoyant, warmed gas naturally rises toward the top of the hermetically sealed window unit.

Simultaneously, the gas touching the cold exterior pane loses its heat, becomes denser, and sinks toward the bottom. These two opposing vertical movements link up to form a continuous, circulating loop. The gas actively ferries thermal energy across the void, bypassing the resistance of conduction entirely.

The Nusselt Number Shift

Engineers track this transition using the Nusselt number, a dimensionless ratio comparing convective to conductive heat transfer. In narrow gaps where the gas remains stagnant, the Nusselt number remains below one. Here, thermal insulation increases proportionally with the thickness of the cavity.[2]

Once the gap widens past the 16-millimeter mark for argon, the Nusselt number climbs above one. This mathematical shift confirms that convection has become the primary vehicle for heat loss. The circulating currents actively pull heat from the inner pane and dump it onto the outer pane.[2]

The resulting thermal penalty is measurable and immediate. A 20-millimeter argon cavity actually performs slightly worse than a 16-millimeter cavity, yielding a higher U-value. The extra four millimeters of space simply provide a wider highway for the convective loop to accelerate.[1]

"If the air gap between panes is too large, buoyancy-driven convection cells form inside it," notes a technical analysis of window thermodynamics. "Warm air next to the warm pane rises, cool air next to the cold pane falls, and you get circulating currents that dramatically increase heat transfer."[6]

Gas Density and Gap Sizing

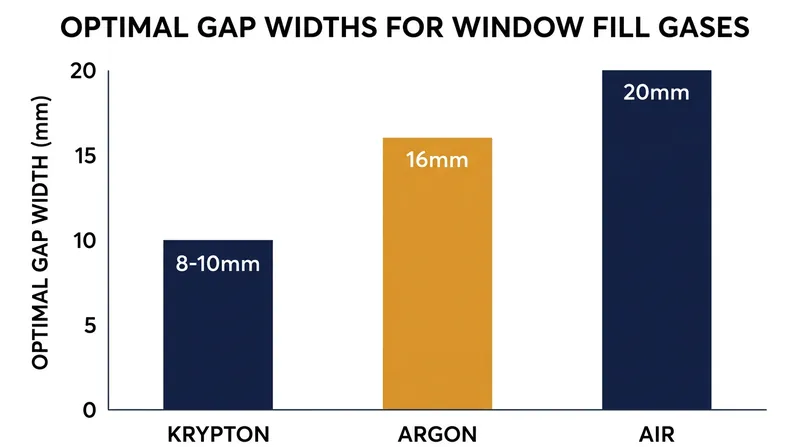

The exact point where convection overrides conduction depends entirely on the density of the fill gas. Argon is roughly 48 percent denser than atmospheric air, which makes it more sluggish and resistant to circulation. This density allows argon cavities to reach 16 millimeters before convection takes hold.[4][5]

Standard dehydrated air, being lighter, begins to circulate at slightly wider dimensions, but it conducts heat more readily in the first place. Conversely, krypton gas is significantly denser than argon. A krypton-filled unit hits its convective threshold much earlier, typically around 8 to 10 millimeters.

Manufacturers must therefore pair the cavity width precisely to the chosen gas. Specifying a 16-millimeter gap for a krypton unit would be a costly error, as the heavy gas would circulate freely and waste its premium insulating properties. The geometry must match the fluid dynamics.

The edge spacer dictates this critical dimension during manufacturing. This thin perimeter bar, typically made of aluminum or a warm-edge composite, holds the panes at the exact specified distance. Once the unit is hermetically sealed with butyl rubber, the internal physics are locked in for decades.

Real-World U-Value Impacts

The thermal performance of these units is measured by their U-value, representing the rate of heat flow per square meter. A modern 16-millimeter argon cavity with a low-emissivity coating achieves a center-pane U-value of approximately 1.10 watts per square meter kelvin. This represents the absolute floor for a double-pane design.[1]

Pushing the gap to 20 millimeters raises the U-value to 1.13 watts per square meter kelvin. While the difference appears small on paper, it represents a permanent, structural downgrade in the window's efficiency. The homeowner pays for a thicker window that bleeds more heat.[1]

The temperature of the glass itself also suffers when convection takes over. As the circulating gas descends along the cold outer pane, it reaches its lowest temperature at the bottom of the cavity. This chilled gas then sweeps across the bottom edge of the interior pane.

This localized cooling creates a distinct thermal gradient across the interior glass. The bottom edge becomes significantly colder than the center, increasing the risk of indoor condensation during winter months. The convection loop actively refrigerates the base of the window.

Overcoming the Double-Pane Limit

Because 16 millimeters represents a hard physical limit for argon, manufacturers cannot achieve passive-house insulation levels with just two panes. To push U-values below 0.80 watts per square meter kelvin, the industry must fundamentally change the architecture of the window.

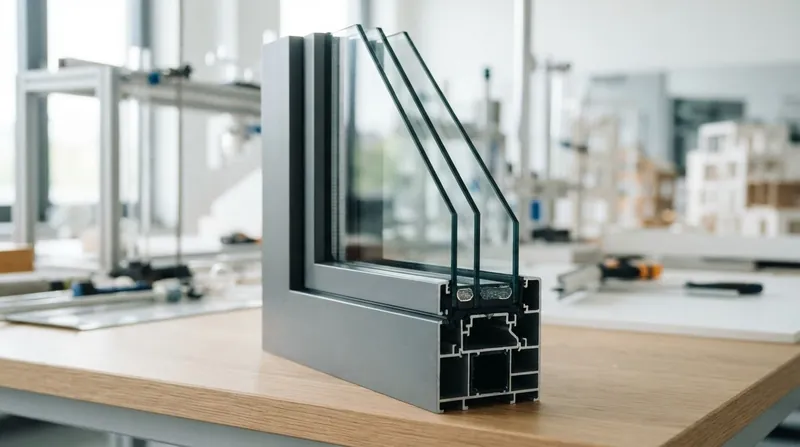

The most common solution is triple glazing, which introduces a third pane of glass. This splits a dangerously wide cavity into two narrower, optimized chambers. Each gap can be filled with argon and kept safely below the 16-millimeter convection threshold.[3]

By utilizing two separate 16-millimeter cavities, a triple-pane window doubles the conductive barrier without triggering buoyancy-driven circulation. The middle pane acts as a physical baffle, preventing a single, massive convection loop from forming across the entire depth of the unit.

Alternatively, emerging vacuum-insulated glazing eliminates the gas entirely. By pulling a vacuum between two panes separated by microscopic pillars, manufacturers create a gap of just 0.2 millimeters. Without gas molecules to conduct or convect, heat transfer drops dramatically.

Vacuum glazing achieves U-values as low as 0.40 watts per square meter kelvin in a profile thinner than a standard single pane. However, the manufacturing complexity and cost of maintaining a vacuum seal over decades keep this technology in the premium tier of the market.

The Engineering Consensus

For the vast majority of residential and commercial construction, the 16-millimeter argon double-pane remains the cost-optimal standard. It represents the exact point where material efficiency meets the laws of fluid dynamics. It is a design dictated entirely by the behavior of trapped gas.

Understanding this limit prevents costly over-specification in building design. Architects who demand 25-millimeter cavities under the belief that thicker is better are actively degrading their building's thermal envelope. The physics of the cavity reward precision, not sheer volume.

Ultimately, the performance of an insulating glass unit relies on keeping the invisible gas inside perfectly still. Once the gap provides enough runway for the gas to move, the window transforms from a static insulator into an active thermal engine.

The relationship between gap width and thermal transmittance remains a cornerstone of modern fenestration engineering. Every millimeter added to a window's profile must be justified against the Nusselt number of its fill gas. There is no escaping the thermodynamic reality of fluid density.

As building codes tighten globally, the pressure to squeeze every fraction of a watt from window assemblies intensifies. Yet, the 16-millimeter argon barrier stands firm, forcing the industry to innovate through better low-emissivity coatings and warmer edge spacers rather than wider gaps.

The invisible convection loop inside a poorly sized window serves as a quiet reminder of nature's constraints. True energy efficiency requires working within the physical limits of the materials, recognizing exactly when a protective barrier becomes a conductive liability.
