How Cryosuction and Ice Lenses Drive Frost Heave Beyond Water's Natural Expansion

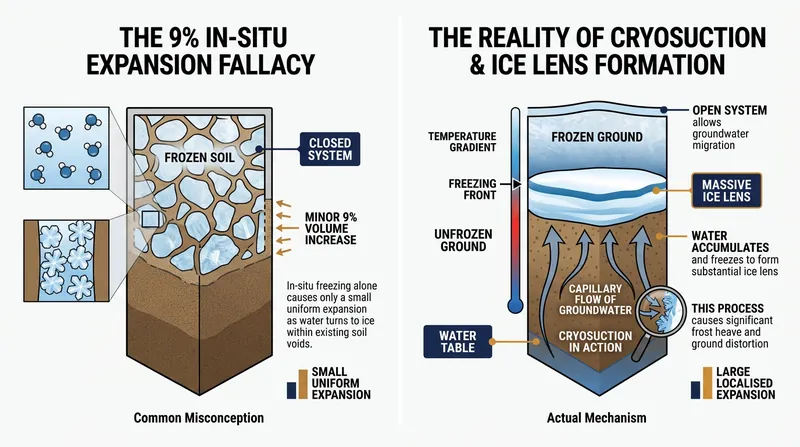

The standard explanation for frost heave relies on a simple phase change. When water freezes, its molecular structure reorganizes into a hexagonal lattice, expanding its volume by approximately 9 percent.[11]

If this in-situ expansion were the sole mechanism at work, a saturated soil layer freezing to a depth of one meter would lift the ground surface by no more than 90 millimeters. The expansion would be strictly limited by the initial moisture content of the soil.[11]

Yet engineers and geologists routinely document vertical displacements that dwarf this theoretical limit. In fine-grained soils, frost heave can elevate the surface by several decimeters, exerting upward pressures that shatter concrete and warp steel pipelines.[7]

The discrepancy reveals a fundamental misunderstanding of frozen ground. The destructive force of frost heave does not come from the water already present in the freezing soil, but from liquid water actively drawn upward from unfrozen aquifers below.[1]

The Mechanics Of Cryosuction

This upward migration is driven by a phenomenon known as cryosuction, which operates through thermomolecular pressure. As temperatures drop below freezing, ice does not immediately solidify into a uniform block within the soil pores.[2]

Instead, a microscopic layer of liquid water, known as a premelted film, persists between the solid ice and the mineral surfaces of the soil particles. According to a 2006 review in Reviews of Modern Physics, these films remain liquid at temperatures well below zero degrees Celsius.[3]

The persistence of this liquid layer creates a thermodynamic imbalance. The temperature gradient across the freezing front generates a pressure gradient, drawing liquid water from the warmer, unfrozen soil beneath toward the colder ice above.[2]

"The thermomolecular pressure gradient acts as a powerful pump," explains the 1989 Science study on surface melting. This pump operates continuously as long as the temperature gradient is maintained and a water supply remains available.[2]

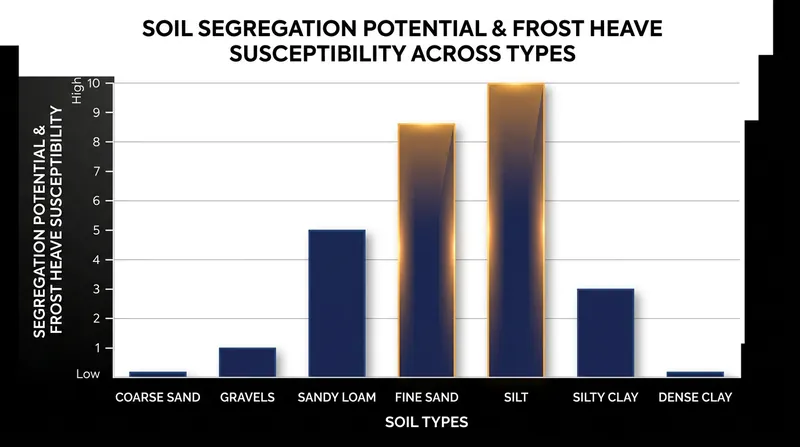

In highly permeable soils like coarse sand, the large pores allow water to freeze rapidly, cutting off the capillary pathways. In impermeable clays, the water cannot move fast enough to feed the freezing front.[4]

Silts and fine sands, however, possess the ideal balance. They provide enough capillary action to sustain the premelted films while allowing sufficient permeability for continuous water migration, making them highly susceptible to severe frost heave.[4]

Formation Of Segregated Ice Lenses

As cryosuction pulls groundwater upward, the water does not simply fill empty pore spaces. Instead, it accumulates at the freezing front, forming distinct, solid layers known as segregated ice lenses.[7]

These lenses grow perpendicular to the direction of heat flow, typically forming horizontal bands of pure ice within the soil profile. A 2013 analysis in the Vadose Zone Journal notes that these lenses can range from a few millimeters to several meters in thickness.[7]

The growth of an ice lens physically separates the soil particles, lifting the ground above it. Because the lens is fed by an external water source, its expansion is limited only by the duration of the freezing conditions and the availability of groundwater.[8]

"The segregation potential of a freezing soil dictates the rate of water migration," according to the Canadian Geotechnical Journal. This potential is a measurable parameter that engineers use to predict the severity of frost heave in specific soil types.[4]

When the temperature drops further, the freezing front may advance deeper into the soil, abandoning the first ice lens and initiating the formation of a new one below it. This process creates a stacked sequence of ice lenses, separated by layers of frozen, dehydrated soil.[5]

Bedrock Fracture And Landscape Shaping

The forces generated by segregated ice growth are not limited to loose soils. Cryosuction is a primary driver of mechanical weathering in cold regions, capable of fracturing solid bedrock.[10]

A 2006 study published in Science demonstrated that ice segregation within micro-fractures in bedrock generates stresses that far exceed the tensile strength of the rock. The continuous supply of water to these fractures causes them to propagate and eventually split the stone.[10]

This mechanism explains the rapid degradation of exposed rock faces in alpine and arctic environments. Previously, geologists attributed this weathering solely to the 9 percent volumetric expansion of freezing water trapped in closed pores.[10]

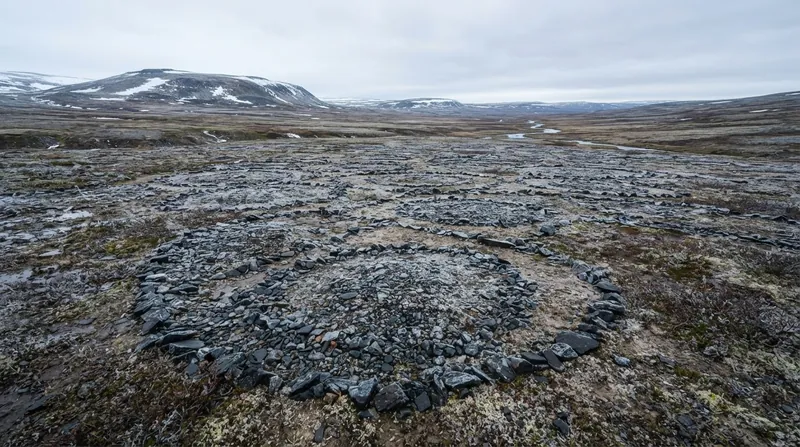

On a larger scale, the uneven growth of ice lenses shapes the topography of permafrost regions. The differential heaving sorts surface materials by size, gradually organizing loose rocks into distinct geometric patterns.[6]

These formations, known as stone circles or patterned ground, are a direct consequence of soil kinematics driven by underlying ice lenses. The Philosophical Transactions of the Royal Society A details how repeated freeze-thaw cycles systematically push larger stones toward the periphery of heaving soil domes.[6]

Engineering And Infrastructure Impacts

For civil engineers, understanding cryosuction is critical for designing resilient infrastructure in cold climates. Roads, railways, and building foundations built on frost-susceptible soils are highly vulnerable to the immense upward pressures of growing ice lenses.[9]

When a road surface is cleared of snow, it loses its insulating cover, allowing the freezing front to penetrate deeper into the roadbed than in the surrounding snow-covered ground. This localized freezing accelerates cryosuction directly beneath the pavement.[1]

The resulting differential heave creates severe bumps and cracks in the asphalt. During the spring thaw, the melting of these massive ice lenses leaves the soil supersaturated and structurally compromised, leading to the formation of deep potholes under traffic loads.[1]

To mitigate these effects, engineers must either replace frost-susceptible silts with coarse gravel, which disrupts the capillary pathways, or install impermeable barriers to cut off the groundwater supply to the freezing front.[8]

The rigid ice model of frost heave, explored in Water Resources Research, provides the mathematical framework for these interventions. By calculating the thermomolecular pressure and the soil's hydraulic conductivity, designers can predict the maximum heave and specify appropriate foundation depths.[5]

Managing frost heave requires acknowledging that the ground is not a closed system. The destructive expansion is a dynamic process of mass transport, driven by the thermodynamic engine of freezing water drawing upon the aquifers below.[2][11]
