Sub-Ten-Kelvin Pumping Depletes Cryopanel Capacity as Condensed Hydrogen Bridges Adsorbent Pores

Vacuum system engineers face a strict thermodynamic trade-off when designing cryopumps for ultra-high vacuum environments. To achieve lower base pressures, operators often push the second-stage cryopanel temperatures below 10 Kelvin. While this deep-cryogenic state successfully condenses most residual gases, it triggers a catastrophic failure mode for hydrogen capture.

At these sub-ten-Kelvin temperatures, hydrogen transitions from a gas that adsorbs into a solid condensate. This solid hydrogen freezes across the microscopic openings of the activated charcoal bonded to the cryopanel. By bridging these pores, the condensate physically blocks access to the vast internal surface area of the adsorbent, plummeting the pump’s capacity and forcing premature regeneration.[3]

The Mechanics of Cryosorption

To understand the capacity collapse, one must first look at how cryopumps handle non-condensable gases under normal conditions. A standard two-stage closed-cycle helium refrigerator cools its first stage to around 80 Kelvin and its second stage to between 10 and 20 Kelvin. At 15 Kelvin, heavy gases like nitrogen, oxygen, and argon freeze instantly onto the bare metal arrays.

However, the lightest gases—hydrogen, helium, and neon—possess vapor pressures too high to condense at 15 Kelvin. Instead of relying on condensation, engineers bond highly porous adsorbents, typically activated charcoal, to the inner surfaces of the second-stage cryopanel. This charcoal acts as a molecular sponge, capturing the light gases through a process known as cryosorption.[1][2]

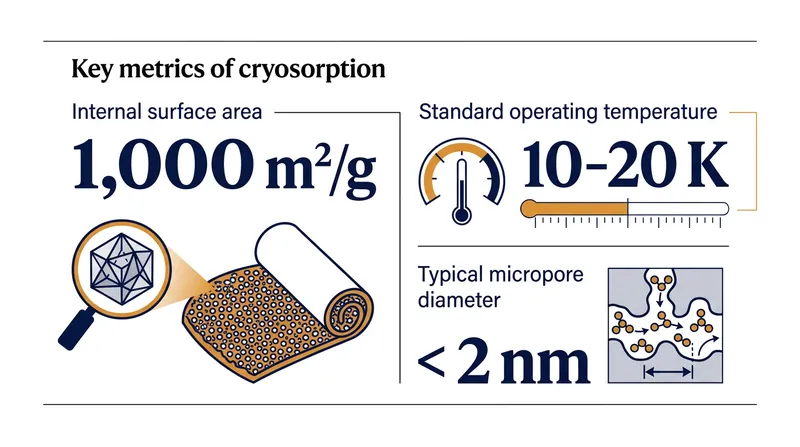

The efficiency of cryosorption relies entirely on surface area. A single gram of activated charcoal contains a labyrinth of microscopic pores, providing an internal surface area of roughly 1,000 to 3,000 square meters. When hydrogen gas enters these pores at 15 Kelvin, it adheres to the internal walls without freezing solid, allowing the pump to store massive volumes of gas before saturating.[3]

In a typical semiconductor fabrication environment, a standard 200-millimeter cryopump operating at 15 Kelvin can hold up to 12 standard liters of hydrogen gas. This massive capacity allows the system to run continuously for six to eight months before the internal charcoal matrix fills up and requires maintenance.

The Role of the Gifford-McMahon Cycle

Before exploring the failure mode, it is necessary to understand how these extreme temperatures are generated. Nearly all modern cryopumps rely on the Gifford-McMahon thermodynamic cycle, a refrigeration technique developed in the 1950s. This closed-loop system uses high-pressure helium gas to extract heat from the vacuum chamber.[1][2]

The helium compressor drives gas through a rotary valve and into an expansion cylinder. As the helium expands, it absorbs heat from the surrounding metal arrays, cooling them to cryogenic temperatures. The expanded gas is then returned to the compressor, rejecting the absorbed heat into a cooling water circuit.

This cycle is split into two distinct stages to manage different types of gas loads. The first stage intercepts the bulk of the thermal radiation and condenses water vapor and carbon dioxide at roughly 80 Kelvin. The second stage, physically isolated deeper inside the pump, handles the more difficult gases at temperatures approaching absolute zero.

The Geometry of Activated Charcoal

The second stage relies heavily on the physical geometry of its adsorbent material. Activated charcoal is not a uniform solid; it is a highly fractured carbon skeleton created by baking organic materials like coconut shells or synthetic polymers in an oxygen-free environment. This baking process leaves behind a network of microscopic voids.[3]

These voids are categorized by their diameter. Macropores serve as the main highways into the granule, branching into mesopores, which finally terminate in micropores smaller than two nanometers. The vast majority of the charcoal's surface area—and therefore its pumping capacity—is contained within these terminal micropores.[2][3]

When a hydrogen molecule enters the vacuum chamber, it bounces off the warm walls until it strikes the 15-Kelvin charcoal. The molecule travels down the macropore highway and enters a micropore, where the weak Van der Waals forces of the cold carbon walls trap it in place. This is the ideal cryosorption process.[3]

The Sub-Ten-Kelvin Threshold

The operational dilemma begins when vacuum processes demand base pressures below 10^-8 Pascal. These extreme vacuums are a strict requirement for advanced particle accelerators, space simulation chambers, and extreme ultraviolet lithography systems. To reach these levels, operators often tune the helium compressor to drive the second-stage array down to 4.5 to 8 Kelvin.

At first glance, colder temperatures should theoretically improve the capture rate of all residual molecules. Lower temperatures generally reduce the kinetic energy of the gas, making it easier for the Van der Waals forces to hold the molecules against the carbon walls. Many operators assume that colder is always better in vacuum generation.[1][2]

Instead, crossing the 10-Kelvin threshold fundamentally alters the physical state of the captured hydrogen. Rather than remaining a highly mobile gas that diffuses deep into the charcoal matrix, the hydrogen begins to undergo cryo-condensation. It freezes into a solid layer directly upon impact with the coldest available surfaces.[1][3]

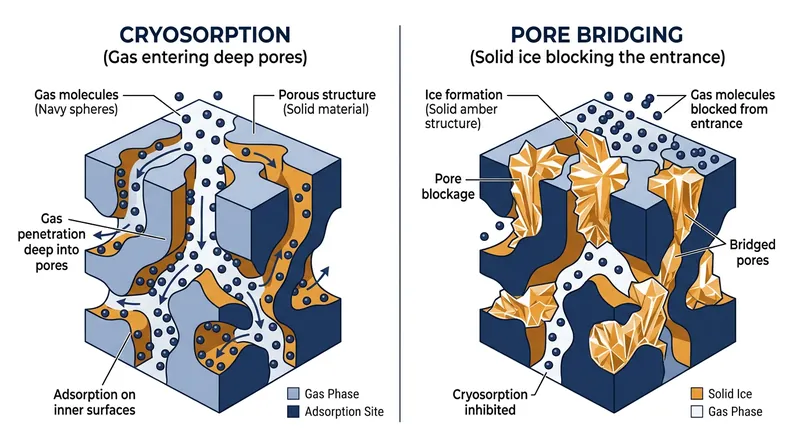

Because the exterior surface of the charcoal granule is the first point of contact, the solid hydrogen accumulates there. The microscopic pore openings, which typically measure less than two nanometers in diameter, are quickly spanned by the growing lattice of solid hydrogen. This phenomenon is known as pore bridging.[3]

The Mathematics of Capacity Loss

Once the pore openings are bridged, the physical mechanics of the cryopump break down entirely. The solid hydrogen acts as an impermeable seal, locking off the internal labyrinth of the activated charcoal. Any subsequent hydrogen molecules entering the vacuum chamber can no longer reach the internal adsorption sites.[3]

The mathematical consequence of this blockage is severe. The external macroscopic surface area of a typical charcoal granule is roughly 1 to 2 square meters per gram. By sealing off the 1,000 square meters of internal area, the pore-bridging effect reduces the available capture surface by a factor of nearly 1,000.[2][3]

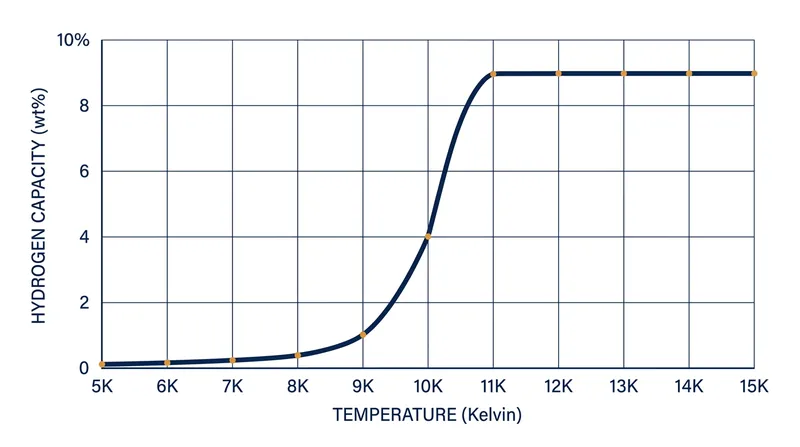

As a result, the cryopump’s capacity for hydrogen drops by 99.9 percent. A pump designed to retain 12 standard liters of hydrogen at 15 Kelvin might saturate after capturing just 0.01 liters when operated at 6 Kelvin. The system pressure suddenly spikes as the external surface fills, forcing the operator to halt the vacuum process.

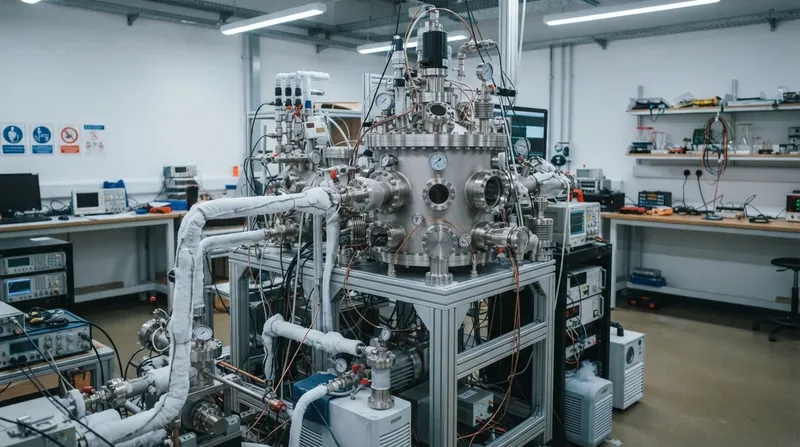

This capacity collapse carries heavy economic penalties for industrial users. When a cryopump saturates, it must undergo a full regeneration cycle. The operator must warm the entire array to 300 Kelvin to boil off the trapped gases, pumping them away with a mechanical backing pump before cooling the system back down.

A complete regeneration cycle takes four to eight hours to execute safely. In a high-volume semiconductor fabrication plant, halting a multi-million-dollar production line for an unplanned regeneration costs tens of thousands of dollars per hour. Consequently, unpredictable capacity loss is a critical failure mode.

Co-Condensation and Cryotrapping

Some vacuum researchers argue that sub-ten-Kelvin operation can be maintained if operators deliberately introduce a heavier gas, such as argon, into the chamber. This technique, known as cryotrapping, uses the condensing argon to sweep the hydrogen molecules out of the vacuum and bury them within a mixed-gas ice matrix.[1]

In a cryotrapping scenario, the argon freezes onto the bare metal baffles, trapping the hydrogen before it ever reaches the activated charcoal. Because the argon matrix grows continuously as more gas is injected, it does not suffer from the fixed-volume limitations of the charcoal pores. This allows the pump to maintain ultra-high vacuum without triggering the pore-bridging collapse.[1]

"Cryotrapping is understood as the inclusion of a low boiling point gas which is difficult to pump such as hydrogen, in the matrix of a gas having a higher boiling point," notes the 2016 Leybold technical documentation.

At the same temperature, the condensate mixture exhibits a saturation vapor pressure several orders of magnitude lower than pure hydrogen. However, cryotrapping introduces its own severe operational penalties. The continuous injection of argon rapidly builds a thick layer of frost on the cryopanels.

The pump still saturates prematurely, failing from the sheer physical mass of the accumulated argon ice bridging the macroscopic gaps between the baffles. Once the array is choked with ice, regeneration is mandatory.

Engineering the Adsorbent Matrix

To navigate this thermodynamic trap, modern cryopump manufacturers rely on precise thermal management rather than brute-force cooling. Advanced systems utilize variable-speed helium compressors and dedicated heating elements to hold the second-stage array strictly between 12 and 15 Kelvin. This narrow window keeps the vapor pressure low while preventing hydrogen from freezing solid.

When ultra-high vacuum is absolutely required at sub-ten-Kelvin temperatures, engineers must alter the physical structure of the adsorbent itself. By synthesizing activated carbons with wider mesopores—ranging from 2 to 50 nanometers—manufacturers make it significantly harder for the solid hydrogen to bridge the gap. The wider openings allow gas to bypass the initial frost layer.[2][3]

A 2025 study published in AIP Advances evaluated synthetic graphene-blended activated carbons specifically for this purpose. The researchers found that tailoring the pore volume to 417 cubic centimeters per gram allowed the cryosorption pumps to maintain a hydrogen uptake capacity of 205 millibar-liters even at 4.5 Kelvin.[2][3]

This tailored approach ensures that even if some condensation occurs at the pore entrance, the opening is wide enough to remain partially clear. Hydrogen gas can still navigate past the solid ice deposits and access the deeper micropores, preserving a significant fraction of the pump's theoretical capacity.[2][3]

Despite these material advances, the pore-bridging phenomenon continues to dictate the maintenance schedule of the world's most advanced vacuum systems. Whether in semiconductor fabrication plants or particle accelerators, operators must balance the desire for absolute zero against the physical reality of condensed gases. Pushing a pump too cold does not create a better vacuum; it simply builds a microscopic wall.[1][2]
