Why Pelton Turbines Deflect Water Jets at 165 Degrees to Prevent Bucket Braking

At the Tesla hydroelectric facility in Colorado Springs, water strikes the turbine at a pressure of 1,100 pounds per square inch—roughly 35 times the pressure of a standard car tire. That immense force slams into a seven-ton spinning wheel of steel buckets, converting the water's kinetic energy into 28.6 megawatts of electricity.[2]

This machine is a Pelton wheel, an impulse turbine designed specifically for high-head hydroelectric sites where water drops from great elevations. Unlike submerged turbines that rely on massive volumes of slow-moving water, the Pelton design thrives on high-velocity jets.[1]

The efficiency of these turbines is staggering, frequently exceeding 93 percent in utility-scale installations. Achieving that performance requires extracting nearly every joule of kinetic energy from the water jet before it falls away into the tailrace.[2]

But capturing that energy presents a severe geometric problem. The wheel must spin continuously, meaning dozens of buckets must pass through the same high-speed water jet in rapid succession. If the water from one bucket does not clear the path instantly, it becomes a catastrophic obstacle for the next bucket rotating into the firing line.

The Mechanics of Impulse

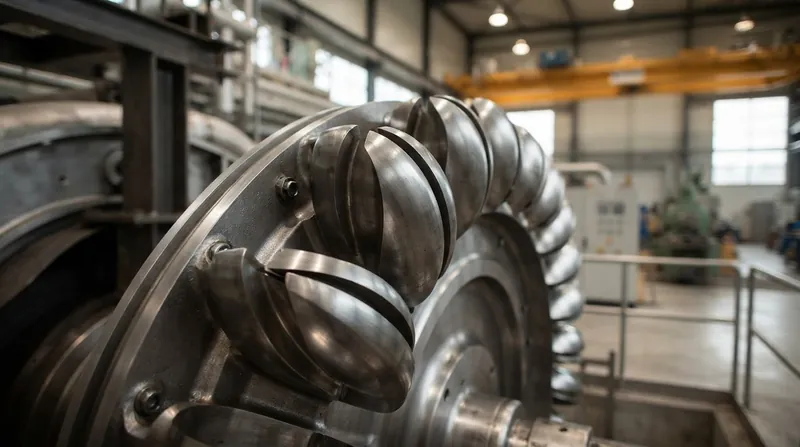

The genius of the Pelton wheel lies in its bucket design, which was patented by Lester Allan Pelton in 1880. Rather than a simple flat paddle, each bucket is a double cup divided by a sharp central ridge called a splitter.

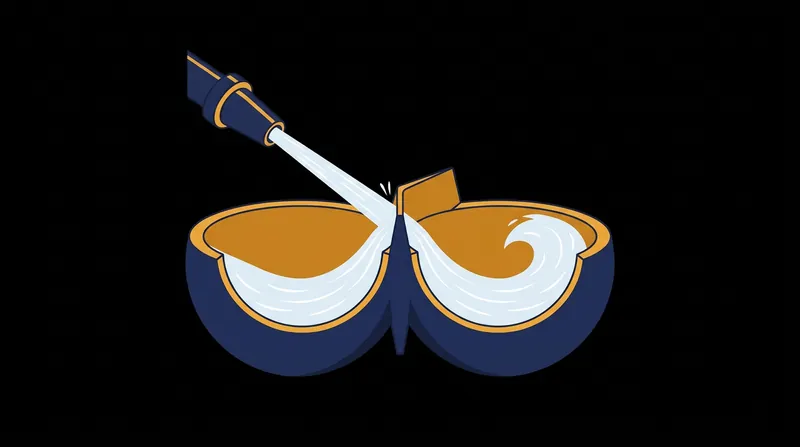

When the high-velocity water jet exits the nozzle, it strikes this splitter dead center. The ridge slices the jet cleanly in half, directing equal volumes of water into the two hemispherical cups on either side.[3]

This split serves two critical functions. First, it balances the immense axial thrust on the turbine shaft, preventing the wheel from tearing itself apart under the asymmetric load. Second, it forces the water to execute a U-turn, which is how an impulse turbine generates power.[3][1]

The harder the water is thrown back in the direction it came from, the more force is imparted to the wheel. To maximize that force, the bucket must move at exactly half the speed of the incoming water jet. At that precise speed ratio, the water transfers its kinetic energy to the steel and drops away.[1]

The 180-Degree Trap

In a frictionless, theoretical vacuum, the most efficient way to extract momentum from a moving mass is to reverse its direction completely. A bucket that deflects the water jet a full 180 degrees would capture the maximum possible energy.

"Turning the jet around doubles the force compared with merely catching it," notes a fluid mechanics analysis of the Pelton wheel. The mathematical momentum multiplier for a perfect 180-degree reversal is exactly 2.00.

But physical turbines do not operate in a theoretical vacuum. A Pelton wheel features multiple buckets mounted closely together around the perimeter of a circular disc.

If a bucket deflected the high-speed water jet a full 180 degrees, the exiting water would shoot straight back along the exact path of the incoming jet. That return flow would immediately collide with the back of the next bucket rotating into position.

This collision creates a massive braking force. The discharged spray would act as a hydraulic brake, fighting the rotation of the wheel and destroying the turbine's net efficiency.[4]

The 165-Degree Solution

To prevent this catastrophic interference, engineers deliberately compromise the bucket's geometry. The standard Pelton bucket is designed to deflect the water jet through a maximum angle of 165 degrees, rather than 180.

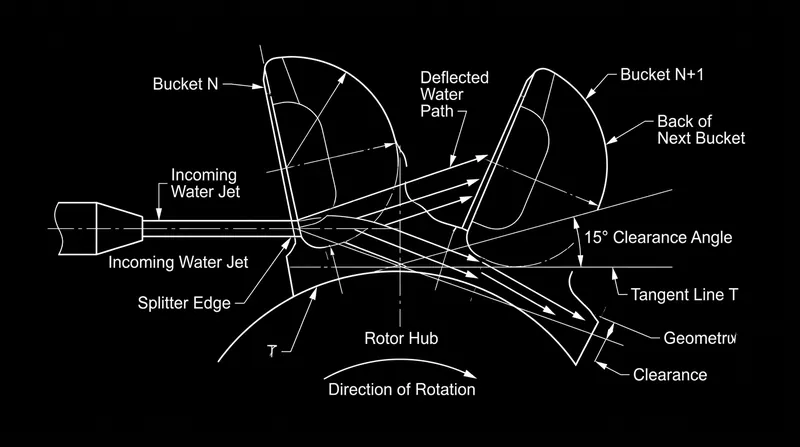

That missing 15 degrees is the clearance angle. It ensures that the outflowing water flares slightly outward, safely bypassing the back of the subsequent bucket.

"The angle deliberately stays below 180 degrees so that the outflowing water does not hit the following bucket," explains the Educational Animation reference guide. This slight outward trajectory keeps the jet path completely clean.[3]

In some specific micro-hydro applications, the deflection angle might be pushed to 170 degrees, but it never reaches a full reversal. The exact angle is a carefully calculated balance between maximizing momentum transfer and ensuring hydraulic clearance.[3][1]

Computational fluid dynamics simulations confirm the necessity of this limit. A 2026 study analyzing Pelton bucket efficiency found that exceeding the 165-degree threshold rapidly introduces chaotic spray patterns that degrade performance.[3]

The Math of Momentum

At first glance, abandoning the perfect 180-degree reversal seems like a costly concession. However, the trigonometric reality of momentum transfer reveals why the 165-degree compromise is so effective.[4]

The force exerted on the bucket is proportional to the change in velocity, which is governed by the cosine of the deflection angle. For a 180-degree turn, the momentum multiplier is 1 minus the cosine of 180, which equals 2.00.[1][4]

For a 165-degree deflection, the multiplier is 1 minus the cosine of 165 degrees. Because the cosine of 165 degrees is roughly -0.966, the resulting momentum multiplier is 1.966.[4]

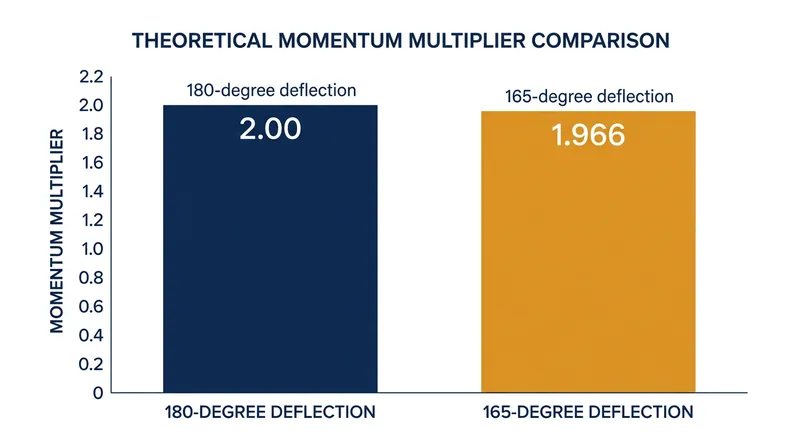

By restricting the deflection to 165 degrees, the turbine sacrifices only 1.7 percent of its theoretical maximum momentum transfer. That negligible loss is a brilliant engineering trade-off to completely eliminate the braking interference that would otherwise cripple the machine.[4]

Real-world efficiency losses are driven far more by internal bucket friction and windage than by this geometric compromise. The 15-degree clearance is what allows modern Pelton wheels to routinely achieve 90 percent hydraulic efficiency.[1]

Managing the Tailrace

Once the water clears the buckets at that 165-degree angle, it must be managed carefully. The deflected water leaves the wheel as a dispersed, low-velocity spray.

Viewed from outside the machine, the backward motion of the deflected water almost perfectly cancels out the forward motion of the spinning bucket. The water practically comes to rest and falls vertically into the tailrace below.

The turbine housing must be spacious enough to accommodate this continuous deluge without allowing the tailwater to rise. If the water collected in the tailrace submerges the spinning wheel, the resulting drag will stall the turbine.[3]

To prevent this, Pelton wheels are always mounted above the maximum expected tailwater level. The discharged water simply drops away under gravity, clearing the casing instantly.

Modern Optimization

While the fundamental 165-degree geometry has remained largely unchanged since the late 19th century, modern engineering continues to refine the Pelton wheel.

Today, designers use transient multi-phase homogeneous models to track individual fluid particle trajectories across the rotating bucket. These simulations allow engineers to tweak the bucket's width, depth, and splitter profile to match specific site conditions.[3]

For instance, the jet ratio—the ratio of the wheel's pitch diameter to the jet diameter—is typically held between 11 and 16 to ensure the water enters and exits the buckets smoothly.[1]

Advanced materials also play a role. Modern runners are often cast from high-strength stainless steel alloys to withstand the relentless fatigue cycles of high-pressure jets striking the splitter thousands of times per minute.[3]

Yet, despite these high-tech refinements, the core mechanism relies on a simple geometric truth. The Pelton wheel dominates high-head hydropower because it knows exactly when to stop turning the water around.[4]
