China to Use Satellites to Control High-Speed Rail Network, Replacing Ground Signaling

China operates the world’s largest high-speed rail network, a sprawling web of steel that stretches across more than 50,000 kilometers of diverse terrain. Every day, fleets of bullet trains hurtle across these tracks at speeds reaching 350 kilometers per hour, guided by a terrestrial nervous system of trackside beacons, signal lamps, and radio masts. But this vast physical infrastructure comes with an inherent vulnerability: it is chained to the earth. Storms, floods, and landslides constantly threaten the thousands of kilometers of exposed circuits that keep the trains from colliding.[2][3]

The catastrophic potential of that vulnerability was realized on a summer evening in 2011. During a fierce storm in Wenzhou, a single lightning strike fried a trackside signaling circuit. The malfunction effectively made a stalled train "invisible" to the regional control center, which then mistakenly cleared the line for a second high-speed train traveling behind it. The resulting collision killed 40 people and injured nearly 200, exposing how a single point of environmental failure could cascade into a deadly disaster.

For fifteen years, Chinese railway engineers have raced to design a command-and-control architecture immune to natural calamities. Their solution, recently detailed by researchers from the state-owned CRSC Research and Design Institute Group, is a radical paradigm shift: moving the "brain" of the railway into space. By leveraging low-Earth orbit (LEO) satellites and the BeiDou Navigation Satellite System, China plans to replace vulnerable ground signaling with an invisible, orbital control web.

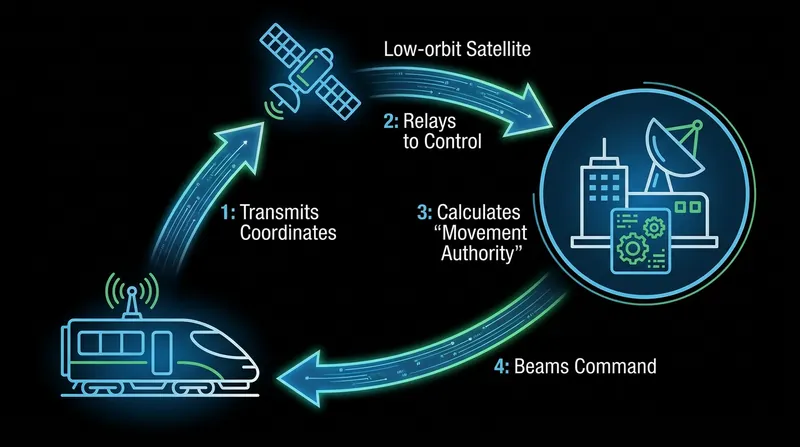

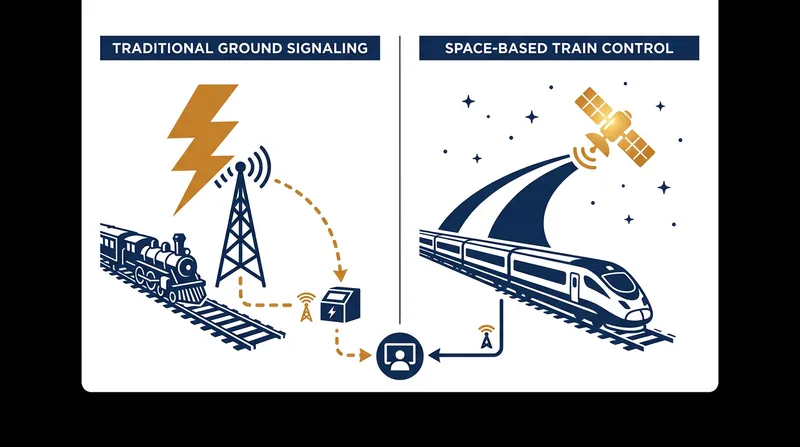

The mechanism behind this space-based train control system fundamentally changes how a railway operates. In a traditional setup, a train passes over physical transponders—known as balises—bolted to the tracks, which feed location data back to a control center via physical cables. Under the new architecture, the LEO satellites act as all-seeing relay stations. Speeding trains continuously transmit their exact coordinates, speed, and trajectory directly into the vacuum of space.[3]

Once the satellite constellation receives this telemetry, it beams the data down to centralized ground control computers. These systems analyze the entire network's traffic conditions in real time, calculating safe distances and optimal routing. The control center then transmits "movement authorities"—digital permissions to accelerate, brake, or maintain speed—back up to the satellites, which relay the commands down to the individual trains.[2]

Because the core communication link runs far above the weather and fault lines, the system is designed to remain online even when the surface infrastructure is washed away by a flood or shaken by an earthquake. Engineers refer to this as utilizing "virtual balises." By stripping away the need for physical trackside hardware, the railway can drastically reduce its maintenance costs while expanding into harsh, unforgiving topographies where laying communication cables is logistically prohibitive.[3]

Beyond weather resilience, the orbital shift is a necessary stepping stone toward full automation. Ground-based systems suffer from latency and bandwidth constraints that limit how closely trains can safely follow one another. A high-bandwidth, space-based network provides the continuous, real-time data stream required to support autonomous, AI-driven bullet trains. The ultimate goal is a self-regulating network where trains dynamically adjust their speeds in concert, maximizing track capacity without human intervention.[1][2]

However, lifting the railway’s nervous system into space trades physical vulnerabilities for digital ones. A recent paper published in the journal Railway Signalling and Communication Engineering laid out the stark cybersecurity realities of the new architecture. The same technology that promises to banish the ghosts of the Wenzhou disaster could summon a new breed of digital threats, transforming the railway into a prime target for state-sponsored hackers and cybercriminals.

The primary threat vector is signal spoofing. Because the trains rely on the satellite constellation for their movement authorities, an attacker who successfully mimics the satellite's cryptographic signature could inject false commands directly into the train's onboard computers. In a worst-case scenario, a hacker could transmit a fraudulent "go" command, instructing a train to accelerate into an occupied block of track when it should be applying the emergency brakes.

Researchers also warn of location spoofing, where an attacker feeds incorrect GPS or BeiDou coordinates to the control center. This could make a congested segment of track appear completely empty on the dispatcher's screens, recreating the exact "invisible train" conditions of the Wenzhou crash through malicious code rather than a lightning strike. Furthermore, the ground stations that manage the satellite constellation could be infiltrated via the internet, allowing an attacker to poison the data stream for the entire network.[1]

The reality of modern satellite design complicates these defenses. Many small LEO satellites are built with a "function first, security later" philosophy, optimizing for weight and power efficiency over robust cyber protection. Once a satellite is deployed in orbit, patching vulnerabilities or upgrading its defensive hardware is nearly impossible, leaving the network reliant on the security protocols established before launch.

To mitigate these risks, Chinese engineers are designing a zero-trust, multi-layered defense architecture. The system relies on end-to-end encryption and satellite firewalls to secure the data link. More importantly, the trains will not blindly trust the orbital signals. Onboard computers will continuously cross-check the satellite commands against the train's own physical inertial navigation units and whatever track circuits remain.

If the system detects even a microsecond of anomaly—a mismatch between the satellite's reported location and the train's physical sensors—it triggers an immediate safe-state protocol. The train will automatically reject the space-based movement authority and switch to a slower, degraded mode of operation, relying entirely on onboard sensors to bring the vehicle to a safe halt.

The implications of this technology extend far beyond China's domestic borders. China is aggressively exporting its high-speed rail technology through the Belt and Road Initiative, with major projects already underway in Indonesia and Thailand. A space-based control layer could become a standard part of that export package, allowing developing nations to leapfrog the expensive process of laying ground infrastructure in difficult jungle or mountainous terrain.[1]

But this export strategy introduces complex geopolitical questions. Any host nation that links its critical domestic railway infrastructure to a foreign-run satellite constellation faces a profound sovereignty dilemma. Relying on China's BeiDou network and LEO satellites means that the ultimate control over a nation's logistical backbone resides in servers and orbits managed by Beijing, raising concerns about data security and operational independence during geopolitical disputes.[1]

As China pushes toward its goal of expanding its high-speed rail network to 60,000 kilometers by 2030, the transition to space-based signaling appears inevitable. The engineering consensus is clear: the physical limits of terrestrial control have been reached. By moving the railway's brain to the stars, China is redefining the future of mass transit, proving that the next great leap in terrestrial transportation will be achieved in the vacuum of space.[2][3]
