The Evidence Pack: How Railways Are Rewriting Track Engineering to Survive Extreme Heat

The UN Economic Commission for Europe (UNECE) recently issued a stark warning: the bulk of global transport infrastructure was built for a 20th-century climate. As extreme heatwaves become more frequent and intense, railways face a unique and immediate physical vulnerability that threatens to sever critical supply chains and passenger routes.[1][2]

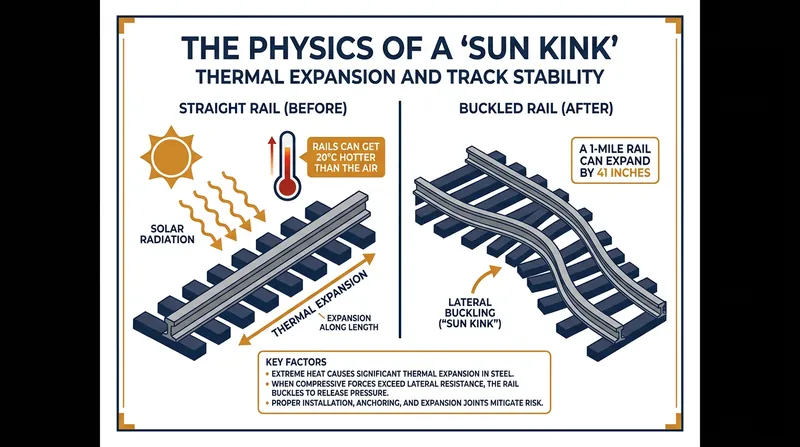

The phenomenon is known in the industry as a "sun kink" or thermal misalignment. When steel rails bake in direct sunlight, they absorb massive amounts of solar radiation, often reaching temperatures up to 20°C (36°F) hotter than the surrounding ambient air.

Because steel expands as it warms, this heat triggers a powerful physical reaction. A one-mile stretch of rail can grow by dozens of inches during a severe heatwave, creating immense longitudinal pressure along the track.

If this thermal expansion is left unchecked, the compressive stress builds within the steel. Eventually, the perfectly straight track violently warps into a snake-like lateral curve, creating a severe derailment hazard that can form in a matter of seconds.

To understand how railways prevent this, one must look at how modern tracks are built. Most major networks today use Continuous Welded Rail (CWR), where long segments of steel are welded together to eliminate the "clickety-clack" gaps of older, jointed tracks.

While CWR provides a smoother, quieter ride and requires significantly less maintenance, it traps thermal expansion. Without expansion gaps to grow into, the steel must be carefully engineered to handle the stress internally.

During installation, engineers use a process called "stressing." The rail is mechanically stretched with hydraulic tensors or heated to a specific "Rail Neutral Temperature" (RNT) or "Stress-Free Temperature" before it is fastened to the sleepers.

At this exact temperature, the rail experiences zero longitudinal force. Setting the RNT is a delicate balancing act that dictates the track's operating window for the rest of its lifespan.

If engineers set the neutral temperature too high to prevent summer buckling, the rail will contract too much in the winter. This extreme tensile stress can cause the steel to become brittle and literally snap during cold snaps.

When summer temperatures push the steel past its critical limits, rail operators deploy immediate countermeasures. The most common is imposing speed restrictions during the hottest parts of the day.

Slower-moving trains exert significantly less kinetic force on the track. By reducing the dynamic load, operators lower the likelihood of triggering a buckle in a heat-stressed rail, prioritizing safety over schedule.

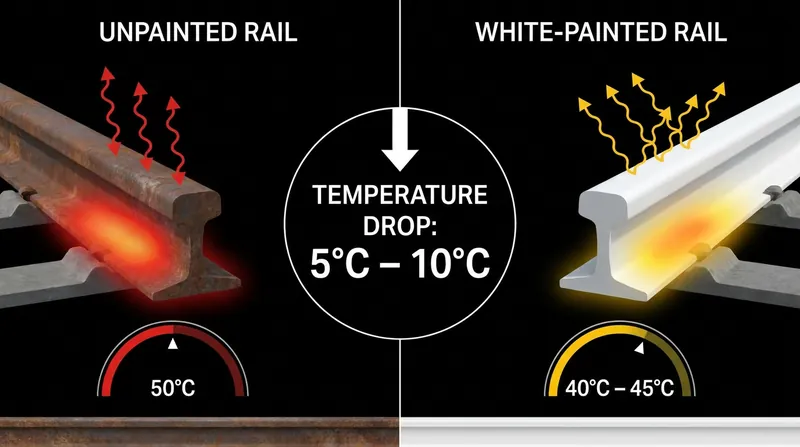

A remarkably simple, low-tech solution has also gained widespread adoption across Europe and North America: white paint. By painting the sides of the steel rails white, engineers can reflect a significant amount of solar energy rather than absorbing it.

This basic intervention is highly effective. Data from infrastructure operators shows that a rail painted white is typically 5°C to 10°C (9°F to 18°F) cooler than an unpainted rail, often keeping the steel just below the critical buckling threshold.

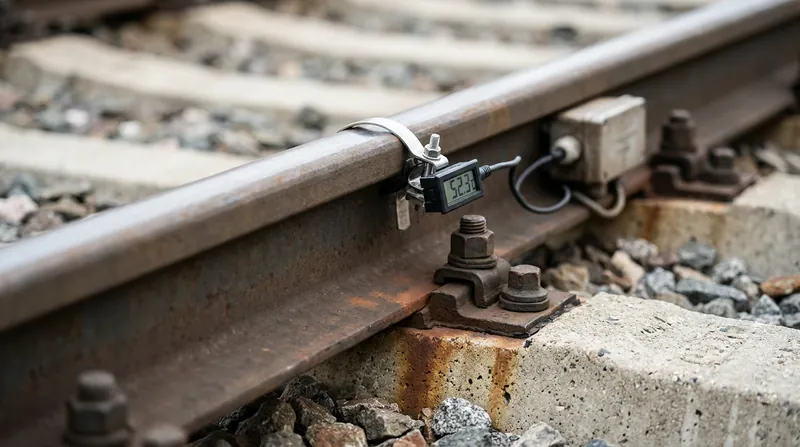

Beyond paint, railways are deploying advanced technology to monitor thermal stress in real-time. Thousands of track-side probes and mini weather stations now feed continuous temperature data back to control centers, allowing for automated, localized speed restrictions before a problem occurs.

For long-term resilience, some networks are moving away from traditional ballast—the bed of crushed stones that supports the sleepers. Instead, new high-speed lines are being laid on reinforced concrete slabs, which rigidly lock the rails in place and drastically increase their resistance to buckling.[3]

As the UNECE report highlights, adapting to a warming world will require billions in infrastructure upgrades. However, the combination of smart sensors, concrete slab foundations, and simple thermal reflection proves that the engineering community already has the tools to keep trains safely on track.[1][2][3]
