Transmitter Power Peaks at 30 Ohms While Signal Loss Drops at 77 Ohms, Forcing Coaxial Cables Onto 50 Ohms

In the 1930s, the radio engineers at Bell Laboratories had a choice to make. They could optimize their new coaxial cables to carry the maximum possible transmitter power, or they could optimize them to preserve the faintest possible signals over long distances. They could not do both.[1]

The physical geometry of a coaxial transmission line dictates a strict mathematical trade-off. Power handling peaks at an internal characteristic impedance of 30 ohms, while signal loss drops to its absolute minimum at 77 ohms. Forced to pick a standard that would govern the next century of radio frequency transmission, the industry split the difference.[3]

The resulting 50-ohm standard is not an independent physical constant, nor is it a perfect solution for any single application. It is a deliberate, negotiated compromise that sacrifices peak power capacity and accepts a measurable attenuation penalty to create a cable that can adequately perform both jobs.[3][5]

The Geometry of Impedance

To understand the conflict, one must first understand what characteristic impedance actually measures. It is not the simple direct-current resistance of the copper wire, which would measure near zero. Instead, it is the ratio of voltage to current for an alternating radio-frequency wave as it travels down an infinitely long line.[2]

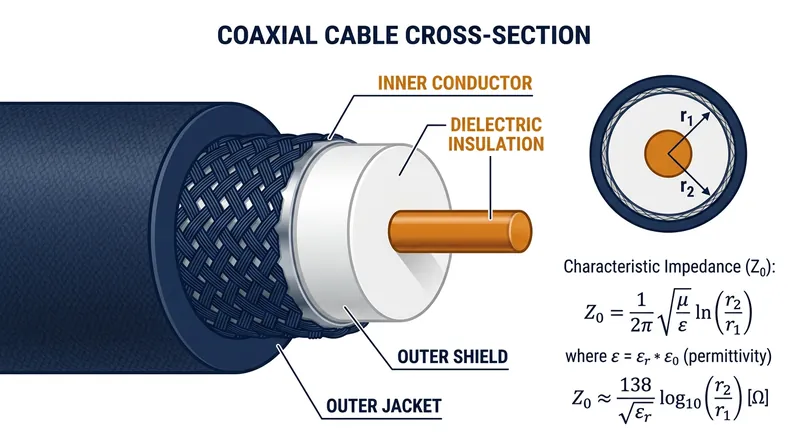

This impedance, measured in ohms, is determined entirely by the physical dimensions of the cable and the insulating material between the conductors. Specifically, it relies on the ratio of the outer shield's inner diameter to the inner conductor's outer diameter.[1][2]

"The characteristic impedance or surge impedance of a uniform transmission line is the ratio of the amplitudes of voltage and current of a wave travelling in one direction," explains Wikipedia's engineering reference. If a cable is crushed or bent too sharply, that diameter ratio changes, altering the impedance and reflecting the signal back toward the source.[2]

When engineers first modeled these cables using air as the dielectric insulator, they discovered that the optimal diameter ratios for different electrical properties did not align. The geometry that allowed the cable to survive massive transmitter voltages was entirely different from the geometry that allowed a faint signal to survive the journey.[3]

The 30-Ohm Power Maximum

When a transmitter pushes kilowatts of radio-frequency power into a cable, the primary threat is voltage breakdown. If the electric field between the inner core and the outer shield becomes too intense, the energy will arc across the gap, destroying the cable and potentially the transmitter.[3]

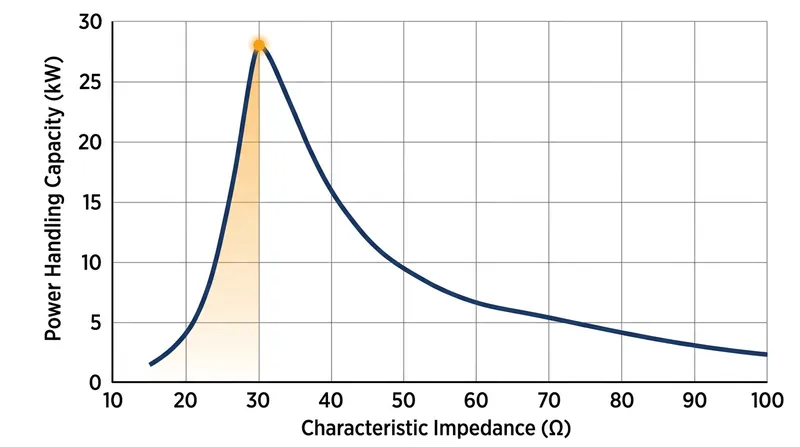

To prevent this arcing, engineers need to maximize the separation between the conductors while keeping the electric field distributed evenly. The mathematics of electromagnetic fields dictate that for an air-filled coaxial cable, the maximum power transfer capacity is achieved when the characteristic impedance is exactly 30 ohms.[3][5]

Achieving a 30-ohm impedance requires a relatively thick inner conductor compared to the outer shield. This thick core provides a large surface area to dissipate heat and handle massive currents, making it the undisputed champion for raw power delivery in broadcast applications.[3]

However, a 30-ohm cable has a fatal flaw for general-purpose use. While it can handle massive power, it is highly inefficient at preserving it. The signal attenuation at 30 ohms is severe, meaning a faint received signal would be entirely absorbed by the cable before it ever reached the amplifier.[3][5]

The 77-Ohm Attenuation Minimum

If the goal is simply to move a delicate signal from an antenna to a receiver with the least possible loss, the geometry must change. Signal attenuation in a coaxial cable is driven primarily by the skin effect, where high-frequency alternating currents crowd to the outer surface of the conductor.[1][3]

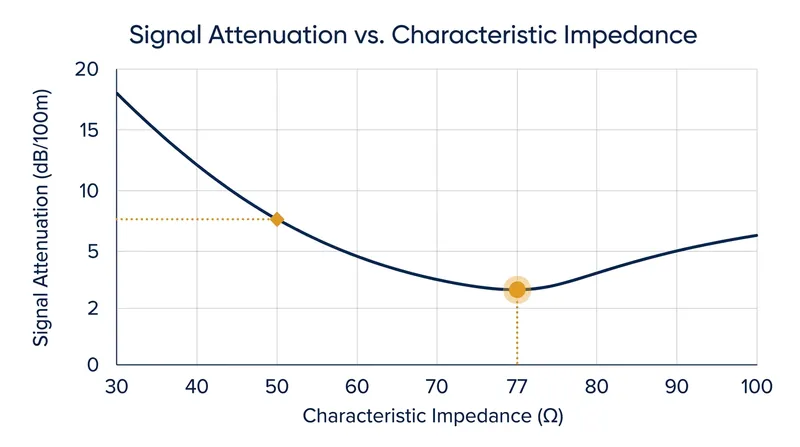

To minimize this resistive loss, the ratio between the outer shield and the inner conductor must be increased. For a coaxial cable using an air dielectric, the absolute minimum signal attenuation occurs when the characteristic impedance reaches 77 ohms.[3][5]

At 77 ohms, the inner conductor is significantly thinner. This geometry allows the electromagnetic wave to propagate with minimal interference from the metal itself. "The quick answer is that 50 ohms is a great compromise between power handling and low loss, for air-dielectric coax," notes the engineering reference Microwaves101, highlighting the tension between these two extremes.[3]

This 77-ohm ideal is the exact reason the television industry ultimately standardized on 75-ohm cables like RG-6. A rooftop antenna or a cable television feed does not transmit high power; it only receives faint microvolt signals. For those applications, minimizing attenuation is the only metric that matters.[5]

Deriving the 50-Ohm Compromise

The radio engineers of the 1930s needed a cable that could connect a high-power broadcast transmitter to an antenna, but also function efficiently for two-way communications. They needed a number between 30 and 77.[3][5]

The arithmetic mean of 30 and 77 is 53.5 ohms, while the geometric mean is 48.06 ohms. The industry settled on the round number of 50 ohms, a figure that sits comfortably between the two mathematical averages and provides acceptable, if imperfect, performance for both transmission and reception.[3]

However, a logarithmic analysis of these constraints reveals a subtle bias in the standard. While 50 ohms is linearly closer to the 30-ohm power maximum than the 77-ohm attenuation minimum, the logarithmic ratio shows the opposite. The standard inherently favors signal preservation over raw power capacity.[6]

The choice of 50 ohms was further cemented by the invention of solid dielectric insulators. When polyethylene, which has a dielectric constant of 2.25, replaced air inside the cables, it shifted the electrical properties.[3]

With a polyethylene dielectric, the impedance point for minimum signal attenuation drops from 77 ohms down to approximately 51.2 ohms. By sheer serendipity, the 50-ohm compromise chosen for air-filled cables turned out to be the near-perfect minimum-loss impedance for the solid cables that eventually replaced them.[3][5]

The 75-Ohm Counter-Argument

Despite the dominance of 50 ohms, the standard is not without its critics. Engineers working with low-level analog video or receive-only antenna links often point out that forcing a 50-ohm cable into a small-signal application incurs a measurable penalty.[5]

Using a 50-ohm cable instead of a 75-ohm cable for a faint signal introduces a 2 to 3 decibel hit in attenuation. In fringe reception areas, that lost signal strength can be the difference between a clear picture and static.[5]

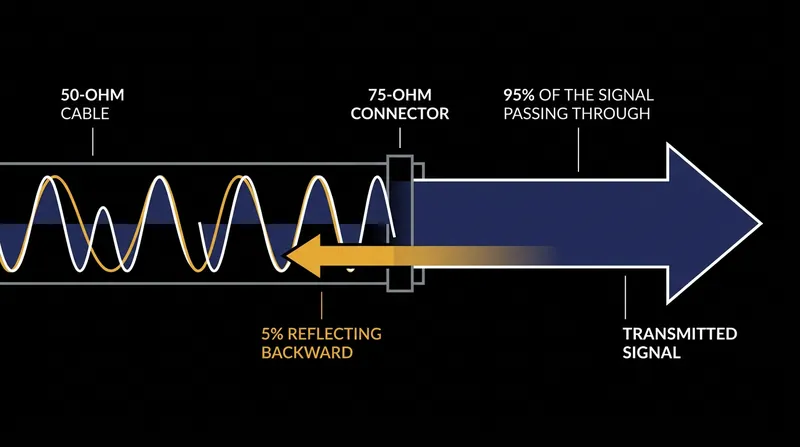

Yet, mixing the two standards is worse than using the wrong one. Connecting a 75-ohm video camera to a 50-ohm cable creates an impedance mismatch. At the exact point where the 75-ohm connector meets the 50-ohm wire, a portion of the signal reflects backward.[2][4]

This reflection, known as a standing wave, wastes approximately 5 percent of the signal at every mismatched junction. To avoid these reflections, an entire system must commit to a single impedance standard from end to end, forcing engineers to choose their compromise early.[2]

The Legacy of the Standard

Today, the 50-ohm standard is so deeply entrenched that it is effectively impossible to change. When early manufacturers began building radio-frequency test equipment, they calibrated their network analyzers and signal generators exclusively to 50 ohms.[3][5]

Every modern Wi-Fi router, cellular base station, and two-way radio expects to see a 50-ohm load at its antenna port. Designing a transmitter for 60 ohms—which would theoretically maximize voltage handling—would require custom matching networks just to interface with standard laboratory testing gear.[5]

The standard endures because it is predictably adequate. It prevents the catastrophic voltage breakdowns that would plague a 77-ohm transmitter cable, while avoiding the severe signal loss that would render a 30-ohm receiver cable useless.[3]

It stands as a permanent monument to the realities of physical engineering. The universe rarely offers a single optimal solution to a complex problem, leaving engineers to find the most mathematically defensible place to split the difference.[6]
