Shear-Thinning Gels Liquefy Under Rolling Stress: Why Gel Pens Glide Effortlessly but Exhaust Ink Three Times Faster Than Oil-Based Ballpoints

The lifespan and feel of a pen are determined the moment its microscopic tungsten carbide ball begins to rotate against a sheet of paper. This rotation applies intense mechanical stress to the ink trapped inside the tip's socket. That specific friction triggers a physical transformation that dictates both the pen's signature glide and its rapid depletion.[1]

Without that rotational force, the ink inside a gel pen is not a liquid at all. It sits in the cartridge as a highly viscous, semi-solid gel that prevents the suspended color pigments from settling to the bottom. This thick state also stops the water-based fluid from leaking out of the tip while the pen rests in a pocket.[1]

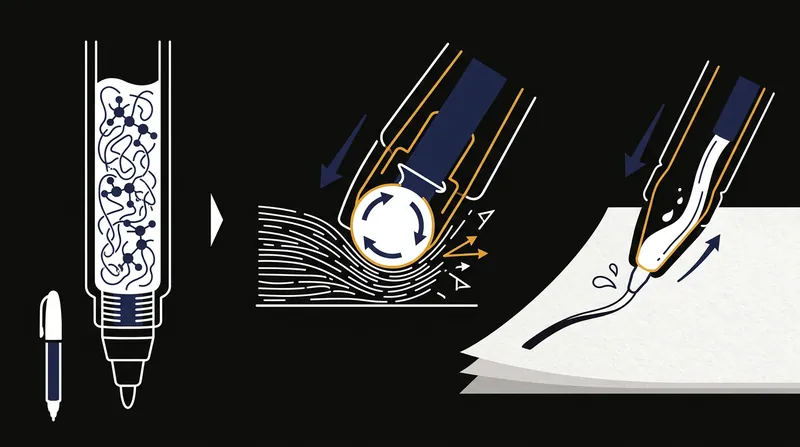

The magic happens entirely through a property called shear-thinning, or pseudoplasticity. When the writer presses down and drags the pen, the rolling ball shears the gel against the metal socket. This mechanical action temporarily breaks the polymer bonds, instantly dropping the ink's viscosity and turning it into a free-flowing liquid.[1][3]

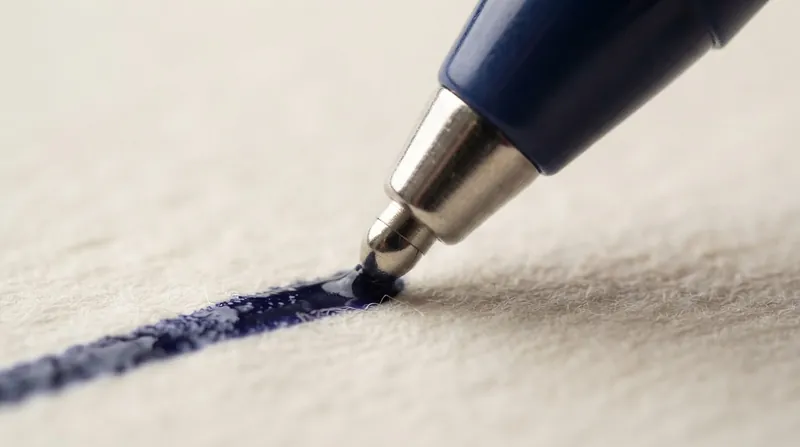

Because the ink liquefies precisely at the point of contact, a gel pen requires almost no downward pressure from the user's hand. The fluid glides onto the paper, filling the microscopic valleys of the cellulose fibers to create a bold, highly saturated line. Once deposited, the shear stress vanishes, and the ink begins to thicken again as it dries.[1]

Oil Pastes Versus Water Gels

Traditional ballpoint pens operate on a completely different chemical foundation. Instead of a water-based gel, ballpoints use a thick, oil-based paste that resembles the consistency of printing ink. This paste does not undergo the same dramatic shear-thinning transformation, meaning it remains relatively stiff even when the ball is rolling.[2]

Because the oil paste resists flowing, a ballpoint pen forces the writer to press harder against the paper to drag the ink out of the socket. This friction-heavy process is why ballpoints can cause hand fatigue during long writing sessions. However, that exact resistance is what gives the writer a feeling of tight control over the pen's strokes.[2]

The chemical makeup also dictates how the ink interacts with the writing surface. Oil-based ballpoint ink sits primarily on top of the paper and dries almost instantly, making it highly resistant to smudging. Gel ink, being water-based, soaks deeper into the paper fibers and requires several seconds of drying time, which often frustrates left-handed writers.[1][2]

The solvent choice directly impacts the vibrancy of the written line. Water-based gels can hold a much higher concentration of bright, opaque pigments, allowing for vivid colors and stark blacks. Oil-based pastes rely on dissolved dyes that often appear slightly faded or grayish by comparison, lacking the stark contrast of a gel stroke.[1][2]

Why the Ink Disappears So Fast

The effortless flow of a shear-thinning fluid comes with a steep volumetric cost. Because the gel liquefies so thoroughly under the rolling ball, the pen deposits a significantly thicker layer of fluid onto the paper with every millimeter of movement. This generous application is the mechanical reason behind the pen's smooth feel.[1][3]

That heavy deposition rate means a standard gel cartridge exhausts its supply rapidly. Industry testing shows that a typical gel pen will run completely dry after producing roughly a third of the writing distance of a traditional pen. In contrast, a standard ballpoint cartridge containing the same volume of oil-based paste can easily write for thousands of meters.[3]

This consumption ratio fundamentally changes the economics of the two tools. While a gel pen provides a premium, low-friction experience, heavy users will find themselves replacing the pen or its refill in a matter of weeks. The thick oil paste of a ballpoint stretches its utility, allowing a single pen to survive months of daily note-taking.[3]

Manufacturers attempt to offset this rapid depletion by designing gel pens with wider ink barrels. However, the physical constraints of a comfortable grip limit how much fluid a standard pen can hold. As a result, the sheer physics of the shear-thinning mechanism guarantees that a gel pen will always be a high-consumption instrument.[1][3]

Precision Engineering in the Socket

Delivering a shear-thinning fluid requires extraordinary manufacturing tolerances at the pen's tip. The gap between the rotating ball and the metal socket must be precisely calibrated to allow the liquefied ink to escape without letting the thicker gel leak. If the gap is even a fraction of a micron too wide, the pen will leave messy blobs on the page.[1]

Conversely, if the socket is too tight, the ball cannot generate enough shear force to fully liquefy the gel. This results in a frustrating phenomenon known as skipping, where the pen scratches across the paper without leaving a mark. The ink acts as a necessary lubricant for the ball, so a dry socket quickly grinds itself to a halt.[1]

The introduction of air bubbles into the cartridge can permanently destroy this delicate fluid dynamic. Because the gel relies on a continuous, unbroken column of fluid to maintain its pressure and flow, a single pocket of air can interrupt the shear-thinning process. Once the flow breaks, the pen often refuses to write, even if the barrel appears full.[1]

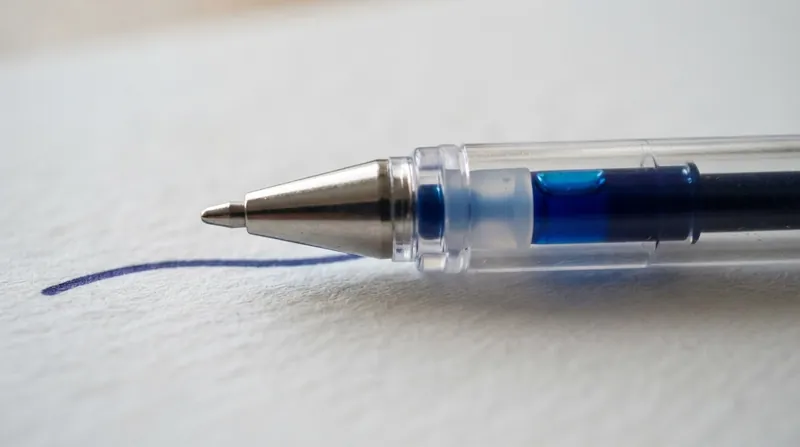

To prevent the gel from flowing backward or drying out from the top down, manufacturers inject a clear, highly viscous stopper fluid at the back of the ink column. This transparent follower gel moves down the barrel as the ink is consumed. It acts as an airtight seal, ensuring the water-based pigments remain fresh until the final drop is used.[1]

Choosing the Right Tool for the Task

Understanding the rheology of these inks allows buyers to match the pen to the specific demands of their work. A ballpoint's thick, oil-based paste is the only reliable choice for writing on glossy surfaces, thermal paper, or multi-part carbon copy forms. The heavy pressure required to dispense the ink ensures the physical transfer of the signature through the layers.[2]

Ballpoints also remain the superior option for environments where longevity and absolute reliability matter more than aesthetics. Because the oil paste does not evaporate easily, a ballpoint can sit in a drawer for years and still write on the first try. Their slow consumption rate makes them the standard issue for busy offices and bulk promotional giveaways.[2]

Gel pens, meanwhile, dominate tasks that require visual impact and prolonged writing comfort. The vibrant, opaque lines are ideal for official document signatures, artistic sketching, and color-coded studying. By eliminating the need for downward pressure, the shear-thinning mechanism prevents the hand cramps associated with long exams or extensive journaling.[1]

Ultimately, the choice between the two technologies is a choice between endurance and experience. The oil-based ballpoint is an exercise in mechanical efficiency, stretching a tiny amount of paste over miles of paper. The gel pen sacrifices that efficiency entirely, using the physics of shear-thinning to trade rapid ink consumption for a flawless, gliding stroke.[1][2]

The materials used for the ball itself also play a crucial role in the shear-thinning process. Most high-quality gel pens utilize a textured tungsten carbide ball, which provides the microscopic grip necessary to pull the thick gel into the socket. A perfectly smooth ball would simply slide over the gel without applying the required mechanical shear.[1]

This reliance on friction explains why writing on glass or highly polished plastic often fails with a gel pen. Without the slight abrasive texture of paper fibers to catch the ball and force it to rotate, the mechanism cannot trigger the viscosity drop. The ball simply skids, and the ink remains locked in its solid state inside the tip.[1][3]
