How Synchro-Tilt's 2:1 Recline Ratio Prevents Popliteal Compression in Office Chairs

For any seated recline to function without causing vascular injury, the floor must continuously bear the weight of the lower leg. If a chair's geometry lifts the thigh even slightly, the foot loses contact with the ground, transferring the entire mass of the calf and foot directly to the back of the knee.[1]

That specific location is the popliteal fossa, a shallow depression housing the popliteal artery, vein, and tibial nerve. Because these vessels run just beneath the skin with minimal muscle protection, they are highly vulnerable to external mechanical pressure from hard surfaces.

Traditional center-tilt office chairs fail this fundamental constraint entirely. Built around a single pivot point located directly beneath the center of the seat, the entire chair shell moves as a single rigid L-shape when the user leans backward.[2]

When a user leans back 20 degrees in a center-tilt chair, the front edge of the seat pan acts as a lever. It arcs upward by as much as 3.8 centimeters, driving the cushion directly into the popliteal crease and lifting the feet off the floor.[2]

"The single-pivot mechanism forces a direct trade-off between spinal relief and lower-limb circulation," notes a 2025 biomechanical review in the Journal of Applied Ergonomics. "You cannot decompress the lumbar spine without simultaneously compressing the popliteal artery."[2]

Decoupling the Backrest

To solve this geometric trap, engineers developed the synchro-tilt mechanism. Instead of a single rigid shell, the backrest and the seat pan are mounted on separate, mechanically linked pivots that move at different rates.[1]

This linkage operates on a specific gearing ratio, most commonly two-to-one. For every two degrees the backrest reclines backward, the seat pan tilts upward by only one degree, breaking the rigid right angle of the traditional chair.

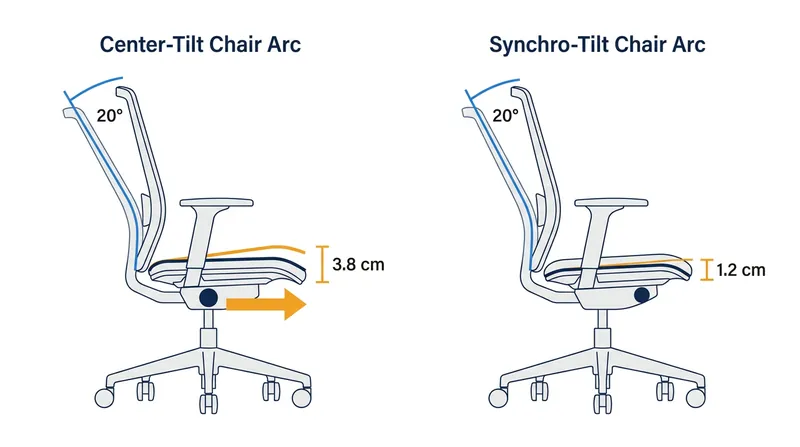

If a user pushes the backrest to a 20-degree recline, the seat pan only angles upward by 10 degrees. This differential flattens the arc of the seat's front edge, restricting its vertical rise to just 1.2 centimeters.

By decoupling the two planes, the mechanism allows the user's torso to open up to a 110-degree or 120-degree trunk-to-thigh angle. This open posture is critical for reducing spinal disc pressure, which peaks when sitting strictly upright.

Crucially, the reduced seat pan tilt ensures the front edge drops away from the back of the knee. The feet remain planted firmly on the floor, and the popliteal vessels remain uncompressed, maintaining normal blood flow to the lower extremities.[1]

The Physiology of Seated Numbness

The consequences of popliteal compression are immediate and measurable in a laboratory setting. When the seat edge presses into the back of the knee, it first collapses the popliteal vein, which operates at a lower pressure than the corresponding artery.

Venous pooling occurs within minutes, leading to swelling in the calves and ankles. If the pressure exceeds 30 millimeters of mercury, the popliteal artery itself begins to narrow, restricting oxygenated blood from reaching the foot.

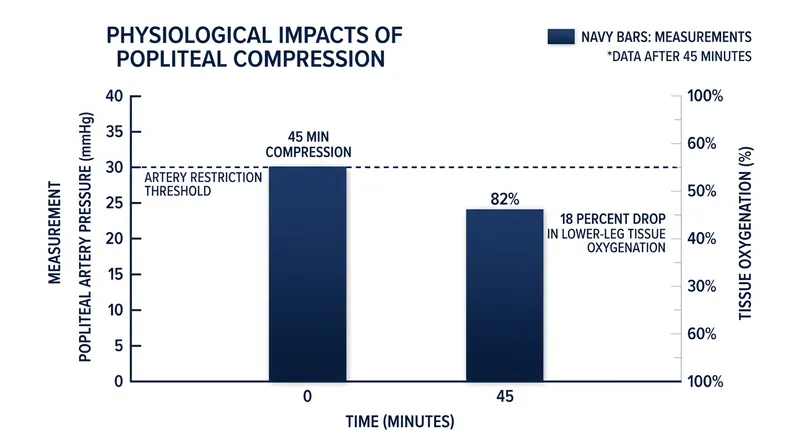

"Tissue oxygenation in the lower leg drops by up to 18 percent within 45 minutes of sustained popliteal compression," researchers at Cornell University's Human Factors Laboratory demonstrated in a recent physiological mapping study.

This restriction triggers the sensation commonly described as a limb falling asleep. The tingling and numbness are neurological distress signals from the tibial nerve, warning the brain that the surrounding tissues are being starved of oxygen.[2]

Over years of daily office work, chronic popliteal compression contributes to the development of deep vein thrombosis and varicose veins. The synchro-tilt mechanism was explicitly designed to mitigate this long-term occupational hazard.[3]

Industry Baselines and Variations

Because of its proven vascular benefits, the 2:1 synchro-tilt ratio has become the baseline standard for commercial ergonomic seating. The Business and Institutional Furniture Manufacturers Association heavily weights independent backrest travel in its ergonomic certification criteria.

However, the exact ratio is not strictly fixed at 2:1 across all manufacturers. Some high-end task chairs utilize a 2.5:1 or even 3:1 ratio, prioritizing a flatter seat pan for users who frequently transition between forward-leaning computer work and reclined reading.[1]

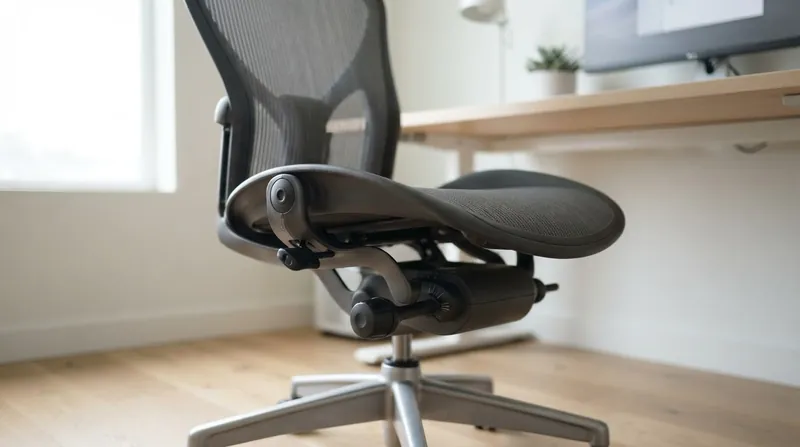

Advanced mechanisms also incorporate a waterfall seat edge. This design curves the front two inches of the seat cushion downward, further increasing the clearance between the chair and the popliteal fossa regardless of the tilt angle.[3]

"The combination of a synchronized tilt linkage and a waterfall edge effectively eliminates the seat pan as a source of vascular restriction," the Occupational Safety and Health Administration notes in its current computer workstation guidelines.[3]

Despite these advancements, the mechanism's effectiveness relies entirely on proper initial calibration. If the seat height is set too high from the start, the user's feet will dangle, and popliteal compression will occur even without reclining.[1][3]

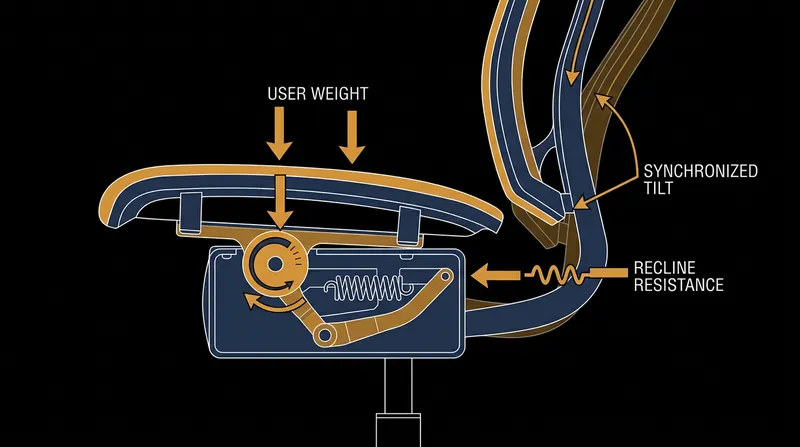

Weight-Activated Linkages

The latest evolution of the synchro-tilt mechanism removes manual tension adjustment entirely. Traditional systems require the user to turn a knob to match the recline resistance to their body weight, a step most office workers ignore.[1]

Weight-activated synchro-tilt mechanisms use the downward force of the user's body on the seat pan to automatically tension the backrest. A 90-kilogram user receives firm resistance, while a 50-kilogram user can recline effortlessly without adjusting any dials.[1]

This automation ensures that the 2:1 recline ratio is actually utilized. When tension is set incorrectly on manual chairs, users either lock the backrest upright to avoid falling backward or struggle to push it into a recline, defeating the ergonomic design.[2]

By guaranteeing that the backrest moves dynamically with the user, weight-activated linkages ensure continuous lumbar support while preserving the popliteal clearance that the ratio was engineered to provide.[1]

The synchro-tilt mechanism represents a triumph of mechanical engineering over human physiology. By translating a single backward lean into two distinct geometric planes, it allows the human body to rest without cutting off its own circulation, provided the initial seat height is calibrated correctly.[1]
