The Harman Target Curve: How Research Dictates the Preferred Headphone Frequency Response

Acoustic researchers at Harman International dictate the baseline sound profile of modern headphones, wielding a standardized frequency response curve to simulate the acoustic properties of a calibrated listening room. By measuring how sound waves interact with the human torso and ear canal, these engineers establish the exact decibel adjustments required to make closed-back drivers sound like high-end loudspeakers. When manufacturers design a new audio product, this target dictates the physical tuning of the acoustic chambers and the digital equalization applied by the onboard signal processors.[2][3]

The mechanism relies on the Harman Target Curve, a frequency response standard developed by Dr. Sean Olive and his research team starting in 2012. Instead of tuning headphones to a mathematically flat line—which sounds thin and unnatural when placed directly against the ear—the target introduces a specific bass shelf and upper-midrange contour. This contour compensates for the missing physical interactions that occur when sound waves travel through open air and bounce off the listener's shoulders and outer ear.[2][4]

"The goal was to replicate the sound of a good loudspeaker in a good room," writes Dr. Sean Olive in his 2022 breakdown of the research. To achieve this, the team placed a reference dummy head in a calibrated listening room, measured the acoustic response of flat loudspeakers, and mapped how the room's reflections and the dummy's physical shape altered the sound before it reached the eardrum. The resulting data formed the foundation of a new tuning philosophy.[2]

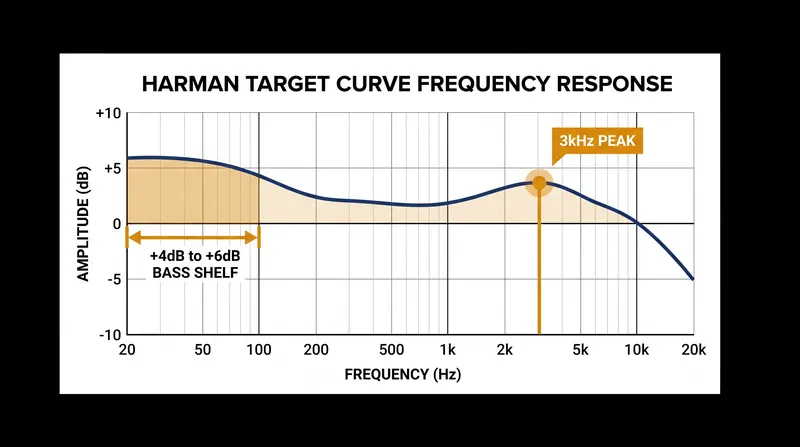

The data showed that a flat speaker in a room naturally boosts bass frequencies due to room gain and alters high frequencies through reflections. When manufacturers tune a headphone to a flat response, they strip away this acoustic environment. The Harman curve artificially injects it back in, applying a +4dB to +6dB boost in the sub-bass region below 100Hz, alongside a distinct peak around 3kHz to mimic the natural resonance of the human ear canal.[2][6]

This research fundamentally shifted how consumer audio companies design their products. AKG, a subsidiary of Harman, integrated these findings directly into their K371 studio headphones. According to AKG's 2023 engineering documentation, aligning the drivers with the Harman target ensures that audio engineers and casual listeners hear the exact same tonal balance, bridging the gap between professional mixing environments and consumer playback devices.[3]

The testing methodology involved double-blind listening tests with hundreds of participants, ranging from trained audio professionals to casual consumers. Listeners were asked to rank different frequency response profiles without knowing which headphone they were wearing or what target it was tuned to. The results were definitive: across demographics, age groups, and listening experience levels, the majority preferred the Harman tuning over legacy flat targets.[2][6]

Specifically, the ResearchGate publication detailing listener preferences found that 64% of participants consistently rated the Harman curve as the most natural and pleasing sound profile. This consensus proved that audio preference is not entirely subjective; a predictable, measurable baseline exists for human hearing. By quantifying this preference, the researchers provided the industry with a reliable blueprint for mass-market audio design.[6]

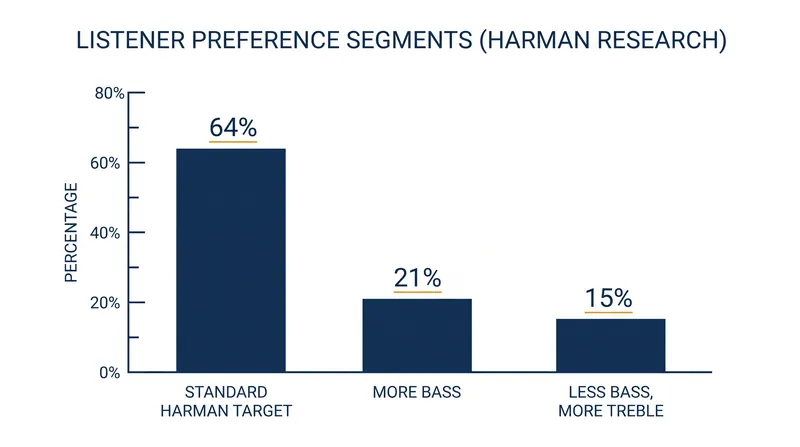

However, the curve is not a monolith. The research identified three distinct listener segments based on their deviations from the standard target. While the 64% majority prefer the standard target, roughly 15% of listeners—often older males with mild high-frequency hearing loss—prefer more treble and less bass. Another 21%, predominantly younger listeners, prefer even more bass than the standard curve provides, prompting manufacturers to offer adjustable EQ profiles in their companion apps.[2][6]

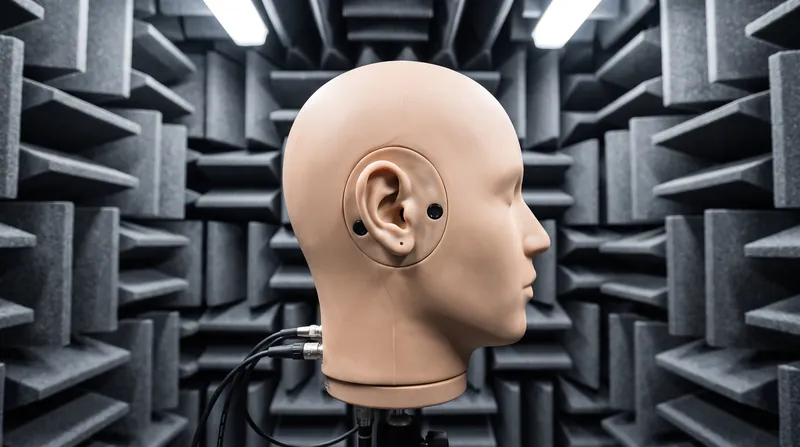

To account for evolving measurement standards, the target curve itself has required updates. The testing apparatus changed, moving from older GRAS 45CA measurement rigs to the newer B&K 5128, which more accurately simulates the high-frequency acoustic impedance of the human ear canal. This hardware shift required researchers to recalculate the target to ensure the measured data continued to align with human perception.[7]

For consumers, understanding this curve dictates how to evaluate and equalize headphones after purchase. AV Gadgets notes in their 2023 analysis that applying a software equalizer (EQ) to force a headphone to match the Harman target can dramatically improve the sound of a cheap pair of earbuds. Software tools like AutoEQ use the Harman target as a baseline to generate correction profiles for thousands of different headphone models, effectively democratizing high-fidelity audio.[5]

Yet, strict adherence to the curve has its critics within the audiophile community. Some argue that the Harman target's bass shelf is too aggressive for critical listening, masking subtle midrange details in classical or acoustic music. Siegfried Linkwitz, in his analysis of room calibration, emphasizes that spatial perception and stereo imaging rely on complex phase relationships and transient responses that a simple frequency amplitude curve cannot fully capture.[1][5]

Despite these debates, the Harman Target Curve remains the industry's most reliable benchmark. It provides a quantifiable metric for audio reviewers and a predictable target for manufacturers aiming for mass appeal. The next time a consumer evaluates a headphone frequency response graph, checking how closely the line tracks the Harman target offers a direct, evidence-based indicator of its out-of-the-box tonal balance.[2][8]
