Feedforward, Feedback, and Hybrid ANC: How Microphone Placement Dictates Noise Cancellation Effectiveness and Sound Quality

The defining moment for any active noise-canceling (ANC) headphone happens before a single line of digital signal processing code is written: it is the physical placement of the microphone. Whether a manufacturer positions the mic outside the earcup, inside the speaker chamber, or in both locations dictates exactly which frequencies the headset can block and how much it will cost. This architectural choice is the difference between a headphone that silences a jet engine and one that merely muffles it.[1][7]

Active noise cancellation works on a principle called destructive interference. A microphone listens to ambient noise, and a processor generates a sound wave with the exact opposite phase. When the two waves collide, they cancel each other out. But the processor can only invert the sound that the microphone actually hears.[1][6]

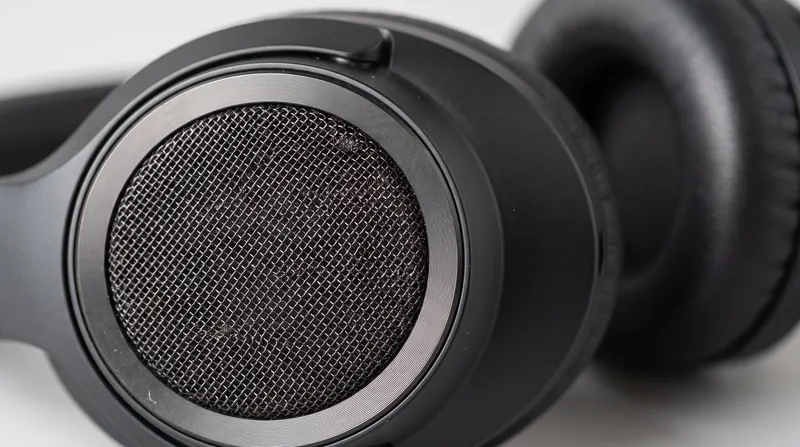

This brings us to the first and most common architecture: feedforward ANC. In a feedforward system, the microphone is placed on the outside of the headphone cup. It hears the noise before your ear does, giving the digital signal processor (DSP) a fraction of a millisecond to analyze the sound, invert the phase, and play it through the speaker.[1][3]

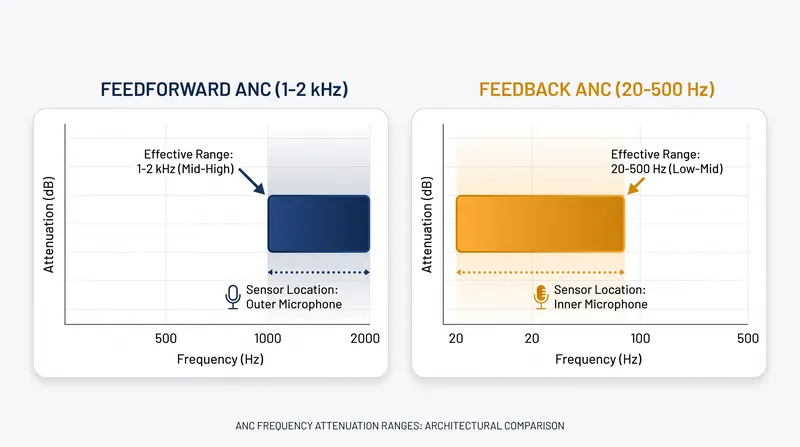

Because the feedforward microphone sits outside, it excels at isolating high-frequency, predictable noises. According to acoustic engineering data from Ole Wolff Electronics, feedforward systems are highly effective at managing frequencies up to 1 to 2 kHz. This makes them ideal for blocking out the consistent hum of an air conditioner or the whine of a fan.[4]

However, feedforward systems have a critical blind spot. Because the microphone is outside, it cannot hear what is actually happening inside the ear cup. If the anti-noise signal is slightly off, or if the headphone shifts on your head and changes the acoustic seal, the feedforward system has no way to correct itself. It just keeps pumping out the inverted wave, which can sometimes amplify the noise rather than cancel it.[1][6]

Furthermore, feedforward microphones are highly susceptible to wind noise. A gust of wind hitting the external microphone creates a loud, low-frequency rumble that the processor attempts to cancel, resulting in a jarring blast of anti-noise directly into the user's ear.[1]

To solve the self-correction problem, engineers developed feedback ANC. In this architecture, the microphone is placed inside the ear cup, positioned as close to the speaker driver and the user's ear canal as possible.[3][6]

The feedback microphone hears exactly what the user hears—a mix of the music playing and the ambient noise that has leaked through the ear pads. This allows the system to continuously monitor its own performance. If the noise cancellation is not perfectly aligned, the feedback loop detects the error and adjusts the anti-noise signal in real time.[3][4]

This internal placement makes feedback ANC exceptionally good at canceling low-frequency rumbles, typically in the 20 Hz to 500 Hz range. When you are sitting on a train or an airplane, the deep, vibrating drone of the engine is handled best by a feedback system. The David Clark Company, which designs aviation headsets, relies heavily on this internal monitoring to protect pilots from the relentless low-frequency roar of aircraft engines.[4][5]

But feedback ANC is not perfect. Because the microphone is inside the cup, it is listening to the music you are playing alongside the outside noise. The processor has to carefully filter out the music so it does not accidentally cancel the bass notes of your favorite song. If the filtering is not precise, feedback ANC can severely degrade the audio quality, stripping the warmth and depth from the music.[1][3]

Additionally, feedback systems are prone to a phenomenon known as howl. If the headphone loses its seal—perhaps because the user is wearing thick glasses or turns their head sharply—the internal microphone can pick up the speaker's output and create a high-pitched feedback loop, similar to a microphone getting too close to a PA speaker on a stage.[1]

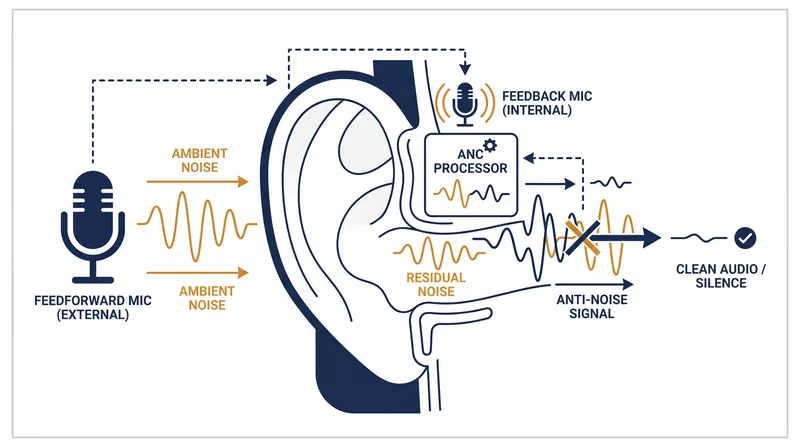

The ultimate solution, and the one found in nearly all premium headphones today, is hybrid ANC. As the name suggests, hybrid systems use both feedforward and feedback microphones.[3][5]

By placing microphones on both the outside and the inside of the ear cup, hybrid ANC combines the strengths of both architectures. The external feedforward microphone catches high-frequency noises early, while the internal feedback microphone cleans up low-frequency rumbles and corrects any errors in the anti-noise signal.[1][5][6]

A 2022 study published in the DAGA acoustics journal on multi-channel feedforward ANC headphones highlighted that optimizing microphone positioning across multiple nodes significantly broadens the effective cancellation bandwidth. Hybrid systems can reliably attenuate noise across a much wider spectrum, from 20 Hz all the way up to 3 kHz, providing the cone of silence effect that premium buyers expect.[2][7]

The trade-off for this comprehensive noise cancellation is cost and complexity. Hybrid systems require two or more microphones per ear cup, more advanced digital signal processors to handle the dual audio streams, and significantly more battery power. This is why hybrid ANC is typically reserved for flagship models priced above $250.[3][7]

For consumers, the actionable takeaway is to match the architecture to the environment. If you need affordable headphones for a relatively quiet office to block out the HVAC system, a simple feedforward pair will suffice. If you are a frequent flyer dealing with deep engine rumble, ensuring your headset has at least a feedback mechanism—or ideally a hybrid setup—is non-negotiable.[6][7]

Understanding microphone placement cuts through the marketing jargon. A manufacturer can boast about proprietary algorithms and AI-driven noise reduction, but the physical laws of acoustics remain absolute. The location of the microphone dictates what the processor can hear, and what it cannot hear, it cannot cancel.[7]
