The Impedance and Sensitivity Trade-Off: How Ohms and dB/mW Dictate Headphone Volume and Amplifier Requirements

At 300 ohms and a sensitivity of 97 decibels per milliwatt, a standard pair of studio reference headphones requires exactly 20 milliwatts of power to reach a peak volume of 110 decibels. Plug those same headphones into a standard smartphone or laptop audio jack, which typically outputs no more than 5 to 10 milliwatts, and the resulting audio will lack dynamic range, bass response, and overall volume. The hardware is physically incapable of driving the speakers to their intended performance level.[1][2]

This mismatch is the most common error consumers make when upgrading their audio equipment. Buyers frequently assume that a more expensive headphone will automatically sound better across all devices. In reality, high-end audio gear is often designed with specific electrical requirements that standard consumer electronics cannot meet. The specification sheet holds the answer, but it requires reading two distinct numbers in tandem: impedance and sensitivity.[7][11]

Impedance, measured in ohms (Ω), acts as the foundational electrical resistance of the headphone's internal circuitry. It dictates how much voltage an amplifier must push to deliver a specific amount of current. Consumer headphones typically sit between 16 and 32 ohms, allowing low-voltage devices like smartphones to drive them easily. Studio and audiophile headphones often range from 250 to 600 ohms.[5][8][9]

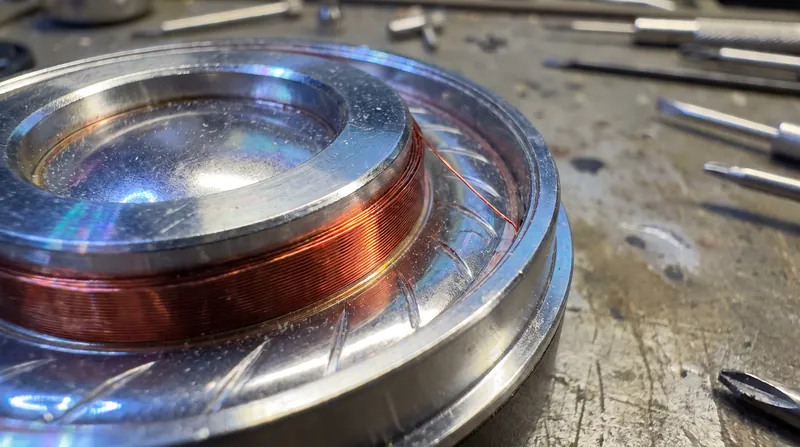

The physical reason for this resistance lies in the voice coil. High-impedance headphones use voice coils wound with extremely thin wire, which packs more turns into the magnetic gap. This design reduces the moving mass of the driver, allowing it to react more quickly to audio signals and produce tighter, more accurate sound. However, that thinner wire inherently resists electrical current more aggressively.[2][5]

"Impedance is the electrical resistance of the headphone's voice coil," Apos Audio noted in their 2023 technical breakdown. Because of this resistance, a high-impedance headphone demands a higher voltage swing from the source device to achieve the same current flow as a low-impedance model. If the source device cannot provide that voltage, the audio signal clips, resulting in distortion.[5]

But impedance is only half the equation. Sensitivity, typically measured in decibels per milliwatt (dB/mW), measures how efficiently the headphone converts that electrical power into acoustic volume. If impedance is the weight of a car, sensitivity is the efficiency of its engine. A heavy car with a highly efficient engine might still outpace a lighter car with a poor engine.[3][4][10]

"Sensitivity is a measure of how loud the headphones will play at a given power level," Audeze explains in their engineering documentation. A headphone with a sensitivity of 105 dB/mW will produce 105 decibels of sound when fed exactly one milliwatt of power. A headphone with a sensitivity of 90 dB/mW will produce only 90 decibels from that same single milliwatt.[2]

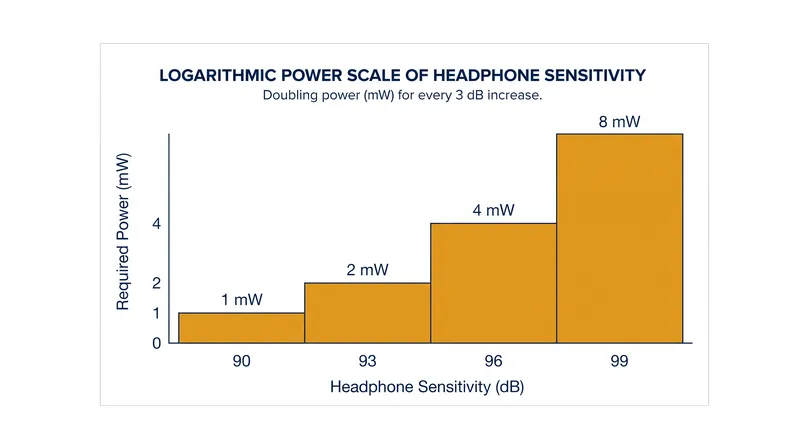

The decibel scale is logarithmic, which makes sensitivity differences mathematically massive. Every 3-decibel increase in volume requires exactly double the electrical power. To push a 90 dB/mW headphone to 93 decibels requires 2 milliwatts. To reach 96 decibels requires 4 milliwatts. By the time that headphone reaches a peak dynamic volume of 110 decibels, it demands over 100 milliwatts of power.[1][3]

This logarithmic scaling explains why sensitivity often overrides impedance in determining amplifier requirements. A 600-ohm headphone is notoriously difficult to drive, but if it has an unusually high sensitivity of 105 dB/mW, a standard laptop might still push it to a listenable volume. Conversely, a planar magnetic headphone might have a low impedance of just 35 ohms, but a notoriously low sensitivity of 88 dB/mW.[1][2][8]

That 35-ohm, 88 dB/mW planar magnetic headphone will drain a smartphone battery rapidly and still sound quiet, because it requires 158 milliwatts to reach 110 decibels. The low impedance means the smartphone can deliver the necessary current, but the low sensitivity means the headphone wastes most of that power rather than converting it into sound.[1][11]

Complicating matters, manufacturers sometimes report sensitivity in decibels per volt (dB/V) rather than decibels per milliwatt. As DIY-Audio-Heaven highlighted in a 2025 technical review, converting between the two requires factoring in the impedance. A headphone rated at 100 dB/V at 32 ohms is actually much less efficient than a headphone rated at 100 dB/mW at 32 ohms, because one volt into 32 ohms equals roughly 31 milliwatts of power.[3][4]

Minidisc Australia's technical guides stress that consumers must check the units before comparing two headphones. If Brand A lists 105 dB/mW and Brand B lists 105 dB/V, they are not equally loud. The dB/V measurement is tied to the voltage output of the amplifier, making it a more useful metric for solid-state desktop amplifiers, while dB/mW is the standard for portable battery-powered devices.[4][6]

So when is a dedicated headphone amplifier actually necessary? "If you have low impedance headphones, you don't need a dedicated amplifier," How-To Geek stated in their 2022 hardware guide, provided the sensitivity is also reasonably high (above 98 dB/mW). For these consumer models, the amplifier built into a standard motherboard or Apple dongle is mathematically sufficient to reach 110 decibels without distortion.[9]

Adding a powerful desktop amplifier to a highly sensitive, low-impedance in-ear monitor (IEM) can actually degrade the audio quality. High-power amplifiers often have a noise floor—a faint static hiss—that becomes clearly audible through highly sensitive IEMs. Furthermore, accidentally turning the volume dial too high on a 2-watt amplifier can instantly blow the delicate drivers of a 16-ohm IEM.[6][8]

Conversely, for headphones crossing the 150-ohm threshold, or those dipping below 95 dB/mW in sensitivity, a dedicated amplifier transitions from a luxury to a necessity. Without it, the listener will experience "clipping." The bass frequencies, which require the most electrical current to reproduce, will sound muddy and recessed, while the treble may become harsh and piercing as the source device struggles to maintain voltage.[7][10]

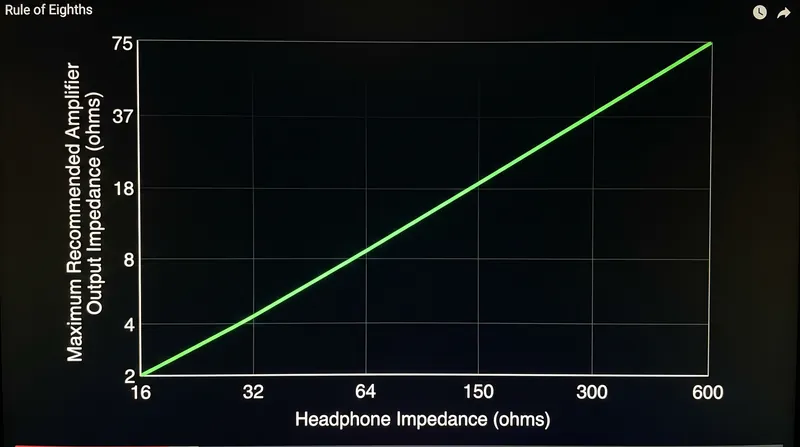

Phiaton's 2023 engineering blog emphasizes that matching the amplifier's output impedance to the headphone's input impedance is also critical for frequency response. The industry standard "Rule of Eighths" dictates that the amplifier's output impedance should be no more than one-eighth of the headphone's impedance. A 32-ohm headphone requires an amplifier with an output impedance of 4 ohms or less to prevent the bass frequencies from bloating.[7]

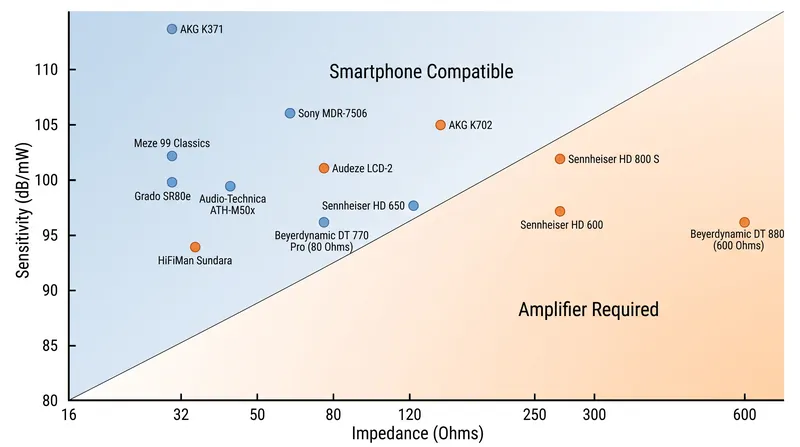

For consumers purchasing audio equipment in 2026, the specification sheet remains the only reliable predictor of hardware compatibility. A headphone with an impedance above 100 ohms and a sensitivity below 100 dB/mW will require a dedicated amplifier to reach its full dynamic range, while anything below 50 ohms with high sensitivity will run perfectly off a standard laptop audio jack.
