Inelastic Compaction of Clay Aquitards: Why Sinking Land Never Rebounds Even When Depleted Aquifers Refill

When a depleted aquifer is finally recharged with new water, the sunken land above it does not rise back to its original elevation. The surface might lift by a fraction of an inch, but the vast majority of the lost elevation is gone permanently. This physical reality dictates the future of global groundwater storage.[4]

The mechanism behind this permanent loss is a geological process known as inelastic compaction. It occurs deep underground within specific layers of the aquifer system called aquitards, which are rich in fine-grained clays and silts. When water is pumped out too quickly, these layers collapse under the weight of the earth above them.[5]

Understanding this one-way street is critical for water management in arid regions. In California's San Joaquin Valley, the land surface has subsided by as much as 9 meters since 1925 due to chronic groundwater overdraft. That lost elevation represents billions of gallons of water storage capacity that has been physically deleted from the geological record.[1]

The assumption that an aquifer acts like an empty underground lake that can simply be refilled is fundamentally flawed. Instead, an aquifer is a pressurized matrix of solid particles and pore spaces. When the water leaves, the structure itself changes, and in clay-rich systems, that change is irreversible.[3]

The Architecture of an Aquifer

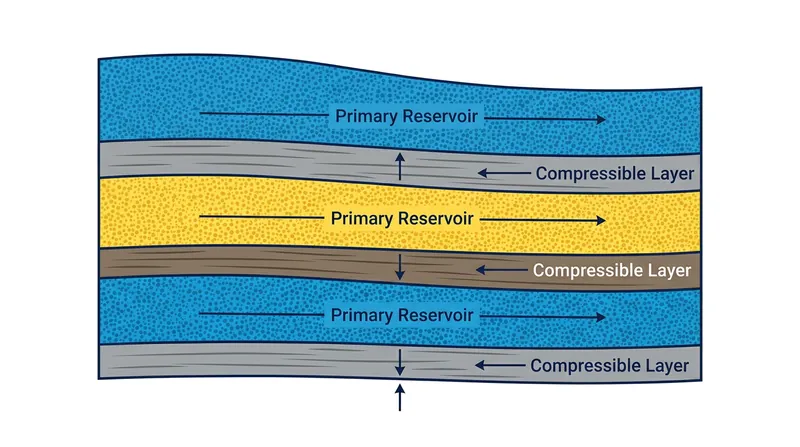

To understand why the land cannot rebound, one must first look at how water is stored underground. Aquifer systems are not uniform; they are typically composed of interbedded layers of coarse-grained sands and gravels, separated by fine-grained clays and silts.[5]

The coarse-grained layers act as the primary reservoirs and conduits for groundwater. Their large, rigid grains form a stable skeleton that easily yields water to pumping wells. When water is drawn from these sandy layers, they drain efficiently without losing their structural integrity.[3]

The fine-grained clay layers, known as aquitards, behave entirely differently. Clay particles are microscopic, flat, and plate-like, and they hold a significant amount of water within their microscopic pore spaces. However, they release this water very slowly, and their structural stability depends heavily on the pressure of the water trapped inside them.[5]

As long as the water pressure remains stable, the clay plates are held apart in a somewhat random, disorganized orientation. The water acts as a structural support, bearing a portion of the immense weight of the overlying soil and rock. This balance between water pressure and geological weight keeps the aquifer inflated.[6]

Crossing the Preconsolidation Threshold

When groundwater is pumped from the adjacent sandy layers, the water pressure in the aquifer drops. This pressure differential forces water to slowly squeeze out of the clay aquitards and into the sand. As the water leaves, the fluid pressure supporting the clay plates diminishes.[5]

The weight of the overlying earth does not change, so the burden shifts entirely onto the solid clay particles. Initially, if the pressure drop is small, the clay layers compress slightly but retain their disorganized structure. This minor compression is known as elastic deformation, and it is fully reversible.[6]

During elastic deformation, the land surface might sink by a few millimeters during a dry summer and then rebound by the same amount after winter rains. The pore spaces between the clay particles shrink slightly but do not collapse. The system remains within its historical stress limits.[4]

The critical failure occurs when pumping drives the water pressure below a historical low, crossing a boundary known as the preconsolidation stress threshold. Once this threshold is breached, the structural integrity of the clay matrix fails. The plates can no longer support the geological load above them.[6]

The Mechanics of Inelastic Compaction

Beyond the preconsolidation threshold, the random, disorganized clay plates are forced to physically rearrange themselves. Under the crushing weight of the earth, the flat particles rotate and slide until they are stacked neatly on top of one another, much like a deck of cards.[5]

This structural reorganization is called inelastic compaction. As the clay plates stack tightly together, the microscopic pore spaces that once held water are permanently squeezed out of existence. The physical volume of the clay layer shrinks, and the land surface above it sinks accordingly.[3]

Because the clay particles are now locked into a dense, highly stable configuration, the process cannot be undone. Pumping water back into the aquifer will not force the neatly stacked plates to spontaneously rotate back into a disorganized, space-consuming arrangement. The structural collapse is a one-way physical transformation.[4]

The scale of this compaction can be massive. In the San Joaquin Valley, researchers utilizing one-dimensional compaction models found that over 65 years, the vast majority of the region's severe subsidence originated from the inelastic compaction of deep clay layers. The storage space lost in those layers is gone forever.[1]

Measuring the Permanent Loss

The permanent nature of this compaction is clearly visible in long-term geological data. In the Houston-Galveston region of Texas, heavy groundwater pumping between 1937 and 1979 caused up to 3.05 meters of land subsidence. The primary driver was the inelastic compaction of aquitards within the Chicot and Evangeline aquifers.[2]

When water managers in Texas drastically reduced groundwater withdrawal rates in the 1980s, the water levels in the aquifers began to recover. However, the land surface did not return to its 1930s elevation. The inelastic compaction had permanently altered the geological structure of the Gulf Coast aquifer system.[2]

Extensometer data from the region showed that while the rapid subsidence halted, the surface rebounded by only a minuscule fraction of the total distance it had fallen. Between 1990 and 1993, a 36-meter rise in groundwater levels produced an elastic rebound rate of just 14.9 millimeters per year.[2]

This data confirms that the recovery is strictly limited to the elastic fraction of the aquifer's storage. The inelastic portion—the space lost when the clay plates stacked together—remains permanently closed. The aquifer has a physically smaller capacity than it did before the overdraft occurred.[4]

The Illusion of Rebound

The slight uplift that does occur when an aquifer is recharged can create a false sense of security. When water is pumped back in, it slightly expands the coarse-grained sand layers and pushes the compacted clay plates apart by a microscopic fraction. This is the elastic rebound.[5]

However, this elastic expansion is typically less than five percent of the total compaction that occurred during the inelastic phase. A region that sank by three meters might rebound by only a few centimeters. The land remains permanently lowered, increasing the risk of flooding in coastal and low-lying areas.[2]

Furthermore, the compacted clay layers now act as highly effective barriers to water flow. Because their pore spaces have been eliminated, water can no longer move easily through them. This reduced vertical hydraulic conductivity makes it much harder to recharge the deeper sandy aquifers from the surface.[3]

The compacted clays also continue to slowly drain and compress for decades after the initial pressure drop. "We suggest that residual compaction of clays is a process that continues for decades-to-centuries, indicating that to significantly reduce subsidence requires some recovery of head, not just a stabilization," notes Matthew Lees, lead author of the San Joaquin Valley compaction study.[1]

Managing the Future of Groundwater

Recognizing the irreversible nature of inelastic compaction fundamentally changes how groundwater must be managed. Policies that aim merely to stabilize groundwater levels at their current, depleted state are insufficient to stop ongoing subsidence. The residual compaction of clays will continue to drag the surface downward.[1]

To halt subsidence completely, water managers must allow the hydraulic head—the water pressure—to actively recover. Raising the water levels reduces the effective stress on the clay layers, eventually bringing the system out of the inelastic compaction regime and back into the elastic range.[2]

However, this recovery only prevents further permanent damage; it does not restore what was lost. The billions of gallons of storage capacity deleted from the San Joaquin and Houston-Galveston aquifers cannot be engineered back into existence. The geological architecture has been permanently rewritten.[4]

This physical reality underscores the critical importance of preventing extreme overdraft in the first place. Once the preconsolidation threshold is crossed, the damage is locked into the earth. Sustainable groundwater management requires keeping water levels high enough to support the delicate, disorganized structure of the clay aquitards.[3]

As climate change drives longer droughts and increases reliance on groundwater, protecting the structural integrity of these aquifers is paramount. They are not just temporary reservoirs; they are fragile geological formations. Treating them as infinite, elastic sponges ignores the permanent consequences of inelastic compaction.[6]

The science is clear: when the earth beneath our feet loses its capacity to hold water, it does not forgive the deficit. The clay plates stack, the land sinks, and the storage space vanishes. The only true remedy is to respect the physical limits of the aquifer before the threshold is crossed.[4]
