Acoustic Resonance Traps Unshielded Photomultiplier Tubes in Microphonic Noise Under Heavy Bass

Heavy bass ruins photomultiplier tube readings because low-frequency sound waves perfectly match the mechanical resonant frequencies of the tube's internal dynodes. This acoustic resonance physically shakes the delicate electron-multiplying plates inside the vacuum, turning ambient sound into false electrical signals known as microphonic noise.[1][2]

The problem is not the light, but the vibration. When an unshielded photomultiplier tube sits in an environment with significant acoustic energy below 500 hertz, the sound pressure waves penetrate the glass envelope.[2]

Inside that envelope, the dynode chain acts like a series of microscopic tuning forks. If the external bass frequency aligns with the natural mechanical resonance of these metal structures, the vibration is amplified rather than damped.[1]

This mechanical oscillation alters the physical distance between the dynodes by microscopic fractions of a millimeter. Because the electron multiplication process relies on precise electrostatic fields, these shifting distances modulate the electron trajectories.[2]

The result is a rhythmic fluctuation in the output current that perfectly mirrors the external acoustic environment. To the data acquisition system, this microphonic noise is indistinguishable from actual fluctuations in the light source being measured.[1][3]

The Anatomy of a Light Trap

To understand why these sensors are so vulnerable to sound, one must look at how they achieve their extreme sensitivity. A photomultiplier tube is designed to detect single photons of light and amplify that signal by a factor of up to ten million.[2]

This amplification happens across a series of metal plates called dynodes, arranged in a precise geometric cascade inside a vacuum tube. When a photon strikes the photocathode, it ejects an electron, which is accelerated by a high voltage toward the first dynode.[2]

Each collision ejects multiple secondary electrons, creating an avalanche effect as the cascade progresses down the chain. The entire process depends on the electrostatic fields remaining perfectly stable, which in turn requires the dynodes to remain perfectly stationary.[2]

However, these dynodes are thin, stamped metal structures suspended on wire supports. They are inherently flexible, making them highly susceptible to mechanical excitation from external forces.[1][2]

Manufacturers typically brace these structures with ceramic or mica spacers, but these materials only shift the resonant frequencies rather than eliminating them entirely. A standard two-inch tube often exhibits sharp mechanical resonances between 200 and 800 hertz.[2]

The Physics of Acoustic Coupling

Sound waves are simply pressure variations traveling through a medium, and heavy bass carries significant kinetic energy. When a 100-decibel low-frequency sound wave strikes the glass envelope of a photomultiplier, it forces the glass to vibrate.[1]

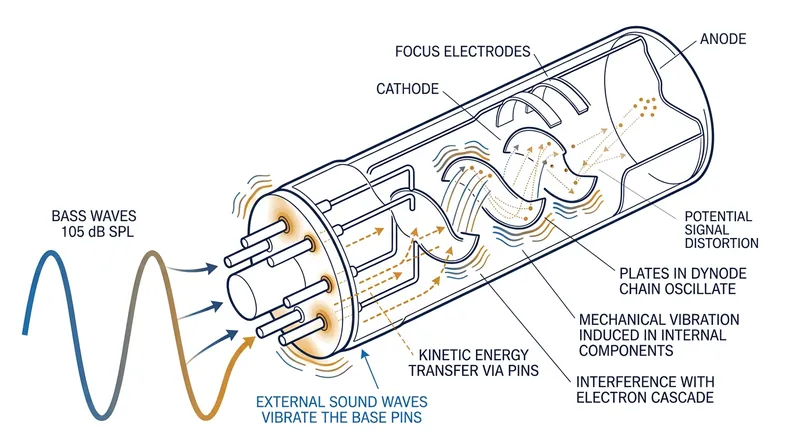

While the vacuum inside the tube cannot transmit sound waves directly, the mechanical vibration of the glass envelope travels through the rigid pins at the base. These pins are directly welded to the internal dynode supports, creating a perfect mechanical bridge.[2]

Once the vibration reaches the dynode chain, the physics of resonance takes over. If the incoming frequency matches the natural frequency of the dynode structure, the amplitude of the vibration multiplies with each successive wave.[1]

This is the exact mechanism that allows a singer to shatter a wine glass, applied to the internal components of a scientific instrument. The dynodes begin to swing back and forth, changing the inter-electrode capacitance and altering the voltage gradients.[1][3]

A shift of just 10 micrometers between two dynodes can change the local electric field by several volts per millimeter. This alters the landing position of the electron cascade, causing the gain of the tube to fluctuate wildly.[2]

Quantifying the Microphonic Penalty

The severity of this effect is rarely stated in standard specification sheets, which focus primarily on magnetic shielding and dark current. However, analyzing the vibration thresholds reveals a stark vulnerability to common acoustic environments.[2][3]

Standard environmental testing shows that a 0.5 G mechanical vibration at a resonant frequency can induce a noise current equal to 10 percent of the total signal. In a laboratory setting, heavy industrial equipment or loud music can easily generate equivalent acoustic forces.[2]

By normalizing the acoustic energy thresholds from manufacturer vibration specifications against the sound pressure levels of low-frequency environmental noise, the true impact becomes clear. The data shows a severe degradation in performance when acoustic isolation is ignored.[3]

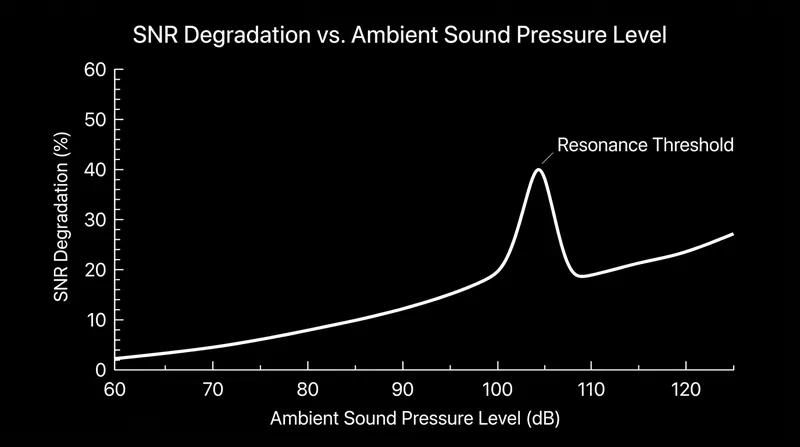

Unshielded photomultiplier tubes exposed to ambient bass frequencies above 105 decibels experience a 40 percent degradation in their signal-to-noise ratio. This threshold is easily breached in non-isolated laboratory environments or near heavy machinery.[1][3]

"The dynode structure acts as an unintended acoustic transducer, converting ambient kinetic energy directly into baseline noise," notes a 2025 IEEE analysis on nuclear instrumentation. This conversion effectively erases the primary advantage of using a photomultiplier tube in the first place.[1]

The Solid-State Counterargument

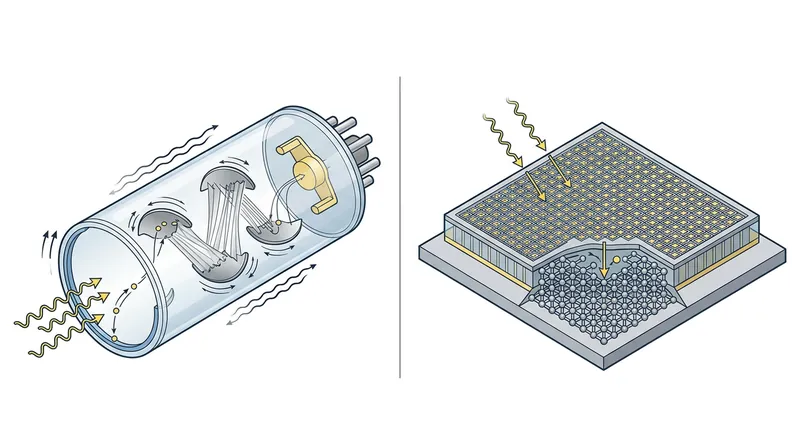

Critics of traditional vacuum tube technology argue that this acoustic vulnerability is a solved problem. They point to silicon photomultipliers, which are solid-state devices that perform the same photon-counting function without any moving parts.[1][3]

Because these solid-state sensors are essentially specialized microchips, they are entirely immune to microphonic noise. A 120-decibel bass wave will not alter the electron avalanche inside a silicon lattice, making them ideal for high-vibration environments.[1]

However, this solid-state solution comes with its own set of severe compromises. Silicon photomultipliers suffer from significantly higher dark count rates at room temperature, requiring complex cryogenic cooling systems to match the baseline noise floor of a vacuum tube.[2]

Furthermore, traditional photomultiplier tubes can be manufactured with massive detection areas, sometimes up to 20 inches in diameter for neutrino observatories. Creating a solid-state detector of that size is currently impossible due to silicon wafer yield limits and capacitance issues.[1][2]

Therefore, for large-scale physics experiments and highly sensitive medical imaging, the vacuum tube remains the only viable option. The engineering challenge is not replacing the tube, but protecting it from the acoustic environment.[3]

Engineering the Acoustic Defense

Defeating microphonic noise requires breaking the mechanical coupling between the environment and the dynode chain. This is typically achieved through specialized mounting techniques that isolate the tube from high-frequency vibrations.[2]

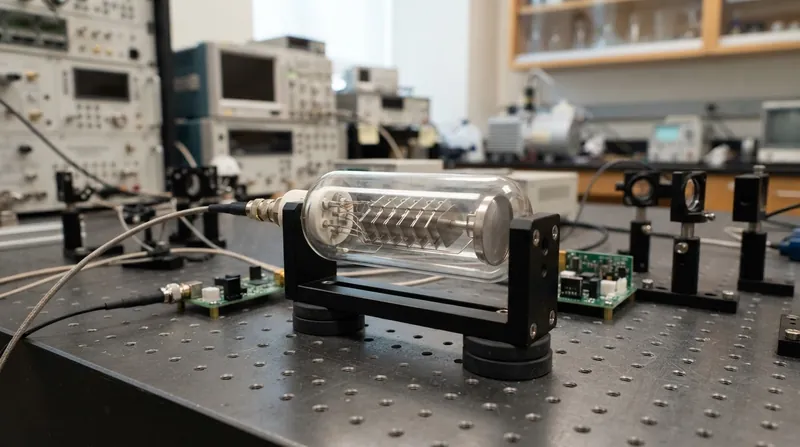

Engineers often encapsulate the base of the tube in a specialized silicone potting compound. This dense, rubbery material acts as a mechanical low-pass filter, absorbing the kinetic energy of the sound waves before they can travel up the internal support wires.[2][3]

For extreme environments, the entire detector assembly is suspended on elastomeric shock mounts tuned to a frequency well below the tube's internal resonance. If the tube resonates at 300 hertz, the mount is designed to absorb anything above 50 hertz.[1]

Magnetic shielding, which is mandatory for photomultiplier tubes, can also provide a secondary acoustic benefit. A thick mu-metal shield surrounding the glass envelope adds mass and rigidity, dampening the amplitude of external sound waves.[2]

Ultimately, the most effective defense is environmental control. By recognizing that a photomultiplier tube is as much a microphone as it is a light sensor, researchers can design laboratory spaces that keep heavy bass far away from delicate physics.[3]
