Why Quantum Tunneling Forces Diode Current to Drop as Forward Bias Increases

The circuit designer dictates the voltage applied to a terminal, but the electron decides whether to cross the semiconductor barrier. In standard electronics, that decision is governed by a simple thermal negotiation. Push more voltage, and more electrons gain the energy to climb over the junction.

The assumption that voltage always drives current is the foundational bedrock of circuit design. It is also fundamentally flawed at the quantum scale. When a diode is modified to exploit quantum mechanics, the designer hits a strict mathematical wall where pushing harder actively chokes the flow.

This phenomenon is known as negative dynamic resistance, and it occurs inside a tunnel diode. Instead of climbing the barrier, electrons teleport through it. But this quantum loophole is highly conditional, requiring exact energy alignment between the two sides of the junction.

When the applied voltage pushes those energy states out of alignment, the electron has nowhere to go. The current drops precipitously even as the forward bias increases. Understanding why this happens requires abandoning classical resistance and looking at the density of quantum states.

The Quantum Teleportation Window

The mechanism begins with the physical construction of the p-n junction. In a standard silicon diode, the boundary between the positive and negative sides is relatively wide. Electrons must be heated or pushed with at least 0.7 volts to cross this depletion region.

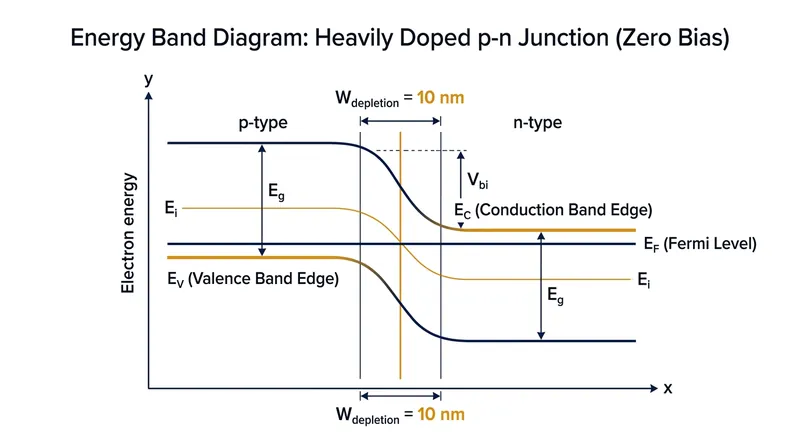

A tunnel diode, invented by Leo Esaki in 1957 at the Sony Corporation in Tokyo, changes the geometry entirely. By increasing the dopant concentration to roughly 10 to the 19th power atoms per cubic centimeter, the depletion region shrinks to less than 10 nanometers across.[1]

At this microscopic scale, classical physics breaks down. The barrier is so thin that an electron's wavefunction extends right through it. If there is an empty energy state on the other side at the exact same energy level, the electron can instantly appear there without expending energy.

Esaki documented this in his 1958 paper in the Physical Review. "We have observed a new anomalous current-voltage characteristic in narrow germanium p-n junctions," he wrote, noting that the effect defied standard thermal emission models. He would later win the 1973 Nobel Prize in Physics for the discovery.[1]

At a very low forward bias, typically around 50 millivolts, the conduction band on the negative side perfectly aligns with the empty valence band states on the positive side. Electrons pour through the barrier in a massive tunneling current, acting as a near-perfect conductor.[1]

The Misalignment Penalty

The argumentative reality of the tunnel diode is that this massive conductivity is a trap. The designer might assume that increasing the voltage from 50 millivolts to 150 millivolts will yield even more current. Instead, the circuit experiences a sudden, steep collapse in conduction.

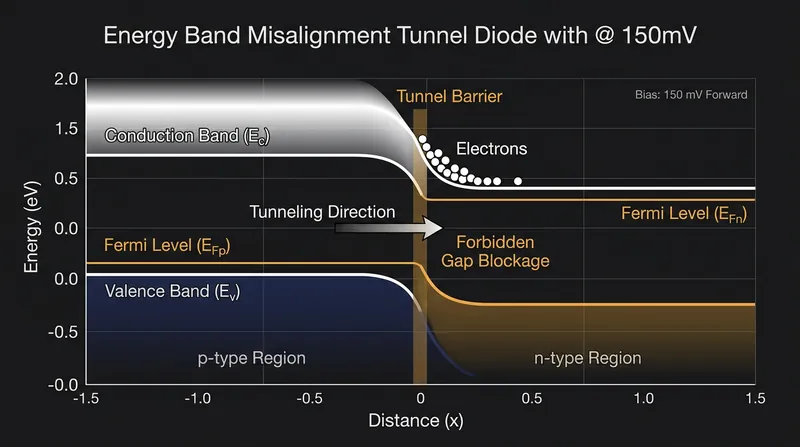

Voltage does not just push electrons; it shifts the relative energy levels of the semiconductor bands. As the forward bias increases, the conduction band on the negative side is pushed higher relative to the valence band on the positive side.

The electrons looking across the 10-nanometer gap no longer see empty seats. They see the semiconductor's bandgap, a forbidden energy zone where no quantum states exist. Because an electron cannot tunnel into a non-existent state, the tunneling probability drops to zero.[2]

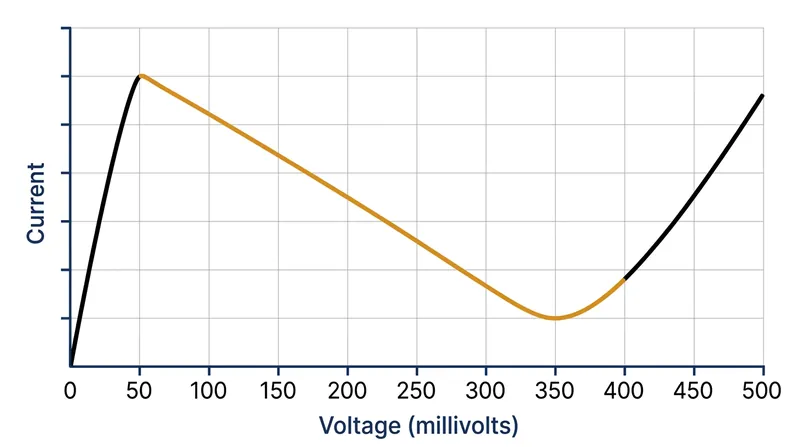

This creates the negative dynamic resistance region. Between roughly 50 millivolts and 350 millivolts, every incremental increase in voltage actively reduces the number of available destinations for the electrons. The current plummets, creating a downward slope on the current-voltage curve.

Simon Sze, in his seminal textbook Physics of Semiconductor Devices, explains the mathematical severity of this drop. "The tunneling probability is an exponential function of the barrier width and the available density of states," Sze wrote, confirming that the drop is an absolute quantum limit.[2]

The Valley Current and Thermal Recovery

The drop does not continue indefinitely. By the time the forward bias reaches approximately 350 millivolts, the tunneling current has effectively ceased. The diode enters what engineers call the valley region, where conduction hits its absolute minimum.

In a theoretically perfect zero-temperature crystal, the current at this valley voltage would be exactly zero. However, real-world devices operate at 300 Kelvin. Thermal energy and microscopic lattice defects allow a small amount of excess current to leak across the junction.[2]

This leakage is driven by phonon-assisted tunneling, where electrons absorb a quantum of vibrational energy from the crystal lattice to bridge the misaligned gap. It is a parasitic effect, but it prevents the diode from acting as a perfect open circuit in the valley region.[2]

As the designer pushes the voltage past 400 millivolts, classical physics finally reasserts control. The applied voltage is now high enough that electrons can simply climb over the barrier, exactly as they do in a standard diode.

The current begins to rise exponentially again, driven by standard thermal emission. The tunnel diode has transitioned from a quantum teleportation device back into a classical electronic component, but only after passing through the critical negative resistance valley.

High-Frequency Dominance

The existence of this negative resistance slope is not just a physics curiosity; it is a highly prized engineering asset. Standard resistors consume power, dampening oscillations in a circuit. A negative resistance component does the exact opposite by adding energy to an oscillating signal.[3]

When a tunnel diode is biased exactly in the middle of its negative resistance slope, around 150 millivolts, it acts as an active amplifier. Any small voltage fluctuation causes an inverse change in current, sustaining continuous microwave oscillations without complex feedback loops.[3]

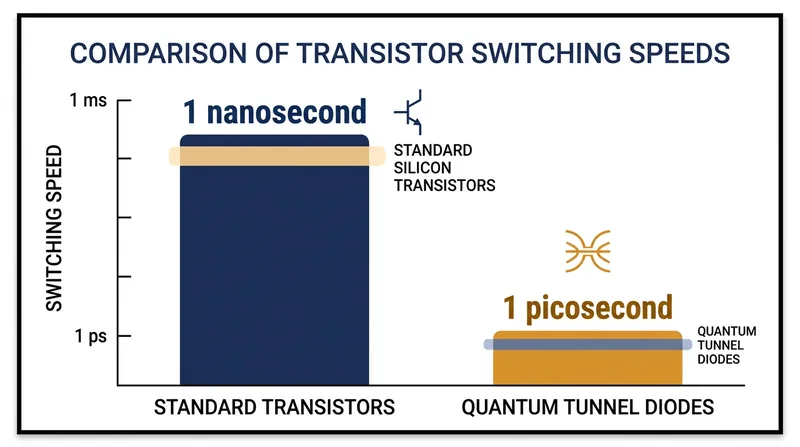

Because quantum tunneling happens at the speed of light, the diode is not limited by the transit time of electrons drifting across a junction. A standard transistor might struggle to switch states in a nanosecond, but a tunnel diode operates effortlessly in the picosecond range.[3]

This speed allows tunnel diodes to function as oscillators at frequencies exceeding 100 gigahertz. Throughout the 1960s and 1970s, they were the only reliable solid-state components capable of generating microwave frequencies for radar and satellite communications.[3]

While modern gallium arsenide transistors have largely replaced them in consumer electronics, tunnel diodes remain essential in specialized aerospace applications. Their reliance on fundamental quantum mechanics makes them uniquely immune to the ionizing radiation that destroys classical semiconductors in orbit.[3]

The Limits of Quantum Engineering

The tunnel diode forces a reckoning with how we teach electronics. The standard curriculum treats resistance as a physical friction where electrons collide with atoms as they move through a wire. In that model, negative resistance is a logical impossibility.

But in the quantum realm, resistance is simply a measure of probability. The negative dynamic resistance in a tunnel diode is not negative friction; it is the mathematical consequence of available energy states vanishing as the voltage shifts the bands out of alignment.

The electron does not experience more resistance at 150 millivolts than it did at 50 millivolts. It simply finds that the destination it was tunneling toward no longer exists. The current drops because the probability of the journey has collapsed.

Engineers must design around this reality. The negative resistance region is inherently unstable. If the circuit is not carefully tuned, the diode will spontaneously jump from the peak voltage to the thermal recovery voltage, bypassing the quantum valley entirely.

This bistable switching behavior is exactly what makes the diode useful for high-speed logic circuits, but it requires abandoning the comfort of Ohm's law. The designer must accept that at the nanoscale, voltage is not a force that pushes current, but a dial that aligns quantum probabilities.
