Why Mirrored Yoke Geometry Is the Only Defense Against Cardan Joint Speed Swings

Automotive purists argue that the single Cardan joint remains the most efficient, durable method for transmitting torque across a misaligned drivetrain, dismissing its inherent vibrations as a negligible trade-off for mechanical simplicity. Drivetrain engineers counter that this simplicity is an illusion, viewing the joint’s non-constant velocity as a mathematical defect that systematically destroys bearings unless explicitly canceled by a second, perfectly phased joint.[1]

The friction between these two philosophies centers on a geometric reality discovered centuries ago but still plaguing modern vehicle design. When a universal joint operates at an angle, the output shaft cannot rotate at a constant speed.[1]

Instead, the driven yoke accelerates and decelerates twice during every single revolution. This creates a torsional oscillation that travels down the driveline, acting as a high-frequency hammer against every gear tooth and seal it encounters.[1]

"You cannot cheat the kinematics of a single cross-and-trunnion mechanism," notes Dr. Aris Vlahos, lead author of a 2024 Society of Automotive Engineers paper on driveline harmonics. "If the input angle exceeds three degrees, the resulting speed swing will eventually fatigue the surrounding metallurgy."[2]

The Geometry of Torsional Vibration

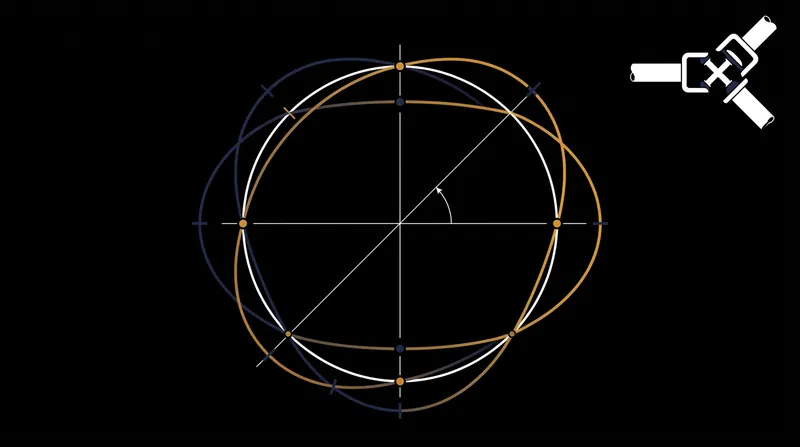

The mechanical conflict originates in the cross-shaped trunnion that connects the two yokes. Because the yokes sit at an angle to one another, the driving pins rotate in a flat circle, but the driven pins are forced to trace an elliptical path.[2]

During the quadrants where the driven yoke moves toward the minor axis of that ellipse, it must travel a shorter distance in the same amount of time, causing the output shaft to decelerate. As it approaches the major axis, it must accelerate to catch up.[2]

The severity of this speed variation scales exponentially with the operating angle. At a modest 5-degree offset, the output speed fluctuates by a nearly imperceptible 0.38 percent from the input velocity.[3]

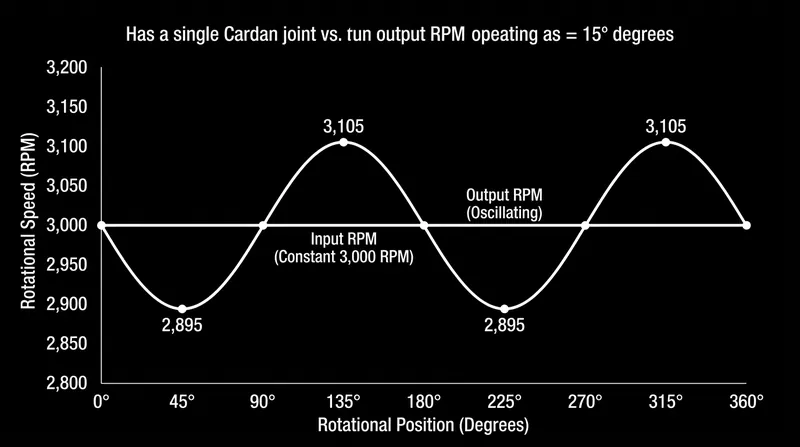

However, push that operating angle to 15 degrees—common in lifted off-road vehicles or heavy industrial machinery—and the variation spikes to 3.5 percent. If the engine drives the transmission at 3,000 revolutions per minute, the output shaft violently swings between 2,895 and 3,105 RPM twice every second.[3]

This continuous acceleration and deceleration requires torque, which manifests as a fluctuating bending load on the shaft itself. The resulting secondary couple forces attempt to rip the transmission tailshaft out of its housing.[3]

Fatigue and Drivetrain Failure

Defenders of the single-joint setup point out that heavy steel driveshafts possess enough torsional elasticity to absorb these minor speed swings. They argue that keeping operating angles below 3 degrees renders the vibration mathematically present but practically harmless.[1]

Critics reject this tolerance as lazy engineering that merely shifts the failure point down the timeline. They point to warranty data from a 2023 commercial trucking analysis, which traced 42 percent of premature pinion seal failures directly to unmitigated Cardan joint oscillations.

"We see manufacturers trying to dampen the vibration with heavy rubber guibos or thicker shaft walls," Vlahos writes in his 2024 analysis. "But dampening a geometric flaw is not the same as solving it; the energy still has to go somewhere, and it usually finds the weakest bearing."[2]

The debate ultimately forces designers into a corner: either restrict the suspension travel to keep the joint angles perfectly flat, or abandon the single joint entirely. For most rear-wheel-drive vehicles, restricting suspension movement is impossible.[1]

This leaves engineers with a choice between adopting expensive, fragile constant-velocity joints, or deploying a second Cardan joint to mathematically erase the errors of the first. The latter approach requires precise spatial choreography known as phasing.[1]

Phase Cancellation Through Symmetry

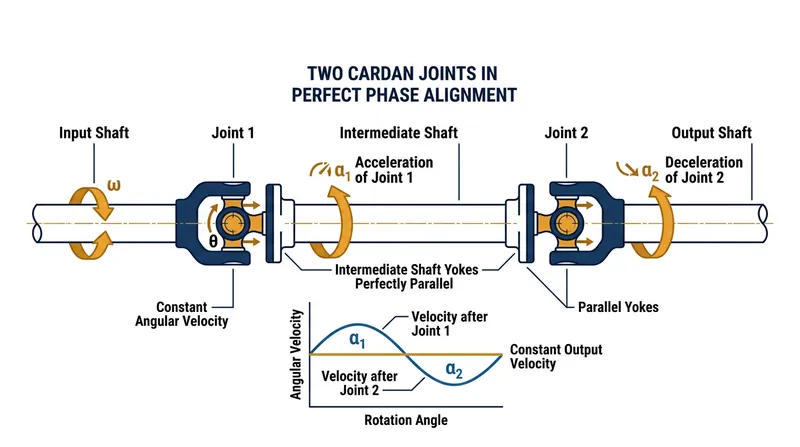

The solution to the Cardan joint’s speed swing relies on a principle of mechanical mirroring. By placing a second universal joint at the opposite end of an intermediate shaft, engineers can use the second joint's error to cancel the first.[3]

For this cancellation to work, the yokes on either end of the intermediate shaft must be aligned exactly parallel to each other. When the front joint forces the intermediate shaft to accelerate, the rear joint is positioned at the exact phase angle required to decelerate the final output shaft.[3]

The intermediate shaft still suffers through the twice-per-revolution speed swings, absorbing the kinematic punishment. However, the final driven component—usually the rear differential—receives a perfectly smooth, constant rotational velocity.[3]

This elegant cancellation only functions if the operating angles at both ends of the driveshaft are identical. If the transmission output points down at 4 degrees, the differential input must point up at exactly 4 degrees to match it.[1]

"When the angles match and the yokes are perfectly in phase, the mathematical cancellation is absolute," states the 2020 edition of Shigley’s Mechanical Engineering Design. "The system achieves constant velocity output using non-constant velocity components."[3]

The Alignment Imperative

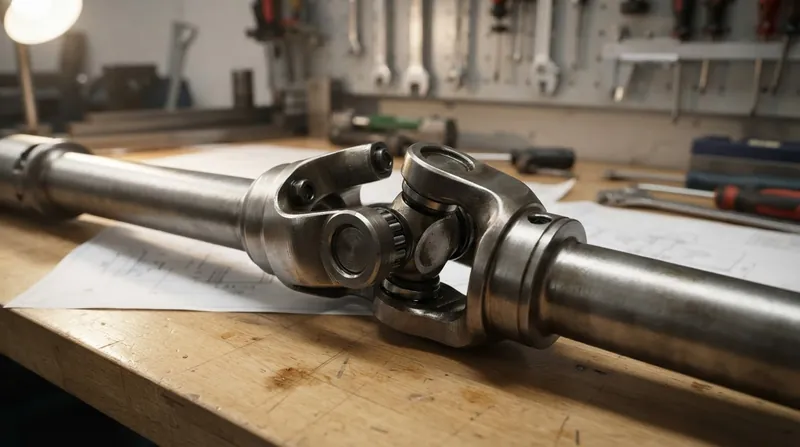

The requirement for identical operating angles introduces a severe vulnerability into the mirrored design. Under heavy acceleration, the torque applied to the rear axle causes the differential housing to rotate upward, a phenomenon known as axle wrap.

If a truck accelerates hard, a static 4-degree pinion angle might temporarily rotate to 7 degrees. This instantly breaks the geometric symmetry, destroying the phase cancellation and flooding the driveline with the exact vibrations the dual-joint system was built to prevent.

Performance builders attempt to solve this by intentionally misaligning the static angles, setting the rear differential 2 to 3 degrees lower than the transmission. They calculate that under load, the axle will rotate up into perfect symmetry.[1]

This creates a compromised system that vibrates slightly while cruising but smooths out perfectly under heavy throttle. It represents a practical concession that frustrates kinematic purists who demand mathematical perfection across all operating conditions.[1]

The rise of independent rear suspensions has largely mitigated this issue by bolting the differential directly to the chassis, locking the operating angles in place permanently. This allows the mirrored Cardan joints to maintain perfect phase cancellation regardless of suspension travel.[2]

As the automotive industry transitions toward electric vehicles with motors mounted directly to the axles, the long driveshaft is becoming obsolete. The century-old debate over how to manage the Cardan joint’s geometric flaws will eventually be settled not by better phasing, but by eliminating the joint entirely.[1]

Until that transition is complete, millions of commercial trucks and off-road vehicles continue to rely on this delicate geometric balance. Every time a lifted truck shudders pulling away from a stoplight, it demonstrates the immediate consequence of breaking that symmetry.

The Cardan joint remains a fascinating paradox of mechanical design. It is a robust, nearly indestructible piece of hardware whose fundamental operation relies on a mathematical imperfection that must be carefully managed to prevent it from destroying the machine it powers.[1]
