Gas Solubility Inversion at Steam Boiler Operating Temperatures Explains Deaerator Stripping Efficiency

For industrial steam generation to function without destroying its own steel infrastructure, the feedwater must be held exactly at the thermodynamic floor of gas solubility. If the water is too cold, corrosive oxygen remains trapped in the liquid. If it is heated too aggressively, a quirk of physical chemistry pulls the gas back into solution.[5]

This delicate balance governs the operation of every major power plant and refinery. Boiler tubes face constant threats from dissolved oxygen, which triggers rapid localized pitting corrosion. Left unchecked, this oxidation can eat through 0.25-inch thick carbon steel walls in a matter of six to eight weeks, forcing catastrophic shutdowns.[6]

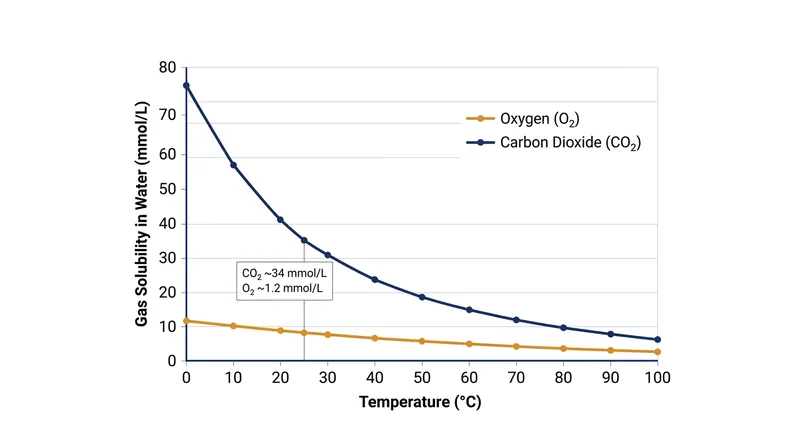

The conventional defense relies on a basic principle of physical chemistry known as Henry's Law, formulated in 1803. The law dictates that the solubility of a gas in a liquid is directly proportional to the partial pressure of that gas above the liquid. Heating the water reduces this solubility, driving the gas out.[2]

Most engineers assume this relationship is strictly linear, believing that hotter water always holds less dissolved gas. This assumption holds true at room temperature, where heating a beaker of water visibly forces air bubbles to the surface. However, this linear model collapses under industrial boiler conditions.[3]

The Thermodynamics of Gas Reabsorption

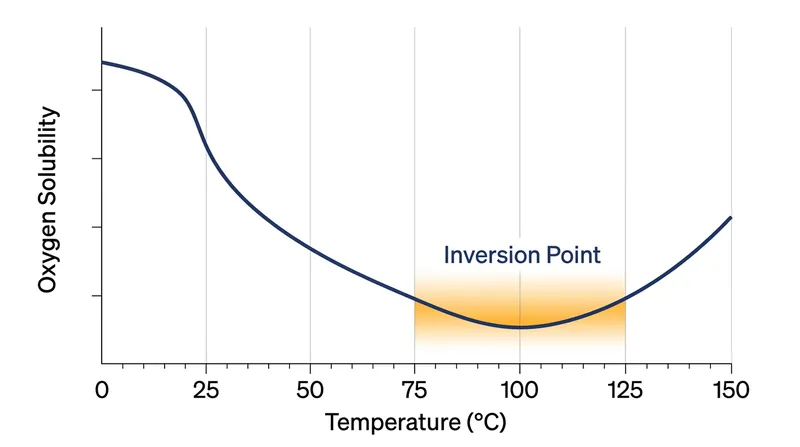

As water approaches its boiling point under pressure, the solubility curve for non-polar gases like oxygen and carbon dioxide flattens out. Instead of continuing to drop toward zero, the solubility reaches a hard minimum. Beyond this thermal trough, the solubility actually begins to increase again.[3][4]

This phenomenon is known as gas solubility inversion. It occurs because the entropic penalty of dissolving a gas into a highly structured liquid diminishes as the water molecules become more energetic and disordered. At higher temperatures, the water matrix essentially opens up, creating new microscopic voids for gas molecules.[5]

For oxygen in water, this inversion trough typically occurs between 95 and 105 degrees Celsius at one atmosphere of pressure. If a feedwater system pushes the temperature to 150 degrees Celsius at 5 bar without venting, the water will reabsorb oxygen, completely defeating the purpose of the heating process.[3]

To exploit this trough, engineers rely on a specialized piece of equipment called a deaerator. This massive steel vessel is specifically designed to hold feedwater precisely at the solubility minimum, using steam to simultaneously heat the water and sweep away the liberated gases.[1]

Engineering the Perfect Trough

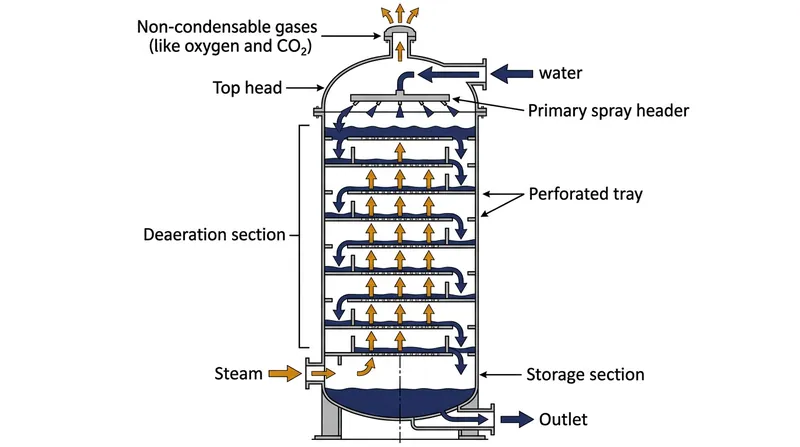

The mechanical architecture of a deaerator is entirely dictated by this thermodynamic inversion. Water enters through the top of a domed section, spraying downward over a series of perforated stainless steel trays. This cascading action maximizes the surface area exposed to the rising steam.[1]

The steam serves a dual purpose in this counter-current flow. It heats the incoming water to exactly the saturation temperature for the vessel's operating pressure, while simultaneously dropping the partial pressure of oxygen in the vapor phase to near zero.[1][5]

By flooding the atmosphere above the water with pure steam, the system forces the dissolved oxygen to escape. This relies on manipulating both the temperature and the partial pressure of the surrounding vapor to keep the gas moving outward.[1][2]

According to the foundational engineering texts on the subject, "deaerators are designed to remove dissolved oxygen and other dissolved gases from the feedwater." This definition underscores that the equipment must handle multiple gas species simultaneously.[1]

To prevent the inversion from pulling gases back into the liquid, the deaerator must vent the liberated oxygen continuously. A small valve at the top of the dome releases a steady plume of steam and non-condensable gases, ensuring the partial pressure of oxygen never recovers.[1]

Why Chemical Scavengers Fall Short

Some facility managers argue that mechanical deaeration is overly complex, preferring to rely on chemical oxygen scavengers like sodium sulfite or hydrazine. These chemicals react directly with dissolved oxygen, converting it into harmless byproducts before it can attack the boiler steel.[6]

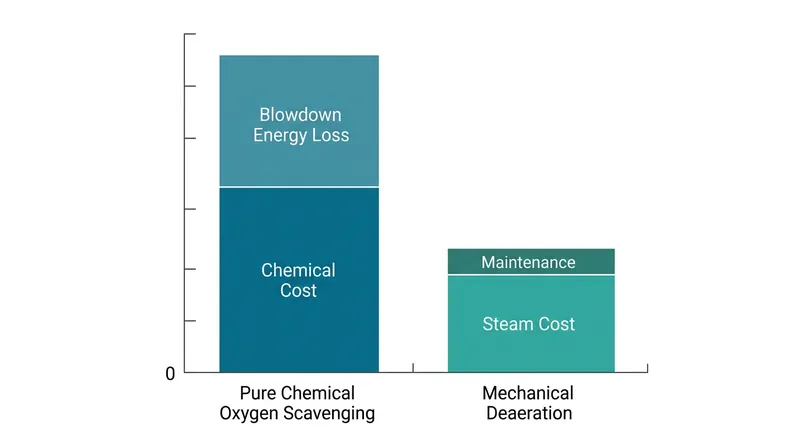

While chemical scavenging is effective, relying on it as the primary defense is a costly engineering mistake. Sodium sulfite must be dosed at a ratio of roughly 8 parts chemical to 1 part oxygen. Treating 1,000 gallons of fully saturated water at 20 degrees Celsius would require massive, expensive chemical volumes.[6]

Furthermore, adding excessive sodium sulfite increases the total dissolved solids in the boiler water. This forces the plant to perform more frequent blowdowns, intentionally dumping hot, treated water to prevent scale formation. The resulting energy loss far outweighs the cost of running a mechanical deaerator.[5][6]

Hydrazine, an alternative scavenger, avoids the dissolved solids problem but introduces severe handling risks. It is a highly toxic, volatile chemical that requires specialized safety protocols. Consequently, modern plant design dictates that chemical scavengers should only be used to polish the final traces of oxygen.[6]

The High-Pressure Boiler Dilemma

The necessity of the deaerator becomes even more absolute in high-pressure power generation. Modern utility boilers operate at pressures exceeding 100 bar, where even microscopic amounts of oxygen can cause catastrophic hydrogen embrittlement and tube failure. The tolerance for dissolved gases drops to near zero.[6]

In these extreme environments, the solubility inversion curve becomes a critical operational boundary. If the deaerator pressure fluctuates, the saturation temperature shifts, potentially pushing the water out of the optimal solubility trough. The system must maintain a rigid pressure setpoint, typically between 0.3 and 1.4 bar gauge.[1][4]

At a standard operating pressure of 0.3 bar gauge, the water boils at approximately 105 degrees Celsius. This exact coordinate on the thermodynamic map represents the ideal compromise, offering the lowest possible oxygen solubility while providing enough pressure to drive the feedwater pumps downstream.[1][3]

Maintaining this coordinate requires sophisticated telemetry. Pressure transmitters and modulating steam valves work in a continuous feedback loop, adjusting the steam flow to match the incoming water volume. A sudden influx of cold condensate can crash the pressure, instantly increasing gas solubility and ruining the batch.[1][5]

The Limits of Mechanical Stripping

When operating perfectly within the inversion trough, a properly tuned tray deaerator is remarkably efficient. The industry standard guarantees that mechanical stripping will reduce dissolved oxygen to just 7 parts per billion by weight, while simultaneously removing all measurable carbon dioxide.[1]

However, mechanical stripping cannot achieve absolute zero. The final 7 parts per billion represent the asymptotic limit of the process, where the energy required to strip the remaining molecules exceeds the thermal capacity of the steam. This is where chemical scavengers finally earn their keep.[5][6]

Ultimately, the entire architecture of industrial steam generation is built around a single quirk of physical chemistry. By understanding and exploiting the gas solubility inversion, engineers can protect millions of dollars of infrastructure using nothing more than controlled steam and cascading water.[5]
