The Phase Displacement That Caps Open-Delta Transformers at 57.7 Percent Capacity

When a utility removes one damaged transformer from a three-phase delta bank, the electrical geometry of the circuit instantly changes. The line current, which previously split across two paths, is suddenly forced entirely through a single winding.

This structural bottleneck introduces a permanent 30-degree phase displacement between voltage and current, dictating the system's new limits. Because the physical pathways have been altered, the remaining two transformers cannot simply carry two-thirds of the original load.

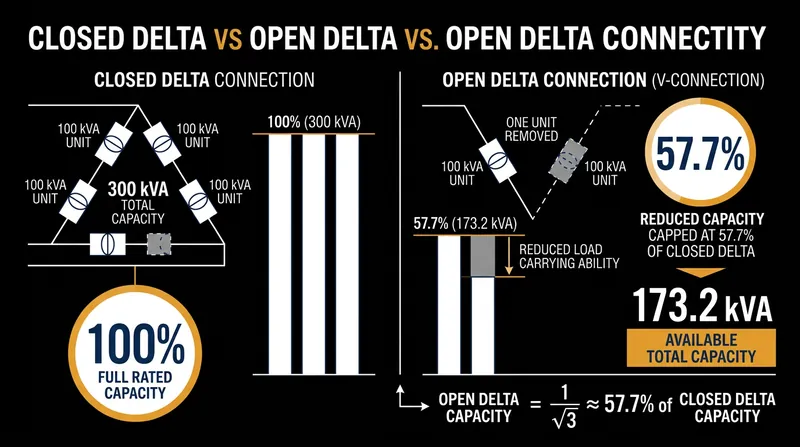

Instead, the phase shift caps the open-delta bank at exactly 57.7 percent of the original three-transformer capacity. Understanding why requires looking past the nameplates and into the trigonometric reality of alternating current.[1]

The Intuitive Trap of Two-Thirds

A standard closed-delta transformer bank relies on three identical single-phase transformers wired in a triangle. Each unit handles exactly one-third of the total three-phase load.[2]

If the bank is rated for 300 kilovolt-amperes (kVA), each individual transformer contributes 100 kVA to the system. If one transformer fails or is removed for maintenance, the system becomes an open-delta, or V-V, connection.[2]

The remaining two transformers still provide three-phase power to the secondary side. Because two out of three units remain, human intuition suggests the bank should now deliver 200 kVA, or 66.7 percent of its original rating.

That assumption routinely causes catastrophic overheating. In reality, the open-delta bank can only safely deliver 173.2 kVA. The missing 26.8 kVA is not lost to heat or mechanical inefficiency; it is trapped by the phase angles of the alternating current flowing through the surviving coils.[1]

"This means an open delta transformer will only be able to deliver 57.7% of the capacity of an equivalent three phase delta transformer," notes a 2018 engineering breakdown by Voltage Disturbance. "A common mistake is assuming the new kVA should be 2/3 of the original kVA."

Forcing Line Current Through Phase Windings

The capacity loss begins with how current routes through a delta circuit. In a closed delta, the current drawn by the load—the line current—splits at each node.

It divides across two different transformer windings, meaning the current inside any single winding is significantly lower than the current on the line. Mathematically, the winding current in a closed delta is the line current divided by the square root of three, or roughly 57.7 percent of the line value.

The transformers are sized to handle this reduced internal current, not the full draw of the external load. Removing the third transformer destroys that split.

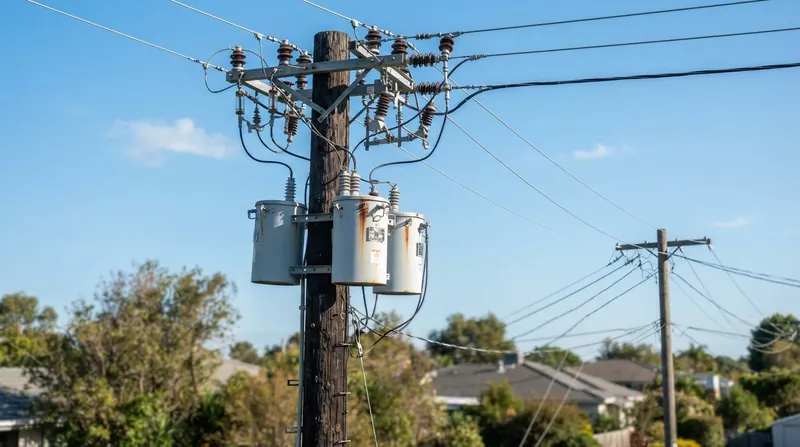

In an open-delta configuration, the line current has no alternate path. The full magnitude of the line current must flow directly through the remaining two phase windings, instantly increasing the internal thermal load on both units by 73.2 percent.

"As soon as it becomes an open-delta transformer, the current in each winding is increased by √3 times," explains Tutorials Point. "Full line current flows in each of the remaining two phase windings of the transformer."

The 30-Degree Phase Displacement

The increased current is only half the problem. The fatal blow to the bank's capacity comes from the timing of the alternating current.[1]

In a balanced closed-delta system feeding a purely resistive load, the voltage across each transformer and the current flowing through it peak at the exact same moment. That perfect alignment represents a unity power factor, meaning 100 percent of the electrical capacity is converted into real, usable power.

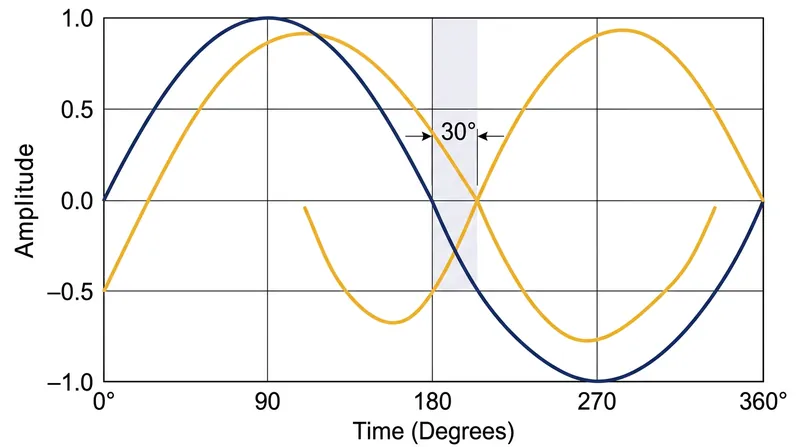

But in an open-delta system, the geometry of the missing third leg forces the current and voltage out of sync. Even if the external load remains perfectly resistive, the internal voltage and current in the surviving transformers are displaced by exactly 30 degrees.[1]

One transformer's current leads its voltage by 30 degrees, while the other's current lags by 30 degrees. "Due to the nature of phasor relationship between delta voltages and currents, the line currents will have a 30-degree phase angle with respect to the delta voltage vectors," Voltage Disturbance reports.

The 86.6 Percent Internal Limit

This 30-degree displacement fundamentally limits how much real power the transformers can output. In alternating current systems, real power is calculated by multiplying voltage, current, and the cosine of the phase angle between them.[1]

The cosine of 30 degrees is 0.866. Therefore, even when operating at their maximum safe current and voltage, the two transformers can only deliver 86.6 percent of their nameplate rating as real power.[1]

A 100-kVA transformer in an open-delta bank maxes out at 86.6 kilowatts of real output. "In a open delta (V-V) circuit, only 86.6% of the rated capacity of the two transformers is available," Study Electrical confirms.

"Thus at a load power factor of 0.5, one transformer delivers all the power at 0.866 power factor and the other delivers no power at all," the 2019 analysis adds.

The remaining 13.4 percent of their capacity is consumed by reactive power. The two transformers are forced to exchange this reactive power back and forth between themselves just to sustain the illusion of the missing third phase, leaving less room for the actual load.[1]

Deriving the 57.7 Percent Threshold

Combining these factors reveals the true capacity of the open-delta bank. If a utility starts with two 100-kVA transformers, their combined raw rating is 200 kVA.[1][2]

Multiplying that 200 kVA by the 0.866 internal power factor yields a maximum safe output of 173.2 kVA. "The maximum balanced bank rating is 17.32 kVA when each transformer carries its full 10 kVA," Electrical4U noted in a 2019 analysis.[1]

"This 17.32 kVA value is 86.6% of the two transformers' combined 20 kVA nameplate rating," the outlet explained. To find the capacity relative to the original three-transformer bank, engineers divide that 173.2 kVA by the original 300 kVA.[1]

The result is exactly 0.577. The open-delta bank is strictly capped at 57.7 percent of the closed-delta system's capacity, and this mathematical ceiling is absolute.

Pushing the bank to 66.7 percent of the original load—the intuitive two-thirds mark—forces the two remaining transformers to operate at 115 percent of their thermal ratings, guaranteeing a rapid and destructive failure.

Why Utilities Still Use Open Delta

Despite the severe capacity penalty, the open-delta configuration remains a standard utility practice. Its primary value is resilience: when a transformer blows during a storm, linemen can isolate the damaged unit and restore three-phase power to the neighborhood using the surviving two.[2]

It is also deployed deliberately in rural or developing areas where three-phase demand is currently low but expected to grow. A utility can install an open-delta bank today, saving the cost of the third transformer, and simply add the final unit years later when the load requires it.[2]

When that third transformer is finally installed, the bank's capacity does not just increase by 50 percent. Because the closed loop eliminates the 30-degree phase shift and restores the current split, adding the third unit boosts the bank's total capacity by 73.2 percent.[2]

Until that happens, the open-delta bank must be carefully monitored. Engineers must strictly enforce the 57.7 percent limit, ensuring that the invisible geometry of the alternating current does not melt the coils from the inside out.[3]
