Why Soil Resistance Prevents Ground Rods From Tripping Circuit Breakers

The moment a loose 120-volt wire touches a metal appliance chassis, the outcome is determined entirely by the electrical resistance of the return path. If that path relies solely on a ground rod, the resistance is mathematically guaranteed to be too high. The soil throttles the escaping electricity to a trickle, leaving the machine permanently energized.[1][2]

This physical bottleneck contradicts one of the most persistent misconceptions in electrical work: the belief that driving a copper rod into the dirt will clear a short circuit. It will not. The earth is a remarkably poor conductor compared to copper wire, possessing a resistance roughly one billion times higher.[2][4]

Because the soil chokes the flow of electrons, the resulting fault current is simply too small to trigger the magnetic trip mechanism inside a standard circuit breaker. The breaker continues to perceive the lethal leak as a normal, harmless appliance load. The power stays on, and the metal chassis waits for a human to complete the circuit.[1][3]

To understand why a ground rod fails to protect against a 120-volt fault, one must look at the fundamental physics governing electrical flow. The math is absolute, and it begins with the legal limits set by electrical codes for ground rod resistance.[1]

The 25-Ohm Legal Limit

The National Electrical Code requires a single ground rod to have a resistance to earth of 25 ohms or less. If the soil is dry or rocky, a single eight-foot rod will often fail to meet this threshold. The code then requires a second rod, but never mandates that the final resistance actually drops below 25 ohms.[2][3]

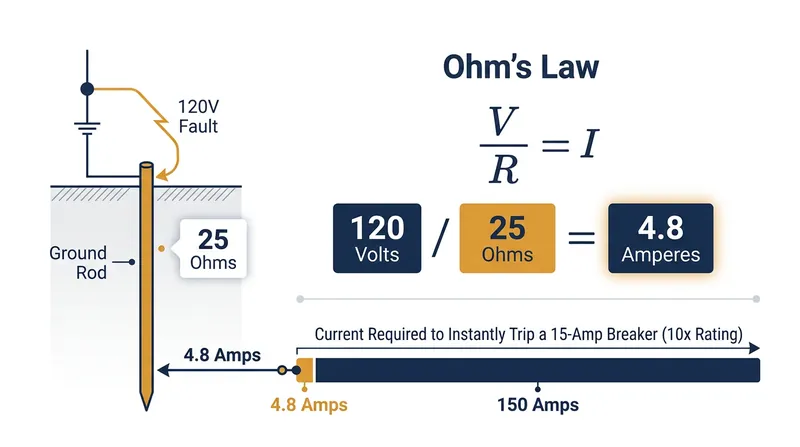

Even if a grounding system perfectly achieves that 25-ohm target, the physics of Ohm's Law dictate a dangerous outcome. Ohm's Law states that current equals voltage divided by resistance. When a 120-volt phase conductor shorts directly to a grounding system with 25 ohms of resistance, the math is straightforward.[2]

Dividing 120 volts by 25 ohms yields a maximum fault current of exactly 4.8 amperes. This is the absolute physical limit of what the earth can carry back to the source under those specific conditions. The soil acts as a massive resistor, capping the current regardless of how much power the utility transformer can supply.[1][2]

"The resistance of earth is on the order of one billion times that of copper," notes an engineering analysis of grounding fundamentals. "It will only allow a few amperes back to the source." This fundamental material property makes the dirt an impossible medium for clearing low-voltage faults.[2][4]

Even in ideal, highly conductive soil where the ground rod achieves a resistance of 10 ohms, the fault current would still only reach 12 amperes. While this is higher than 4.8 amperes, it remains trapped below the critical threshold required to activate the safety devices installed in every modern electrical panel.[1]

The Breaker's Blind Spot

A standard residential circuit breaker is a blunt instrument designed to protect wires from melting, not to detect subtle leaks. A typical household breaker is rated to carry 15 or 20 amperes continuously without tripping. It relies on a massive, instantaneous surge of current to pull open its internal magnetic latch.[1][3]

To trip a breaker in less than one second—the speed required to reliably prevent a lethal shock—the fault current must spike to roughly six to ten times the breaker's rating. For a 20-ampere breaker, that means the fault must draw between 120 and 200 amperes.[1][3]

"The time it takes for an overcurrent protection device to open is inversely proportional to the magnitude of the fault current," explains electrical safety expert Mike Holt. If the current does not reach that massive multiple, the breaker's magnetic trip mechanism simply will not engage.[1]

This creates a fatal blind spot. When a ground rod caps the fault current at 4.8 amperes, the 20-ampere breaker sees nothing wrong. To the breaker, that 4.8-ampere draw looks exactly like a television or a few incandescent light bulbs operating normally.[1]

Because the breaker does not trip, the fault persists indefinitely. The metal enclosure remains energized at a full 120 volts relative to the earth. The electrical system has failed to remove the hazard, leaving a silent trap waiting for anyone who touches the chassis while standing on a conductive surface.[1][3]

The Lethal Consequence

When a person touches that energized washing machine, their body offers a parallel path to the ground. Human skin, especially when damp, presents a relatively low electrical resistance. The current instantly divides, with a lethal portion flowing through the person's heart on its way to the earth.[1]

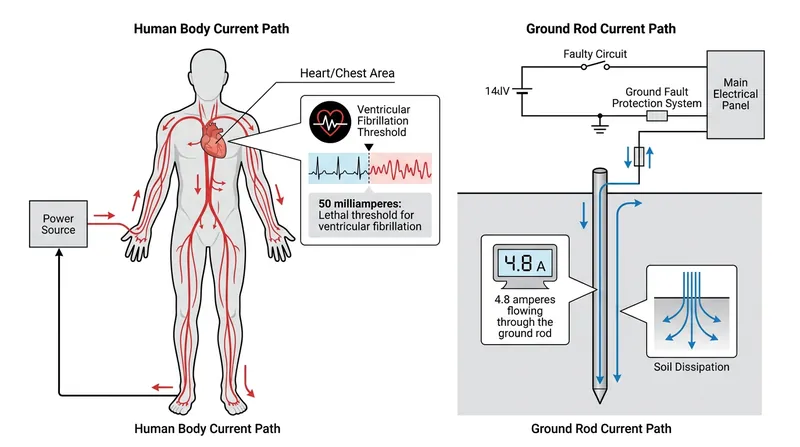

It takes less than one second for an unsafe voltage to drive the human heart into ventricular fibrillation. A current as small as 50 milliamperes—just one-twentieth of a single ampere—is enough to cause death. The 4.8 amperes flowing through the ground rod is nearly a hundred times that lethal threshold.[1]

Furthermore, the continuous flow of electricity through unintended, high-resistance materials generates tremendous heat. If the fault current is leaking through damp wood framing or frayed insulation, it acts like a resistive heater. This can easily ignite a fire inside a wall cavity.[3]

A 10-ampere ground fault will never trip a 20-ampere breaker, but it is more than enough to sustain an electrical arc. This hidden thermal hazard burns completely undetected until the flames breach the drywall and spread into the living space.[3]

This physical reality is why modern electrical codes mandate Ground Fault Circuit Interrupters in wet locations. Unlike standard breakers, a GFCI monitors the balance between outgoing and returning current. If even 5 milliamperes is missing, the GFCI breaks the circuit instantly, bypassing the ground rod's limitations entirely.[1]

The Copper Solution

If the earth cannot clear a fault, the electrical system must provide a better path. That path is the equipment grounding conductor—the bare copper or green insulated wire that runs alongside the power wires in every modern circuit. This wire connects the metal chassis directly back to the main electrical panel.[1][2]

At the main panel, this grounding wire is intentionally bonded to the utility's neutral conductor. This critical connection creates a continuous, low-impedance metallic loop straight back to the transformer. It completely removes the high-resistance soil from the fault-clearing equation.[2][3]

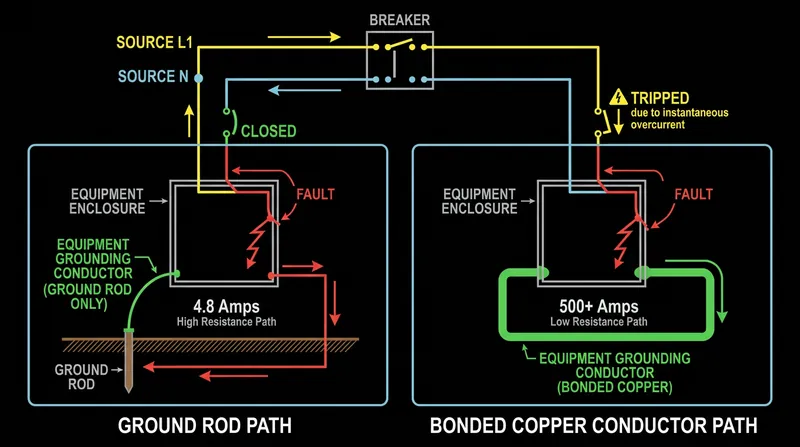

Because copper offers almost zero resistance, a fault on this bonded system behaves entirely differently. When the live wire touches the grounded chassis, the copper wire allows hundreds or even thousands of amperes to flow instantly. This massive current spike hits the breaker's magnetic trip threshold immediately.[2][3]

"Electrical equipment and wiring shall be installed in a manner that creates a permanent, low-impedance circuit facilitating the operation of the overcurrent device," mandate standard engineering guidelines. The breaker snaps open in a fraction of a second, cutting the power and rendering the chassis safe.[2]

The hazard is removed before anyone can touch the appliance, proving that it is the copper wire—not the ground rod—that actually saves lives during a short circuit. Relying on the earth alone is a mathematical guarantee of failure.[1][3]

The True Purpose of the Ground Rod

If a ground rod cannot trip a breaker or clear a 120-volt fault, its presence in the electrical code often confuses homeowners. The rod's actual purpose has nothing to do with internal household wiring faults. Instead, it is designed to manage external, high-voltage events.[1][4]

The primary job of the grounding electrode system is to stabilize the system voltage relative to the earth during normal operation. More importantly, it provides a safe path to dissipate massive external surges, such as a direct lightning strike to the utility lines.[4]

When lightning hits a power pole, it seeks the earth. The ground rod gives that millions-of-volts surge a direct, heavy-duty offramp into the soil, preventing it from blowing out the home's internal wiring. For a lightning strike, the soil's 25-ohm resistance is perfectly adequate to dissipate the energy.[1][4]

The rod also protects against unintentional contact with higher-voltage utility lines. If a 7,200-volt street line falls across the 120-volt residential service drop, the ground rod helps shunt that extreme voltage into the earth. This prevents the house's electrical system from floating at lethal distribution voltages.[1]

Electrical safety requires two distinct systems working in parallel. The copper equipment grounding conductor handles the low-voltage internal faults by tripping the breaker. The ground rod handles the high-voltage external threats by anchoring the system to the earth, making both essential but entirely separate in function.[1][4]
