Why Rolling Shutters Shear Moving Objects: The Line-by-Line Sensor Readout That Warps Propellers

At 5,000 revolutions per minute, a standard drone propeller completes 83 full rotations every single second. That is a magnitude of speed so immense that a standard consumer camera sensor simply cannot capture it all at once. By the time the camera finishes recording the frame, the world has already moved on.[1][5]

You have likely seen the photographic casualty of this timing mismatch. It is the airplane propeller that looks like a melted Dali clock, or the golf club bending like a wet noodle just before it strikes the ball. These bizarre, physics-defying images flood social media feeds daily.[1]

This phenomenon is known as the rolling shutter effect, and it is a fundamental quirk of modern digital photography. It occurs because the vast majority of smartphones and mirrorless cameras do not take a picture in a single, instantaneous flash. Instead, they scan the scene sequentially.[4]

"The sensor is essentially reading the world like a book, scanning from top to bottom, left to right," explains Canon's technical documentation on electronic shutters. When the subject moves faster than the page can be read, reality shears and distorts across the final image.[2]

The Mechanics of the Scan

To understand the distortion, you have to look at the architecture of a Complementary Metal-Oxide-Semiconductor, or CMOS, image sensor. A typical 24-megapixel sensor contains roughly 4,000 horizontal rows of light-gathering pixels. The camera's processor must read the electrical charge from each row one at a time.[5]

In a standard consumer camera, reading all 4,000 rows takes approximately 1/60th of a second. While that sounds incredibly fast to human perception, it is an eternity for an object in rapid motion. The top row of the image is captured milliseconds before the bottom row.[3][5]

If you photograph a static landscape, this sequential readout does not matter. The mountains do not move between the time the camera records the sky at the top of the frame and the grass at the bottom. The entire scene remains perfectly aligned throughout the scan.[2]

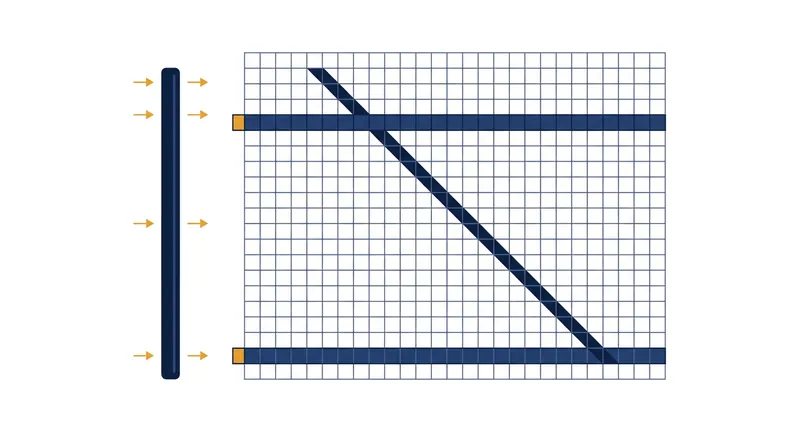

But introduce a fast-moving object, and the illusion shatters. Imagine a vertical pole moving rapidly from left to right across the frame. By the time the sensor reads the middle rows, the pole has moved slightly to the right of where it was when the top rows were recorded.[1][3]

As the sensor continues to read the bottom rows, the pole has moved even further to the right. The resulting photograph stitches these different moments in time together into a single frame. The perfectly straight vertical pole now appears to be leaning diagonally across the image.[1][4]

The Math Behind the Melt

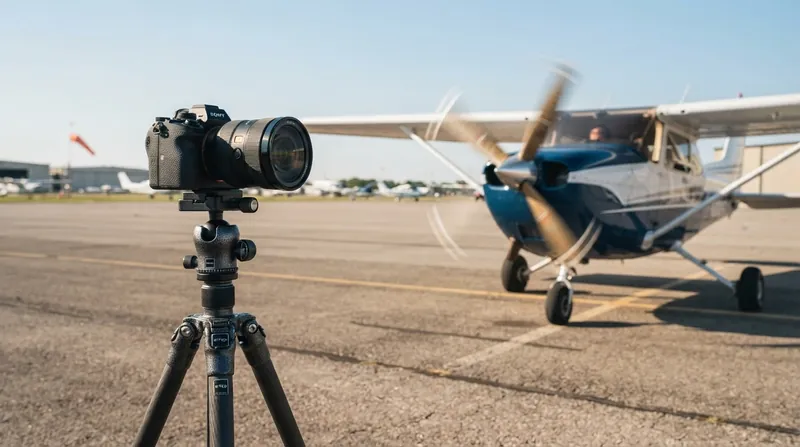

The visual chaos becomes most apparent with rotational motion, which is why propellers are the classic victims of rolling shutter. A drone motor spinning at 5,000 RPM is rotating at roughly 30,000 degrees per second. The math of the sensor scan simply cannot keep up with that velocity.[1][5]

During the 1/60th of a second it takes the sensor to read from top to bottom, the propeller blade rotates approximately 500 degrees. The blade captured at the top of the frame has physically moved to the opposite side of the motor by the time the bottom is recorded.[3][5]

This massive spatial displacement creates the illusion of disconnected, floating blades that seem to defy structural integrity. The camera is accurately recording exactly where the blade was at each specific microsecond of the scan, but it is presenting those different moments as a single, cohesive instant.[1][5]

"Rolling shutter artifacts are not errors in the sensor, but rather a perfectly accurate recording of a moving subject over a duration of time," notes RED Digital Cinema's technical guide to sensor dynamics. The distortion is a feature of the architecture, not a bug in the code.[3]

The Global Shutter Solution

The obvious solution to this problem is to read every single pixel on the sensor at the exact same time. This technology, known as a global shutter, exposes the entire sensor simultaneously, completely eliminating any motion distortion regardless of how fast the subject is moving.[4]

For years, global shutters were restricted to high-end cinema cameras and industrial machine-vision systems used for inspecting fast-moving assembly lines. The circuitry required to hold and read millions of pixels simultaneously is incredibly complex, making the sensors expensive to manufacture and prone to higher image noise.[3]

That barrier began to crack in late 2023 when Sony released the a9 III, the first full-frame consumer mirrorless camera to feature a global shutter. Priced at roughly $6,000, it allowed sports photographers to capture violently swinging golf clubs with perfect, rigid geometry.[4]

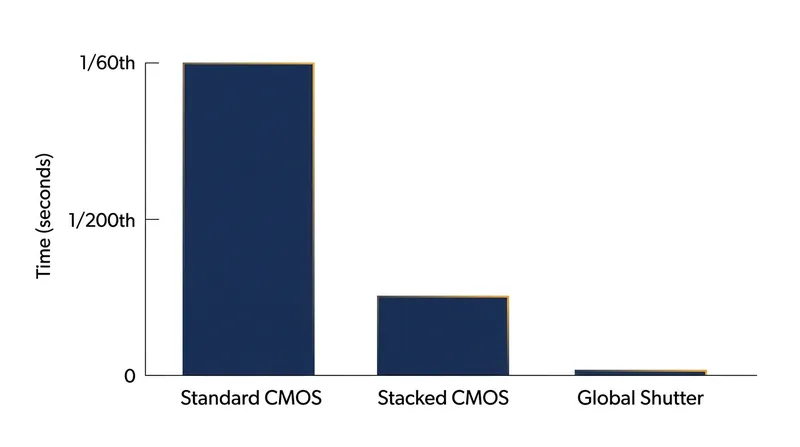

However, the vast majority of cameras, including the smartphone in your pocket, still rely on rolling shutters. Manufacturers have mitigated the worst effects by developing stacked CMOS sensors that read the rows much faster, dropping the scan time from 1/60th of a second down to 1/200th.[2]

A Cultural Quirk of Digital Vision

Faster readout speeds reduce the severity of the distortion, but they do not eliminate it entirely. As long as the image is captured sequentially, a fast enough object will always manage to outrun the scan. The melted propeller remains a stubborn artifact of the digital age.[2][5]

In a strange way, these warped images have become a cultural touchstone, a visual shorthand for extreme speed that our own eyes cannot perceive. We have accepted the bending golf club as a true representation of athletic power, even though it is entirely an artifact of silicon architecture.[1][5]

The rolling shutter effect reminds us that a photograph is never a perfect slice of frozen time. It is a mechanical translation of light, bound by the physical limits of the hardware doing the reading. When reality moves faster than the machine, the machine simply draws what it can.[4][5]
