A Cube-Root Perceptual Curve Makes 18 Percent Surface Reflectance Appear as Middle Gray

When a photographer points a lens at a snowstorm or a coal bunker, the camera’s internal light meter makes a single, uncompromising decision. It evaluates the incoming light and calculates the exact shutter speed and aperture required to render the entire scene as a perfectly average gray. The meter does not know what snow is, nor can it recognize coal; it only knows the mathematical baseline it was programmed to seek.

That baseline is universally known as middle gray. To the human eye, this tone looks exactly halfway between absolute black and pure white. It is the visual anchor point of the world, the tone that feels neither bright nor dark, but perfectly neutral.[2]

Yet, if you measure the actual physical light bouncing off a middle gray card, it does not reflect 50 percent of the illumination. It reflects exactly 18 percent. This massive discrepancy between physical reality and human perception is one of the most fundamental quirks of human biology, and it forms the bedrock of modern imaging.[2]

The Biology of Brightness

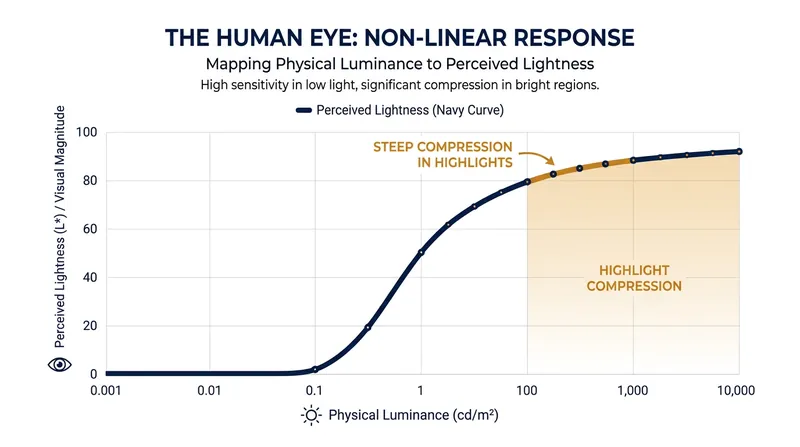

The discrepancy exists because our eyes are non-linear detectors. To survive in a world where direct sunlight is millions of times brighter than starlight, the human visual system compresses incoming light. If a light source becomes four times brighter, it only appears twice as bright to us.[3]

This biological compression allows humans to see detail in deep shadows and bright highlights simultaneously, a feat that still challenges the most advanced camera sensors. But it also means our perception of halfway bright is heavily skewed toward the dark end of the physical spectrum.[3]

The quest to map this perceptual curve began in the early 20th century. When Albert Henry Munsell was developing his famous color system in 1906, he struggled to ascertain the exact relationship between physical luminance and perceived lightness. He famously asked his peers, "Should we use logarithmic curve or curve of squares?"[2]

In 1933, his son Alexander Ector Orr Munsell conducted extensive visual experiments to answer that question. He found that a series of neutral reflecting surfaces with reflectances of 18 percent and 100 percent formed equal perceptual differences in value for the average observer. This established 18 percent as the definitive midpoint of human lightness perception.[2]

The Geometric Mean of Nature

There is also a purely physical justification for the 18 percent figure, rooted in the extremes of natural materials. Testing in the early 20th century showed that the most reflective natural surfaces, like pure fresh snow, reflected essentially 100 percent of the light falling on them.[2]

Conversely, the least reflective surfaces available, such as a coating of black soot, reflected about 3.25 percent of the light. Because human vision scales logarithmically, the perceptual midpoint between these two extremes is found using their geometric mean, rather than their arithmetic average.[2]

The geometric mean is calculated by multiplying the two extremes and taking the square root. The square root of 325 is 18.02. Thus, 18 percent emerges organically as the mathematical center point between the brightest white and the darkest black found in nature.[2]

Scientists eventually mapped this biological compression to a mathematical formula known as Stevens's power law. The law states that perceived brightness scales roughly with the cube root of physical luminance. In 1976, the International Commission on Illumination formalized this relationship into the CIELAB lightness curve, denoted as L*.[1][3]

The Mathematical Cube Root

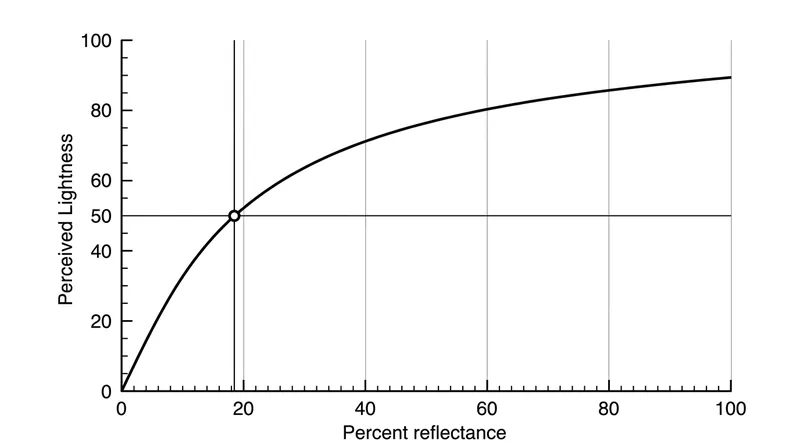

The CIELAB formula applies a modified cube-root function to physical reflectance. When you plug 18 percent reflectance into the equation, the math reveals the trick. The cube root of 0.18 is approximately 0.5646.[1]

Multiplied by the formula's scaling factor of 116 and offset by 16, the result is an L* value of 49.54. A physical reflectance of less than one-fifth lands almost exactly at the 50 percent perceptual midpoint. The 18 percent standard is a direct mathematical inversion of the human eye's compressive response to light.[1]

The CIELAB curve is not a perfect cube root all the way down to absolute zero. To account for the noise floor of human vision in near-total darkness, the CIE defined a linear segment for reflectances below 0.88 percent.[1]

In this extreme shadow region, the curve switches from a cube root to a straight line with a steep slope of 903.3. This mathematical tweak prevents the formula from dividing by zero and accurately models how our eyes lose contrast sensitivity when starved of photons.[1]

This mathematical reality was practically applied to photography in 1939 by Ansel Adams and Fred Archer. They developed the Zone System, a technique for determining optimal film exposure and development. They divided the tonal scale into 11 sections, ranging from Zone 0 for pure black to Zone X for pure white.

Anchoring the Zone System

Zone V sat dead center, representing middle gray. Adams anchored this critical middle zone to the 18 percent reflectance standard. By doing so, he gave photographers a reliable, measurable target that perfectly matched human perception, regardless of the lighting conditions.

Today, the 18 percent gray card remains the ultimate cheat code for working photographers. By placing a spectrally neutral card in front of a subject and taking a spot meter reading off it, the photographer forces the camera to expose for the actual light falling on the scene.

This bypasses the camera's tendency to underexpose bright scenes like snow or overexpose dark scenes like night skies. The meter reads the 18 percent card, places it at Zone V, and lets the rest of the scene's tones fall naturally into place, preserving the true contrast of the environment.

This is also why handheld incident light meters feature a white plastic dome over their sensors. Instead of measuring the light bouncing off the subject, an incident meter measures the light falling onto the scene directly from the source.

The white dome transmits exactly 18 percent of the light to the sensor inside. By physically filtering the incoming illumination down to the middle gray standard, the incident meter provides a flawless exposure reading without requiring the photographer to carry a gray card at all.

The Digital Sensor Translation

Modern digital sensors, unlike human eyes, capture light linearly. A sensor records twice as many photons when the physical light doubles. If a digital image were displayed exactly as the sensor recorded it, the result would look unnaturally dark and flat to a human observer.[4]

To fix this, camera processors must apply a non-linear tone curve to the raw data. This curve artificially bends the linear capture back into the cube-root shape our brains expect to see, boosting the midtones so that the 18 percent physical reflectance is pushed up to a 50 percent display brightness.[4]

Every time a digital camera clicks, it is not just recording a scene; it is actively translating the rigid physics of light into the subjective language of human biology. The 18 percent standard endures because it bridges the gap between the absolute truth of photons and the beautiful illusion of human sight.[4]
