Why Aviation Mandates Nitrogen in Tires to Prevent Explosive Pyrolysis, Not Pressure Loss

When a consumer pays an automotive dealership to fill their car tires with nitrogen, the transaction is sold on the promise of pressure retention. The larger nitrogen molecules supposedly leak through the rubber more slowly than ambient air, keeping the dashboard warning light off during seasonal temperature swings.

Commercial aviation mandates nitrogen inflation for a completely different reason, and it has nothing to do with saving fuel or reducing maintenance intervals. Aircraft tires are filled with inert gas to stop them from turning into high-pressure bombs. The specific threat is a chemical process called pyrolysis, where extreme heat vaporizes the tire from the inside out.[8]

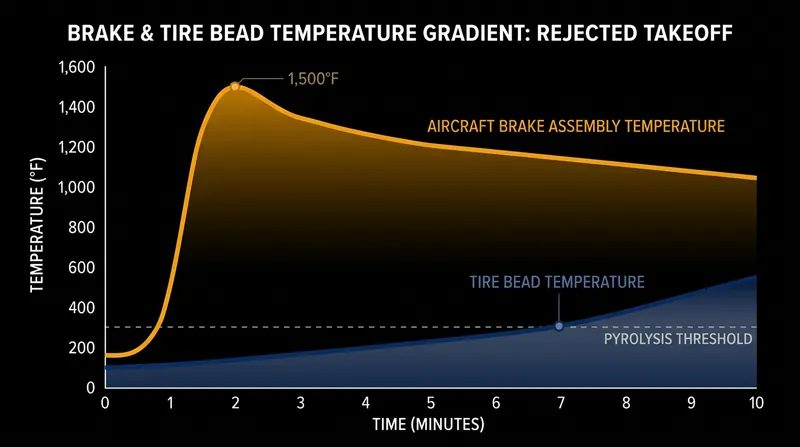

An airliner landing at 160 miles per hour relies on carbon brakes to absorb millions of foot-pounds of kinetic energy. That energy is entirely converted into heat. During a heavy landing or a rejected takeoff, the brake assembly sitting inside the wheel hub can reach temperatures exceeding 1,500 degrees Fahrenheit.[2]

This heat radiates outward from the steel brake rotors directly into the forged aluminum wheel web, and subsequently into the rubber tire bead. The Federal Aviation Administration requires that any tire mounted on a braked wheel must be inflated with a gas containing less than 5 percent oxygen.[2][3]

The Physics of Thermal Transfer

The Code of Federal Regulations, specifically 14 CFR 25.733, dictates the certification standards for these tires. The regulation requires that the tire can withstand the maximum loads and speeds of the aircraft, but it leaves the specific mitigation of explosive pyrolysis to operational directives.[1]

The necessity of this rule becomes apparent when examining the thermal limits of aviation-grade rubber. Aircraft tires are constructed primarily from natural rubber, chosen for its superior mechanical strength and ability to survive the violent impact of touchdown.[8]

However, natural rubber has a distinct thermal vulnerability. When the internal temperature of the tire exceeds 300 degrees Fahrenheit, the chemical bonds within the polymer chains begin to break down. This decomposition process, known as pyrolysis, occurs even without a direct flame.[8]

As the rubber pyrolyzes, it releases highly volatile hydrocarbon gases directly into the tire cavity. An aircraft tire is typically inflated to more than 200 pounds per square inch. If that cavity is filled with standard atmospheric air, it contains 21 percent oxygen.[2]

The combination of high pressure, vaporized hydrocarbon fuel, and a 21 percent oxygen concentration creates a perfect stoichiometric mixture for combustion. The tire essentially becomes a contained fuel-air explosive device, waiting for an ignition source.[8]

That ignition source is readily provided by the glowing hot brake assembly just inches away. If the heat radiating from the brakes reaches the auto-ignition temperature of the hydrocarbon vapors, the mixture inside the tire will spontaneously detonate.[2]

The Flight 940 Catalyst

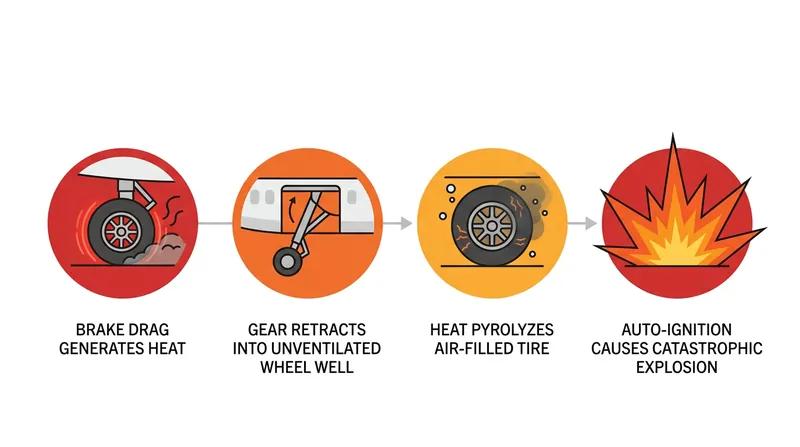

The aviation industry learned this lesson through catastrophic failure. On March 31, 1986, Mexicana Airlines Flight 940, a Boeing 727, crashed into Mount San Andrés shortly after departing Mexico City, resulting in 167 fatalities.[7]

The Bureau of Aircraft Accidents Archives records that the disaster was initiated by a single air-filled tire. A brake malfunction caused the left main landing gear to drag during the takeoff roll, generating immense friction and heat before the gear was retracted into the wheel well.[7]

Inside the unventilated wheel well, the heat pyrolyzed the rubber of the air-filled tire. The resulting explosive mixture auto-ignited, blowing the tire apart with enough force to sever hydraulic lines, rupture fuel lines, and critically damage the aircraft's structural integrity.[7]

In response to the Flight 940 investigation, the FAA issued Airworthiness Directive 87-08-09, fundamentally changing how aircraft tires are serviced. The directive mandated that all tires mounted on braked wheels for aircraft over a certain weight must be inflated with dry nitrogen.[2]

The UK Civil Aviation Authority enforces this through CAP 747, which outlines mandatory requirements for airworthiness. The document aligns with the FAA, ensuring that any aircraft flying into British airspace adheres to the same strict inert gas standards for braked wheels.[4]

The European Union Aviation Safety Agency subsequently adopted identical requirements. The regulatory consensus is absolute: the fire triangle must be broken by removing the oxidizer, as the heat and the fuel cannot be entirely eliminated.[5]

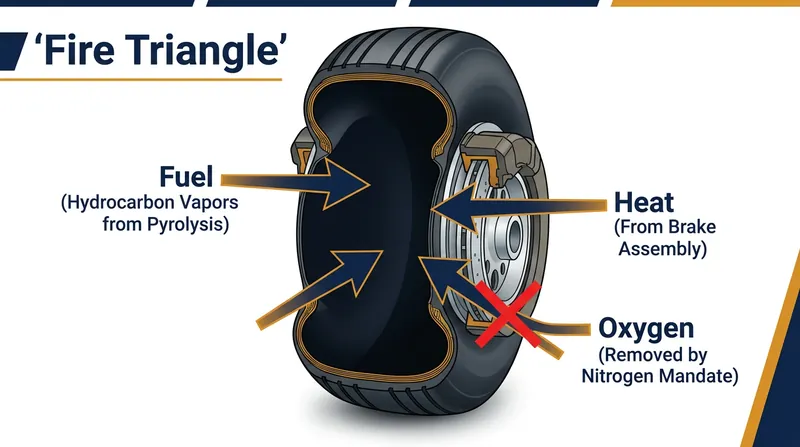

Breaking the Fire Triangle

By replacing ambient air with nitrogen, mechanics ensure that the oxygen concentration inside the tire remains below 5 percent. At this level, even if the brakes glow red hot and the rubber pyrolyzes into thick hydrocarbon smoke, combustion is physically impossible.[2]

"Any tire mounted on a braked wheel must be inflated with dry nitrogen or other gases shown to be inert," states FAA Advisory Circular 20-97B. The document explicitly notes that this practice mitigates the possibility of a tire explosion caused by brake heat.[2]

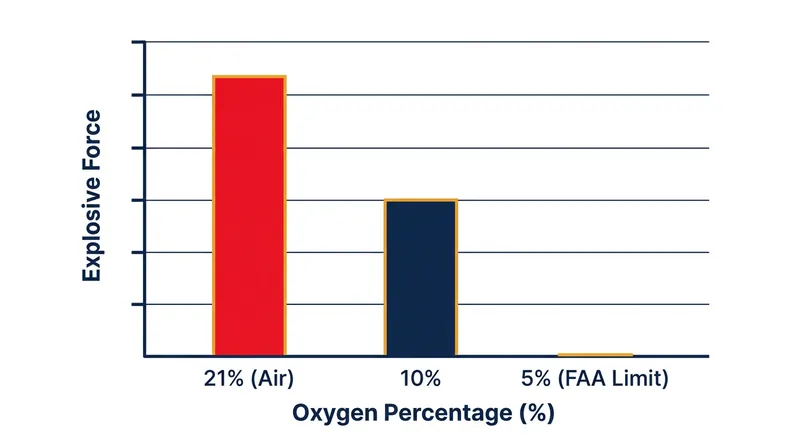

The 5 percent threshold is not an arbitrary safety margin. It is a mathematically derived limit based on the lower explosive limit of the specific hydrocarbon gases released by decomposing natural rubber. Below this concentration, the vapor cannot sustain a flame front.[8]

To enforce this, aviation maintenance technicians use specialized nitrogen carts on the ramp. When servicing a tire, they do not simply top it off; if a tire has been completely deflated, it must be purged and refilled multiple times to ensure all residual oxygen is displaced.[2]

The Flight Safety Foundation has repeatedly emphasized this protocol in its maintenance bulletins. A 1999 bulletin highlighted that even a small introduction of shop air during a routine pressure check can elevate the oxygen concentration above the critical 5 percent threshold, compromising the entire assembly.[6]

Secondary Benefits and Fail-Safes

While preventing auto-ignition is the primary regulatory driver, nitrogen inflation provides secondary engineering benefits. Compressed atmospheric air contains water vapor, which can condense and freeze at the minus 60 degree temperatures encountered at cruising altitude.[2]

Ice crystals forming inside the tire can damage the delicate O-rings and Schrader valve seals, leading to rapid deflation upon landing. Dry nitrogen contains zero moisture, entirely eliminating the risk of internal freezing and subsequent pressure loss.[8]

Furthermore, nitrogen does permeate through the rubber casing slightly slower than oxygen, which aids in maintaining the strict pressure tolerances required for commercial aircraft. A tire under-inflated by just 10 percent must be removed from service, making pressure retention a significant operational advantage.[2]

However, nitrogen alone is not the only defense against brake heat. Aircraft wheels are also equipped with fusible plugs—small safety valves filled with a eutectic alloy designed to melt at a specific temperature, usually around 390 degrees Fahrenheit.[2]

If a rejected takeoff generates enough heat to threaten the structural integrity of the wheel, the fusible plugs melt. This allows the nitrogen to safely vent outward, deflating the tire in a controlled manner before the rising pressure and weakening rubber cause a mechanical burst.[8]

The combination of inert nitrogen gas and thermal fusible plugs creates a dual-layered safety system. The nitrogen prevents the tire from exploding chemically via auto-ignition, while the fusible plugs prevent it from exploding mechanically via over-pressurization.[8]

The next time a commercial airliner executes a heavy braking maneuver, the tires will inevitably smoke and degrade. But because the oxygen has been systematically removed from the equation, that degradation remains a maintenance issue rather than a catastrophic structural threat.[8]
