The Memory Bottleneck in Large Language Models: How Grouped-Query Attention Solves the KV Cache Problem

Generating a single word of text from a 70-billion parameter model requires loading 140 gigabytes of weights into the processor, a massive but fixed cost. Yet, the hidden cost that actually breaks servers is the conversational memory—the data the model must remember about the text it just read.[1]

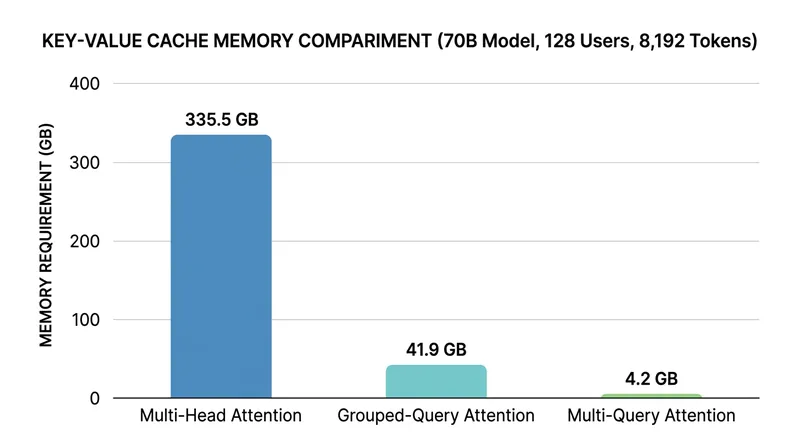

For a standard model handling 128 simultaneous users reading an 8,192-token document, this memory footprint balloons to over 335 gigabytes. That is more than double the size of the model itself. This dynamic memory, known as the Key-Value cache, is the primary bottleneck in modern artificial intelligence inference.[3]

Grouped-Query Attention, or GQA, is the mathematical compromise that solves this scaling crisis. By altering how the model's attention mechanism stores past information, GQA cuts the memory required for the Key-Value cache by exactly 87.5% in an eight-to-one configuration, preventing servers from crashing under high-volume workloads.[1][3]

The Anatomy of Attention

To understand the fix, one must first understand the original design. In standard Multi-Head Attention, the model processes text using dozens of independent computational channels called heads. Each head generates three mathematical vectors for every single token: a Query, a Key, and a Value.[2]

The Query represents what the current word is looking for in the surrounding text. The Key represents what a past word contains. The Value holds the actual semantic substance of that past word. When a Query matches a Key, the model retrieves the corresponding Value to understand the context.

As the model generates new words, it does not want to recalculate the Keys and Values for the thousands of words it has already processed. Instead, it saves them in the Key-Value cache. In standard Multi-Head Attention, every single attention head gets its own dedicated Key and Value cache.[2]

If a model has 80 attention heads, it stores 80 distinct Keys and 80 distinct Values for every single token in the sequence. Across 80 neural network layers, this redundancy compounds exponentially, consuming gigabytes of high-bandwidth memory just to remember a few pages of text.[1][3]

The tensor math of this cache is unforgiving. It requires multiplying the batch size, the sequence length, the number of heads, the head dimension, the number of layers, and the byte size of the data format. For a 70-billion parameter model, this scales linearly and disastrously as users are added.[3]

The Multi-Query Extreme

The first attempt to solve this bottleneck was Multi-Query Attention, introduced by researchers in 2019. Instead of giving each of the 80 query heads its own dedicated key and value, Multi-Query Attention forced all 80 query heads to share exactly one key and one value per token.[2]

This draconian reduction slashed the memory footprint by 98.7%. The cache shrank to a fraction of its original size, allowing servers to process massive batches of users simultaneously without running out of memory. It solved the hardware bottleneck entirely.[2]

However, sharing a single key and value across 80 different queries degraded the model's reasoning capabilities. The single representation could not capture the diverse semantic nuances that 80 independent heads were trying to extract, leading to a measurable drop in output quality on complex tasks.[1][2]

A single Key vector simply lacks the mathematical capacity to answer 80 different Queries simultaneously. The model became faster and cheaper to run, but it lost the deep contextual understanding that made large language models useful in the first place.[3]

The Grouped-Query Compromise

Grouped-Query Attention emerged in 2023 as the optimal middle ground. Rather than forcing all heads to share one representation, or giving every head its own, GQA divides the query heads into smaller, manageable clusters.[1]

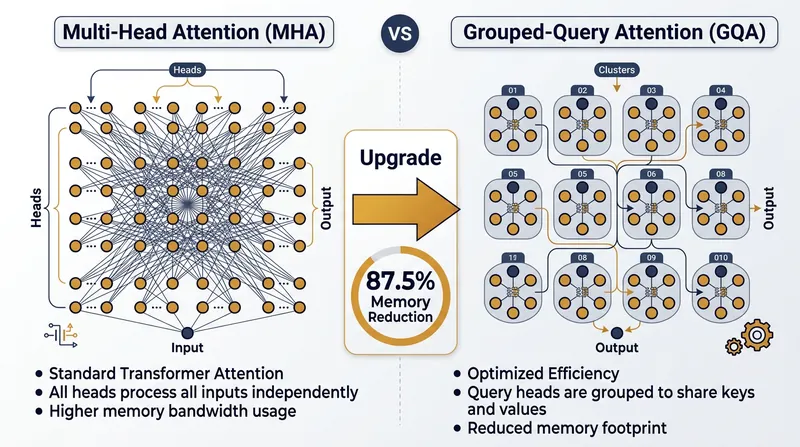

In a typical configuration, 80 query heads are divided into 10 groups of eight. Each group of eight query heads shares a single Key and a single Value. This eight-to-one ratio is where the 87.5% memory reduction originates, striking a balance between extreme compression and total redundancy.[1][3]

The model retains enough distinct Key and Value representations to maintain high-quality reasoning, but eliminates enough redundancy to keep the memory footprint manageable. The performance is nearly indistinguishable from standard Multi-Head Attention, but the inference speed matches the highly efficient Multi-Query approach.[1]

"We show that GQA models achieve quality close to multi-head attention with comparable speed to multi-query attention," the researchers wrote in their 2023 paper, noting it offers "a favorable trade-off" for large-scale deployment. This specific ratio has become the industry standard for nearly all modern open-weight architectures.[1][3]

The Hardware Reality

The true value of GQA lies in the physical constraints of silicon. Artificial intelligence accelerators like the NVIDIA H100 are rarely limited by their ability to perform math; they are limited by how fast they can move data from memory to the compute cores.

During text generation, the model must read the entire Key-Value cache for every single word it produces. If the cache is 335 gigabytes, the hardware must move 335 gigabytes of data across the chip just to output one token. This creates a severe memory bandwidth bottleneck.[3]

By shrinking that cache to roughly 42 gigabytes, GQA allows the hardware to fetch the necessary data eight times faster. This directly translates to faster reading speeds for the user and significantly lower operating costs for the provider hosting the model.[3]

Without this reduction, serving a batch of 128 users would require five 80-gigabyte GPUs purely to hold the conversational memory, completely separate from the GPUs needed to hold the model weights. GQA allows that same workload to fit alongside the weights on far fewer accelerators.[3]

"Memory bandwidth is the ultimate governor of inference speed," noted NVIDIA engineers in a technical breakdown, explaining that "optimizing the KV cache is non-negotiable for high-throughput serving." By drastically lowering the memory ceiling, GQA allows researchers to run 70-billion parameter models on local workstations.

Upcycling Existing Architectures

Implementing GQA from scratch requires training a new model, which costs millions of dollars in compute time. However, researchers discovered a technique called "upcycling," which allows an existing Multi-Head model to be converted into a GQA model without starting over.[1]

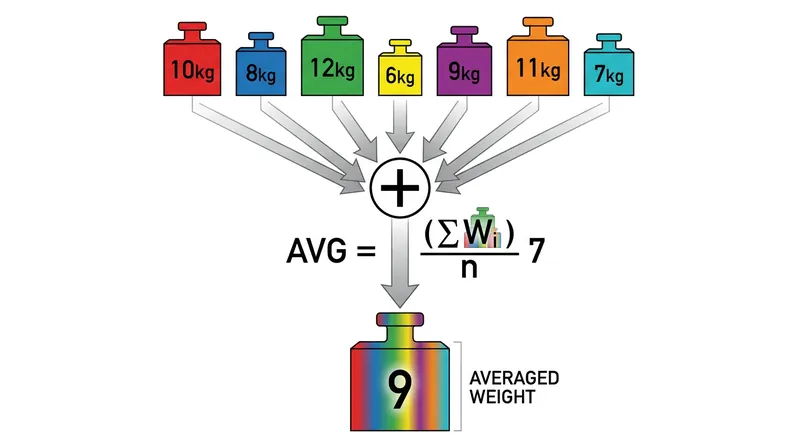

The upcycling process averages the weights of the existing Key and Value heads within each group to create a single shared head. The model is then trained for a small fraction of its original training time to adapt to this new, compressed architecture.[1]

This brief fine-tuning phase, which typically requires only 5% of the original training compute, is enough for the model to recover its reasoning capabilities. The upcycled model emerges with the intelligence of the original, but the memory footprint of the compressed version.[1][3]

This upcycling technique allowed the rapid adoption of GQA across the industry. Today, nearly every major open-weight model relies on Grouped-Query Attention to remain economically viable for developers to deploy at scale.

The Future of Context Windows

The 87.5% memory savings provided by GQA is exactly what enabled the recent explosion in context window sizes. When the cache per token is reduced by a factor of eight, the model can remember eight times as many tokens using the same amount of hardware.[3]

Without this architectural optimization, processing a million-token document would require an impossible amount of memory. GQA shifted the bottleneck just far enough to make book-length context windows a commercial reality for enterprise applications and consumer chatbots alike.[3]

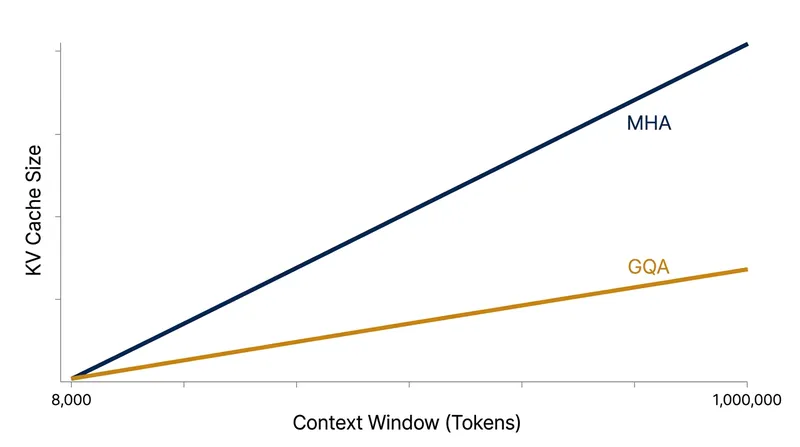

Yet, even with GQA, the Key-Value cache scales linearly with the sequence length. As developers push toward ten-million-token contexts, even the compressed cache of GQA will eventually exhaust available hardware, presenting a new ceiling for the industry to overcome.[3]

Researchers are already searching for the next architectural breakthrough, exploring sub-linear cache architectures and state-space models that do not require storing every past token. Until those experimental designs are proven at scale, the Transformer architecture remains dominant.[2][3]

Grouped-Query Attention stands as the vital bridge that kept the Transformer viable as models scaled to unprecedented sizes. It is a masterclass in engineering trade-offs, proving that sometimes, sharing resources is the only way to keep the system from collapsing under its own weight.[1][3]
