The 1/8-Inch Grout Threshold: How Joint Width Dictates the Choice Between Sanded and Unsanded Mixtures

Some veteran tile installers insist that sanded grout is the only material structurally sound enough for floor traffic, pointing to its compressive strength and resistance to cracking under the weight of daily footfall. They argue that the aggregate acts as a vital load-bearing scaffold. Conversely, specialists working with modern, rectified porcelain argue that forcing sand into tight, contemporary joints guarantees scratched tile edges, pinhole voids, and a porous finish that traps dirt from day one, compromising the entire installation before the room is even finished.[1]

For a homeowner standing in a home improvement aisle or reviewing a contractor's bid, the distinction between sanded and unsanded grout often looks like a minor aesthetic preference or a simple pricing tier. In reality, it is a rigid structural boundary dictated entirely by the physical gap between the tiles. Choosing the wrong bucket does not just change the look of the floor; it fundamentally alters the chemistry of the curing process, dictating whether the surface will survive a decade of use or crumble within the first six months.[2]

The dividing line universally recognized by the Tile Council of North America (TCNA) is exactly 1/8 of an inch. If the space between tiles measures 1/8 inch or wider, the installation requires sanded grout to maintain structural integrity. If the joint is narrower than 1/8 inch, unsanded grout becomes the mandatory choice to ensure the material can properly fill the void. This rule applies regardless of the room, the substrate, or the specific brand of mortar being used.

To understand why this threshold exists, a property owner must look at the chemistry and physics of Portland cement, the primary binding agent in both traditional mixtures. Cement cures through hydration, a one-way chemical reaction that consumes water and causes the material to shrink slightly as it hardens over a standard 28-day period. This volumetric change is the central engineering challenge of any masonry installation, and grout is no exception. Managing this shrinkage dictates the exact composition of the powder inside the bag.

In an unsanded mixture, the grout consists almost entirely of fine Portland cement powder, powdered pigments, and water-retaining additives designed to slow the cure. Because there is no rigid aggregate to lock the internal structure in place, the curing process naturally pulls the material inward as the water evaporates and the chemical bonds tighten. The paste relies entirely on its adhesion to the surrounding tile edges to hold its shape. Without a physical scaffold, the cement matrix is highly vulnerable to slumping if applied too thickly.[1]

When applied to a narrow joint—typically measuring 1/16 inch for highly uniform glass mosaics or rectified wall tiles—this shrinkage is microscopic and structurally harmless. The cement bonds tightly to the tile edges, creating a smooth, waterproof seal that easily withstands shower spray and routine wall-washing.

The minimal volume of wet material means the total shrinkage is negligible, allowing the joint to cure flat and flush with the surrounding surface. In these tight confines, the lack of sand is a distinct advantage, allowing the paste to flow freely into the deepest crevices.

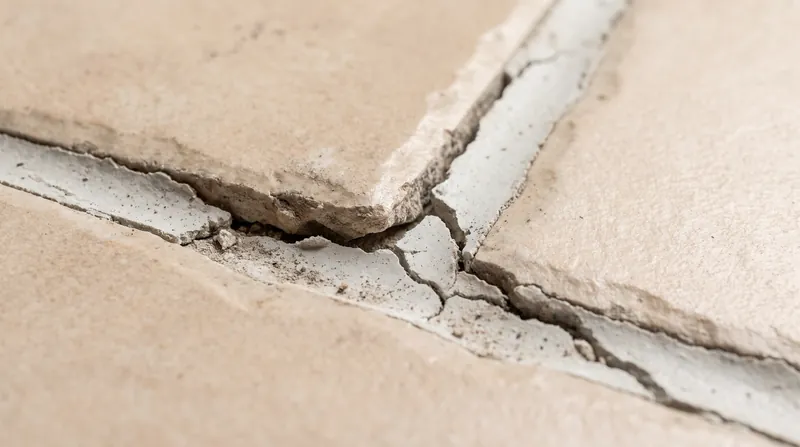

However, if a contractor attempts to fill a 1/4-inch floor joint with that same unsanded grout, the volume of cement is simply too large to support itself during the cure. "Without sand to suspend the cement matrix, the grout will slump, pull away from the tile edges, and develop severe shrinkage cracks before the homeowner even walks on it," notes the installation guidance from Lapifix. The material will dry into a concave ditch, collecting debris and allowing water to penetrate the subfloor.[1]

AI

Sanded grout solves this volumetric problem by introducing fine silica sand into the dry mix, often making up more than half the weight of a standard 50-pound bag. The sand acts as a miniature structural scaffold within the joint.

When the cement hydrates and attempts to shrink, the rigid sand particles press against each other, locking the joint's dimensions in place and providing immense compressive strength that resists the downward force of foot traffic. This internal bracing prevents the cement from pulling away from the tile edges, ensuring a flush, durable finish.

This aggregate reinforcement allows sanded grout to safely span gaps from 1/8 inch all the way up to 1/2 inch without slumping, cracking, or washing out. It is the exact reason sanded grout remains the default specification for high-traffic commercial floors, exterior patios, and traditional ceramic tiles with irregular, handmade edges that require wider spacing to mask manufacturing imperfections. The sand provides the bulk necessary to fill large voids economically and securely. For decades, this made sanded grout the undisputed standard for nearly all residential floor installations.

Yet, the very aggregate that gives sanded grout its structural strength makes it a severe liability in tight spaces. The silica sand particles are physically too large to pack densely into a modern 1/16-inch joint.

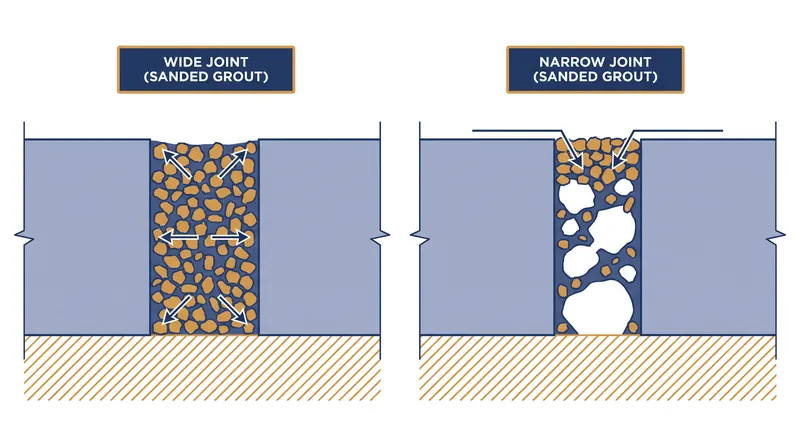

When an installer forces sanded grout into a narrow gap, the sand grains bridge the opening at the surface, preventing the wet cement paste from reaching the bottom of the joint and bonding with the thinset mortar below. This bridging effect creates a false top that looks complete to the naked eye but hides catastrophic structural flaws.

This creates hidden air pockets and pinhole voids just below the surface of the grout line. As the floor experiences normal use, these unsupported surface bridges eventually collapse under the pressure of footsteps or furniture legs, leaving the homeowner with crumbling grout lines that require complete, labor-intensive replacement. The failure is not due to defective material, but rather a fundamental mismatch between the physical size of the aggregate and the dimensions of the void. The sand simply cannot fit where it is being forced to go.

Furthermore, the silica sand utilized in these mixtures is highly abrasive, acting much like loose sandpaper when rubbed across a surface. If used on highly polished marble, soft glass mosaics, or delicate metal accent tiles, the simple act of floating the grout across the wall will leave permanent, visible scratches. The damage occurs instantly during installation, ruining the finish of premium materials before the grout has even begun to set. This makes unsanded grout the only viable option for easily marred surfaces, regardless of the joint width.[1]

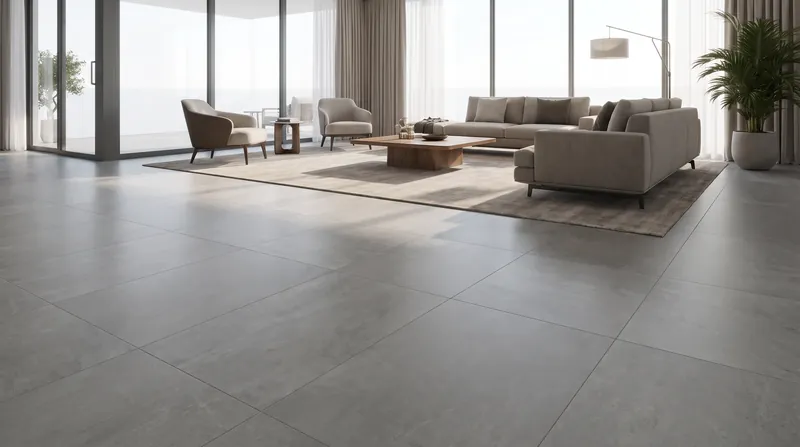

The 2015 TCNA Handbook revisions explicitly addressed these shifting material tolerances, emphasizing that as manufacturing techniques evolved, so did installation requirements. As factories produced larger, flatter porcelain tiles with perfectly straight rectified edges, the consumer demand for ultra-narrow 1/16-inch joints surged. Installers could no longer rely on the traditional 1/4-inch sanded joints that historically hid size variations in standard 12-by-12-inch ceramic floor tiles. The industry had to pivot toward materials that could accommodate this new, seamless aesthetic without compromising durability.

This shift in design trends forced the entire industry to adapt its approach to floor layouts. A modern homeowner installing 24-by-48-inch rectified porcelain often expects a monolithic, near-seamless look, pushing the installation firmly into unsanded territory even in high-traffic areas. To bridge this gap, manufacturers have increasingly developed advanced epoxy and high-performance acrylic grouts that do not rely on Portland cement, allowing for narrow joints without the traditional shrinkage risks. However, for standard cementitious products, the physical rules remain absolute.[2]

AI

For a renter dealing with crumbling bathroom tiles, or a buyer inspecting a newly flipped home, checking the joint width against the grout texture offers an immediate, reliable indicator of workmanship. A wide, smooth joint is a failure waiting to happen, signaling that unsanded grout was stretched beyond its volumetric limits. Conversely, a narrow, gritty joint is a sign of forced, improper materials that likely hide voids below the surface. Recognizing this mismatch allows a property owner to spot a compromised installation before water damage occurs.[2]

The decision between the two materials is never a matter of design preference or budget. The tile's edge profile dictates the joint width, and that strict 1/8-inch measurement dictates the chemistry required to keep the floor intact for the next decade.

Respecting that threshold ensures the difference between a permanent, waterproof architectural surface and a costly, crumbling liability. When contractors and homeowners align their material choices with the physical realities of the gap they are filling, the installation succeeds; when they ignore the threshold for the sake of convenience, the floor inevitably fails.[2]
