The 0.015-Inch Cut: How Hiding Film Splices Shifted Widescreen Cinema From 2.35:1 to 2.39:1

Every time you sit in a darkened theater to watch a modern blockbuster, the image stretching across the screen is exactly 1.7 percent shorter than it was in the late 1950s. That missing sliver of vertical real estate is not an artistic choice made by a visionary director, nor is it a limitation of digital sensors.[1]

It is the permanent ghost of a mechanical problem that plagued mid-century projection booths: the physical tape used to glue film reels together. The widescreen format we casually refer to as "anamorphic" was born out of 20th Century Fox’s CinemaScope in 1953, designed to offer a massive, immersive picture that television could not match.

Studios achieved this scale by using a specialized lens to squeeze a wide image onto standard 35mm film, which the projector would then stretch back out. By 1957, the Society of Motion Picture and Television Engineers (SMPTE) had standardized the dimensions for this format, setting the projector’s aperture plate to a height of 0.715 inches.

When combined with a 2x anamorphic squeeze, this 0.715-inch height produced an aspect ratio of 2.35:1. For over a decade, this was the undisputed mathematical definition of epic cinema, governing everything from sweeping historical dramas to intimate character studies.

The Splice Flash Problem

But the 2.35:1 standard collided with the physical reality of theatrical distribution. A feature film did not ship to a local cinema on a single massive platter. It arrived in a stack of delivery reels, each holding roughly 11 to 20 minutes of footage, which the projectionist had to manually assemble.

To build a continuous feature-length presentation, the projectionist had to physically cut the heads and tails off these reels and cement them together. The splice itself was a physical overlap of the celluloid, held together by specialized tape or chemical cement that inevitably bled into the frame lines.

Because the 1957 aperture plate exposed nearly the entire height of the film frame, the projector bulb would catch the edges of the splice tape as it flew through the gate at 24 frames per second. The result was a jarring, bright white flash at the top or bottom of the theater screen.

"It was a persistent distraction that pulled audiences right out of the narrative," notes the American Society of Cinematographers in its historical overview of projection standards. "The frame was simply too tall to hide the mechanical seams of the print."

Cinematographers hated the flashes, but projectionists had no way to avoid them without physically altering the equipment. Some theater operators began filing down custom aperture plates, intentionally cropping the image to hide the messy splices, which meant a film's framing varied wildly depending on the theater.

The 1970 SMPTE Intervention

To unify the theatrical experience, the SMPTE intervened in 1970 with a revised standard that officially institutionalized the projectionists' workaround. Rather than asking distributors to invent invisible tape, the engineering body simply shrank the window that the audience was allowed to look through.

The 1970 revision reduced the standard projector aperture height from 0.715 inches down to 0.700 inches. This 0.015-inch trim effectively masked the top and bottom edges of the film frame, safely concealing the splice tape behind solid metal.

The flashes disappeared, but the geometry of the movies was permanently altered. Because the width of the aperture remained unchanged at 0.838 inches, and the anamorphic lens still applied a 2x horizontal stretch, the math shifted entirely.

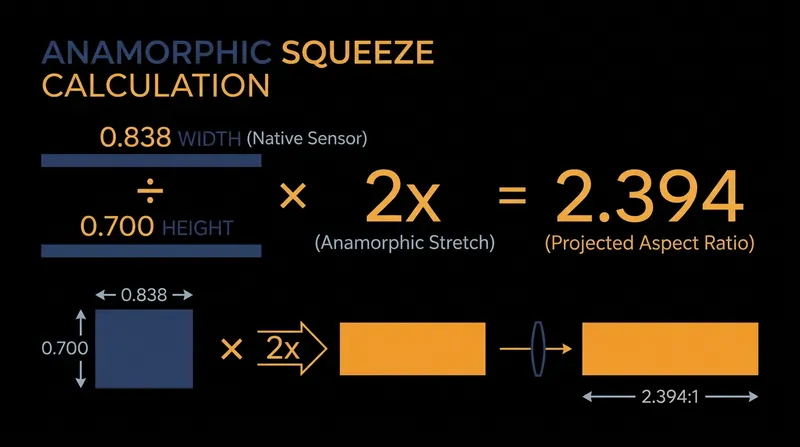

Dividing the 0.838-inch width by the new 0.700-inch height, and multiplying by two, yields 2.394. Widescreen cinema had officially moved from 2.35:1 to 2.39:1, a standard that remains the bedrock of theatrical framing today.[1]

The change was entirely invisible to the camera negative. Cinematographers were still shooting on the exact same 35mm film stock, using the exact same anamorphic lenses. The camera gate had not shrunk; only the projector gate had, forcing camera operators to adjust their viewfinders to protect for the new, tighter crop.

The 2.40:1 Rounding Error

If you spend enough time on film sets or reading technical specifications, you will rarely hear the format called 2.39:1. Most industry professionals, from directors to colorists, refer to the modern anamorphic standard as 2.40:1, which is not a separate format, but rather a persistent rounding error.[2]

When the SMPTE published the 2.394 mathematical result in 1970, engineers and equipment manufacturers naturally rounded the number to make it easier to print on lens barrels and slate boards. Rounding 2.394 to a single decimal place yields 2.4, birthing the 2.40:1 moniker.

"Whether a spec sheet says 2.39, 2.40, or even 'two-four-oh,' they are all describing the exact same 1970 SMPTE standard," explains a technical bulletin from Panavision. The physical dimensions of the projector plate never changed again, but the colloquial vocabulary drifted.

The Digital Inheritance

The most fascinating aspect of the 0.015-inch trim is its survival in the digital era. Modern cinemas no longer use 35mm film prints, and there are no physical splices to hide. A Digital Cinema Package is a seamless computer file, projected by a laser that never touches a piece of tape.[2]

Yet, when the Digital Cinema Initiatives (DCI) consortium established the standards for digital projection in the early 2000s, they did not revert to the taller 2.35:1 frame. Instead, they codified the 1970 mechanical compromise into the digital realm to ensure backward compatibility with theater masking curtains.[2]

When projecting a "scope" film, a standard 4K digital projector uses a pixel matrix of 4096 by 1716. If you divide 4096 by 1716, the result is exactly 2.386, which rounds to 2.39:1. The digital grid was intentionally designed to perfectly mimic the cropped metal aperture plate of a 1970s film projector.[1][2]

This legacy inheritance ensures that a movie shot on film in 1985 and a movie shot on a digital sensor in 2026 share the exact same screen geometry. The physical constraint of film cement dictated the dimensions of the digital future.[2]

Today, the 2.39:1 aspect ratio remains the ultimate visual shorthand for cinematic scale. The slight vertical crop that was invented purely to hide a projectionist's messy handiwork is now universally recognized by audiences as the definitive shape of a blockbuster.
