The 5 Percent Void: How Perforated Cinema Screens Anchor Dialogue Without Leaking Light

In a typical home theater, the speakers flank the television or sit quietly beneath it. The audio source is physically separated from the visual source, forcing the viewer's brain to subconsciously merge the dialogue coming from the soundbar with the moving lips on the glass.

It is a minor cognitive tax, but one that commercial cinemas refuse to levy. When a 40-foot face speaks in a theater, the sound does not come from the walls or the floor. It comes directly through the actor's projected mouth.

To achieve this seamless illusion, the cinema screen itself must function as a massive, room-spanning speaker grille. The solution is a feat of material compromise, relying on a surface that is mostly solid but fundamentally porous.[1]

The vast majority of commercial projection screens are not solid sheets of coated PVC. Instead, they are acoustic sieves riddled with millions of tiny holes, designed to let sound waves pass while catching as much light as possible.[5]

The Acoustic Sieve

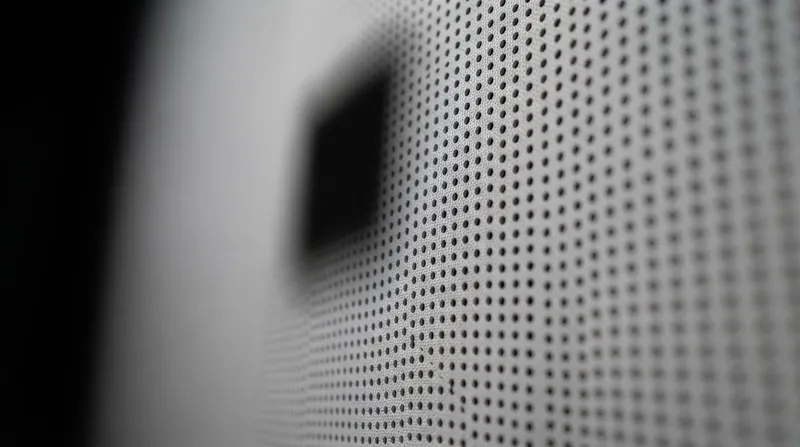

These perforations typically measure between 1.0 and 1.3 millimeters in diameter. They are punched into the heavy vinyl in tightly spaced, staggered patterns that cover the entire viewing surface from one edge to the other.[3][5]

In a standard theatrical installation, these holes account for roughly 5 percent of the screen's total area. This specific ratio is the industry's golden number, balancing two entirely contradictory physics requirements for light and sound.[1][3]

"It is easy to understand that there must be a happy medium between acoustical transparency, loss of reflected light on the screen, and the perforations on the screen surface," notes manufacturer Stewart Filmscreen in their technical documentation. Pushing the ratio too far in either direction ruins the theatrical experience.[3]

On the audio side, that 5 percent void allows the massive Left, Center, and Right speaker arrays mounted on the rear wall to push their acoustic energy directly into the auditorium. The dialogue remains physically anchored to the action.[3][5]

Without these holes, the heavy PVC screen would act as a massive acoustic dampener. It would muffle the dialogue entirely, trapping the crucial mid-range vocal frequencies in the dark, reverberant cavity behind the frame.[2]

Integrating the Void

Yet, visually, punching millions of holes into a reflective surface introduces an obvious problem. Every millimeter of empty space is a millimeter of projected light that blows straight through the screen and is lost forever.[3]

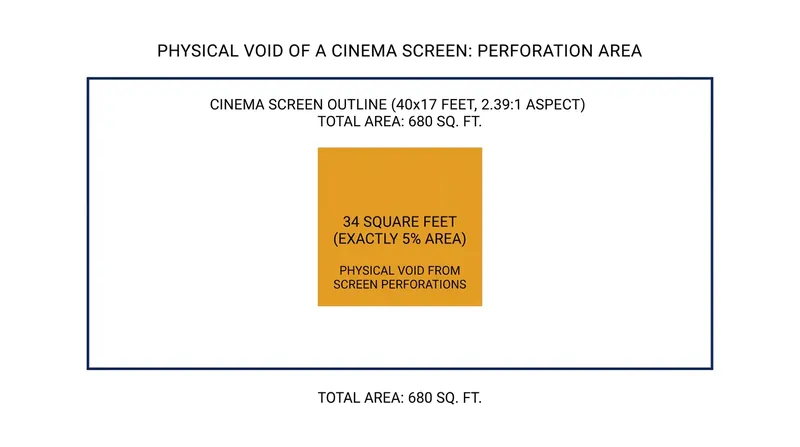

The math behind this loss is surprisingly stark when scaled to a commercial auditorium. On a standard 40-foot by 17-foot Scope screen, a 5 percent perforation rate equates to exactly 34 square feet of physical void.[1][6]

That is the equivalent of a 5.8-by-5.8-foot gaping hole missing from the center of the picture. If that massive void were concentrated in a single spot, the projected image would be entirely unwatchable for the audience.[6]

Because the missing area is distributed across millions of microscopic gaps, the human visual system simply ignores it. At a standard viewing distance, the eye cannot resolve the individual millimeter-wide holes against the bright image.[3]

The brain integrates the light reflecting off the remaining 95 percent of the solid vinyl, perceiving a continuous, unbroken picture. The projector simply runs slightly hotter to compensate for the light that passes through the gaps.[3]

The Society of Motion Picture and Television Engineers (SMPTE) Standard 196M dictates that a cinema screen must reflect 12 to 22 Foot Lamberts of luminance. Theater technicians calibrate the projector's bulb wattage to hit this target specifically on the solid portions of the vinyl.[3]

The High-Frequency Toll

While the 5 percent perforation rate solves the visual problem, it does not leave the audio entirely unscathed. The screen still acts as a physical barrier, creating an acoustic low-pass filter that alters the sound profile.[2]

Low and mid-range frequencies, which have long wavelengths, diffract easily through the millimeter-wide holes. However, high-frequency treble sounds possess much shorter wavelengths, and they struggle to navigate the narrow vinyl tunnels without losing energy.[2]

As the diameter of the hole approaches the physical thickness of the screen material, viscous losses occur. The friction of the air moving through the tiny perforations absorbs the highest frequencies, dulling the crispness of the audio.[2]

To counteract this, cinema audio processors apply a specific equalization curve to the soundtrack. They boost the high frequencies at the amplifier level, giving the treble enough extra power to punch through the PVC and reach the audience intact.[2]

The Digital Moiré Threat

For decades, this perforated system worked flawlessly with 35mm film projection. Film grain is organic and randomly distributed, meaning it never geometrically conflicted with the rigid grid of holes punched into the vinyl screen.[3]

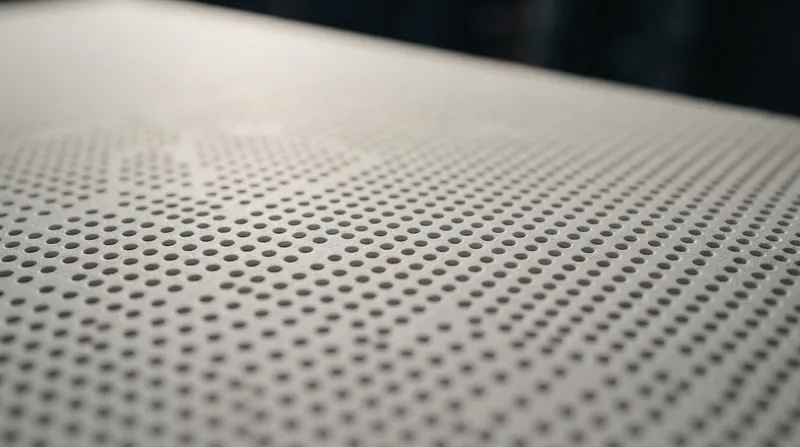

The transition to digital projection introduced a severe new visual complication. Digital projectors use a fixed matrix of square pixels, and when that rigid grid aligns with a square grid of screen perforations, it creates moiré.[3][5]

Moiré is a distracting, swirling interference pattern that appears when two geometric grids overlap slightly out of phase. It creates dark bands and ripples across the image, entirely ruining the visual presentation for the audience.[3][5]

To defeat this, screen manufacturers had to abandon simple square perforation patterns. Modern screens use staggered, diamond-shaped hole layouts that intentionally break geometric alignment with the projector's pixel grid, eliminating the visual interference entirely.[3][4]

For smaller venues and home theaters, where viewers sit much closer, manufacturers developed specialized micro-perforated screens. These feature holes as small as 0.5 millimeters, packing over 30,000 perforations into a single square foot to remain invisible at close range.[4][5]

Whether using standard or micro-perforations, the underlying acoustic illusion remains exactly the same. By sacrificing exactly 5 percent of the picture, cinemas ensure that when a character speaks, the audience believes the voice genuinely belongs to the face.[1][5]
