DCI Calibration Fixes Cinema Audio at 85 dBC Leq, Making Home Releases Sound Too Quiet on TV Speakers

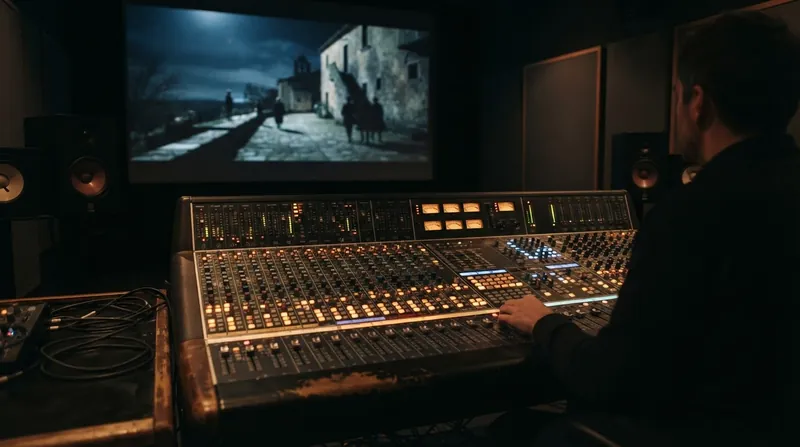

The outcome of every major film soundtrack is determined in a highly controlled environment known as a dub stage. Before a single line of dialogue is mixed, an audio engineer plays a burst of wide-band pink noise at -20 dBFS through the room's speakers. They adjust the main fader until a sound pressure level meter reads exactly 85 dBC at the listening position.

This precise calibration step is the bedrock of the SMPTE RP 200 standard, and it is the reason theatrical audio translates perfectly across the globe. By anchoring the room to a fixed 85-decibel reference volume, the engineer establishes an absolute baseline for human speech. Everything else in the mix is scaled around this anchor.

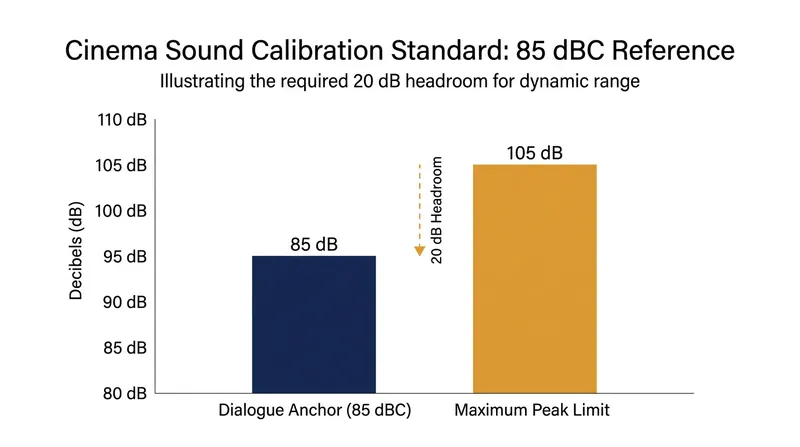

The scale of that remaining audio canvas is massive. With dialogue sitting comfortably at 85 decibels, the digital file still retains 20 decibels of headroom before it hits the absolute ceiling of 0 dBFS. That 20-decibel gap is where the explosive dynamic range of a modern blockbuster lives.

Because the reference level is fixed, the engineer knows exactly how loud the quietest whisper and the largest explosion will be in any calibrated cinema. When the peak hits 105 decibels per channel, the theater's massive amplifiers and sensitive drivers reproduce the impact without a hint of distortion.

The X-Curve and Cinema Acoustics

Beyond sheer volume, theatrical audio is also shaped by the physical realities of a massive auditorium. Cinema sound systems are tuned to a specific frequency response known as the X-Curve, which intentionally rolls off the high frequencies to compensate for the reverberation of a large room.

This high-frequency roll-off is necessary because the speakers are firing through a perforated projection screen, which naturally absorbs and diffuses treble. When a mix equalized for the X-Curve is played on a television without adjustment, the dialogue can sound muffled and indistinct.

To combat this, studios often commission a dedicated near-field mix for the home video release. The original mix engineer returns to a smaller, living-room-sized studio to adjust the equalization and narrow the dynamic range, ensuring the audio translates properly to consumer hardware.[3]

However, not every film receives the budget or the time for a dedicated near-field remix. When a studio simply drops the raw theatrical print master onto a streaming server, the home viewer inherits all the acoustic assumptions of a 500-seat auditorium.[4]

The Living Room Collision

The problem begins when that exact same uncompressed audio file leaves the theater and is delivered to a living room via a streaming service or Blu-ray disc. The living room is not a calibrated dub stage, and a sustained 85-decibel dialogue track would be uncomfortably loud in a small space.[3]

To compensate, the viewer sets the television volume to a comfortable level for speech, typically around 70 decibels. However, because the theatrical mix retains its massive dynamic range, the quietest background sounds immediately drop below the ambient noise floor of the average home.[1]

Struggling to hear the whispered exposition, the viewer grabs the remote and turns the volume up. This seemingly harmless adjustment sets a mathematical trap for the next action sequence. By raising the volume to make the dialogue intelligible, the viewer has inadvertently pushed the explosive peaks into dangerous territory.

When the action scene finally arrives, the mix demands an instantaneous 20-decibel jump in acoustic output. The television is suddenly asked to produce a sound pressure level that its internal hardware was never designed to handle.

The Hardware Bottleneck

Modern flat-panel televisions are marvels of visual engineering, but their audio hardware is severely constrained by the laws of physics. A typical television houses tiny 10-to-15-watt amplifiers pushing sound through drivers that are only a few millimeters thick.[4]

Pushed beyond their physical limits by the uncompressed theatrical peaks, these tiny amplifiers immediately clip. The audio waveform is squared off, resulting in harsh, fatiguing distortion that ruins the listening experience.[1]

"This compresses the dynamic range, reducing the difference between the loudest and softest parts of the soundtrack," says audiovisual technology journalist Scott Wilkinson in Popular Science.

Without that compression, viewers are forced to constantly ride the volume button. The television hardware simply lacks the dynamic headroom to comfortably reproduce the theatrical mix without clipping.[4]

Unlike the music industry's infamous loudness war, where tracks are heavily compressed to peak constantly, cinema audio preserves the contrast between silence and impact. That artistic choice makes the loud moments truly matter in a theater, but it creates a fundamental incompatibility with low-wattage consumer electronics.[1]

Broadcast Standards and Dialnorm

The broadcast television industry recognized this hardware limitation years ago and implemented strict standards to protect the viewer. The ATSC A/85 standard requires television programs to be mixed to a much narrower dynamic range, typically anchoring dialogue at a lower reference level.

To manage these varying levels, the Dolby Digital compression system utilizes a metadata parameter called Dialnorm, short for dialogue normalization. Dialnorm tells the consumer decoder exactly how loud the average dialogue is within the encoded audio program.

The playback device uses this metadata to automatically normalize the volume, ensuring that dialogue remains consistent across different channels and programs. If a theatrical mix is broadcast, the decoder reads the Dialnorm value and adjusts the output to prevent the peaks from clipping the television's amplifiers.

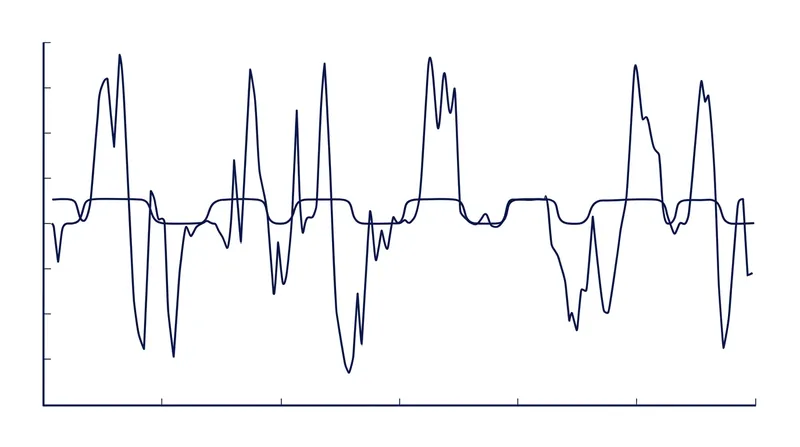

For uncompressed theatrical mixes played at home, the most effective solution is dynamic range compression, often labeled as Night Mode on modern soundbars and receivers. This software algorithm acts as an automatic volume control, squashing the explosive peaks and boosting the quiet whispers.

The Object-Based Future

The next evolution in resolving the translation problem is object-based audio, most notably Dolby Atmos, which was introduced to cinemas in 2012. Instead of baking the mix into fixed channels, Atmos delivers audio as independent objects accompanied by spatial metadata.[2]

Dolby Atmos allows engineers to precisely place and move up to 128 individual audio objects within a three-dimensional space. While the technology is famous for adding overhead height channels, its most significant advantage for the home is its inherent scalability.[2]

The Atmos decoder understands the specific capabilities of the connected hardware and renders the mix accordingly. A high-end home theater receiver will decode the full dynamic range, while a basic soundbar will receive a tailored mix that prevents amplifier clipping.[2]

Until smart, object-based rendering becomes a universal standard across all devices, the disconnect between the dub stage and the living room will persist. The 85 dBC calibration standard ensures a perfect, uncompromised cinema experience, but it leaves home viewers reaching for the remote.[4]
