The DCI Specification and the Interop vs. SMPTE DCP: How Digital Cinema Packages Actually Work

Independent filmmakers often assume that rendering a pristine 4K ProRes file or a massive H.264 MP4 is the final hurdle in getting their movie onto a theater screen. It is a comforting thought, usually held right up until a festival programmer asks for the DCP, at which point the panic sets in.

The evidence, however, points to a much more rigid reality. According to the Library of Congress, the Digital Cinema Initiative Distribution Package (DCP) is the only format that actually plays on professional cinema servers, and it is not a single video file, but a complex, encrypted folder of assets.[1]

"Digital Cinema Initiatives, LLC (DCI) was created in March 2002, as a joint venture of Disney, Fox, MGM, Paramount, Sony Pictures Entertainment, Universal and Warner Bros. Studios," the Library of Congress notes. Their goal was to replace 35mm film with a digital standard that could not be easily pirated while maintaining a uniform level of technical performance.[1]

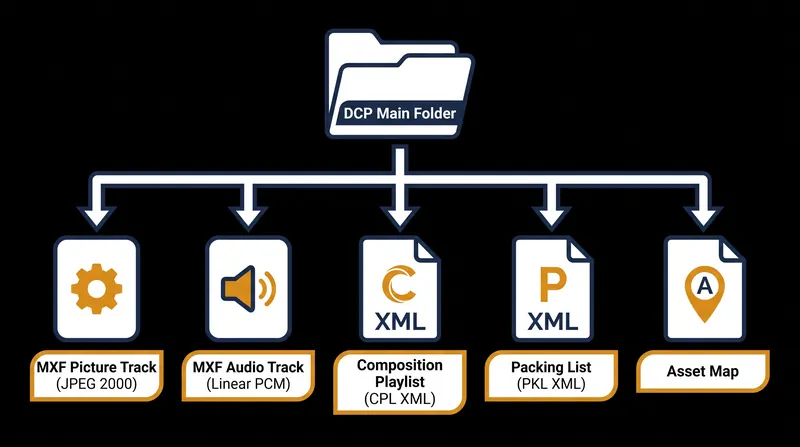

What they built was the DCP. As C&I Studios explains in their technical breakdown, a standard package typically includes a picture track file encoded in JPEG 2000, a soundtrack file of uncompressed 24-bit WAV audio, a Composition Playlist (CPL), a Packing List (PKL), and an asset map.

"Together, these elements form the digital equivalent of a film reel, one that must meet precise global standards set by the Digital Cinema Initiatives," C&I Studios writes. If a single XML tag is out of place, the projector simply refuses to ingest the movie.

But the DCP ecosystem is not a monolith. It is currently split between two competing implementations: the older Interop DCP and the modern SMPTE DCP.

Interop was the initial, informal standard created during the early rollout of digital cinema. As Pronto DCP outlines in their technical documentation, Interop is the "legacy or 'safe' standard" that is guaranteed to work on older projectors, particularly in historic festival venues.

The catch with Interop is its rigidity. It strictly limits the frame rate to exactly 24 frames per second (fps). It also handles subtitles through unencrypted CineCanvas XML files or PNG sequences, which can be cumbersome for modern multi-language distribution.

SMPTE (Society of Motion Picture and Television Engineers) DCPs represent the current global standard. This format wraps all essence types, including subtitles, into secure MXF track files, allowing for much tighter metadata control.

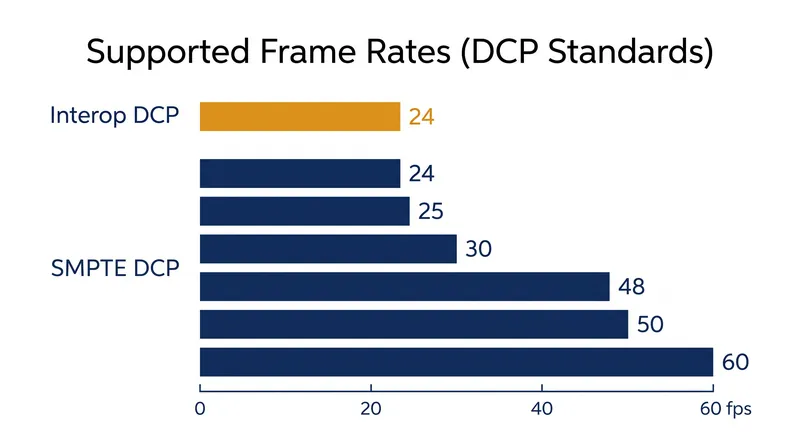

More importantly, SMPTE unlocks modern frame rates. ProVideo Coalition notes that SMPTE DCPs support integer rates of "24, 25, 30, 48, 50, and 60 fps." This is crucial for television crossovers or European productions natively shot at 25 fps.[2]

"SMPTE DCP (Digital Cinema Package) does not support non-integer rates like 23.976 (aka 23.98), 29.97 or 59.94," ProVideo Coalition warns, highlighting a common trap for digital videographers who shoot in broadcast formats and attempt to export directly to a cinema package.[2]

The choice between Interop and SMPTE forces a strategic decision. "Interop and SMPTE are different standards for DCP. They both specify how Digital Cinema Print packages should work and are similar, but aren't cross-compatible," the Library of Congress documentation explains.[1]

If a filmmaker delivers an SMPTE DCP to a theater running a legacy server, the screen stays dark. Conversely, an Interop DCP might lack the immersive Dolby Atmos audio or high frame rate a modern multiplex expects.

Security adds another layer of complexity. Commercial DCPs are often encrypted to prevent piracy. To unlock the film, the theater needs a Key Delivery Message (KDM).

A KDM is a secure XML file that matches the specific serial number of the theater's playback server. It only allows playback during a strictly defined time window. "Time zones and expiration dates must be accurate to the minute," C&I Studios advises.

For independent creators, the stakes are high. "Frame rate is the most common cause of playback failure in the festival circuit," Pronto DCP notes. A mismatch between the timeline and the DCP wrapper can ruin a premiere.

The DCP is a marvel of industrial standardization. It ensures that a movie graded in a boutique post-house in London will look and sound exactly the same in a multiplex in Tokyo or a historic theater in Utah.[3]

The transition from 35mm film to digital replaced the physical weight of celluloid with the mathematical weight of cryptography and XML validation, demanding a new kind of technical literacy from anyone hoping to project their work on the big screen.[3]
