Stretching Continuous Welded Rail to 105°F: Why Heat Kinks Strike Blind

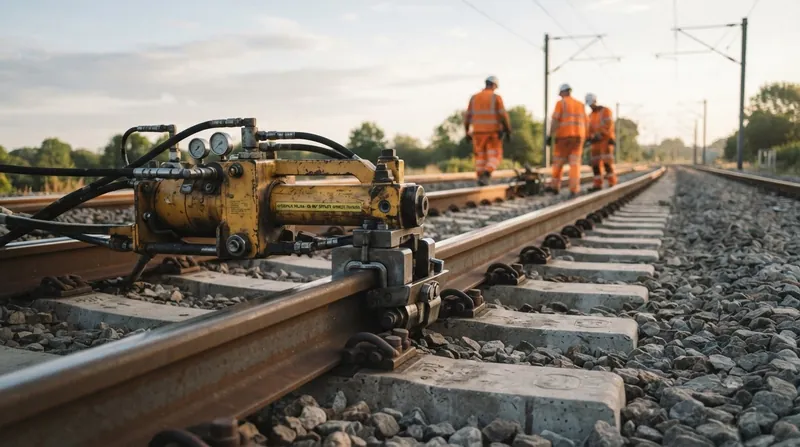

The moment a quarter-mile ribbon of steel is welded into a modern railway, it is locked into a permanent state of tension. Track gangs use massive hydraulic jacks or diesel heaters to stretch the metal before anchoring it to the ties.[1]

This process sets the rail’s neutral temperature, which is the exact thermal point where the steel experiences zero longitudinal stress. In hot climates like the Central Florida Rail Corridor, engineers intentionally set this baseline as high as 105°F.[1]

The high baseline is not a geographical accident, but a calculated defense mechanism against the limits of railway electronics. The Federal Railroad Administration (FRA) defines continuous welded rail as any segment exceeding 400 feet without a joint.[2]

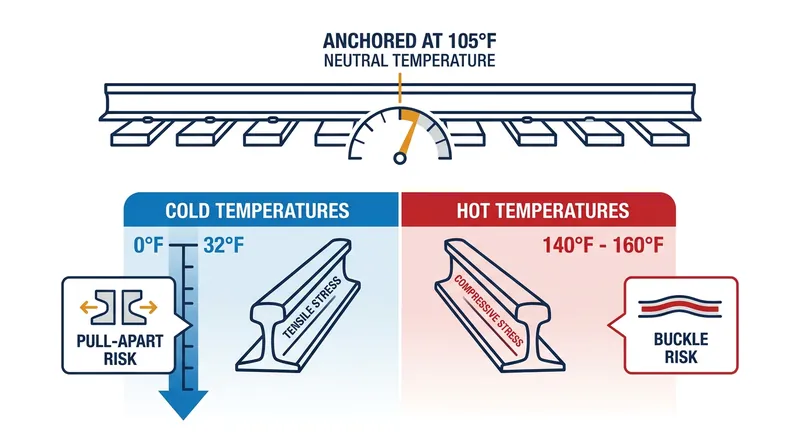

Without expansion gaps, temperature swings turn the track into a giant thermal spring. The engineering choice to bias the neutral temperature upward forces the rail to spend most of its life trying to shrink, rather than trying to expand.[1]

The Physics of Thermal Stress

When the ambient air drops below the 105°F neutral temperature, the steel attempts to contract. Because it is bolted to the sleepers and buried in crushed rock ballast, it cannot move, which builds immense tensile stress.[1][4]

In the dead of winter, this tension can exceed the yield strength of the steel or the welds. The rail snaps, creating a gap known in the industry as a pull-apart, which immediately halts traffic but rarely causes a derailment.[1][3]

Conversely, when the summer sun beats down on the track, the physics reverse. "On a hot summer day, the rail temperature can reach values in the range of 140° to 160°F," notes a track stability report from the Bureau of Transportation Statistics.[4]

This heat generates compressive stress, pushing the steel outward. The critical force required to buckle a structural member is inversely proportional to its length squared, meaning the continuous miles of welded rail possess enormous potential energy.[1]

If the longitudinal force overcomes the lateral resistance of the ballast, the track violently warps sideways. This sudden snap-through instability, colloquially known as a sun kink or track buckle, destroys the precise geometry required to keep train wheels on the rail.[1][4]

The Signaling Blind Spot

The disparity in how railways handle these two failures lies entirely in the track circuit. Since the late 19th century, railroads have run a low-voltage electrical current through the rails to detect the presence of trains.[5]

When a train enters a block, its steel axles short the circuit, dropping the signal to red and protecting the train from rear-end collisions. This same circuit acts as a rudimentary structural monitor for the physical track.[5]

Modern jointless track circuits transmit a modulated electrical current signal on each track using a transmitter and receiver pair installed at opposite ends of the block. The presence of a railway vehicle is detected when the signal is interrupted by the temporary short circuit introduced by the steel axle.[5]

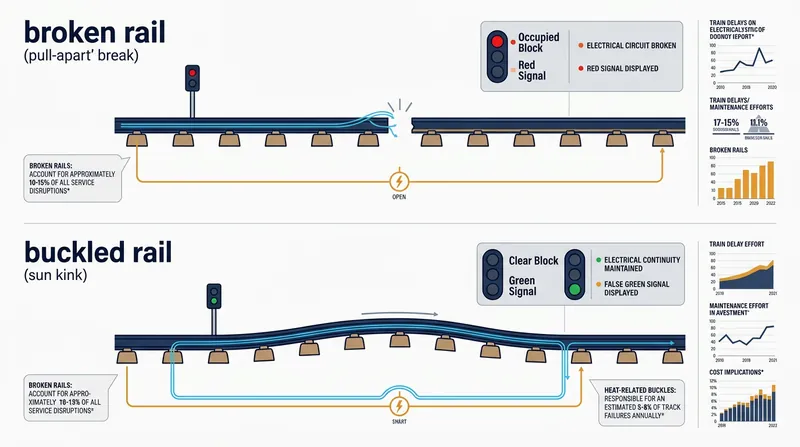

If winter tension causes a pull-apart, the physical fracture breaks the electrical continuity of the rail. The track circuit fails safe, the signal instantly drops to red, and approaching trains are halted miles before they reach the gap.[1][3]

A summer heat kink, however, strikes completely blind. Because the rail bends severely but does not actually snap, the electrical current continues to flow uninterrupted through the warped steel, leaving the monitoring system entirely unaware of the danger.[1][5]

The detection problem is further complicated in electrified rail territory. Traction return cables provide an alternative path for the track circuit current, meaning that even some genuine rail breaks can be bypassed by the electricity, leaving up to 60 percent of cut tracks undetected by conventional circuits.[5]

But for a sun kink, the failure rate of the signaling system is absolute. The steel remains physically contiguous, offering no resistance to the low-voltage signal, rendering the impending derailment entirely invisible to the dispatcher's board.[5]

Trading Delays for Derailments

Because the track circuit cannot see a buckle, the signal remains green, clearing a train to hit the deformed track at full speed. This blind spot makes compressive failures exponentially more dangerous than tensile ones.[1]

"A small break in a rail is nothing compared to a buckled track when it comes to the risk of derailment," explains Grady Hillhouse, a civil engineer and host of Practical Engineering. "So it just makes sense to use as high a neutral temperature as you can get away with."[1]

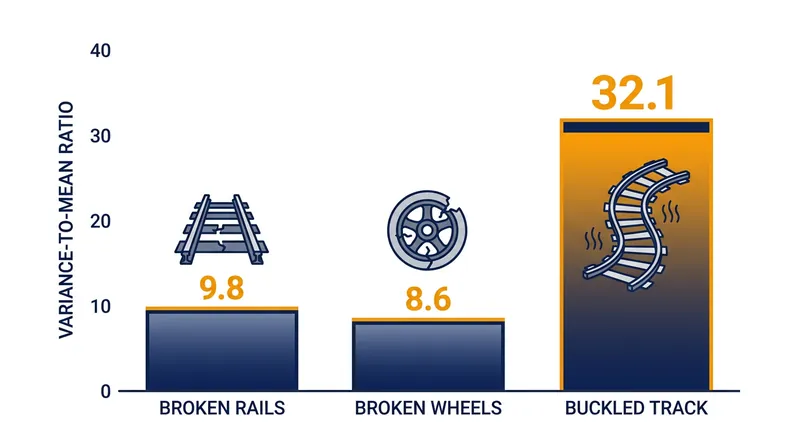

A 2021 study from Rutgers University quantified this disparity, noting that broken rails have caused around $500 million in damage since 2000. However, the researchers found that buckled track derailments exhibit a variance-to-mean ratio of 32.1, indicating highly unpredictable and catastrophic risk.[3]

The researchers analyzed data across four major Class I railroads, finding that the seasonal effect on derailment frequency given traffic exposure was consistent across the network. The analytical results demonstrated that derailment frequencies in warmer seasons are approximately 50 percent less likely than those in winter seasons, purely because the winter failures trigger the safety system.[3]

The study confirmed that while broken rails are more frequent in colder months, their detectability mitigates the severity. In contrast, the empirical data showed zero track-buckling derailments in winter, isolating the catastrophic risk entirely to the warmer seasons.[3]

By jacking the neutral temperature to 105°F, engineers ensure the rail only experiences compression during the absolute hottest days of the year. They willingly trade the operational headache of winter pull-aparts for protection against invisible summer derailments.[1][4]

The Limits of Lateral Resistance

Maintaining this high neutral temperature requires constant vigilance, because track naturally loses its tension over time. The initial stress-free temperature can drop from 105°F down to 50°F or 70°F due to train braking forces, rail creep, and routine maintenance.[4]

The FRA requires every railroad to maintain a detailed written policy for installing, adjusting, and inspecting continuous welded rail. Track owners must quantify the rail neutral temperature of all welded track and document every instance where the rail is cut or repaired.[2]

If a section of track falls out of its designated safe range, crews must physically cut the rail and remove the anchors. They then use hydraulic tensors to pull the steel back to its correct stress level before re-welding it.[1][2]

When maintenance crews disturb the crushed rock ballast to realign the track, they temporarily reduce its lateral resistance by up to 50 percent. If a sudden heatwave strikes before the ballast settles, the rail can buckle even at lower ambient temperatures.[4]

To compensate, railroads impose strict speed restrictions during extreme heat events. If a rail has been cut and repaired without being properly re-stressed to its target neutral temperature, FRA regulations mandate a 25 mph speed limit during the heat of the day.[2]

Emerging technologies are attempting to close the signaling blind spot. European patent filings describe acoustic and fiber-optic sensors designed to detect the strain of a buckling rail before a train arrives, bypassing the limitations of traditional electrical circuits.[5]

Until those systems are deployed at scale, the safety of the global freight network relies on a brute-force compromise. Engineers will continue stretching steel to its limits, forcing the track to break where the electronics can see it, rather than bend where they cannot.[6]
