Why Dual-Chamber Pacemakers Trigger Tachycardia by Tracking Retrograde Echoes

A device implanted to restore a failing heartbeat can suddenly accelerate it to dangerous extremes, driving the heart into an exhausting loop because it perfectly executes a flawed instruction. Patients with dual-chamber pacemakers occasionally experience a sudden, sustained heart rate of 130 beats per minute while resting.[8]

This phenomenon is not a mechanical failure or a battery malfunction. It is a structural software vulnerability known as pacemaker-mediated tachycardia, where the device's own tracking logic is hijacked by the heart's electrical echoes.[5]

The pacemaker acts exactly as programmed, sensing an electrical signal in the upper chamber and dutifully stimulating the lower chamber in response. But the signal it senses is a ghost—an echo of its own previous pulse traveling backward through the heart tissue.[7]

"Pacemaker-mediated tachycardia is an endless loop tachycardia in which the pacemaker forms the anterograde limb of the circuit and the atrioventricular node forms the retrograde limb," notes the StatPearls medical reference. The device becomes an unwitting participant in a runaway circuit.[1]

The anatomy of an endless loop

Dual-chamber pacemakers use two wires, or leads, to maintain the heart's natural rhythm. One lead sits in the right atrium, the upper chamber, while the second rests in the right ventricle, the lower pumping chamber.[2]

In a healthy heart, the sinus node fires an electrical impulse that contracts the atrium, which then travels down the atrioventricular node to contract the ventricle. The pacemaker is programmed to mimic this exact sequence, maintaining a precise delay of roughly 150 to 200 milliseconds between the two chambers.[5]

When the atrial lead detects a natural contraction, the pacemaker waits for that programmed delay and then fires the ventricular lead. This tracking function ensures the ventricles keep pace with the body's demand during exercise or stress.[6]

However, this tracking logic assumes that all electrical signals in the atrium originate from the sinus node and travel downward. The system breaks down when an impulse originates in the ventricle and travels backward—a phenomenon known as retrograde ventriculoatrial conduction.[10]

The retrograde vulnerability

Retrograde conduction occurs when the atrioventricular node, which normally acts as a one-way electrical gateway, allows signals to travel in reverse. Instead of moving from atrium to ventricle, the electrical wave moves from ventricle to atrium.[3]

This backward travel creates an inverted electrical signature called a retrograde P-wave. To the pacemaker's atrial sensor, this retrograde wave looks identical to a normal sinus node firing, triggering the device to respond.[7]

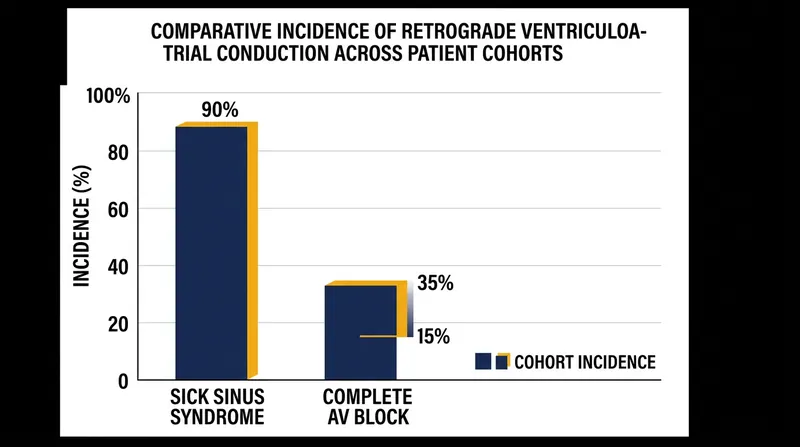

The American College of Cardiology highlights that retrograde conduction is surprisingly common. It is present in up to 90 percent of patients with sick sinus syndrome and, counterintuitively, in 15 to 35 percent of patients who have complete forward block.[2][10]

"The presence of complete antegrade block does not preclude intact retrograde conduction," researchers noted in EP Europace. This means a patient whose heart cannot transmit signals forward can still transmit them backward, setting the stage for an endless loop.[4]

The triggering events

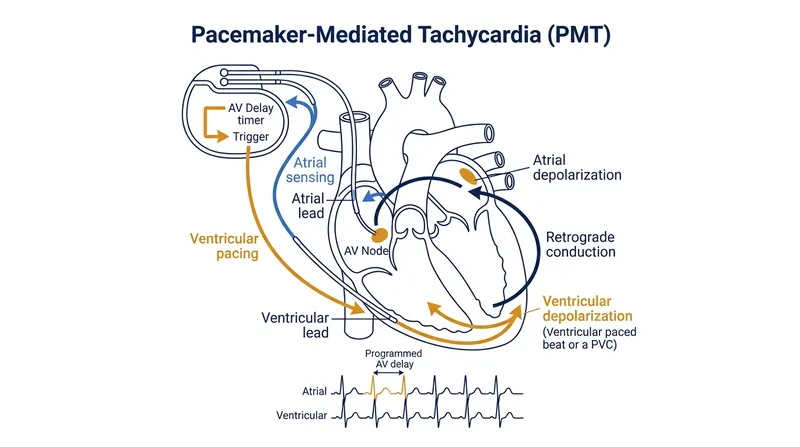

The endless loop usually begins with a premature ventricular contraction—an extra, spontaneous heartbeat originating in the lower chambers. These extra beats are common, benign events in most people, but they disrupt the pacemaker's carefully timed sequence.[5]

When a premature beat occurs, the ventricle contracts out of turn. If the atrioventricular node is capable of reverse transmission, that electrical impulse travels backward into the atrium, generating a retrograde P-wave.[1]

The pacemaker's atrial lead detects this retrograde P-wave. Believing the sinus node has just fired, the device waits its programmed 150-millisecond delay and then delivers a pacing pulse to the ventricle.[6]

That ventricular pacing pulse causes the ventricle to contract again. This new contraction sends another signal backward up the node, creating another retrograde P-wave, which the pacemaker senses again.[7]

The cycle is now locked. The pacemaker drives the ventricle, the ventricle drives the atrium via retrograde conduction, and the atrium drives the pacemaker. The heart rate instantly jumps to the pacemaker's programmed upper tracking limit, typically 120 to 130 beats per minute.[8]

Breaking the circuit

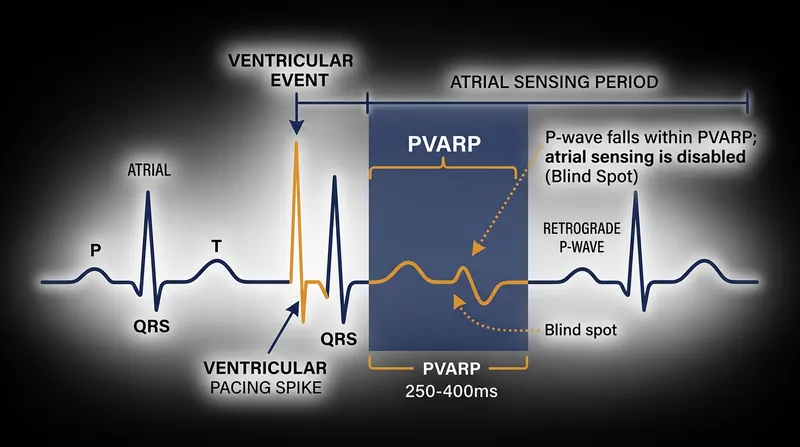

Because the pacemaker is functioning exactly as designed, stopping the tachycardia requires tricking the software to ignore the retrograde signals. Modern devices rely on a programmed blind spot called the Post-Ventricular Atrial Refractory Period.[2]

This refractory period is a specific window of time—usually 250 to 400 milliseconds—immediately following a ventricular contraction. During this window, the pacemaker's atrial lead is essentially turned off, rendering it blind to any incoming electrical signals.[5]

If a retrograde P-wave arrives at the atrial sensor during this window, the pacemaker ignores it. Because the device does not track the ignored signal, it does not trigger the next ventricular pulse, and the endless loop is broken.[6]

"Appropriate programming of the PVARP is the primary method for preventing pacemaker-mediated tachycardia," the Journal of Arrhythmia explains. By extending the blind spot, clinicians ensure the retrograde echo fades before the pacemaker starts listening again.[5]

The trade-offs of prevention

However, extending the blind spot creates a significant clinical trade-off. A longer refractory period protects against retrograde echoes, but it also limits the pacemaker's ability to track genuine, high-speed sinus node signals during exercise.[7]

If a patient's natural heart rate rises to 140 beats per minute while jogging, the natural P-waves arrive very quickly. If the blind spot is set too long, those genuine signals will fall into it and be ignored, leaving the patient fatigued.[2]

To solve this, manufacturers introduced dynamic algorithms in the late 1990s. These systems automatically shorten the blind spot when the patient exercises, allowing higher heart rates, and lengthen it when the patient rests to block retrograde echoes.[6]

Devices also feature specific response algorithms for premature beats. When the pacemaker detects a premature ventricular contraction, it automatically extends the refractory period for just one single heartbeat—often to 400 milliseconds—specifically to block the anticipated retrograde wave.[1]

The limits of software

Despite these sophisticated software interventions, the endless loop remains a persistent clinical challenge. A 2010 review published in Heart noted that algorithms can misclassify signals, and dynamic adjustments sometimes fail to catch unusually slow retrograde conduction.[7][11]

In rare cases where software programming cannot break a nearly incessant tachycardia, electrophysiologists must physically destroy the retrograde pathway. This involves mapping the reverse electrical circuit and using radiofrequency ablation to burn the specific tissue transmitting the echoes.[9]

A study in The Journal of Innovations in Cardiac Rhythm Management detailed exactly this approach. Surgeons successfully ablated the retrograde pathway in a patient with third-degree block who suffered from continuous pacemaker-mediated tachycardia.[9]

The persistence of this phenomenon highlights a fundamental tension in medical device engineering. The more responsive a pacemaker is to the heart's natural signals, the more vulnerable it becomes to tracking the heart's electrical errors.[11]

The device cannot differentiate between a forward command and a backward echo. It relies entirely on the timing parameters set by the clinician to decide which signals to follow and which to ignore.[2]

Until pacemakers can analyze the physical direction of an electrical wave rather than just its arrival time, the endless loop remains a structural risk. The hardware perfectly executes the software, leaving the patient's heart caught in the middle of a flawless mistake.[11]
