Anisotropic Keratin Crosslinking Forces Human Nails to Curl Transversely When Clipped Dry

In February 2004, biomechanical engineers at the University of Manchester placed human fingernail clippings into a custom testing rig. They wanted to know why a torn nail rarely splits straight down into the living tissue. Their fracture toughness measurements inadvertently explained a universal bathroom annoyance: why a dry fingernail violently snaps and flies across the room when clipped.[1]

The answer lies in the microscopic architecture of the nail plate. A human fingernail is not a uniform sheet of plastic, but a sophisticated biological composite. It consists of three distinct layers of keratinous tissue: a thin dorsal roof, a thick intermediate core, and a ventral floor that binds to the nail bed.[1][3]

The thick intermediate layer dictates how the entire structure behaves under stress. Unlike the random, tile-like cells of the outer layers, the intermediate layer is built from highly oriented α-keratin fibers. These microscopic filaments are aligned transversely, running side-to-side across the width of the finger rather than from base to tip.[1]

This side-to-side alignment creates a property known as mechanical anisotropy. Because the fibers run laterally, the nail exhibits vastly different physical characteristics depending on the direction of the force applied to it. Materials scientists note that this structural bias is an evolutionary defense mechanism designed to protect the highly sensitive nail matrix.[2][3]

The Energy Barrier

The transverse orientation of the keratin fibers forces any crack to travel parallel to the free edge of the nail. As biomechanical engineer Richard Ennos and his colleagues at the University of Manchester noted, "This anisotropy was imparted by the thick intermediate layer, which comprises long, narrow cells that are oriented transversely."[1]

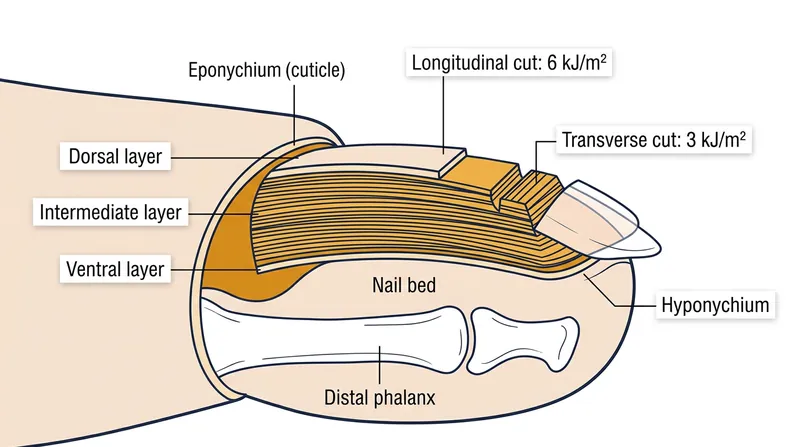

The researchers discovered that cutting a nail longitudinally requires approximately 6 kilojoules per square meter of energy. In contrast, cutting it transversely requires only 3 kilojoules per square meter. This 2:1 energy ratio means the path of least resistance always runs across the finger.[1]

When a crack begins, the anisotropic keratin matrix actively steers the fracture laterally. This prevents a minor edge tear from propagating down the length of the nail and exposing the sterile matrix beneath the lunula. However, this same protective mechanism turns the nail into a loaded spring when subjected to steel clippers.[1][6]

A standard nail clipper applies a vertical shearing force across a curved blade. As the steel jaws squeeze the dry nail, the rigid keratin initially resists the cut. Dry α-keratin is exceptionally stiff, boasting a Young’s modulus between 2 and 4 gigapascals.[2]

The geometry of the clipper itself exacerbates the problem. The curved cutting edges are designed to match the natural arc of the fingertip, but they force the flat nail plate to deform before the blades even begin to shear the keratin. This initial deformation pre-loads the transverse fibers with tension.[6]

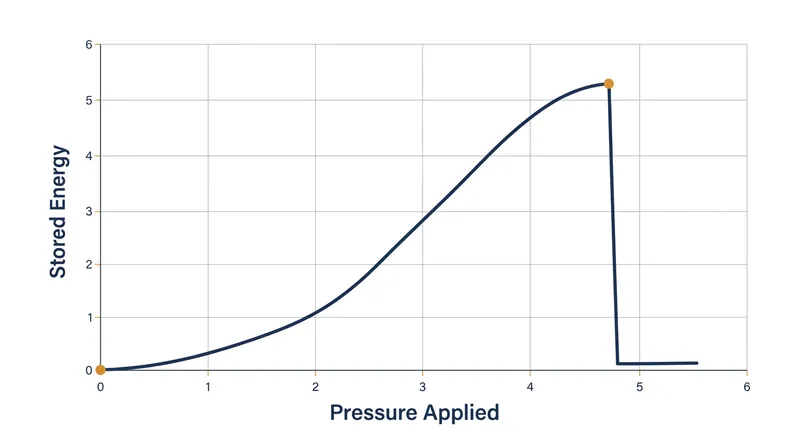

Because the fibers are aligned transversely, the clipper's pressure cannot easily separate them. Instead, the force bends the entire intermediate layer, storing massive amounts of elastic energy within the keratin matrix. As the pressure builds, the nail begins to buckle.[3][6]

The anisotropic crosslinking forces the tissue to curl transversely, bowing across its width to accommodate the stress. The fibers hold together until the localized stress exceeds the material's yield strength, at which point the matrix catastrophically fails. The sudden fracture releases all the stored elastic energy in a fraction of a millisecond.[3][6]

The severed piece of nail, having curled under the pressure, violently snaps back to its original shape. This rapid kinetic release acts as a microscopic catapult, launching the clipping across the room. The violent snap of a dry clip is entirely bypassed, however, when the nail is hydrated.[6]

The Plasticizing Effect of Water

Water fundamentally alters the mechanical properties of the keratin composite. Dermatological studies have long shown that soaking nails dramatically increases their flexibility by altering the internal chemistry of the protein chains. At the molecular level, water acts as a powerful plasticizer.[4]

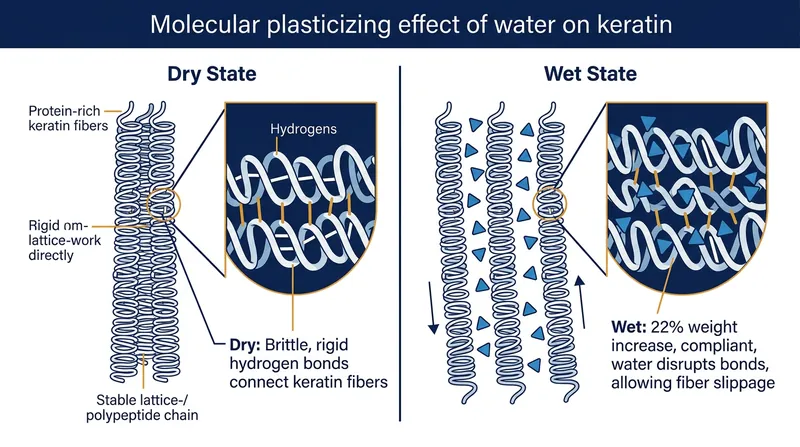

The α-keratin fibers are bound together by a complex network of hydrogen bonds and disulfide bridges. When submerged, water molecules penetrate the hydrophilic matrix surrounding the crystalline microfibrils. This moisture disrupts the hydrogen bonds that hold the structure rigid.[4][5]

This hydration process is rapid and substantial. Research published by the National Institutes of Health demonstrated that a human fingernail can increase its weight by 22 percent within two hours of water immersion. As the water content rises, the glass transition temperature of the keratin matrix plummets.[4]

The incorporation of water into the biological composite has little effect on the dimensions of the crystalline microfibrils, but it fundamentally softens the surrounding hydrophilic matrix. This softening drastically lowers the material's yield stress. With the hydrogen bonds disrupted, the keratin fibers can slide past one another with minimal friction.[2]

The 2:1 anisotropic energy barrier remains structurally intact, but the absolute force required to cut through the matrix drops precipitously. The steel clipper blades shear the tissue before it can bend. Because the hydrated nail yields immediately to the blade, it cannot store elastic energy.[2][6]

The transverse curl never forms, and the clipping simply falls away rather than snapping into the air. The simple addition of water transforms the nail from a brittle, anisotropic spring into a compliant plastic. This eliminates the kinetic launch entirely.[6]

Scale and Synthetic Inspiration

The extreme anisotropy found in human fingernails is highly dependent on the scale of the structure. At the smallest microscopic level, individual intermediate filaments possess a Young's modulus nearly 100 times greater than the surrounding matrix material. This creates a massive directional bias in stiffness.[2]

As the biological structures grow larger, this anisotropy tends to decrease. While human fingernails exhibit a 2:1 ratio in fracture toughness, larger keratin-based structures like bovine horns show an anisotropy factor of exactly 2 in both stiffness and strength. The layered complexity of larger horns diffuses the directional weakness.[2]

Materials scientists are actively studying these keratinous structures to design better synthetic composites. The ability of a lightweight, dead tissue to actively steer cracks away from vulnerable areas is highly desirable in aerospace and automotive engineering. Replicating the transverse fiber orientation could lead to safer structural panels.[3]

As materials scientist Bin Wang and colleagues explained in Progress in Materials Science, "Keratinized materials can be considered fiber-reinforced composites with crystalline keratin fibers embedded in an amorphous protein matrix." This biological blueprint offers a template for materials that need to be both lightweight and highly impact-resistant.[3]

However, translating the hydration mechanics of keratin into synthetic materials remains a significant challenge. Most synthetic polymers do not selectively absorb water to plasticize their matrix while leaving their primary load-bearing fibers intact. The dual nature of the nail plate is uniquely biological.[3][5]

The Limits of the Model

While the anisotropic model perfectly explains the mechanics of a healthy nail, it assumes a standard baseline of keratin crosslinking. Dietary deficiencies, particularly a lack of sulfur-rich amino acids, can weaken the disulfide bridges that bind the α-keratin fibers together. This alters the nail's baseline fracture toughness.[6]

Age also plays a significant role in the mechanical behavior of the nail plate. Nails naturally thicken during the first two decades of life, increasing the total volume of the intermediate layer. As humans age further, the nail matrix often produces more brittle keratin, increasing the likelihood of longitudinal splits.[6]

Environmental factors beyond simple hydration can also degrade the composite. Frequent exposure to harsh chemical solvents, such as acetone-based polish removers, strips the natural lipids from the dorsal layer. This lipid loss accelerates moisture evaporation, leaving the intermediate layer chronically dry and prone to violent transverse snapping.[4][6]

Ultimately, the physics of the fingernail clip is a daily demonstration of advanced biomechanics. The same transverse fiber alignment that protects our fingertips from catastrophic longitudinal fractures is exactly what sends a dry clipping flying. The solution requires no engineering—just a brief soak in warm water.[1][6]
