Thermal Stratification Halts Tank Destratification Once Secondary Inlet Velocity Drops Below Richardson Limits

For municipal water managers, a layered tank is a biological hazard waiting to bloom, while for energy engineers, that exact same layering is the holy grail of thermodynamic efficiency. The debate over whether to mix a storage tank or leave it alone hinges entirely on a single boundary: the thermocline.[1]

This invisible dividing line separates warm, buoyant water at the top from dense, cold water at the bottom. When the two camps argue over tank management, they are actually arguing over whether a secondary inlet jet possesses enough kinetic energy to shatter this boundary.[4]

The answer is not a matter of preference, but of strict fluid dynamics dictated by the Richardson number. This dimensionless ratio pits the stabilizing force of buoyancy against the chaotic, mixing force of velocity shear.[2]

"The thermal performance of a chilled-water tank depends not only on its storage volume but also on its ability to preserve thermal stratification," notes the Oak Ridge National Laboratory in a 2021 review of convection models.[2]

Conversely, PAX Water Technologies warns that in municipal tanks, a stagnant warm layer "promotes a rapid loss of disinfectant residual and accelerates biofilm and biological growth." The physics governing both outcomes is identical.[4]

Whether the goal is to preserve chilled water for a university campus or to ensure safe drinking water for a city, the operator must manipulate the fluid velocity to either respect or violate the Richardson limit.[1]

The Physics of the Richardson Limit

To understand why a tank suddenly refuses to mix, one must look at the math of the Richardson number. The formula divides the gravitational buoyancy of the water by the square of the fluid's velocity gradient.

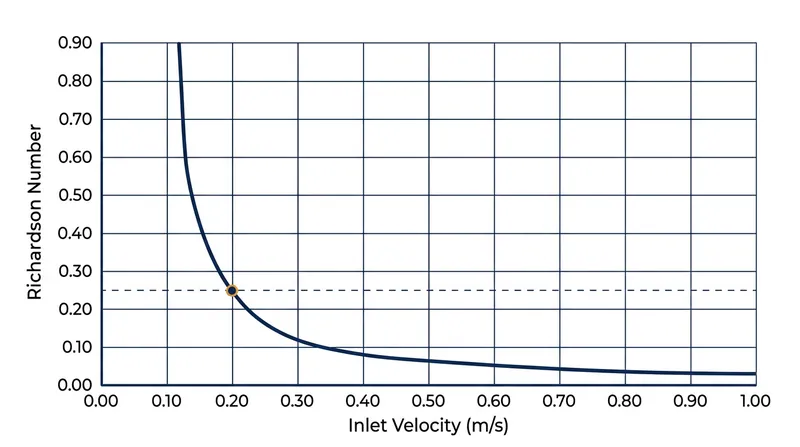

Because velocity is squared in the denominator, even a slight drop in the speed of the water entering the tank causes the Richardson number to spike dramatically. This non-linear relationship is the trap that catches many system operators off guard.[1]

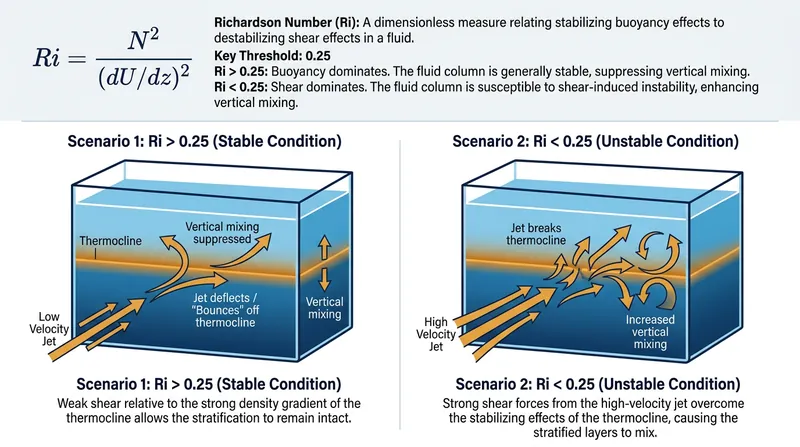

Fluid dynamicists have long established that a Richardson number below 0.25 is the necessary condition for velocity shear to overcome stratification. Below this threshold, the kinetic energy of the inlet jet tears the thermocline apart.

Once the number drops below 0.25, a phenomenon known as Kelvin-Helmholtz instability takes over. Waves form along the boundary between the hot and cold water, curling over themselves like ocean breakers and violently mixing the two layers.[3]

"A Kelvin-Helmholtz instability was produced... by initialising a temperature stratified shear flow perturbed with white noise," researchers wrote in a 2024 Copernicus Publications study, confirming that a low Richardson number guarantees shear instability.

These breaking waves are the engine of destratification. They drag cold water up and push warm water down, creating a turbulent cascade that rapidly homogenizes the entire volume of the tank.[3]

When the Jet Fails

The mechanical failure of destratification happens the moment the secondary inlet velocity drops just enough to push the Richardson number above that 0.25 limit. At that exact mathematical crossing, the physics of the tank invert.[1]

Halving the inlet speed from 0.30 meters per second to 0.15 meters per second does not simply halve the mixing power; it quadruples the Richardson number. This exponential penalty instantly starves the Kelvin-Helmholtz waves of the energy they need to form.[5]

Without those breaking waves, the inlet jet simply slides along the thermocline without penetrating it. The buoyancy of the warm upper layer acts like a physical concrete ceiling, deflecting the incoming cold water away.[2]

A 2024 experimental study published in MDPI tested elbow-type inlet structures and found that at lower velocities, the hot water output rate remained highly stratified at 84.90 percent. The jet simply lacked the shear force to disrupt the layers.[5]

In a massive three-million-gallon chilled water storage tank, the temperature difference might only be 11 degrees Celsius—typically 4 degrees at the bottom and 15 degrees at the top. Yet that slight density difference is enough to halt a massive volume of incoming water.[1]

For energy storage systems, this velocity drop is intentionally engineered to protect the chilled water reserve. By widening the inlet diffusers, engineers deliberately slow the water down, ensuring the Richardson number stays safely above the mixing threshold.[2]

The Biological Cost of Stratification

While high Richardson numbers are a triumph for thermal energy storage, they are a disaster for drinking water reservoirs. When a municipal tank locks into a stratified state, the upper layer becomes a stagnant incubator.[4]

During the summer, solar radiation heats the top of a steel water tank, creating a buoyant layer that can be up to 10 degrees Celsius warmer than the fresh water entering at the bottom.[4]

Because the daily fill cycles often lack the velocity to drive the Richardson number below 0.25, the fresh water simply slides under the warm layer. The top layer floats up and down like a piston and is never refreshed.[4]

Inside that isolated upper layer, elevated temperatures accelerate the decay of chlorine and other disinfectants. As the chemical protection vanishes, bacteria and algae thrive, leading to the rapid formation of dangerous disinfection byproducts.[4]

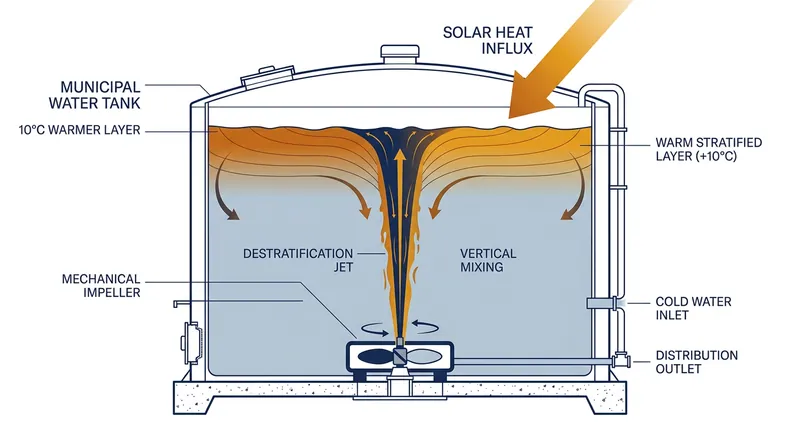

To defeat this, cities are forced to install active mechanical mixers. A one-third horsepower impeller can shoot a vertical jet of water strong enough to artificially drive the Richardson number down, forcing the tank to turn over.[4]

Computational fluid dynamics and field data collected by temperature probes show that complete mixing is achieved over a period of just a few hours, once the mechanical mixer introduces enough shear to break the limit.[4]

Designing for the Divide

The engineering challenge is that a single tank cannot easily serve both masters. A system designed to mix must maintain high inlet velocities, while a system designed to store thermal energy must ruthlessly suppress them.[1]

Modern thermal energy storage relies on massive diffusers—sometimes featuring two-inch gaps—to spread the incoming water over a large area. This geometry drops the velocity to a fraction of a meter per second, guaranteeing a high Richardson number.[2]

"The various inlet devices and a large span of flow rates experienced in thermally stratified storage tanks requisite the use of the Reynolds number in combination with a convection number," the Oak Ridge team concluded, highlighting the complexity of predicting these flows.[2]

If an operator attempts to use a thermal storage tank as a mixed buffer, or vice versa, the fluid dynamics will fight them at every step. The thermocline is not a gentle gradient; it is a mathematical wall enforced by gravity.[1]

Industrial facilities often learn this lesson the hard way when retrofitting older tanks. Simply pumping water in faster does not guarantee mixing if the diffuser geometry prevents the jet from achieving the critical shear velocity.[1]

Ultimately, the battle over tank destratification is won or lost at the inlet nozzle. By controlling the velocity, engineers control the Richardson number, deciding whether the water will violently churn or peacefully separate.[1]
