Splitting Wall Cavities With a Third Drywall Leaf Shifts Resonance Into Audible Bass

A standard double-stud wall with a 10-inch air gap and two outer layers of drywall blocks enough sound to reduce a 90-decibel home theater to a faint whisper. But if a builder adds a third layer of drywall directly into the middle of that empty gap, the wall's sound-stopping power drops by up to 17 decibels.

On a logarithmic scale, that 17-decibel loss means the wall transmits more than three times as much acoustic energy. It turns a whisper back into a clearly audible conversation, despite the wall containing the exact same amount of mass and occupying the exact same footprint.[1]

This phenomenon is known in acoustics as the "triple leaf effect." It is one of the most common and expensive mistakes made in residential soundproofing, often occurring when homeowners attempt to upgrade an existing shared wall by building a second framed wall directly in front of it.[1][3]

By leaving the original drywall intact and sealing it inside the new cavity, the builder inadvertently transforms a highly effective sound barrier into an acoustic amplifier. The extra mass does not block more noise; instead, it shifts the wall's resonance frequency directly into the audible bass range.[3]

The Mass-Spring-Mass Mechanism

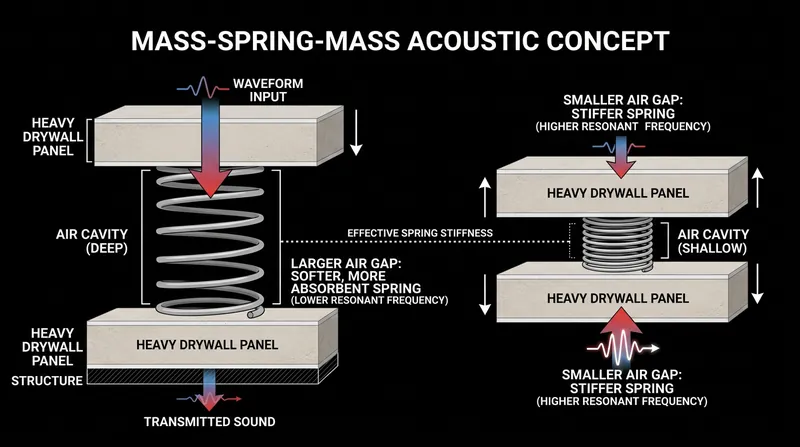

To understand why more drywall can result in more noise, it is necessary to look at how a standard double-leaf wall actually stops sound. Acousticians refer to a standard wall as a "mass-air-mass" system, where the two outer layers of drywall act as the heavy mass.[2]

The empty air cavity trapped between those two exterior layers acts as a spring. When sound waves strike the first layer of drywall, the acoustic energy forces the heavy panel to vibrate, which then compresses the air spring sealed inside the wall cavity.[3][6]

That air spring absorbs the kinetic energy and prevents it from efficiently transferring to the second layer of drywall. A deep air cavity creates a very soft, compliant spring, which is highly effective at absorbing the low-frequency energy generated by kick drums, home theaters, and heavy traffic.[2][3]

"Decoupling works best when the air cavities between the leaves are large for better sound absorption," explains Soundproof Cow, a commercial acoustics supplier. A standard double-leaf design maximizes that cavity depth, driving the wall's resonance frequency down to a sub-audible level.[3]

Every mass-spring-mass system has a natural resonance frequency—the specific pitch at which the wall vibrates most easily. At this frequency, the wall stops acting as a barrier and instead acts as a conduit, allowing sound to pass through the structure with almost no resistance.[6]

In a well-designed double-leaf wall with a deep cavity, that resonance frequency sits around 30 to 40 Hertz. Because human hearing is relatively insensitive to frequencies that low, the wall's acoustic weak point remains entirely unnoticeable to the people living inside the house.[4]

Splitting the Cavity

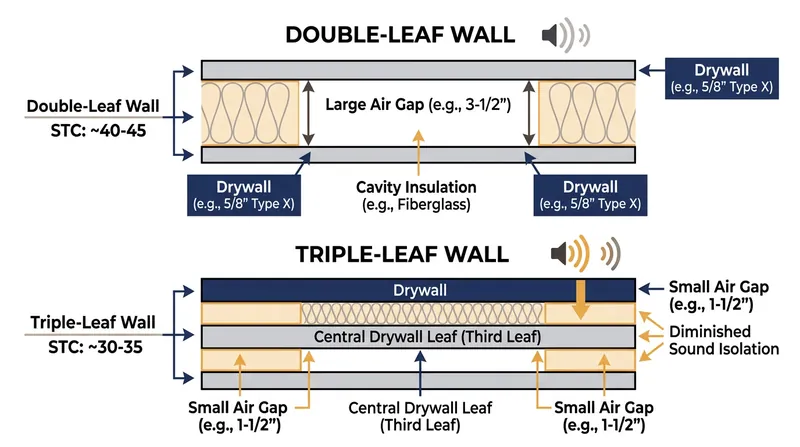

The acoustic math changes entirely the moment a third layer of drywall is introduced into the center of the wall assembly. This third layer—the third "leaf"—splits the single large air cavity into two smaller, shallower air spaces.[2][3]

"A triple leaf wall that has two giant air cavities is not such a bad thing, but a small air cavity can make things much worse," notes the Soundproofing Company. In standard residential construction, splitting the cavity halves the depth of the available air spring.[2]

A shallower air cavity creates a much stiffer acoustic spring. Just as a stiff automotive suspension transfers more bumps from the road into the cabin, a stiff air spring transfers more acoustic vibration from one layer of drywall directly to the next.[3][4]

"The small air cavities typically found in triple leaf walls act like springs for sound and create resonance," Soundproof Cow reports. That stiffer spring fundamentally alters the wall's acoustic profile, raising its natural resonance frequency significantly higher than that of a double-leaf wall.[3]

Shifting Resonance into the Audible Range

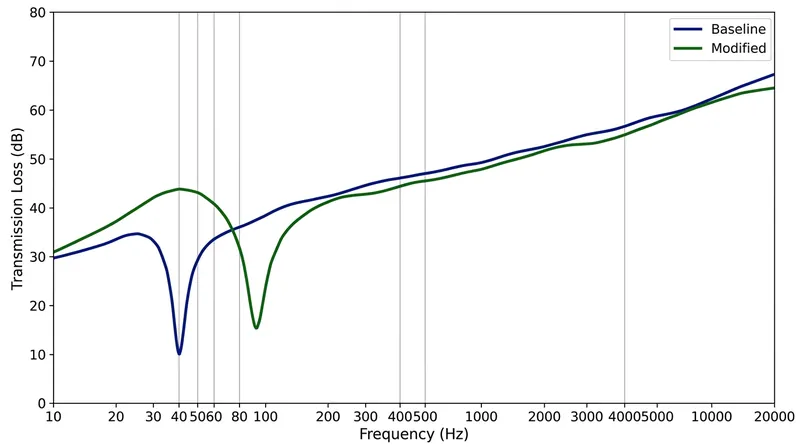

When the air spring becomes stiffer, the wall's resonance frequency shifts upward, moving from the sub-audible 40 Hertz range directly into the 70 to 90 Hertz range. This is the exact frequency band occupied by bass guitars, cinematic explosions, and passing diesel trucks.[6]

"For a given amount of mass and space, they always have a higher resonance point than a double leaf wall," Trademark Soundproofing explains. By shifting the resonance point upward, the triple-leaf configuration places the wall's greatest acoustic vulnerability right where low-frequency noise is most aggressive.

At 80 Hertz, the three layers of drywall and the two stiff air springs begin to vibrate in sympathy with the incoming sound waves. Instead of dissipating the bass energy as heat, the wall actively couples the sound through the structure, amplifying the transmission.[5]

Researchers at RMIT University noted in a 2025 acoustic modeling study that the effective mass-air-mass resonance frequency is heavily dependent on the boundary conditions and the stiffness of the cavity. When a third leaf is introduced, the coupled harmonic oscillators become highly efficient at passing low-frequency energy.[6]

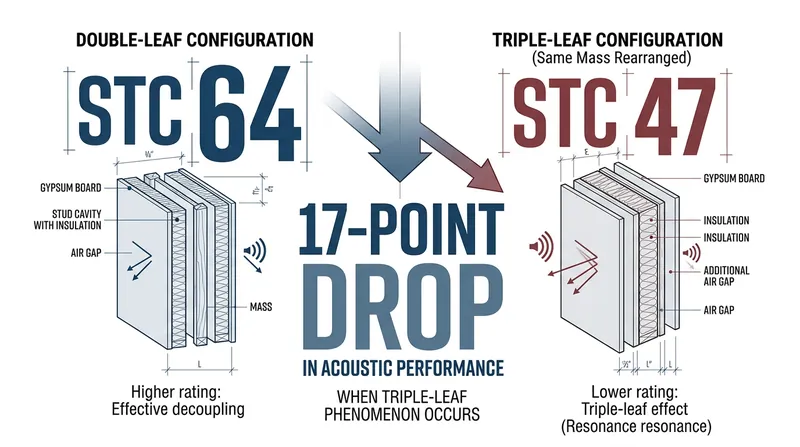

The resulting drop in performance is drastic. In a 2022 acoustic analysis, Commercial Acoustics tested identical amounts of mass in different configurations and found that placing the drywall inside the cavity dropped the Sound Transmission Class rating from a highly isolated 64 down to a mediocre 47.

The Renovation Trap

The triple leaf effect rarely occurs by intentional design; it is almost always the result of a well-meaning renovation. The most common scenario involves a homeowner trying to soundproof an existing shared wall, such as a townhouse partition or a basement ceiling.[1][5]

"One common mistake we see in Eastern Idaho and Western Wyoming remodels is creating a 'triple-leaf effect,'" reports Western Wholesale Supply. "This happens when you add a new wall with a gap in front of an existing wall, creating three layers of mass with two air spaces."[1]

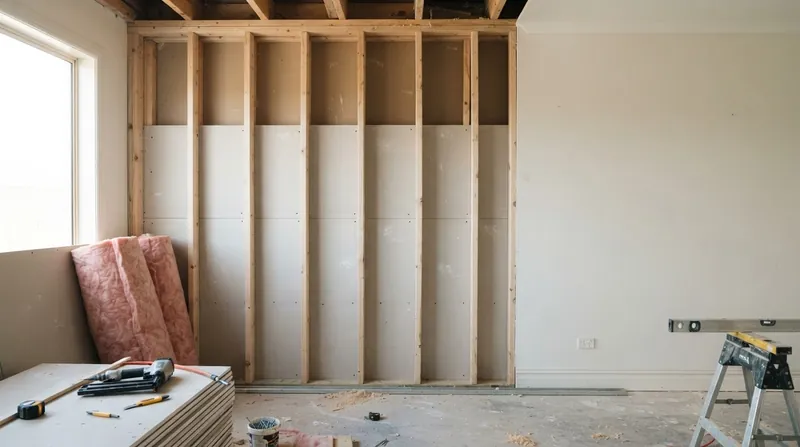

To save time and demolition costs, contractors often leave the original drywall attached to the existing studs, frame a new wall an inch away, and cover the new wall with fresh drywall. This traps the old drywall in the center of the assembly.[1][2]

"In most cases, it is much better to remove the leaf in the middle to join the two smaller air cavities into one large one," the Soundproofing Company advises. Tearing out the old drywall restores the deep, single air cavity and drops the resonance frequency back to a safe level.[2]

The same error frequently occurs when builders install resilient channel or sound isolation clips over existing drywall, and then add a new layer of drywall on top. Hush City Soundproofing warns that this retrofit approach creates a narrow secondary air gap, triggering the exact same resonance penalty.[5]

When Three Leaves Work

Despite its poor reputation in residential acoustics, a triple-leaf wall is not universally disastrous. The physics only penalize the assembly when the overall depth of the wall is constrained, forcing the air cavities to become dangerously small and stiff.[2][4]

"As long you have an isolation system that gets you to your desired STC or sound isolation needs you can build walls within walls within walls," explains Soundproof Your Studio. If the air gaps are massive—such as a freestanding vocal booth built inside a large concrete garage—the resonance frequency remains low.[4]

In those specialized commercial scenarios, the sheer volume of trapped air keeps the acoustic spring soft enough to absorb low frequencies. The third leaf only becomes a liability when it steals valuable air volume from a standard six-inch or ten-inch residential wall cavity.[2][4]

For everyday construction, the acoustic rule remains absolute: mass belongs on the outside of the wall, and the inside should remain as hollow as possible. Consolidating the drywall on the exterior faces ensures the air spring remains deep, keeping the bass on the other side of the room.

Adding damping compounds between two layers of drywall on the outside of the frame is highly effective, as it increases mass without creating a new air cavity. Western Wholesale Supply notes this technique can push a standard wall into the STC 54 to 59 range.[1]

Ultimately, soundproofing is an exercise in managing trapped air just as much as it is about adding heavy materials. By respecting the mass-spring-mass mechanism and avoiding the triple-leaf trap, builders can maximize their acoustic isolation without wasting money on drywall that only makes the room louder.[3][7]
