Why Every Quartz Watch Ticks at Exactly 32,768 Hertz

Electrical engineers designing battery-powered circuits operate under a strict mandate to minimize switching frequencies at all costs. Every single cycle in a digital logic gate consumes a microscopic burst of power, meaning a slower processor will always extend battery life.[4]

Conversely, acoustic designers and consumer product engineers demand that any vibrating mechanical component operate well above the threshold of human perception. A device that emits a constant, high-pitched whine is commercially unviable, regardless of how efficiently it sips electricity.[3]

These two absolute, incompatible constraints collide inside the metal casing of nearly every modern timepiece on the planet. The resolution to this engineering standoff is a highly specific, universally adopted frequency that satisfies neither camp perfectly but balances their demands.[5]

The binary division problem

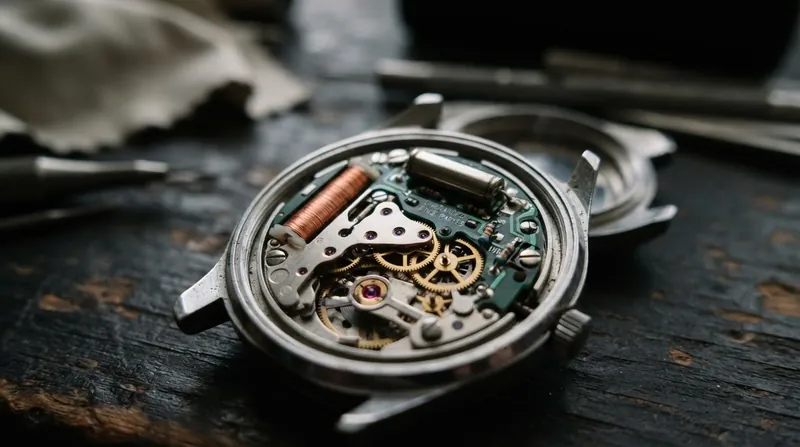

To understand the compromise, one must first look at how a quartz watch actually keeps time. The system relies on a tiny piece of quartz crystal cut into the shape of a tuning fork, which vibrates when an electrical current is applied.[1]

However, this crystal does not vibrate once per second. It oscillates thousands of times per second, generating a high-frequency electrical signal that the watch's microchip must somehow translate into the single, one-second tick of a second hand.[2]

This translation is performed by a digital logic circuit known as a T-type flip-flop. A single flip-flop acts as a divide-by-two counter, taking an incoming frequency and cutting it exactly in half before passing it to the next stage.[4]

The power of two

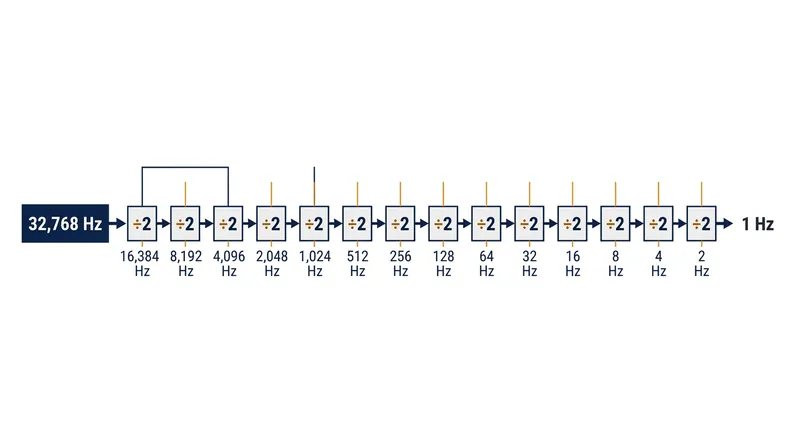

Because flip-flops divide by two, the most efficient way to reach exactly one beat per second is to start with a frequency that is a pure power of two. If the starting frequency is 32,768 Hertz, exactly 15 flip-flops wired in sequence will reduce it to 1 Hertz.[2]

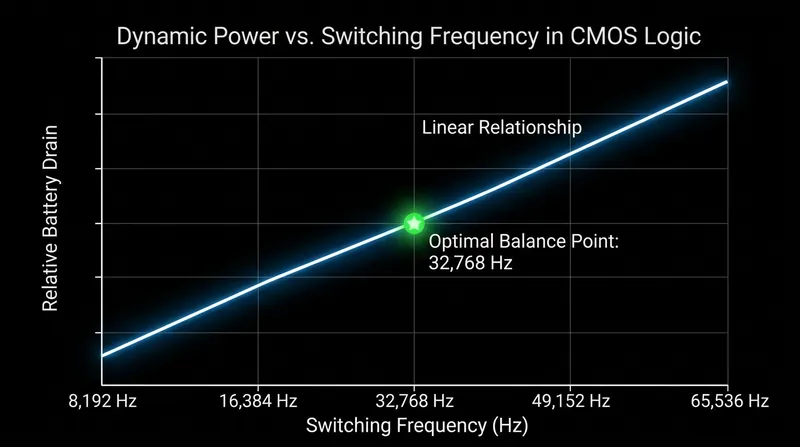

"Dynamic power dissipation in CMOS circuits is directly proportional to the switching frequency," notes the textbook Digital Design and Computer Architecture. Every time a flip-flop toggles its state, it charges and discharges a tiny internal capacitance, draining the battery.[4]

If engineers used a non-binary frequency, they would need additional logic gates to reset the counters at specific intervals. Those extra gates would consume valuable silicon real estate and draw continuous parasitic current, defeating the purpose of a low-power design.[5]

The acoustic floor

This binary math explains why the frequency must be a power of two, but it does not explain why the industry settled on the 15th power. The answer to that lies in the biological limits of the human ear.[3]

"The human ear can nominally hear sounds in the range 20 Hz to 20,000 Hz," according to the National Institutes of Health. Frequencies below this threshold are audible, while those above it are ultrasonic and completely silent to humans.[3]

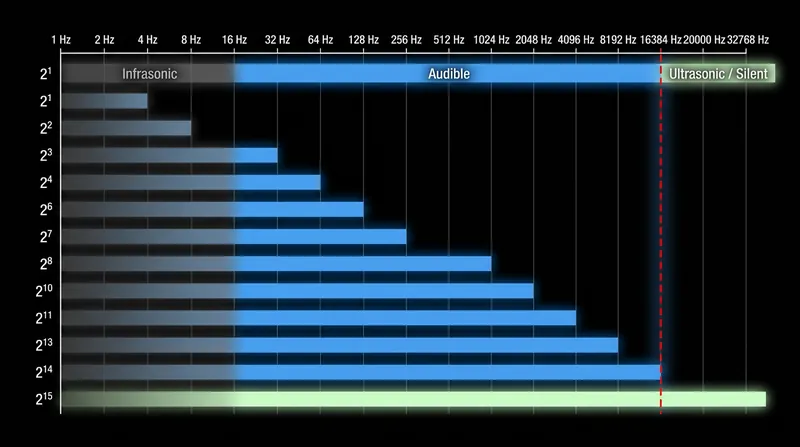

If watchmakers had chosen the next lowest power of two, which is the 14th power, the crystal would vibrate at 16,384 Hertz. While this would cut the dynamic power consumption in half, it falls squarely within the upper range of human hearing.[5]

The dog whistle effect

A quartz crystal vibrating at 16,384 Hertz acts like a microscopic speaker emitting a continuous, piercing tone. While older adults might not hear it due to age-related hearing loss, young people and household pets would find the noise intolerable.[3]

Therefore, 16,384 Hertz is acoustically unacceptable for a consumer product. The engineers had to move up the binary ladder to the next available rung, crossing the 20,000 Hertz threshold into the ultrasonic spectrum where the vibration becomes entirely inaudible.[5]

That next rung is the 15th power, or 32,768 Hertz. At this speed, the tuning fork vibrates fast enough to remain silent to the wearer, but slow enough to allow a standard 1.5-volt silver oxide battery to last for several years.[1]

The historical standard

This specific frequency was not the first one attempted. When Seiko released the Astron in 1969, the world's first commercial quartz watch, its internal crystal vibrated at 8,192 Hertz, which represents the 13th power of two.[5]

The Astron was a technological marvel, but its lower frequency made it susceptible to physical shocks and temperature variations. Furthermore, the early circuitry required to divide that frequency was bulky and consumed power rapidly, limiting battery life to just one year.[5]

As semiconductor manufacturing improved throughout the 1970s, it became possible to etch 15 microscopic flip-flops onto a single integrated circuit. This allowed manufacturers to push the frequency up to 32,768 Hertz without destroying the battery life.[2]

The modern tuning fork

Today, the 32.768 kHz crystal is the most widely produced timing component in the world. It is found not just in wristwatches, but in smartphones, computers, and household appliances, serving as the universal heartbeat for real-time clocks.[1]

STMicroelectronics, a major semiconductor manufacturer, notes in its oscillator design guide that these crystals are specifically cut to a tuning fork shape. This geometry provides the optimal balance of physical size and frequency stability across varying temperatures.[1]

The physical dimensions of the quartz are mathematically tied to the target frequency. A crystal designed to resonate at 32,768 Hertz is small enough to fit inside a watch case, whereas a lower-frequency crystal would require longer prongs.[5]

The upper limits

One might ask why engineers do not push the frequency even higher, perhaps to 65,536 Hertz or beyond, to achieve even greater timekeeping accuracy. The barrier, once again, is the strict mathematics of dynamic power consumption.[4]

Doubling the frequency to 65,536 Hertz would require a 16th flip-flop and would double the switching activity of the first stage. This would effectively cut the watch's battery life in half, forcing consumers to replace their batteries every few months.[5]

While some high-precision quartz movements do operate at higher frequencies, such as 262,144 Hertz, they require specialized, high-capacity batteries. These movements are reserved for niche applications where extreme accuracy outweighs the convenience of a long-lasting power source.[2]

The perfect compromise

The 32,768 Hertz standard represents a rare moment of absolute consensus in consumer electronics. It is a number dictated not by a regulatory body or a corporate monopoly, but by the immutable laws of physics and biology.[5]

It sits exactly at the intersection of what the human ear cannot hear and what a tiny battery can sustain. Any lower, and the watch screams; any higher, and the watch dies.[5]

By chaining exactly 15 binary flip-flops together, engineers managed to bridge the gap between a high-speed ultrasonic vibration and the slow, steady progression of human time. It is a silent, invisible compromise that ticks billions of times a day.[5]
