Kinetic Energy vs. Chemical Energy: How Long-Rod Penetrators and Shaped Charges Defeat Tank Armor

The survival of a modern main battle tank is not determined when an incoming projectile is fired, nor when it crosses the intervening distance, but in the microsecond of impact where material science gives way to fluid dynamics.

At this exact point of contact, the immense pressures generated by anti-tank weapons force solid steel armor to behave like a liquid, dictating whether the crew survives or perishes. Understanding how this outcome is decided requires examining the two fundamentally different mechanisms militaries use to achieve it: the chemical energy of a shaped charge (HEAT) and the kinetic energy of a long-rod penetrator (APFSDS).[7]

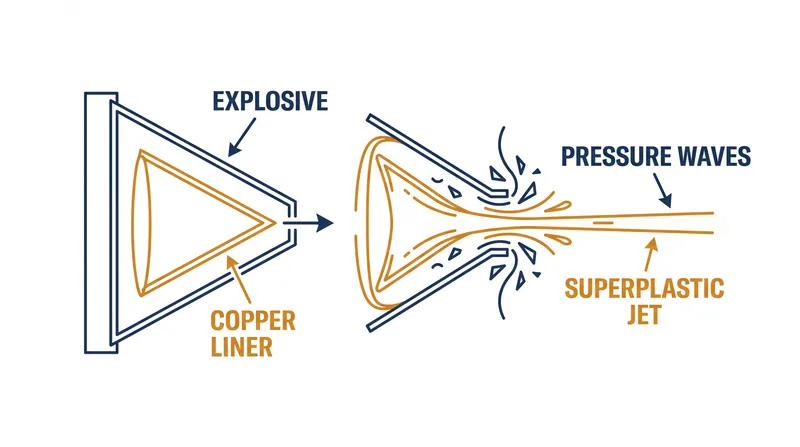

The High-Explosive Anti-Tank (HEAT) round relies on the Munroe effect, a phenomenon where explosive energy is focused into a concentrated point. Inside the warhead, an explosive charge surrounds an inverted cone lined with a ductile metal, typically copper. When the detonator triggers, the explosive wave does not push the cone forward; instead, it crushes the cone inward along its central axis.[1][5]

This collapse extrudes the copper liner into a hypervelocity jet moving at speeds exceeding 10 kilometers per second. A persistent misconception is that this jet melts its way through armor. In reality, the mechanism is entirely kinetic. As editors of Wikipedia's technical reference on the subject explicitly clarify, "The shaped charge jet armor penetration effect is purely kinetic in nature; the round has no explosive or incendiary effect on the armor."[5]

The pressure exerted by the jet—millions of atmospheres—forces the copper into a state of superplasticity, where it flows like a liquid despite remaining a solid. When this jet strikes the tank, the localized pressure far exceeds the structural yield strength of the armor plate, causing the steel to flow out of the way hydrodynamically.[1][2]

The penetration depth of a shaped charge is dictated primarily by its geometry, specifically the diameter of the explosive cone. A modern, precision-manufactured HEAT warhead can penetrate rolled homogeneous armor (RHA) to a depth of seven to ten times its charge diameter (CD).[5]

For a standard 120mm tank gun, this translates to a theoretical penetration of 840mm to 1,200mm of solid steel, regardless of the distance the projectile traveled before impact. Because the energy comes from the explosive rather than the velocity of the shell, a HEAT round fired from a slow-moving shoulder-launched rocket is just as lethal as one fired from a high-velocity tank barrel.[5]

However, chemical energy weapons have a hard physical limit: they cannot be wider than the barrel that fires them or the missile tube that launches them. To defeat increasingly thick composite armor arrays without building impractically massive guns, engineers turned to kinetic energy. The Armour-Piercing Fin-Stabilized Discarding Sabot (APFSDS) round discards explosives entirely in favor of a dense, fin-stabilized dart fired at extreme velocities.[6]

Unlike a HEAT jet, an APFSDS penetrator relies on the sheer mass and speed of the rod itself. When the dart strikes armor at velocities between 1,400 and 1,800 meters per second, it enters a transition zone between rigid and hydrodynamic penetration. At these speeds, both the penetrator and the target material begin to behave as highly plastic fluids.[4][6]

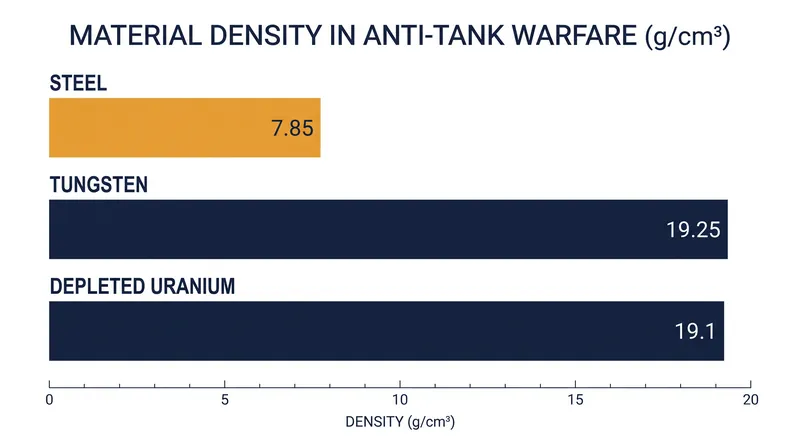

The physics of this fluid penetration dictate that the depth of defeat is roughly equal to the length of the penetrator multiplied by the square root of the ratio between the penetrator's density and the target's density. Because depleted uranium (19.1 g/cm³) is more than twice as dense as steel (7.85 g/cm³), a long-rod penetrator punches significantly deeper than its own length.[6]

This mathematical reality explains the evolutionary trajectory of modern tank ammunition. To match the 840mm RHA penetration of a baseline 120mm HEAT warhead, an APFSDS depleted uranium penetrator must be at least 538mm long. As armor has improved, these kinetic darts have been forced to grow from roughly 400mm in the 1980s to over 800mm in modern iterations like the American M829A3.[6][7]

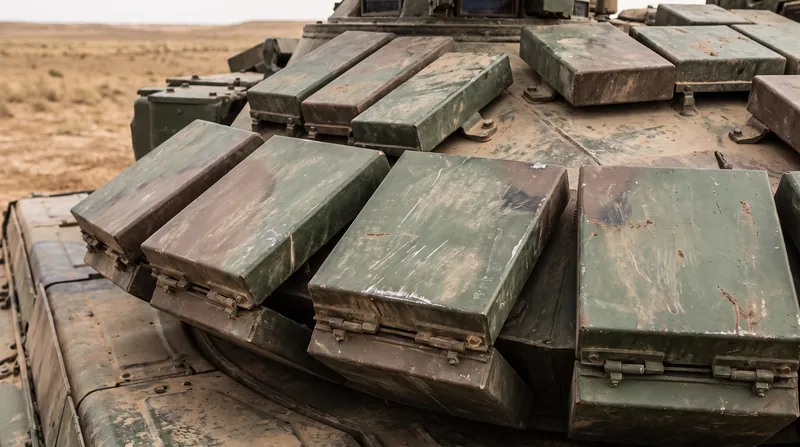

The defensive response to these two threats has shaped the modern battlefield. To defeat HEAT jets, engineers developed Explosive Reactive Armor (ERA)—cassettes of explosive sandwiched between steel plates that detonate upon impact, disrupting the geometry of the copper jet before it can penetrate the main hull.[3]

AI

Defeating a kinetic long-rod penetrator, however, is vastly more difficult. Because the APFSDS dart is a solid mass of dense metal, it cannot be easily disrupted by the explosive blast of standard ERA. Modern heavy reactive armor, such as Russia's Kontakt-5 or Relikt, utilizes thicker, heavier flyer plates designed to physically snap or shear the incoming rod, but the primary defense against kinetic energy remains dense composite armor arrays incorporating ceramics and depleted uranium mesh.[3][6]

The ongoing contest between armor and anti-armor is a continuous negotiation with physics. As long-rod penetrators approach the physical length limits of the auto-loaders and breeches that house them, and as shaped charges reach the maximum diameter of portable weapon systems, future advancements will likely rely on novel materials and active protection systems that intercept threats before the hydrodynamic equation ever begins.[7]
