How Resonant Half-Wave Dipoles Allow Grams of Chaff to Cast Bomber-Sized Radar Signatures

To a radar operator, an incoming threat is a mathematical certainty: a massive return on the screen means a massive object in the sky. To an electronic warfare officer, that same screen is a canvas for optical illusions. They know that a few ounces of aluminum-coated glass can impersonate a strategic bomber.

The deception relies on a fundamental principle of electromagnetics known as half-wave resonance. When a radar pulse strikes an object, the energy reflects back to the receiver, creating a radar cross-section. A B-52 Stratofortress, with its 159-foot wingspan and heavy body, reflects about 100 square meters of energy.

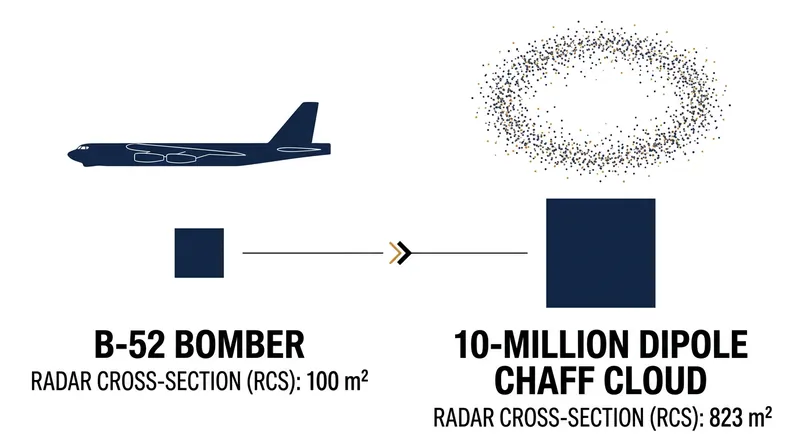

Yet, a single chaff cartridge, weighing less than a pound, can generate a radar return eight times larger than that bomber. This massive signature is not achieved by blocking the radar beam, but by perfectly matching its wavelength. The result is a volumetric deception ratio that breaks the intuitive link between physical size and radar visibility.

"Chaff is the most popular and the most used passive countermeasure against radar," notes a Bilkent University electronic warfare analysis. By cutting millions of microscopic fibers to exactly half the wavelength of the tracking radar, engineers turn each fiber into an active resonant antenna.[1]

When these fibers are ejected into the slipstream, they bloom into a cloud that overwhelms the radar receiver. The tracking system, designed to lock onto the largest reflective mass, abandons the aircraft and tracks the empty air.

The Physics of Half-Wave Resonance

The secret to this disproportionate reflection lies in dipole antenna theory, a cornerstone of radio frequency engineering. A dipole is simply a straight conductive wire. When an electromagnetic wave washes over it, the wave induces an oscillating electrical current that travels back and forth along the length of the wire.

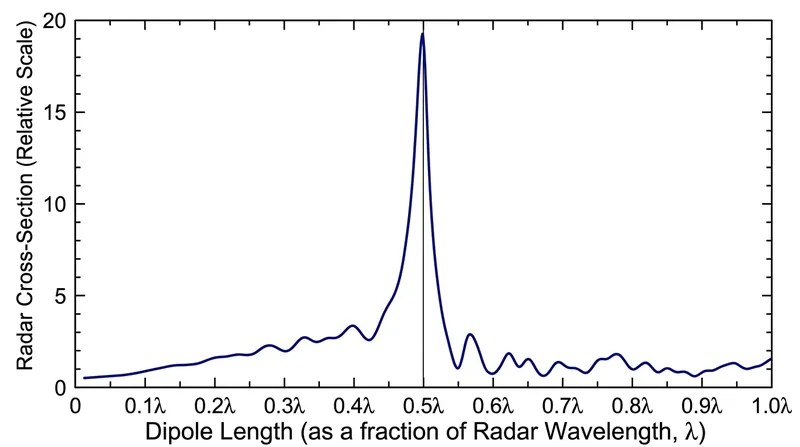

If the wire is cut to exactly half the wavelength of the incoming radar signal, it achieves resonance. The induced current reaches its maximum possible amplitude, turning the tiny wire into a highly efficient re-radiator of electromagnetic energy. It absorbs the radar pulse and instantly broadcasts it back out.

For a standard X-band tracking radar operating at a wavelength of 3 centimeters, the resonant chaff length is exactly 1.5 centimeters. A fiber cut to this precise length reflects exponentially more energy than a fiber just a millimeter longer or shorter.

The dipole frequencies cover the frequency range where most target tracking radars and air-to-air radars operate. By packing a cartridge with dipoles cut to various specific lengths, aircraft can counter multiple radar bands simultaneously with a single payload.[1]

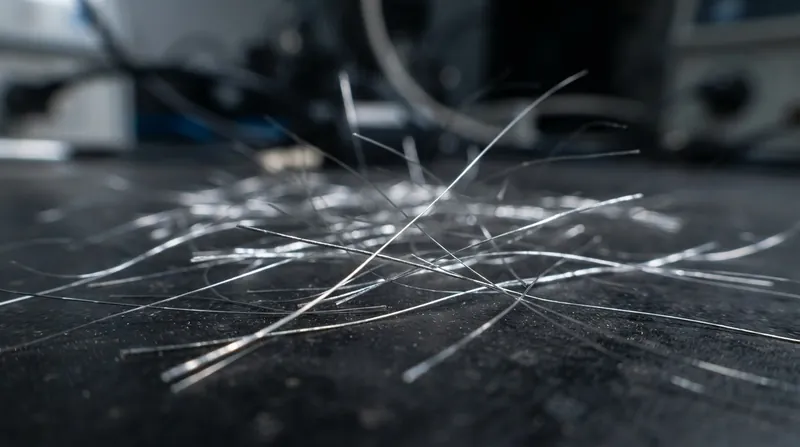

Because the fibers are microscopic—often just a fraction of the thickness of a human hair—millions of them can be packed into a single standard dispenser cartridge. When fired, explosive squibs push the payload into the turbulent air behind the aircraft, where it rapidly disperses.[1]

Calculating the Cross-Section

The mathematics of this deception are startling. The radar cross-section of a single half-wave dipole at resonance is calculated using the square of the radar wavelength. For an X-band radar, one microscopic fiber generates an effective reflective area of roughly 0.000247 square meters.

On its own, that return is invisible. But a standard chaff bundle contains up to 10 million dipoles. When they bloom into a cloud, they tumble randomly in three-dimensional space. At any given moment, about one-third of the fibers are perfectly aligned with the radar's polarization.

Multiplying the single-dipole return by the millions of aligned fibers yields a staggering total. A single 10-million dipole X-band chaff cloud generates an effective radar cross-section of 823 square meters.

To put that number in perspective, an F-15 fighter jet has a radar cross-section of about 25 square meters. A massive B-52 bomber registers at 100 square meters. A single handful of resonant chaff out-reflects the largest aircraft in the US inventory by a factor of eight.

"To deceive the target tracking radar, some chaff must be burst to create an RCS larger than the fighter's RCS before the fighter passes through a radar resolution cell," researchers at the International Multi-Conference on Engineering and Technology Innovation noted. The sheer volume of the chaff return guarantees this threshold is met.

The Geometry of Deception

Creating a massive radar return is only the first half of the deception. The second half is spatial separation. When an aircraft dispenses chaff, it is attempting to break a radar lock by offering the tracking system a more tempting target.

As the chaff cartridge fires, the fibers hit the slipstream and rapidly decelerate to the ambient wind speed. The aircraft, meanwhile, continues forward at hundreds of miles per hour. This creates two distinct radar returns separating in space.

Older pulse radars, which simply measure the strength of the returning signal, are easily fooled by this maneuver. The radar's automatic gain control adjusts to the massive 800-square-meter return of the chaff cloud, causing the much smaller return of the actual aircraft to drop below the detection threshold.

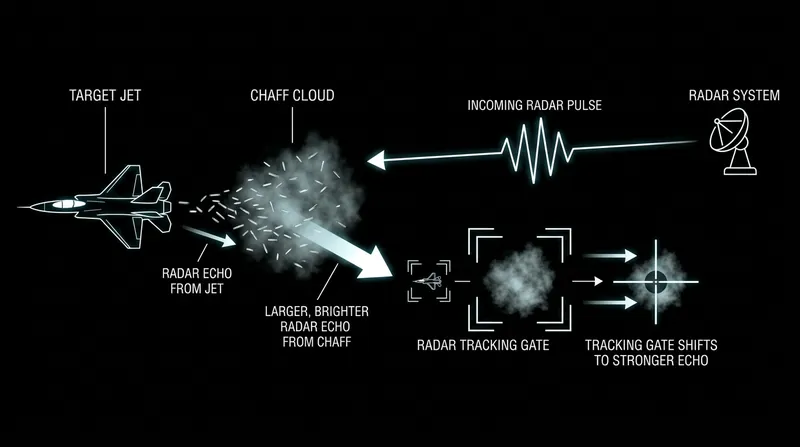

The radar tracking gates center themselves on the chaff cloud, and the missile is guided toward empty airspace. Because the radar receiver is blinded by the overwhelming resonance of the dipoles, it cannot see the fighter jet escaping the resolution cell. By the time the chaff cloud dissipates, the aircraft has vanished from the screen entirely.

To maximize this effect, electronic warfare systems calculate precise dispense programs. They factor in the aircraft's own radar cross-section, the bloom rate of the chaff, and the specific characteristics of the incoming threat radar to determine exactly how many cartridges to fire and at what intervals.

Modern Radar Discrimination

As chaff technology perfected the illusion of size, radar engineers developed new ways to see through it. Modern air defense systems no longer rely solely on the raw size of a radar return. They analyze the physics of the target's movement.

Pulse-Doppler radars exploit the Doppler effect to measure the velocity of every object they detect. Because chaff fibers have almost no mass, they decelerate from aircraft speeds to wind speed within one to five seconds.

The Doppler filters in the radar processor easily separate the fast-moving aircraft from the nearly stationary chaff cloud. "The target remains in a different Doppler bin than the chaff," an RF systems engineering manual explains. The radar simply ignores the massive stationary return and keeps its lock on the moving jet.

Polarization offers another method of discrimination. Because chaff fibers tumble randomly in the air, they reflect radar energy equally in horizontal and vertical polarizations. Real aircraft, with their fixed wings and tails, have distinct polarization signatures.

Advanced polarimetric radars measure the ratio between these polarizations. If the return is perfectly random, the computer flags it as a chaff cloud and filters it out, regardless of how large the radar cross-section appears.

The Limits of Passive Countermeasures

Despite these advanced filtering techniques, chaff remains a critical component of modern electronic warfare in 2026. While a sophisticated pulse-Doppler radar can easily filter out a single, isolated chaff cloud, it can still be completely overwhelmed by sheer volume and coordinated deployment tactics.

When multiple aircraft lay down continuous corridors of chaff, they create a dense wall of radar returns that saturates the processor's capacity. The radar may know the returns are chaff, but the sheer density of the electromagnetic noise masks the strike package hiding behind it.

Furthermore, chaff is highly effective against radar-guided missiles in their terminal phase. As a missile closes in, its onboard radar seeker has limited processing power and a narrow field of view. A sudden, massive chaff bloom can still break its lock in the final seconds of an engagement.

The enduring relevance of chaff is a testament to the elegance of half-wave resonance. By leveraging the fundamental physics of electromagnetics, a few grams of precisely cut fiber can still cast a shadow large enough to hide a warplane.
