How Under-Keel Torpedo Detonations Snap Warship Spines Through Cyclic Bubble Pulses

The fate of a warship targeted by a modern heavyweight torpedo is sealed the moment the weapon's magnetic influence sensor detects the thickest part of the hull and triggers detonation in the open water directly beneath the keel. This specific placement is the critical variable. By avoiding direct contact with the armor, the weapon weaponizes the ocean itself.[1]

A direct strike blows a localized hole in the plating, which modern compartmentalization can often contain. An under-keel detonation, however, attacks the ship's structural spine. It converts a few hundred pounds of high explosives into a hydrodynamic hammer that the vessel's longitudinal framing simply cannot survive.[1][2]

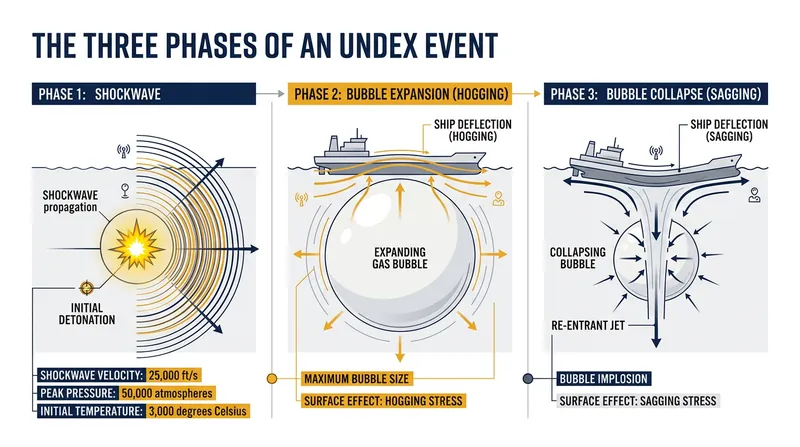

The sequence of destruction, known in naval engineering as an underwater explosion (UNDEX) event, unfolds in three distinct phases over a matter of milliseconds. The process relies on the fact that water is roughly 800 times denser than air and essentially incompressible.[2][4]

"The underwater detonation of an explosive charge can best be described as an exothermic chemical reaction that is self-sustaining," notes a 2017 Naval Undersea Warfare Center technical summary. "Forming throughout the detonation process are gaseous reactive components that are at an extremely high temperature, approximately 3,000 degrees Celsius, and pressure."[2]

That pressure reaches roughly 50,000 atmospheres in an instant. Because the surrounding water cannot compress to absorb the energy, the force must displace the water entirely. This initiates a violent chain reaction that tears the ship apart from the bottom up.[2][4]

The Initial Shockwave

The first mechanism to strike the vessel is the primary shockwave, which radiates outward at roughly 25,000 feet per second. This is more than three times the speed of sound in water. This acoustic wall slams into the hull in less than two milliseconds.[4][6]

While terrifying, the shockwave is rarely the primary killing mechanism. It causes localized plate distortion, shatters brittle cast-iron machinery mounts, and can severely injure the crew, but it does not typically sink a capital ship. The true danger follows immediately behind it.[3][4]

As the shockwave dissipates, the superheated gases from the vaporized explosive form a massive, rapidly expanding void. For a typical 500 to 1,500-pound warhead detonating at a depth of 30 to 50 feet, this creates a gas bubble measuring 50 to 60 feet in diameter.[2][5]

Because the water below and around the bubble resists compression, the expanding gas takes the path of least resistance. It travels straight up toward the surface. The bubble forcefully impacts the underside of the ship, physically lifting the center of the vessel out of the water.[3][5]

The Hogging Phase

This upward heave initiates a structural crisis known as "hogging." The ship's immense weight is no longer supported evenly by the natural buoyancy of the ocean along its entire length. Instead, the vessel balances precariously on the expanding gas bubble at its midpoint.[1][3]

With the center pushed upward, the heavy bow and stern droop downward under the pull of gravity. The ship's keel, designed to withstand the gradual rolling waves of a rough sea, is suddenly subjected to a violent, concentrated bending moment. This stretches the upper decks and compresses the lower hull.[1][3]

A 2025 study published in Marine Structures by researchers at the Virginia Tech Survivability Research Group modeled this exact dynamic. They found that the initial bubble expansion phase increases the maximum structural deformation by 79.3 percent compared to the shockwave alone.[3][5]

"The near-field UNDEX is divided into three stages, including the shock wave and after-flow interaction phase producing amplified hogging deformation," the researchers concluded. This after-flow persists for several orders of magnitude longer than the initial blast, continuously feeding energy into the bending hull.[3][4]

The Sagging Phase

The hogging phase lasts only a fraction of a second before the physics violently reverse. The gas bubble over-expands due to its own outward momentum, cooling rapidly as it pushes against the freezing ocean water. The internal pressure plummets below the ambient hydrostatic pressure of the sea.[4][6]

Crushed by the weight of the surrounding ocean, the bubble abruptly collapses in on itself. This creates a massive, temporary vacuum directly beneath the ship. The center of the vessel, which was just thrust upward, suddenly loses all support and plunges downward into the void.[4][6]

This rapid reversal induces "sagging." The bow and stern are now supported by the water, while the heavy center sags into the collapsing bubble. The structural stresses instantly flip, violently compressing the upper decks and stretching the keel beyond its yield strength.[3][6]

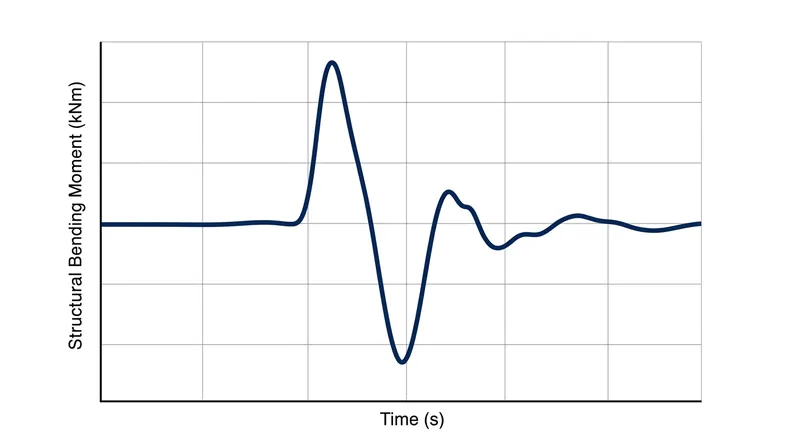

This rapid alternation between hogging and sagging is known as "whipping." The low-frequency hydrodynamic whipping flexes the ship's spine back and forth. For a 9,000-ton destroyer, this oscillating load easily exceeds the metallurgical limits of standard naval steel.[1][3]

The Water Jet Strike

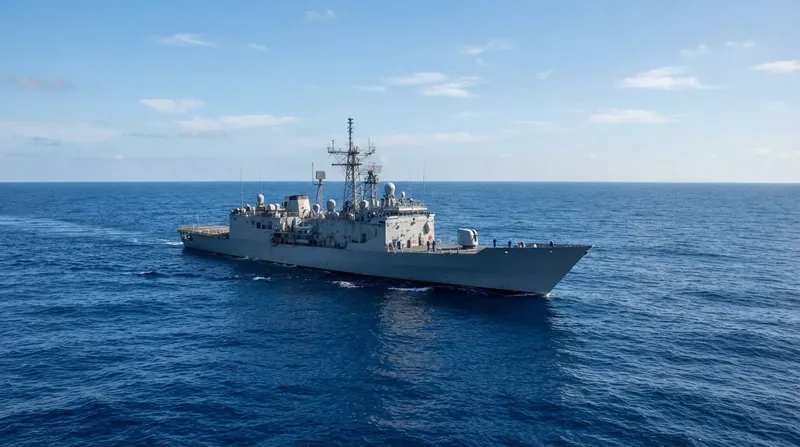

As the bubble collapses, the higher hydrostatic pressure at the bottom of the void forces the water upward faster than the water closing in from the sides. This pressure differential forms a hypersonic jet of water. The jet shoots straight up through the center of the collapsing bubble.[4][5]

This water jet acts like a hydraulic ram, striking the already weakened and sagging keel with devastating kinetic energy. The impact punches upward through the hull plating. It often penetrates deep into the engineering spaces and magazines, destroying internal bulkheads.[4][5]

The combination of the whipping oscillation and the final water jet strike is what ultimately snaps the warship in half. The keel fractures, and the structural integrity of the hull girder fails completely. The two halves of the ship then rapidly flood and sink.[1][4]

"The complex combination of external loading crossing different temporal scales—from underwater explosive shock waves to bubble pulsation and hydrostatic pressure—results in a synergic damaging effect," noted a 2026 analysis in AIP Advances. The sequence guarantees catastrophic failure.[4]

Modern Naval Architecture

Defending against an under-keel detonation is exceptionally difficult. Proper shipbuilding practice can mitigate the damage by thickening the main keel or utilizing multiple keels. This approach was seen in the heavily armored fast battleships of the mid-20th century.[2][6]

However, adding thousands of tons of steel to the keel drastically reduces a modern warship's speed, maneuverability, and payload capacity. Today's naval architects instead focus on susceptibility reduction. The goal is preventing the torpedo from reaching the under-keel standoff in the first place.[1][6]

Acoustic decoys, towed arrays, and anti-torpedo torpedoes are deployed to spoof or destroy the incoming threat before it can establish a magnetic lock. If a heavyweight weapon like the American Mk 48 ADCAP reaches its detonation coordinates, the physics of the bubble pulse are inescapable.[1][2]

The ocean itself becomes the instrument of the ship's destruction. By harnessing the incompressibility of water and the immense weight of the vessel, the under-keel torpedo remains the most lethal conventional weapon in modern naval warfare.[1][4]

The Evolution of Proximity Fuzes

The evolution of these weapons traces back to the late 1930s, when both the US Navy and the Kriegsmarine began experimenting with magnetic influence fuzes. Early iterations were notoriously unreliable. They often detonated prematurely in the wake of the target or failed to trigger at all.[2]

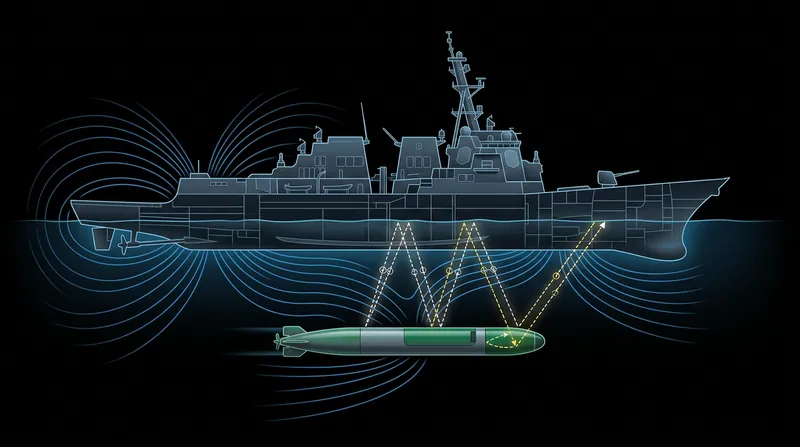

Decades of refinement have perfected the timing. Modern proximity fuzes use a combination of magnetometers and active upward-looking sonar. As the torpedo swims beneath the target, it pings the flat bottom of the hull, calculating the exact distance to ensure the bubble forms at the optimal depth.[1][2]

When the magnetic signature peaks, indicating the thickest part of the hull is directly overhead, the onboard computer triggers the exploder. This precision ensures the 50-foot gas bubble perfectly engulfs the midship section. The placement maximizes the bending moment applied to the keel.[1][2]

The resulting destruction leaves very little time for the crew to evacuate. Because the structural failure occurs at the lowest point of the ship, flooding is instantaneous and massive. The severed halves of the vessel lose all longitudinal stability and plunge to the seabed in minutes.[1][3]
