ISO 10137 Caps Residential Wind Acceleration at Two-Thirds of Office Limits: Why Slender Luxury Towers Install Tuned Mass Dampers

Suspended near the 1,428-foot peak of 111 West 57th Street in Manhattan hangs an 800-ton block of steel. This massive counterweight, known as a tuned mass damper, occupies some of the most expensive real estate in the Western Hemisphere.[2]

The device was not installed to keep the building from collapsing during a storm. It was engineered to solve a purely human problem: preventing the residents of the tower's $50 million penthouses from getting seasick in their own living rooms.[2]

At a height-to-width ratio of 1:24, the Steinway Tower is currently the most slender skyscraper ever constructed. Buildings of this extreme proportion act like giant sails, catching high-altitude winds that can cause the upper floors to sway several feet in either direction.[1]

The physiological threshold for motion sickness is the defining constraint of modern luxury high-rise development. Above a certain number of milli-gs, the human body experiences a feeling akin to seasickness, rendering ultra-luxury apartments uninhabitable during storms.

This biological reality dictates the engineering of every modern supertall. While structural engineers can easily design a pencil-thin tower to survive a hurricane, making it comfortable enough for daily living requires adhering to a strict international standard known as ISO 10137.[5]

The Physics of Wind and Slenderness

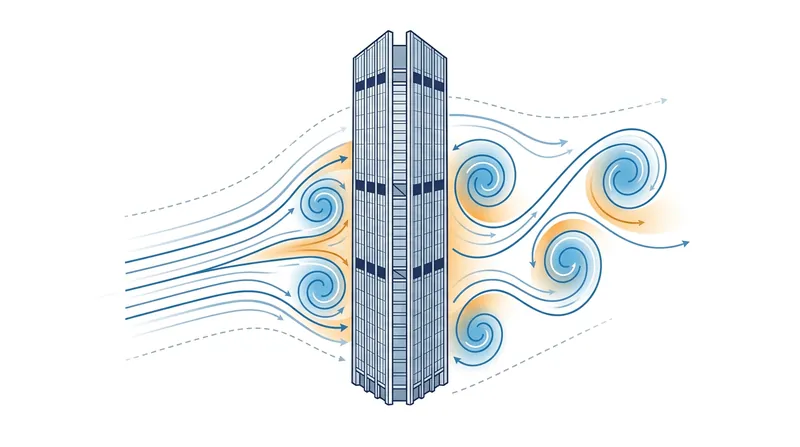

When wind strikes a flat facade, it does not simply push against the glass and flow smoothly around the edges. It creates alternating vortices of low pressure that pull at the structure from side to side, a phenomenon known as vortex shedding.

If the frequency of these vortices matches the building's natural resonant frequency, the swaying motion amplifies. In a traditional, block-sized skyscraper like the Empire State Building, the sheer mass of the structure dampens this kinetic energy naturally.[1][5]

Super-slender towers lack that inherent bulk. Driven by sky-high land values in cities like New York and Dubai, developers are building on increasingly tiny footprints, forcing the architecture upward rather than outward to achieve profitable square footage.[1]

The resulting structures are highly flexible. Without mechanical intervention, a tower like 111 West 57th Street would oscillate in high winds with a slow, rhythmic sway that human inner ears are uniquely calibrated to detect and reject.[2]

This creates a divergence between structural safety and human serviceability. A building can be perfectly safe from a structural failure standpoint while simultaneously moving so violently that the water sloshes out of the toilets and the residents suffer from chronic nausea.

ISO 10137 and the Milli-g Metric

To quantify human comfort, engineers measure building acceleration in milli-gs, or thousandths of the acceleration due to gravity. This metric captures not just how far a building moves, but how quickly it changes direction at the end of its sway.

According to baseline engineering data, most humans begin to perceive horizontal motion when acceleration reaches roughly 5 milli-g. At this low level, the movement is noticeable but generally not disruptive to daily activities or basic comfort.

However, as accelerations climb toward 10 to 15 milli-g, the motion begins to interfere with the body's vestibular system. Chandeliers swing, doors move on their hinges, and occupants can experience dizziness, anxiety, and severe motion sickness.

The International Organization for Standardization addresses this through ISO 10137, a standard that provides specific serviceability criteria for buildings against vibrations. The guidelines establish strict peak acceleration limits based on a one-year return period for wind events.

Crucially, ISO 10137 does not treat all buildings equally. The standard explicitly mandates that residential buildings must adhere to acceleration limits that are significantly lower than those permitted for commercial office towers of the same height.[5]

The Residential Comfort Penalty

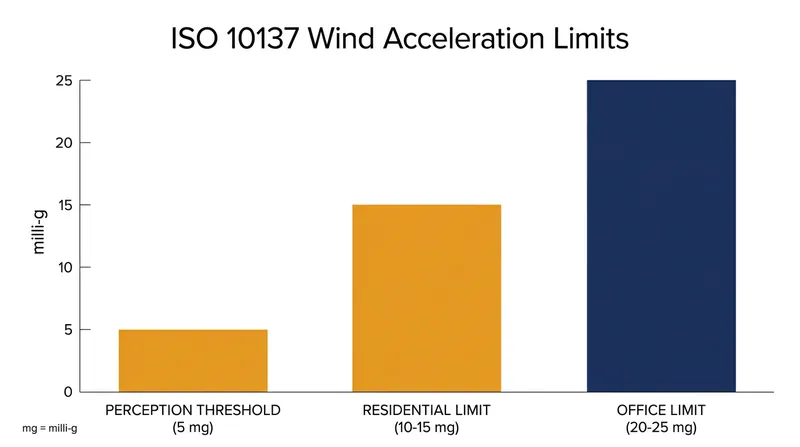

For a typical office building, ISO 10137 might allow peak accelerations of 20 to 25 milli-g during a major wind event. For a residential tower of the exact same height and frequency, that limit drops to between 10 and 15 milli-g.

This discrepancy is rooted in human psychology and posture. In an office environment, occupants are generally active, walking around, or focused on computer screens, which makes them far less sensitive to low-frequency background vibrations.[5]

The stricter amplitude limit for residential buildings is based on the engineering assumption that a person's tolerance for vibration is significantly lower when they are relaxing at home than when they are working. People lying in bed are highly attuned to their environment.[5]

A sway that might go unnoticed during a busy workday becomes alarming and physically sickening in the quiet of a residential bedroom at night. This biological reality forces engineers to design residential towers to a much higher standard of stillness.[5]

For developers, this two-thirds rule represents a massive engineering penalty. Building a super-slender residential tower requires significantly more vibration mitigation than building a commercial tower on the exact same footprint, driving up construction costs immensely.[5]

How Tuned Mass Dampers Work

To meet the stringent ISO 10137 residential limits, engineers rely on tuned mass dampers. These massive systems act as giant shock absorbers, counteracting the wind's energy before it can translate into building acceleration and occupant discomfort.

The 800-ton damper at 111 West 57th Street operates like a massive pendulum. When a gust of wind pushes the tower to the east, the steel weight, suspended on heavy cables and hydraulic cylinders, swings to the west.[2]

This out-of-phase movement absorbs the kinetic energy of the sway, dissipating it as heat through the hydraulic pistons. By interrupting the resonance, the damper effectively cuts the building's peak acceleration in half, keeping it well below the 10 milli-g threshold.

The engineering precision required for this operation is staggering. The damper must be tuned to the exact natural frequency of the building, ensuring that its swing perfectly mirrors and cancels out the tower's specific oscillation pattern during a storm.[5]

Other towers use variations of this technology. At 601 Lexington Avenue, a slosh damper utilizes gargantuan tanks of water to achieve the same effect. As the building moves, the water sloshes in the opposite direction, dragging against the structure's momentum.[5]

Regardless of the medium, these systems require surrendering premium space. The dampers must be placed at the very top of the building to maximize their leverage, occupying the exact floors that would otherwise command the highest penthouse premiums.[5]

The Cost of Getting It Wrong

The consequences of failing to adequately dampen a super-slender tower are severe. Just two blocks away from the Steinway Tower sits 432 Park Avenue, a 1,396-foot luxury residential building completed in 2015 with a slenderness ratio of 1:15.[1][5]

Instead of a tuned mass damper, 432 Park Avenue utilized open mechanical floors every twelve stories to allow wind to pass through the structure. While this design satisfied the local building codes for structural safety, it struggled with serviceability.[5]

The open floors were intended to disrupt the vortex shedding before it could build into a resonant sway. While the wind tunnel data supported this approach for structural integrity, the real-world performance failed to account for the extreme sensitivity of the human occupants.[5]

By 2021, the condominium board of 432 Park Avenue had filed a $165 million lawsuit against the developers. The complaint cited 1,893 documented defects, including severe noise and vibrations that made the ultra-luxury apartments nearly uninhabitable during high winds.[5]

The lawsuit highlighted the stark reality of the milli-g metric. Buyers who pay $50 million for a sky-high residence expect absolute stability, and even minor accelerations can trigger a cascade of mechanical failures, from creaking elevator shafts to groaning drywall.[5]

Ultimately, the tuned mass damper is the price of admission for the modern billionaire's row. To defy the physics of wind and the biology of the inner ear, developers must build a machine at the top of the sky just to keep the living room still.[5]
