Inverted Vapor Drive Traps Interstitial Moisture: Why Cooled Wine Cellars Require Vapor Barriers on the Warm Exterior

A climate-controlled wine room operates under a permanent physical constraint: moisture relentlessly migrates from warmer spaces toward colder ones. When builders treat a 55-degree cellar like a standard residential room, they place the vapor barrier on the wrong side of the insulation. That single error traps condensation inside the wall cavity, destroying the framing before the first bottle is ever uncorked.[1][6]

In standard residential construction, the vapor barrier sits on the interior side of the studs to keep winter heating from escaping. A wine cellar flips that logic entirely. Because the cellar is permanently chilled, the "warm side" is actually the exterior face of the room, meaning the barrier must face outward.[4]

"If you put the vapor barrier on the inside, then it is at the same cold temperature as the active cellar," explains Peter Simpson, a building science expert analyzing cellar failures. "Moist air penetrates the insulation and condenses on the cold barrier."[4]

The Mechanics of Vapor Pressure

Water vapor naturally travels from areas of high vapor pressure to areas of lower pressure. In building science, this phenomenon is known as vapor drive, and it pushes moisture from warm, humid environments toward cool, dry spaces.[3]

Jeff Benson, Principal of Benson Construction Group in Los Angeles, notes that vapor drive does not produce visible leaks. "What it creates is persistent moisture conditions within wall assemblies," Benson writes, leading to degraded insulation and mold growth.[3]

Inside a luxury home, a standard living room sits at roughly 72 degrees Fahrenheit. The adjacent wine cellar is mechanically held at a strict 55 degrees Fahrenheit and 60 percent relative humidity to preserve the corks and prevent oxidation.[1]

That 17-degree temperature differential creates a permanent inward vapor drive. The ambient moisture from the main house constantly presses against the cellar walls, seeking the cooler environment inside the storage room. This pressure never stops as long as the cooling unit runs.[2][6]

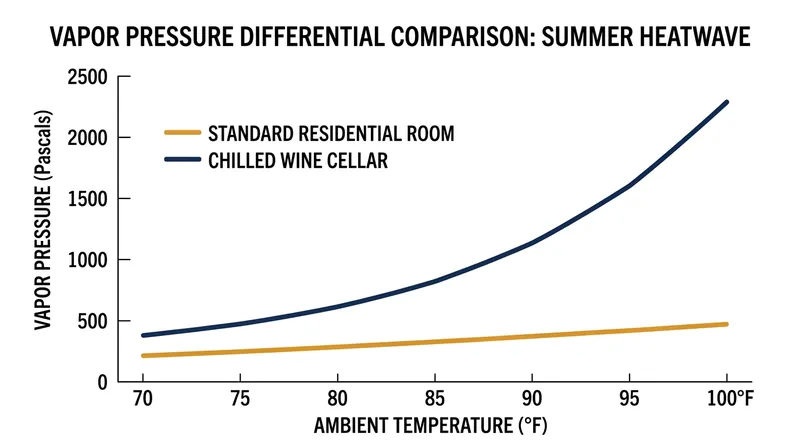

The pressure intensifies drastically if the cellar is built into an unconditioned space. In a garage during a summer heatwave, ambient temperatures can easily exceed 100 degrees Fahrenheit, creating a massive 45-degree differential against the chilled cellar.[2]

How Wall Cavities Fail

When a builder mistakenly installs a 6-mil polyethylene barrier on the interior side of the cellar studs, they create an interstitial condensation trap. The warm, moist air from the house easily penetrates the exterior drywall and moves through the fiberglass insulation.[1][4]

Once that warm air hits the interior vapor barrier, it encounters a surface cooled to 55 degrees by the cellar's refrigeration unit. The air rapidly drops below its dew point, and liquid water condenses inside the stud bay.[2][4]

Because the wall cavity is sealed on the inside by the plastic barrier and covered by drywall on the outside, the trapped water has no mechanism for drying. The fiberglass insulation becomes saturated, losing its thermal resistance entirely.[4]

Within a single season, this hidden moisture breeds toxic mold across the wooden framing. The structural rot often goes unnoticed behind custom mahogany racking or stone veneers until a musty odor permeates the collection.[2]

Reversing the Envelope

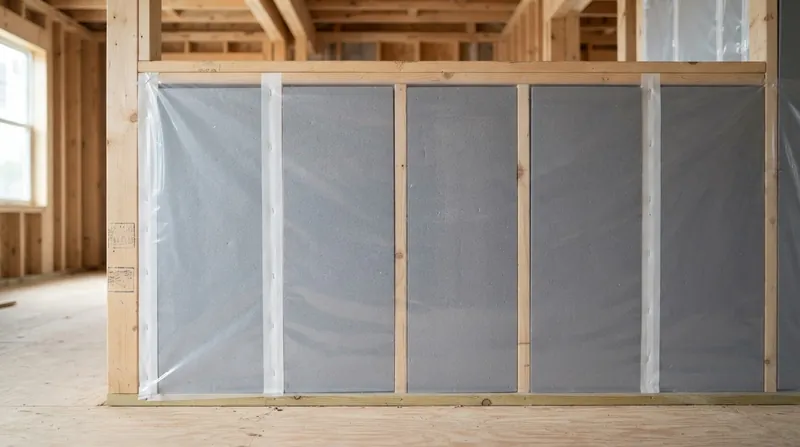

To halt inward vapor drive, the vapor barrier must be installed on the warm side of the thermal envelope. For a wine cellar, this means wrapping the exterior face of the wall studs before the ambient room's drywall is hung.[1][6]

By placing the barrier on the outside, the insulation remains on the cold side of the wall. The insulation keeps the cellar's chill contained, preventing the exterior vapor barrier from dropping to the dew point.[4]

"The vapor barrier should go outside all of the insulation, on the 'warm' side," advises construction specialist Chuck D. on a 2023 industry forum. "If you seal off the outside walls to a moist room, the moisture within the cellar will rot your wall."[5]

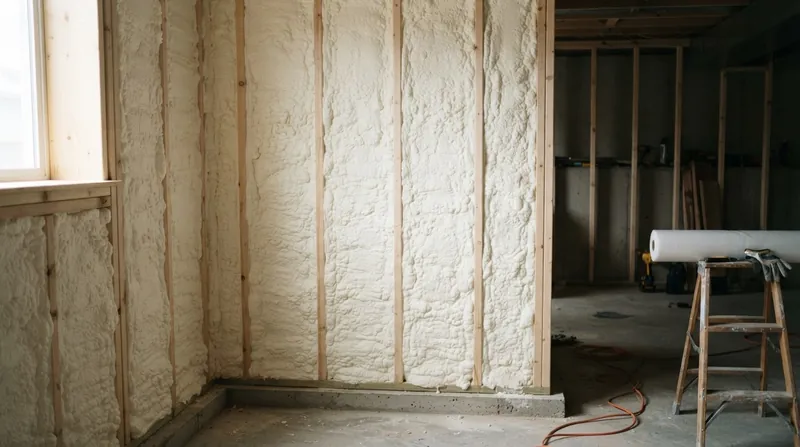

Closed-cell spray polyurethane foam is increasingly becoming the gold standard for luxury cellar construction. When applied at a minimum thickness of three inches, closed-cell foam acts as both an R-19 thermal insulator and a seamless vapor barrier.[1]

Sizing the Cooling System

A perfectly sealed envelope is useless if the mechanical cooling system cannot handle the thermal load. Refrigeration systems are specified based on conductive heat gains through the walls, lighting loads, and the volume of the room.[1]

Self-contained, through-the-wall cooling units are common, typically requiring a wall cutout of 15 5/8 inches by 9 1/4 inches in a wall between 5.5 and 14 inches thick. However, these units often struggle to maintain steady humidity in larger rooms, leading to constant cycling.[7]

For high-end projects, architects specify ducted split systems. These separate the evaporator inside the cellar from the condenser outside the home, isolating mechanical vibration and protecting the settling sediment in mature vintages. This configuration also removes exhaust heat entirely from the building.[1][2]

A dedicated desiccant dehumidifier is also critical for maintaining the strict 60 percent relative humidity target. Unlike standard compressor units, desiccant rotors use silica gel to adsorb moisture effectively even at 55 degrees Fahrenheit.[1]

Specifying Interior Finishes

The interior finishes of a wine cellar must withstand constant exposure to 60 percent humidity without off-gassing chemicals that could taint the wine. Standard medium-density fiberboard and cheap adhesives will quickly delaminate in this environment.[1]

Premium cellars utilize naturally rot-resistant woods like clear all-heart redwood, mahogany, or black walnut, which can easily last 50 years. These species remain dimensionally stable in damp conditions and do not require chemical sealants that could compromise the air quality.[1]

If stains or lacquers are applied, they must be zero-VOC, water-based finishes certified for wine environments. Any volatile organic compounds trapped inside the airtight cellar will eventually permeate the semi-porous corks, ruining a multimillion-dollar collection.[1]

The cellar door represents the final vulnerability in the thermal envelope. It must be an exterior-grade, solid-core door fitted with automatic drop-down bottom seals and heavy weather-stripping to prevent pressure imbalances. A standard interior door will leak enough air to overwork the cooling unit.[1][7]

Managing Hydrostatic Pressure

Many luxury estates locate wine cellars in subterranean basements, where the natural cooling of the earth assists the refrigeration unit. However, below-grade construction introduces hydrostatic pressure from the surrounding soil. This creates an entirely different set of moisture management challenges for the builder.[3]

In these environments, vapor drive is perpetually inward because the damp soil is always at a higher humidity than the conditioned interior. A continuous vapor barrier must be applied to the interior face of the concrete foundation walls.[3]

Waterproofing systems for subterranean cellars employ a redundant approach to ensure complete protection. Builders install bentonite waterproofing panels on the exterior face of the foundation prior to backfill, while applying closed-cell spray foam directly to the interior concrete walls.[8]

If a basement cellar lacks this dual-barrier system, capillary action will draw groundwater straight through the porous concrete. The resulting moisture spikes force the cooling unit to run continuously, drastically shortening its operational lifespan to under 3 years.[3][8]
