Subterranean Iceberg Basements Dam Urban Aquifers, Triggering Upstream Floods and Subsidence

The continuous, unimpeded flow of the shallow urban aquifer beneath a city's surface is the binding constraint for neighborhood stability. Groundwater must be able to move laterally through soil pores from higher elevations to lower ones to maintain the structural integrity of the earth. In dense luxury enclaves, this delicate hydrological balance is currently failing.

The disruption stems from the proliferation of multi-storey subterranean extensions that plunge deeper than the historic houses above them. By dropping impermeable concrete boxes into the water table, developers are inadvertently constructing subterranean dams.

The result is a localized environmental and structural crisis. Upstream neighbors face flooded cellars as water backs up against the concrete, while downstream properties suffer from severe structural subsidence as their supporting soils dry out.

Severing the Shallow Aquifer

Urban hydrogeology relies on the interaction between the unsaturated vadose zone and the saturated aquifer beneath it. Water moves laterally through permeable layers of gravel and sand, which are often perched above impermeable bedrock like London Clay.

A standard single-storey basement typically sits above this flow or only partially obstructs it. Because the excavation is shallow, groundwater can easily divert beneath the foundation and continue its natural course through the remaining permeable strata.

Multi-storey excavations fundamentally alter this hydrodynamic parameter. Extending ten meters or more into the earth to accommodate swimming pools and car elevators, these structures act as absolute barriers to lateral water movement.[1]

According to hydrogeological models, these deep foundations create a hard boundary condition that forces the aquifer to behave unnaturally. The water cannot go under the massive concrete footprint, and it cannot flow through it.[1]

The sheer volume of displaced earth erases the porous pathways that previously managed groundwater transit. A three-storey basement occupying an entire property footprint displaces thousands of cubic meters of soil, severing the aquifer entirely.[5]

The Upstream Hydrostatic Squeeze

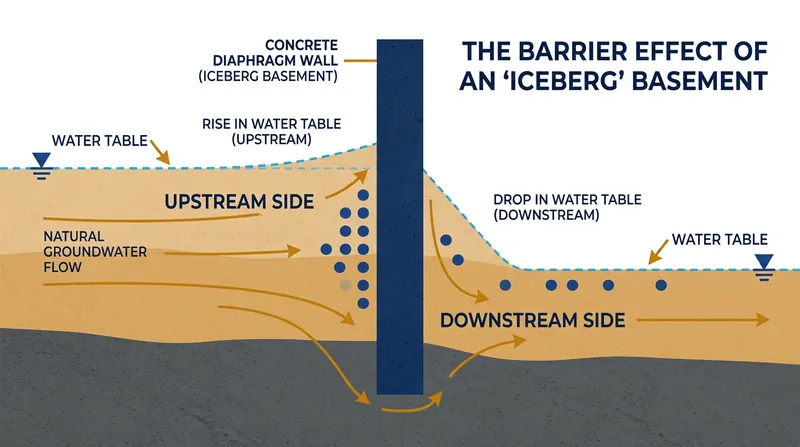

When an underground flow hits a concrete wall, the water does not simply stop; it accumulates. This accumulation exponentially increases the hydrostatic pressure on the upstream side of the subterranean barrier, forcing the water table to rise unnaturally.[1]

As the water table artificially rises behind the barrier, it seeks the path of least resistance. In dense historic neighborhoods, that path is often the older, shallower brick cellars of adjacent properties.

Homeowners situated hydraulically upstream suddenly find their cellars suffering from chronic dampness or active flooding. Sump pumps that previously ran only during heavy rainfall are forced to operate continuously to hold back the displaced aquifer.

"Given their nature, basements are more susceptible to flooding, both from surface water and sewage, than conventional extensions," states the Royal Borough of Kensington and Chelsea's Local Plan.[2]

The pressure also exerts immense physical force on the new structure itself. Engineers must design these deep basements to withstand uplift forces that actively try to float the concrete box out of the ground.[1]

Starving the Downstream Soils

While the upstream side drowns, the downstream side of the subterranean dam faces a sudden and severe deficit of groundwater. The aquifer is effectively choked off, leaving the earth entirely dry.

In cities built on compressible soils, such as the silts and clays of London or the San Joaquin Valley, this moisture deficit is catastrophic. Clay and silt soils rely on water within their pore spaces to maintain their volume and structural integrity.[3]

When the groundwater supply is severed, the downstream soils dry out and contract. This process reduces the total volume of the earth beneath neighboring foundations, causing the land to sink.[3]

Crucially, this compaction is often non-reversible. Once the fine sediment layers collapse, the aquifer permanently loses its storage capacity, meaning the downstream land will never rebound even if water flow is eventually restored.[3]

The resulting land subsidence is rarely uniform. Because the soil dries unevenly, neighboring historic buildings experience differential settlement, where one side of a house sinks faster than the other.

This differential movement tears buildings apart. Brickwork cracks, doorframes warp, and load-bearing walls lose their alignment, leading to repair bills that can easily run into the millions for properties adjacent to the excavation.

Rewriting the Planning Rulebook

Recognizing the hydrogeological damage, local authorities in prime luxury markets have begun rewriting their planning frameworks. The Royal Borough of Kensington and Chelsea in London led the charge with strict new geometric limits.[2]

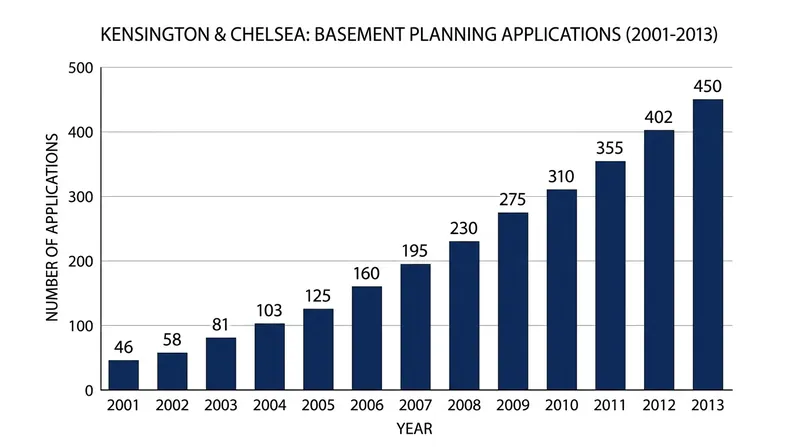

The scale of the disruption was tied directly to an explosion in luxury basement applications. In Kensington and Chelsea alone, applications surged from just 46 in 2001 to 450 by 2013, before regulations curtailed the digging.[4]

"Until April 2016, basements entirely 'under the footprint of the house' could be built without planning permission," notes the Ladbroke Association.[4]

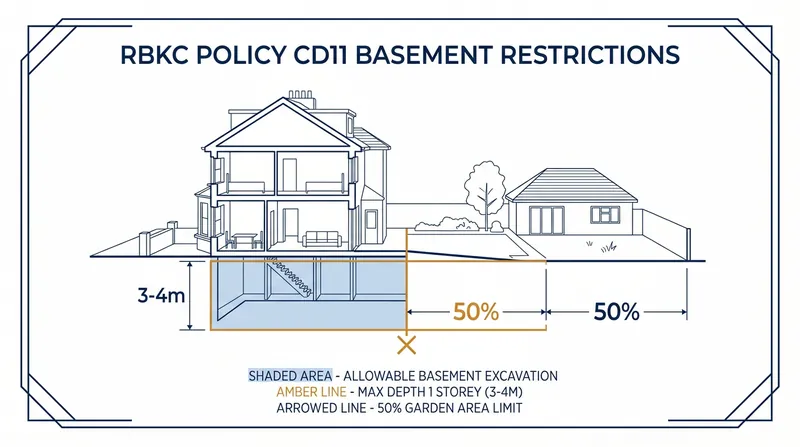

To preserve groundwater flow and prevent aquifer damming, current policy legally restricts new basements to a single storey in depth, capping excavations at roughly three to four meters below the prevailing ground level.[2]

Furthermore, developers can no longer excavate their entire plot. The borough mandates that basements must not exceed 50 percent of the garden area, ensuring a continuous, unexcavated corridor remains for natural aquifer transit.[2]

Engineering a Compromise

The documentation required to apply for a basement has become intensely rigorous. Applicants must submit a Construction Method Statement prepared by a qualified civil engineer, explicitly addressing groundwater flow and hydrological conditions.

"The structural stability of the development itself is not controlled through the planning system but through building regulations," notes the Holland Park Renovations policy review.

Site investigations now require deep boreholes, standard penetration testing, and standpipe installations to monitor the water table. Engineers must prove with empirical data that their concrete box will not dam the local aquifer.

Councils demand minimum groundwater dip readings taken across different seasons. Monitoring must occur during the wet spring months to capture the aquifer at its peak volume, ensuring the barrier effect is modeled against worst-case scenarios.

For projects that do proceed, structural engineers are forced to design active mitigation systems. One common approach involves installing peripheral drainage channels around the exterior of the concrete shell to route water around the building.

However, these passive bypass systems frequently clog with silt over time. When the gravel matrix fails, the barrier effect returns, and the hydrostatic pressure begins to build against the upstream walls once again.

The physics of the aquifer dictate the limits of urban density. Until developers can guarantee that subsurface water will flow unimpeded, municipal planning boards will continue to strictly limit how deep a foundation can go.
