Perimeter Overflow Pools Require Ten Percent Balance Tank Reserves to Prevent Pump Cavitation

The architect unrolls the blueprints for a minimalist luxury estate, pointing to a seamless perimeter overflow pool that mirrors the horizon. They demand the smallest possible hidden infrastructure to maximize the usable subterranean footprint for a wine cellar or a home theater.

Across the table, the hydraulic engineer shakes their head, insisting on a massive, concrete-lined subterranean vault. They argue that without a balance tank holding a strict 10 percent reserve, the entire system will either flood the equipment room or run the circulation pumps dry the moment a dozen guests jump in.

This tension between aesthetic minimalism and hydraulic reality defines the construction of modern deck-level pools. The water that spills over the edge has to go somewhere, and the physics of moving it are entirely unforgiving.

At the center of this engineering standoff is DIN 19643, the exacting German standard that governs pool water treatment and surge calculations. It dictates precisely how much displaced water a system must handle to prevent catastrophic failure.[2]

The Physics of the Disappearing Edge

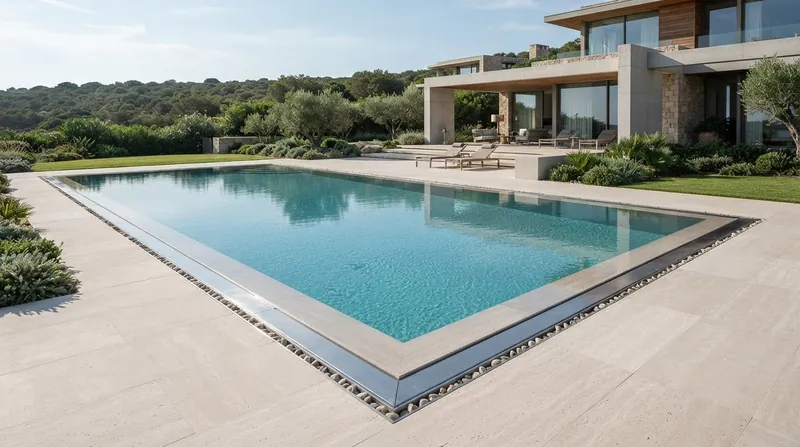

A perimeter overflow pool, often called a deck-level or zero-edge pool, maintains a water level perfectly flush with the surrounding patio. Unlike a traditional skimmer pool, which draws water from a few inches below the coping, an overflow system relies on water constantly spilling over the entire boundary.

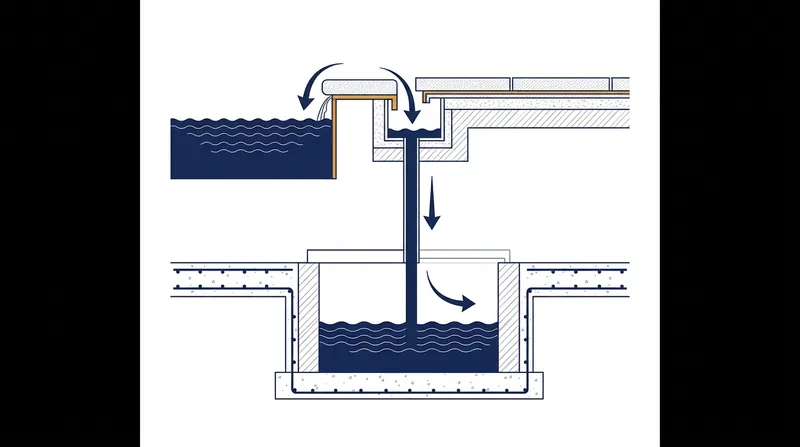

This continuous spillway creates a highly efficient surface skimming action, sweeping away floating debris and contaminants faster than any conventional setup. The water falls into a hidden perimeter channel, driven entirely by gravity, before flowing toward the mechanical room.

A pool cannot simply circulate water from the gutter directly back into the pump. The volume of water in transit fluctuates wildly based on environmental factors and human activity, requiring an intermediary vessel to manage the sudden hydraulic surge.

That vessel is the balance tank, a concealed reservoir that acts as the hydraulic lungs of the swimming pool. It breathes in the excess water when bathers enter and breathes it back out when they leave, keeping the visible surface perfectly static.

Calculating the Surge Under DIN 19643

European engineers have long relied on DIN 19643, a comprehensive standard published by the Deutsches Institut für Normung, to dictate the hygiene and hydraulic safety of public and luxury pools. The 74-page document leaves no room for architectural guesswork.

According to the standard, the usable volume of a balance tank must equal the sum of three distinct variables. These include the displaced water from bathers, the swell water from wave action, and the reserve required for backwashing the filtration system.[2]

Bather displacement is a matter of strict biological volume. When a person enters the water, they displace an amount equal to their body mass, meaning a pool hosting 20 adults instantly pushes more than 400 gallons of water over the edge.[1]

Wave action, or swell water, adds another layer of complexity to the calculation. As swimmers move, they create dynamic surges that overwhelm the perimeter channel, pushing a sudden rush of water into the gravity lines that the tank must swallow without overflowing.

Finally, the system must hold enough reserve water to backwash the massive sand or glass media filters without dropping the pool level. If the tank is undersized, a routine maintenance cycle will suck the reservoir dry and introduce air into the plumbing.[3]

Why Pumps Destroy Themselves Without Reserves

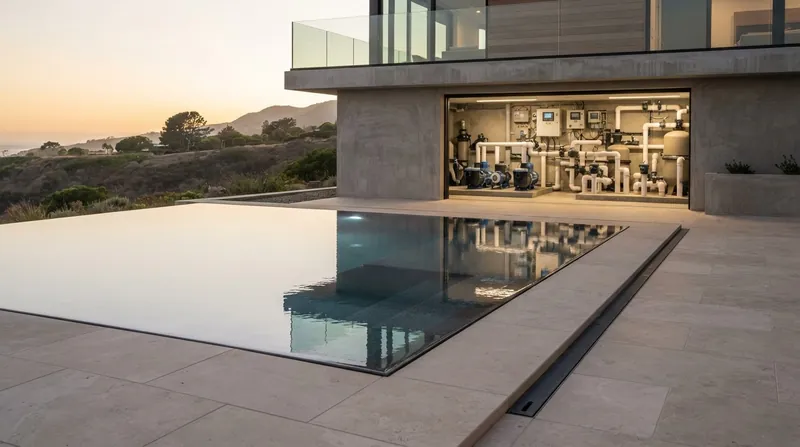

When an architect wins the argument and shrinks the balance tank below the DIN 19643 threshold, the most immediate victim is the primary circulation pump. A tank that lacks the required 10 to 15 percent volume reserve cannot maintain a stable suction head.

As the water level in an undersized tank drops, a vortex forms over the suction outlet, drawing atmospheric air directly into the pump impeller. This phenomenon, known as cavitation, is the leading cause of catastrophic equipment failure in luxury pools.

Cavitation occurs when the pressure inside the pump drops below the vapor pressure of the water, causing microscopic bubbles to form and violently collapse against the impeller blades. The resulting shockwaves pit the metal and shatter the ceramic seals.

If the balancing tank is too small, water is lost to the overflow drain, and the expensive chemicals vanish with it. This rapid depletion happens every time a large group swims or a heavy rainstorm hits the property.

The financial toll of a cavitating pump extends beyond the cost of replacing the motor. The system loses its ability to filter and heat the water, turning a multimillion-dollar architectural centerpiece into a stagnant, rapidly degrading pond.

The Financial Penalty of Excess Concrete

Conversely, blindly pouring the largest possible concrete vault carries its own severe penalties. Excavating and waterproofing a subterranean chamber that holds thousands of gallons of water is one of the most expensive line items in a luxury build.

Every cubic meter of unnecessary balance tank volume consumes valuable real estate that could have housed a mechanical room or a basement expansion. Over-engineering the surge capacity wastes capital on concrete that serves no practical hydraulic function.

Furthermore, an oversized tank creates dead zones where water stagnates. If the turnover rate within the reservoir is too slow, chlorine residuals drop, and the dark, warm environment becomes a breeding ground for biofilm and bacterial growth.

This is why the precise calculations mandated by DIN 19643 are so critical for modern construction. The standard forces builders to thread the needle between dangerous hydraulic starvation and wasteful, unhygienic over-capacity, landing exactly on the required reserve.[2]

Waterproofing the Subterranean Vault

Historically, balance tanks were cast-in-place concrete structures, poured simultaneously with the pool shell. While durable, concrete requires meticulous waterproofing membranes to prevent the aggressive pool chemistry from degrading the internal steel rebar over time.

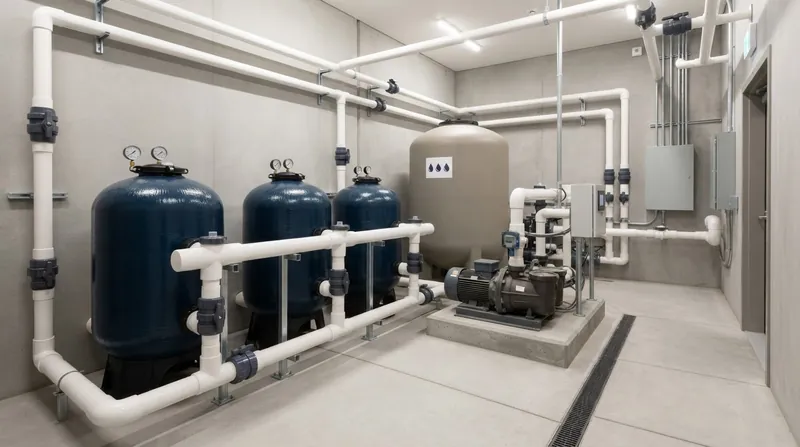

Today, many high-end residential projects utilize prefabricated polypropylene or fiberglass tanks. These modern vessels offer a perfectly smooth, non-porous interior that resists bacterial adhesion and dramatically simplifies the mandatory cleaning protocols.

Regardless of the material, the tank must feature large inspection hatches and a sloped floor directed toward a sump pit. Maintenance crews must be able to physically enter the chamber to scrub the walls and remove the heavy debris that bypasses the perimeter grates.

Advanced systems now incorporate electronic level sensors and motorized fill valves. These sensors monitor the exact water height in the tank, automatically triggering a fresh water top-up to compensate for evaporation before the pump ever senses a drop in pressure.

Reconciling Design with Hydraulic Reality

Resolving the initial standoff between the designer and the engineer requires compromise. Architects are learning to integrate the balance tank into the early spatial planning, rather than treating it as a nuisance to be hidden at the last minute.

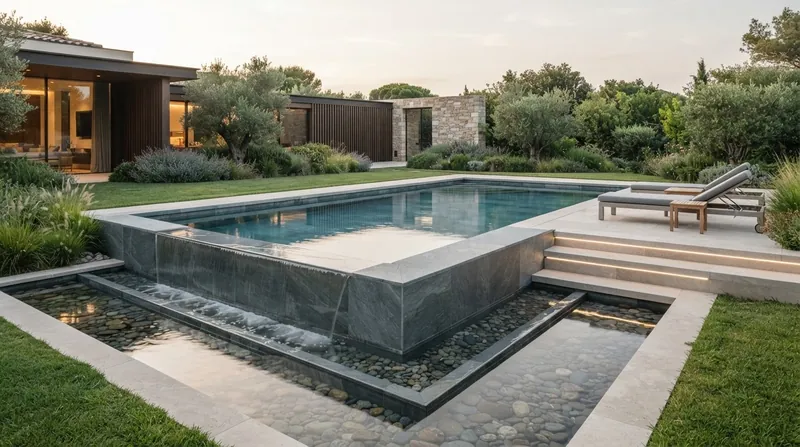

In some hillside infinity pools, the catch basin itself is designed as a secondary architectural feature. It remains visible as a lower-tier reflecting pool while secretly functioning as the surge capacity for the primary vessel above.

For flat deck-level pools, engineers often stretch the balance tank horizontally beneath the patio decking. This shallow, wide configuration provides the necessary DIN 19643 volume without requiring deep, expensive excavation into the bedrock.

The strict adherence to the 10 percent reserve rule also protects the property during extreme weather. When heavy rainfall hits a deck-level pool, the perimeter channel captures the deluge, sending it directly into the balance tank.

A properly sized tank features a dedicated overflow line plumbed to the municipal storm drain. If the reservoir lacks the capacity to buffer the sudden influx of rainwater, the system backs up, flooding the patio and potentially breaching the home's foundation.

The invisible mechanics dictate the visible beauty of the installation. A perimeter overflow pool only achieves its glass-like perfection when the subterranean lungs breathing beneath it are sized with absolute mathematical precision, ensuring the water never stops flowing.
