Why Super-Tall Residential Penthouses Rely on Tuned Liquid Dampers Instead of Solid Pendulums

When engineers stabilized Taipei 101 against typhoon winds, they suspended a 728-ton solid steel sphere near the summit to act as a counterweight. Today’s ultra-thin residential towers in Manhattan face the exact same aerodynamic forces, but they are increasingly abandoning that brute-force steel approach in favor of sloshing pools of water.[1]

The shift from solid pendulums to tuned liquid dampers represents a fundamental change in how super-tall buildings handle wind sway. As developers push residential structures past 1,000 feet on remarkably narrow footprints, the physics of keeping the penthouse still have forced a quiet engineering revolution.

Wind does not just push a tall building backward; it creates alternating suction vortices that pull the structure from side to side. In a 1,400-foot pencil tower like 432 Park Avenue, those lateral forces can induce a rhythmic sway that makes the upper floors virtually uninhabitable during a severe storm.[1]

Office buildings can tolerate a certain amount of movement because occupants are awake, active, and moving around. Residential towers operate under much stricter acceleration limits, because a sleeping resident will immediately wake up if their bed begins to drift laterally by several inches.

To counteract that motion, structural engineers rely on supplemental damping systems placed near the roof. These massive counterweights are designed to move out of phase with the building, pulling the tower back to the center just as the wind tries to push it away.[1]

The Logistical Nightmare of Solid Steel

For decades, the standard solution was the tuned mass damper, a massive block of concrete or steel mounted on giant springs and shock absorbers. The system at 111 West 57th Street in New York City relies on this traditional architecture, utilizing an 800-short-ton solid damper to stabilize its incredibly slender frame.[2]

While highly effective at arresting sway, solid dampers impose a severe logistical penalty during the construction phase. Every pound of that 800-ton counterweight must be hoisted more than 1,000 feet into the air using tower cranes that are already operating at the absolute limits of their lifting capacity.[2]

Moving hundreds of tons of steel requires dozens of dedicated crane picks, consuming valuable schedule time and exposing the construction site to weather delays. If the wind is blowing too hard at the summit, the crane cannot safely lift the steel plates, bringing the entire topping-out process to a halt.

Once installed, a solid pendulum occupies a massive, multi-story structural cage that cannot be easily modified. If the building's natural frequency changes slightly as it settles over the years, tuning a solid mass damper requires physically adjusting heavy mechanical springs and viscous shock absorbers.[1]

The Fluid Dynamics Alternative

To bypass the crane bottleneck, modern structural engineers are increasingly specifying tuned liquid column dampers for residential super-talls. Instead of a suspended steel block, these systems utilize compartmentalized tanks or massive U-shaped tubes filled with ordinary water to provide the necessary counter-mass.[1]

The liquid damper operates on the exact same inertial principles as a solid pendulum, but it dissipates energy through fluid dynamics rather than mechanical shock absorbers. As the building sways, the water sloshes back and forth inside the tank, lagging behind the structure's movement and pulling it back to center.[1]

The true genius of the liquid system lies in its friction mechanism, which converts the kinetic energy of the swaying building into heat. As the water rushes from one side of the tank to the other, it passes through precisely calibrated steel screens and restrictive orifices that slow the flow.[4]

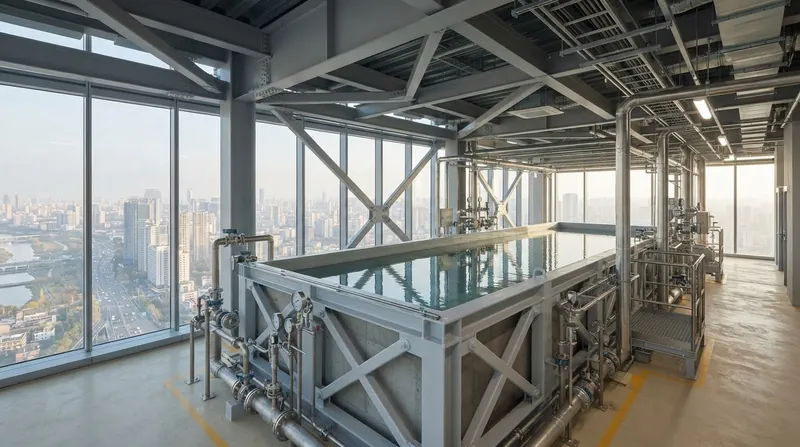

The Comcast Technology Center in Philadelphia perfectly illustrates this scale, housing a set of five tuned liquid dampers on its 57th floor. Those tanks contain roughly 125,000 gallons of water, providing approximately 500 tons of damping mass without requiring a single heavy crane pick for the counterweight itself.[3]

"Instead of complex mechanical devices, liquid column dampers dissipate energy through the movement of water," notes the Factlen Editorial Team in its 2026 engineering review. "The liquid in the tank is both the mass and the damper, simplifying the mechanical footprint at the top of the tower."[4]

The Volume Penalty in the Penthouse

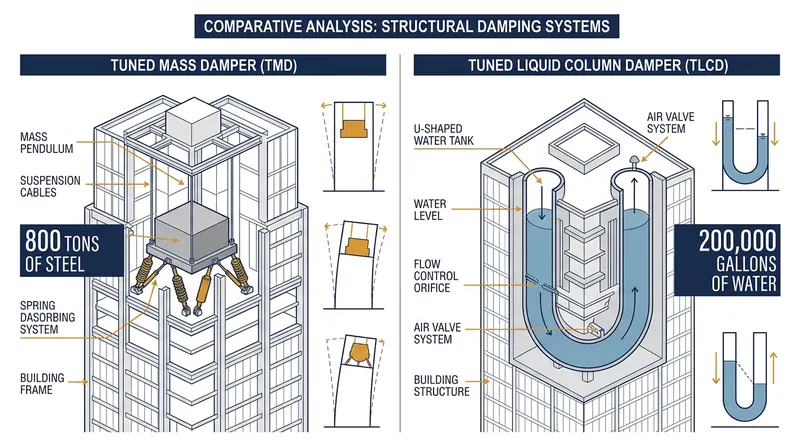

While water solves the lifting problem—it is simply pumped up the building's internal plumbing system once the tanks are built—it introduces a massive spatial trade-off. Water is significantly less dense than structural steel, meaning a liquid damper requires a vastly larger physical footprint to achieve the same mass.[4]

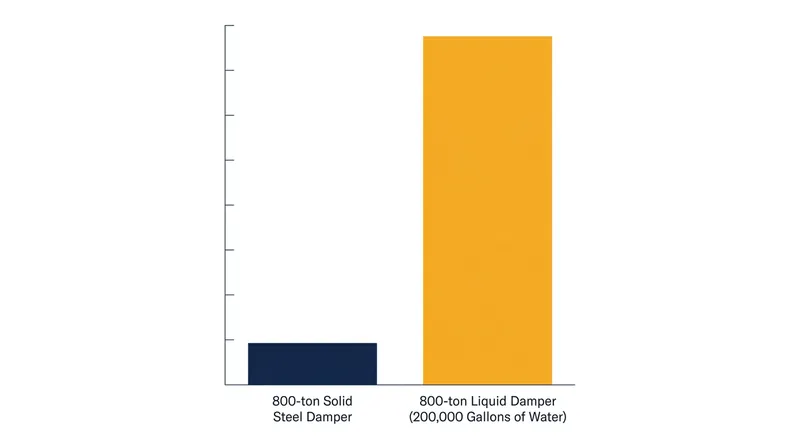

The mathematics of this density gap dictate the architecture of the mechanical floors. To match the 800-ton mass of the solid steel damper at 111 West 57th Street using the liquid system deployed at the Comcast Technology Center, a developer would need to house exactly 200,000 gallons of water.[2][3]

Storing 200,000 gallons of water requires roughly 26,700 cubic feet of tank volume, completely consuming the upper mechanical levels of a slender pencil tower. In buildings where penthouse square footage sells for tens of millions of dollars, surrendering that volume to water tanks is a painful financial concession.

Developers accept this volume penalty because the alternative—engineering a crane sequence for 800 tons of steel—is often deemed too risky or expensive for the project's timeline. Pumping water into a completed tank takes days, whereas assembling a solid pendulum can delay a tower's enclosure by weeks.[4]

Tuning and Dual-Purpose Utility

Beyond construction logistics, liquid dampers offer a distinct advantage when it comes to long-term maintenance and calibration. A building's stiffness naturally changes over its first decade as concrete cures and joints settle, altering the resonant frequency the damper must target.[1]

Re-tuning a solid mass damper requires heavy mechanical intervention, but tuning a liquid column damper is remarkably straightforward. Engineers can adjust the sloshing frequency simply by adding or draining a few inches of water, perfectly matching the building's new dynamic profile with zero heavy labor.[4]

Furthermore, the massive volume of water stored at the top of the building does not have to serve a single purpose. In many modern super-talls, the tuned liquid damper doubles as the primary gravity-fed reservoir for the building's fire suppression system, eliminating the need for separate holding tanks.[4]

By combining the damping mass and the fire reserve into a single fluid body, engineers can claw back some of the spatial efficiency lost to the water's lower density. This dual-purpose utility makes the liquid damper highly attractive to architects trying to maximize sellable residential space below the roofline.

The Acoustic Experience for Residents

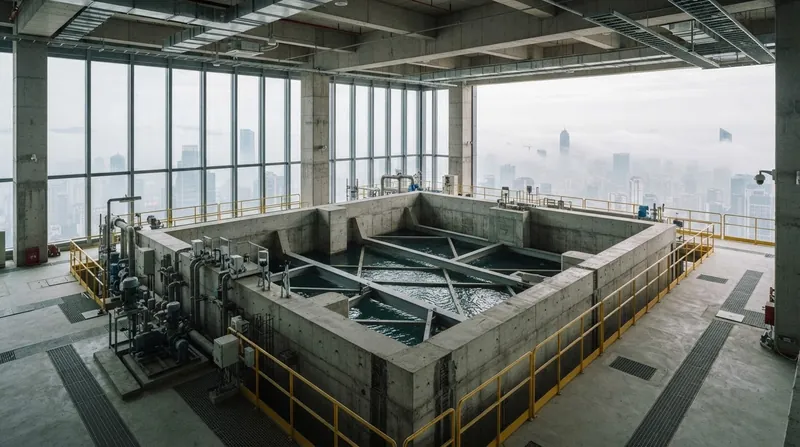

For the buyers spending $50 million on a penthouse directly beneath the mechanical floors, the acoustic profile of the damping system is a critical consideration. When a solid mass damper engages during a severe storm, the mechanical friction of its massive steel components can generate distinct groans and metallic creaks.[1]

Videos captured during a 2015 high-wind event at 432 Park Avenue showed the building's solid damper swaying by roughly three feet in each direction. While the system performed flawlessly to stabilize the tower, the sheer mechanical force of hundreds of tons of steel changing direction is difficult to completely silence.[1]

Liquid dampers, by contrast, produce a rushing, sloshing sound as water is forced through the internal baffles and screens. Acoustic engineers find it much easier to isolate and mask the white noise of moving water than the low-frequency structural vibrations produced by a swinging steel pendulum.[4]

As the 2026 luxury market demands absolute perfection from these sky-high estates, the softer acoustic signature of a liquid system provides a tangible quality-of-life upgrade. Residents remain entirely unaware of the massive fluid dynamics keeping their dining room tables perfectly level during a winter gale.

The Future of High-Altitude Engineering

The transition toward liquid damping systems highlights a broader trend in structural engineering: replacing rigid, brute-force solutions with adaptable, fluid mechanics. As developers look toward the next generation of 1,500-foot residential towers, the limits of solid steel counterweights have largely been reached.[1]

Future iterations of the tuned liquid damper are already incorporating active control systems, using computer-driven air valves to dynamically alter the pressure inside the U-shaped tubes. This allows the water to react instantly to sudden wind gusts, providing even tighter control over the building's lateral acceleration.[4]

Ultimately, the choice between steel and water comes down to a complex calculus of crane capacity, penthouse volume, and acoustic comfort. But for the engineers tasked with keeping the world's thinnest buildings standing upright, the ability to simply pump their counterweight through a pipe has proven irresistible.
