How Softmax Normalization Forces Attention Sinks and Prevents Streaming Context Collapse

When a large language model processes a continuous conversation, its internal memory—known as the Key-Value cache—grows by roughly 12 kilobytes per token. At 8,000 tokens, a single user session consumes about 100 megabytes of memory. Scale that to thousands of users or a day-long interaction, and the hardware quickly runs out of space.[3]

For years, engineers attempted to solve this memory bottleneck using a straightforward sliding window approach. As the conversation grew, the system would simply evict the oldest tokens from the cache to make room for the newest ones. It seemed logical, as recent context is usually the most relevant to the current prompt.[1]

However, this naive eviction strategy triggered a catastrophic failure. The moment the very first tokens of the sequence were dropped from the cache, the model's performance collapsed. Instead of generating coherent text, the system would instantly begin outputting broken Unicode, endless newlines, or repetitive gibberish.[3]

In late 2023, a team of researchers from the Massachusetts Institute of Technology, Meta AI, and Carnegie Mellon University published a paper isolating the exact cause of this collapse. The failure was not semantic, but mathematical. It stemmed directly from the core arithmetic of the transformer architecture.[1]

The Arithmetic of Attention

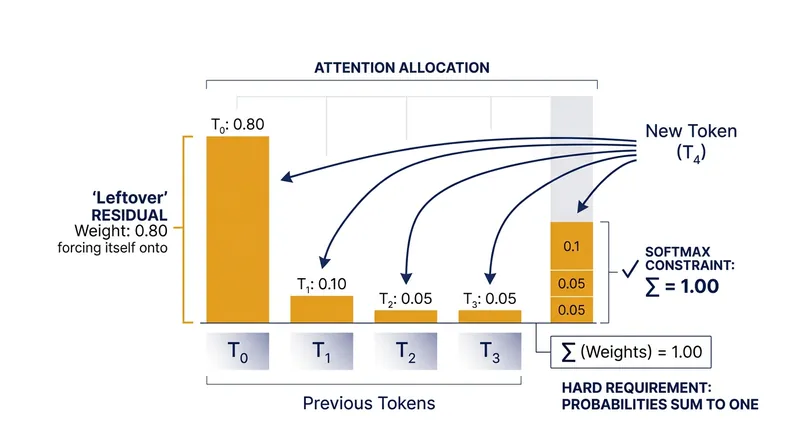

At the heart of every modern language model is the attention mechanism, which determines how much focus a new word should place on previous words. This distribution is governed by a function called Softmax. The strict mathematical rule of Softmax is that the attention weights across all visible tokens must sum to exactly 1.0.[4]

This sum-to-one constraint creates a structural problem during text generation. Often, a newly generated token does not have a strong semantic relationship with anything in the preceding text. Yet, because of the Softmax rule, the model cannot simply assign a total attention weight of zero.[1]

"Even when the current query does not have a strong match in many previous tokens, the model still needs to allocate these unneeded attention values somewhere so it sums up to one," the researchers noted. The model is forced to dump this excess mathematical mass onto a target, regardless of its actual meaning.[1]

Through extensive visualization of models like Llama-2, the research team observed a consistent anomaly. Across almost every layer and attention head, a massive proportion of the attention score was being permanently parked on the very first tokens of the sequence.[1]

Discovering the Sinks

These initial tokens were absorbing the excess attention simply because they were globally visible to every subsequent step in the autoregressive process. The researchers termed these initial positions attention sinks. They served as a mathematical pressure valve, capturing the unallocated weight that the Softmax function demanded.[1]

"We found models dump massive attention onto the first few tokens as 'attention sinks'—places to park unused attention since softmax requires weights to sum to 1," the MIT Han Lab explained. The tokens themselves did not contain crucial context; they were merely structural anchors.[2]

This discovery immediately explained why the sliding window approach failed so spectacularly. When the system evicted the oldest tokens to save memory, it was unknowingly deleting the attention sinks. The model lost the repository where it had been safely storing its excess attention mass.[1]

Without the sinks to absorb the mathematical overflow, the Softmax denominator was fundamentally broken. The unallocated attention was suddenly forced to distribute itself randomly across the remaining tokens in the sliding window. This sudden spike in irrelevant attention destroyed the model's internal representations.[3]

Subsequent research has deepened the understanding of why this collapse is so absolute. Studies have demonstrated that attention sinks act as a safeguard against over-mixing. This is a pathological state where deep models processing long sequences begin to blur the important distinctions between individual tokens.[6]

By drawing unneeded attention away from the rest of the sequence, the sink limits the spread of noise. It ensures that when a token does need to pay attention to a specific prior word, that signal is not drowned out by the background static of the entire context window.[6]

The StreamingLLM Framework

Armed with this understanding, the researchers developed a remarkably simple framework called StreamingLLM. Instead of fighting the architecture or retraining the model, they altered the cache eviction policy to respect the mathematical necessity of the sinks.[1]

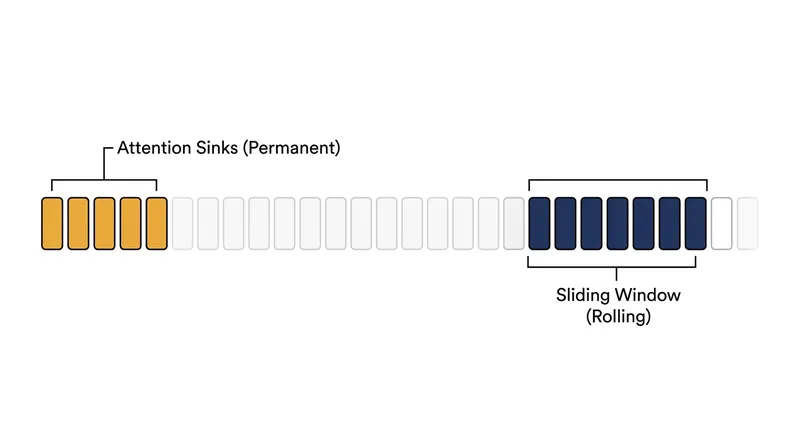

StreamingLLM operates on a dual-cache system. It permanently retains the Key-Value states of the first four tokens in the sequence, locking them in memory as dedicated attention sinks. Alongside these anchors, it maintains a standard sliding window of the most recent tokens to provide local context.[1]

When the cache reaches its memory limit, StreamingLLM drops the middle tokens—those that fall between the permanent sinks and the recent window. Because the initial four tokens remain untouched, the Softmax function retains its stable denominator, and the attention distribution remains perfectly balanced.[5]

However, dropping the middle tokens introduced a secondary challenge regarding positional encoding. Language models track the order of words using absolute position numbers. If a model drops tokens 5 through 100, the 101st token would normally retain its original position index, creating a massive numerical gap in the sequence.[1]

StreamingLLM solves this by redefining the positional context. Instead of using the absolute positions from the original text, the framework assigns positions based purely on the token's current location within the cache. This relative numbering ensures the model perceives a continuous, unbroken sequence of text.[2]

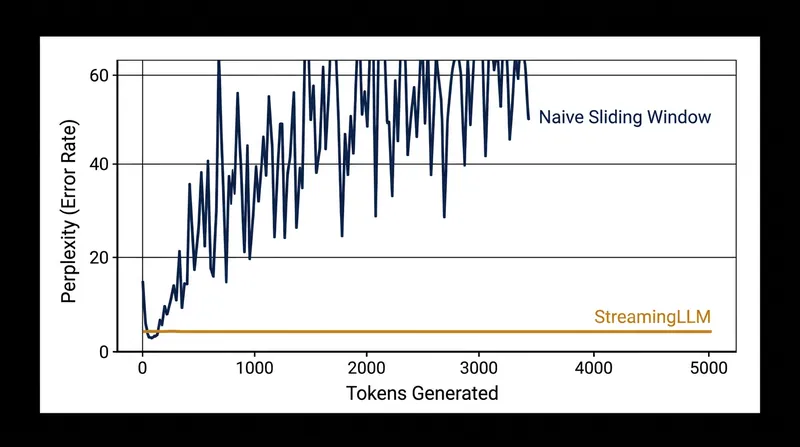

The results of this minor architectural adjustment were profound. By simply preserving four initial tokens, models that previously collapsed after a few thousand words could suddenly process infinite streams of text. The perplexity—a measure of the model's uncertainty—remained completely flat.[1]

Scaling to Millions of Tokens

During testing, the research team demonstrated that StreamingLLM enabled models like Llama-2, Falcon, and Pythia to stream more than 4 million tokens continuously. The models maintained their fluency and coherence over extended periods without requiring a single cache reset or any fine-tuning.[1]

The researchers validated this approach across a wide spectrum of open-weight architectures. They tested Llama-2 at the 7-billion, 13-billion, and 70-billion parameter scales, alongside MPT and Pythia models. In every instance, the inclusion of the four sink tokens prevented the perplexity explosions that plagued standard window attention.[1]

This stability was achieved with a constant memory footprint. Because the cache size never exceeded the sum of the four sink tokens and the fixed sliding window, the system operated in constant memory complexity. A single GPU could now host a continuous conversation indefinitely.[3]

The framework also delivered massive computational efficiency. The only previous way to maintain long-context stability was a method called sliding window with re-computation, which rebuilt the cache from scratch for every new token. StreamingLLM eliminated that quadratic overhead entirely.[4]

In their published benchmarks, the MIT researchers reported that StreamingLLM achieved up to a 22.2x speedup over the re-computation baseline. This leap in efficiency transformed continuous, multi-round dialogue from a theoretical concept into a deployable reality for consumer hardware.[1]

Industry Adoption and Impact

The industry response to the paper was rapid. Hugging Face quickly integrated the attention sink mechanism into its core Transformers library. Developers could enable the feature simply by importing their models through a dedicated class, instantly stabilizing chat assistants.[3]

NVIDIA also adopted the framework, incorporating StreamingLLM into its TensorRT-LLM optimization software. "StreamingLLM addresses this by retaining only the most recent tokens and attention sinks, discarding intermediate tokens," NVIDIA noted in its developer documentation, highlighting its utility for daily AI assistants.[5]

The discovery has fundamentally decoupled a model's pre-training context length from its inference-time generation length. Historically, an AI was strictly limited by the sequence length it saw during training. Now, a model trained on 8,000 tokens can generate millions of tokens in a single unbroken stream.[4]

Researchers are already exploring how to optimize this phenomenon further. The original paper demonstrated that explicitly adding a dedicated, learnable sink token during a model's pre-training phase improves streaming stability even more than repurposing standard text tokens.[1]

In fact, when the MIT team trained a model from scratch with a dedicated placeholder token designed specifically to act as a sink, they found that a single token was sufficient. The vanilla models required four repurposed text tokens to maintain stability, but a purpose-built sink handled the mathematical overflow entirely on its own.[2]

Other researchers are exploring architectural changes to bypass the Softmax constraint entirely. Techniques like Softmax1 allow the attention weights to sum to less than 1.0, reducing the pressure to dump excess mass. However, because these methods require fundamentally altering the model's architecture and retraining it from scratch, they remain experimental.[6]

StreamingLLM's primary advantage is that it requires absolutely no fine-tuning. It is a purely inference-time optimization that can be applied to any existing autoregressive model. This plug-and-play nature is what drove its rapid adoption across the open-source ecosystem.[1]

As artificial intelligence moves toward always-on, autonomous agents that monitor real-time video or manage continuous customer service dialogues, memory management is the primary bottleneck. The realization that attention requires a mathematical anchor has provided the exact pressure valve those systems need.[6]
