How RoPE Base Frequency Bounds Dictate Long-Context Retrieval in AI Models

For a language model to retrieve a specific fact from a massive document, the mathematical distance between token five and token fifty thousand must remain distinct. If the positional encoding mechanism loops back on itself, the model goes blind to exact locations. That geometric constraint dictates whether an artificial intelligence can actually read a book or merely skim it.[4]

The dominant mechanism for tracking these locations is Rotary Position Embedding, or RoPE. Introduced in 2021 by researcher Jianlin Su and his colleagues, RoPE abandoned the idea of adding static position vectors to tokens. Instead, it rotates the token's mathematical representation in a high-dimensional space.[1]

Think of these rotations as a series of clock hands moving at different speeds. The fastest hand ticks forward significantly with every single word, allowing the model to understand immediate grammar. The slowest hand barely moves, tracking the token's absolute position across the entire document.[1][4]

The speed of that slowest hand is governed by a single mathematical parameter called the base frequency. In early foundation models, this base was universally set to 10,000. That specific number worked flawlessly when models only needed to read a few pages of text at a time.[1]

"By rotating the affine-transformed word embedding, RoPE achieves a valuable property: the inner product of two tokens depends only on their relative distance," Su and his co-authors wrote in their foundational 2021 paper. That relative distance calculation is what allows the attention mechanism to weigh how much one word should influence another.[1]

The Geometry of Rotary Attention

To understand why the base frequency matters, one must look at how a transformer processes a sequence. When a prompt enters the model, it is chopped into tokens, and each token is assigned a vector of numbers. In a model like Meta's Llama 3, that vector has 4,096 dimensions.[3]

RoPE pairs these dimensions up into 2,048 two-dimensional planes. On each plane, the token's values are treated as coordinates, and RoPE rotates them by a specific angle. The angle depends entirely on the token's position in the sequence and the frequency assigned to that specific plane.[1][3]

The first pair of dimensions gets the highest frequency, rotating rapidly. If token one is at 12 o'clock, token two might be at 6 o'clock. This high-frequency rotation ensures the model never confuses adjacent words, preserving the strict syntactic order of a sentence.[1]

As the algorithm moves down the dimensions, the frequencies decrease exponentially. The final pair of dimensions rotates incredibly slowly. This is the low-frequency anchor, designed to give the model a sense of macro-structure across thousands of words.[1][4]

The base frequency dictates exactly how slow that final rotation is. With a base of 10,000, the wavelength of the lowest-frequency dimension is 2π multiplied by 10,000. That equals approximately 62,831 tokens before the rotation completes a full 360-degree circle.[1][4]

Hitting the Base Frequency Wall

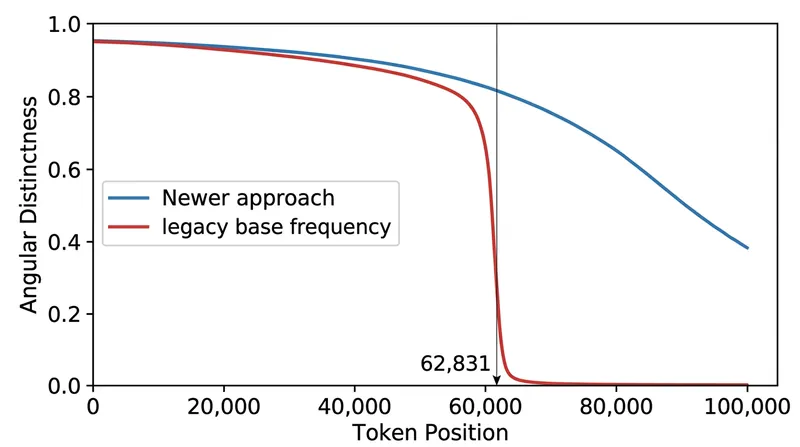

That 62,831-token mark is a hard mathematical wall. If a user pastes a 100,000-token document into a model with a base frequency of 10,000, a critical geometric failure occurs. The slowest clock hand completes its rotation and starts overlapping with its previous positions.[4]

Mathematically, the position embedding for token 1 and token 62,832 become nearly identical in the lowest-frequency dimensions. The attention mechanism, which relies on these angles to calculate relative distance, suddenly cannot distinguish whether a piece of information appeared at the beginning of the document or in the middle.[4]

This overlap is a primary driver of the lost-in-the-middle phenomenon observed in 2023. Researchers noticed that when models were fed long contexts, they could retrieve facts from the very beginning or the very end, but failed completely at extracting information buried in the center.[2]

The failure is not a lack of compute power or training data; it is a geometric certainty. If the coordinate system loops, the map is broken. To build models capable of reading entire codebases or legal archives, engineers had to change the underlying math.[2][4]

"Extrapolating to sequence lengths beyond the training context requires modifying the rotation angles to prevent catastrophic attention degradation," researchers noted in technical reports on context scaling. The solution was to stretch the clock face.[2]

Scaling the Mathematical Wavelength

To prevent the rotations from overlapping, AI laboratories began scaling the base frequency. By increasing the base from 10,000 to 500,000, the maximum wavelength of the lowest-frequency dimension expands from 62,831 tokens to over 3.14 million tokens.[3][4]

Meta adopted this exact approach for Llama 3 in 2024, setting the base frequency to 500,000. This single parameter change allowed the model to maintain distinct positional embeddings across a 128,000-token context window without the lowest dimensions ever completing a full rotation.[3]

Other architectures pushed the boundary even further. Models designed for million-token contexts require base frequencies in the millions. The math scales linearly: a larger base frequency creates a longer wavelength, which creates a larger addressable context space.[2][4]

Models processing up to two million tokens rely on similar geometric stretching. Without these massive base frequencies, their enormous memory buffers would be useless, as the attention mechanism would be unable to index the data it was holding.[4]

However, simply changing the base frequency on an already-trained model destroys its performance. The model's attention layers have learned to expect specific angular distances between tokens. If you suddenly stretch the wavelength, a distance of 10 tokens looks like a distance of 2 tokens, and the model outputs gibberish.[2]

This necessitated the development of advanced scaling techniques like YaRN and NTK-aware scaling. These methods dynamically adjust the frequencies, preserving the high-frequency rotations for local grammar while stretching only the low-frequency rotations to accommodate longer texts.[2]

The Trade-off with Local Precision

Stretching the base frequency is not a free lunch. When you increase the wavelength to support millions of tokens, the angular distance between any two adjacent tokens in the lower dimensions becomes infinitesimally small. The clock hands are moving so slowly that token 50,000 and token 50,001 look identical.[2][4]

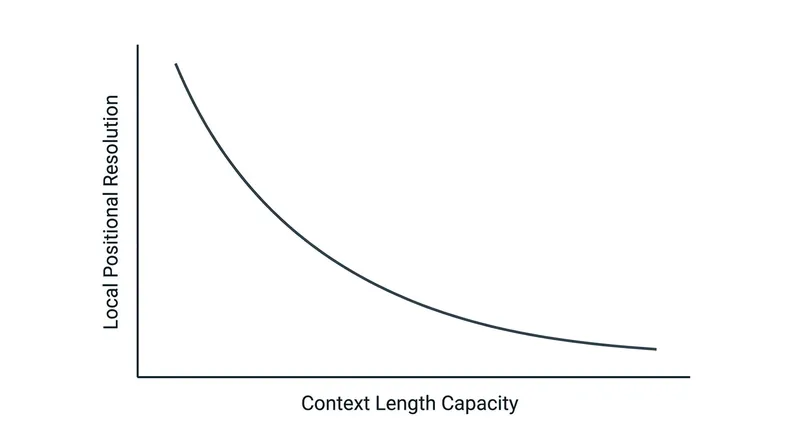

This creates a tension between macro-retrieval and micro-precision. A model with a massive base frequency can successfully locate a specific needle in a haystack of 500,000 tokens. But it might struggle to understand the subtle syntactic relationship between two adjacent words in that needle.[2]

"There is a fundamental trade-off between context length extrapolation and the resolution of local relative positions," the YaRN authors explained in their 2023 paper. If the angles are compressed too tightly, the model's floating-point arithmetic simply cannot resolve the difference.[2]

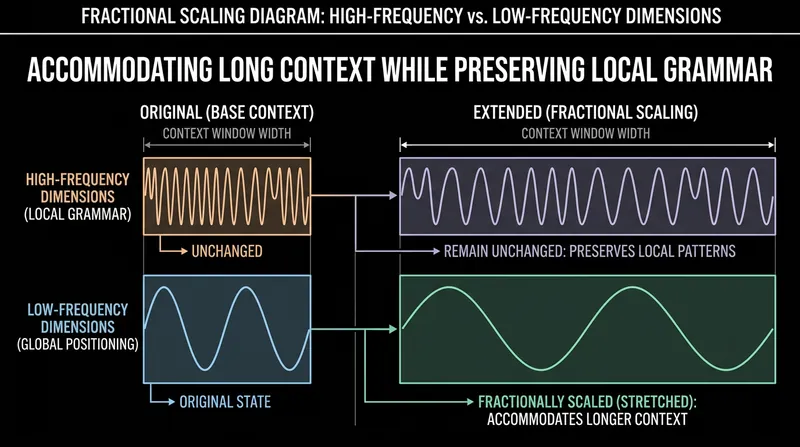

To counter this, modern architectures use fractional scaling. They leave the high-frequency dimensions completely untouched, ensuring that local grammar and syntax remain sharp. They only apply the massive base frequency scaling to the lowest 20 percent of the dimensions.[2][3]

This hybrid approach allows a transformer to maintain its grammatical fluency while expanding its macro-awareness. It is the mathematical equivalent of giving the model both a microscope for adjacent words and a telescope for the document as a whole.[4]

The Geometric Limits of Attention

As the AI industry pushes toward infinite context windows, the base frequency bound remains a central engineering challenge. Hardware memory limits dictate how many tokens a model can process, but RoPE geometry dictates whether the model can actually understand them.[4]

Researchers are now exploring dynamic base frequencies that adjust on the fly based on the exact length of the user's prompt. If a user submits 1,000 tokens, the base stays small for maximum precision. If they submit 100,000, the base expands to prevent overlap.[2][4]

The next frontier involves moving beyond static rotations entirely. Some research groups are testing non-uniform rotational embeddings that learn their own optimal frequencies during training, rather than relying on a hardcoded mathematical formula.[4]

The quest for longer context is a battle against geometry. By understanding and manipulating the rotational wavelengths of position embeddings, engineers have transformed language models from short-term thinkers into systems capable of holding entire libraries in their working memory.[4]
